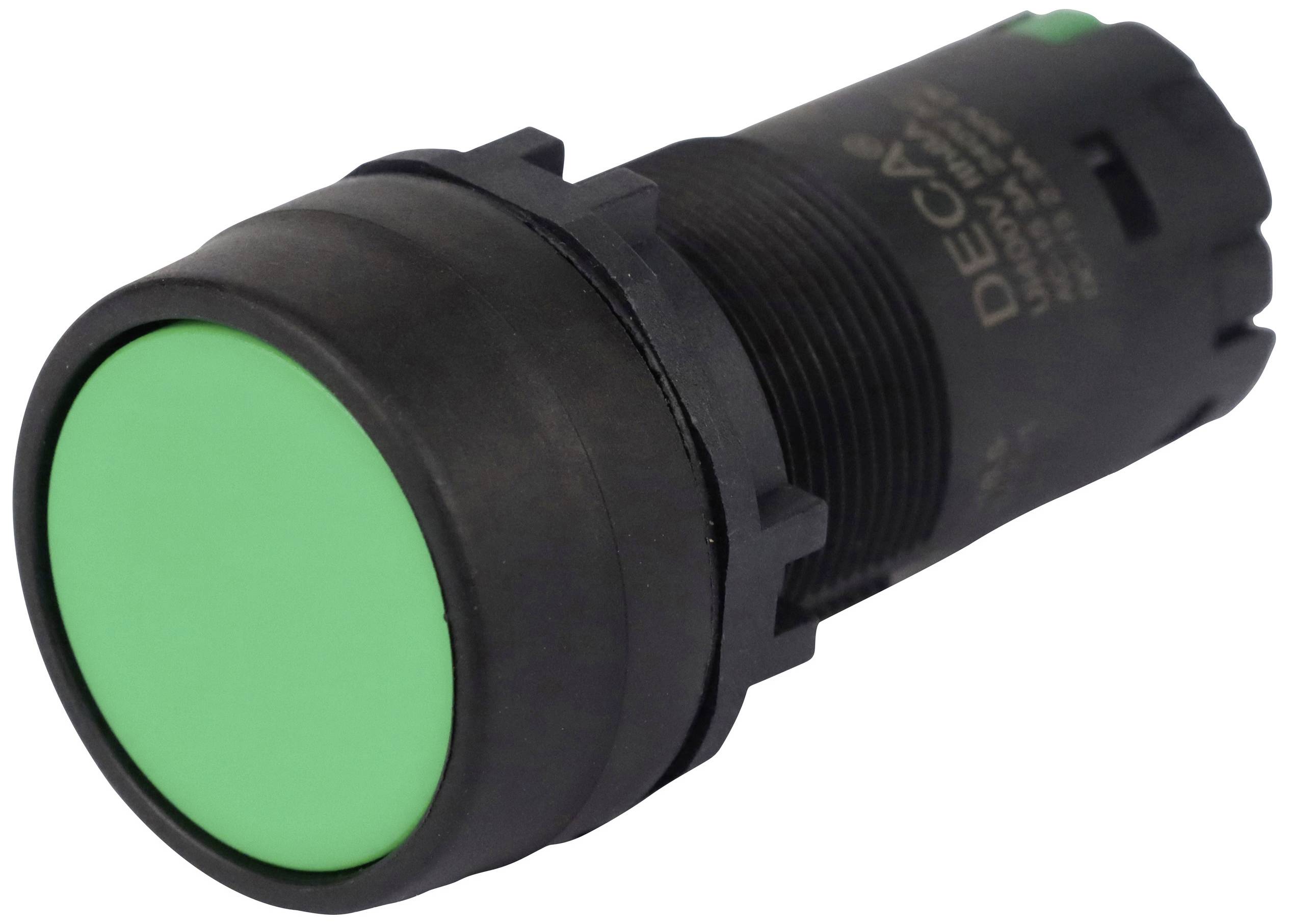

DECA CP2B-A1E10G Pushbutton switch 400 V 8 A Green latch (L x W x H) 29.9 x 20.5 x 55.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton switch
Switching voltage
400 V
Switching current (max.)
8 A
Width
20.5 mm
Recess diameter
22.3 mm
Datasheet (PDF)
Number
Total (€ 5.92 / piece)
€ 5.92
plus VAT.
Highlights & Details
DECA CP2B-A1E10G Pushbutton switch
Our service for you
Technical specifications
- 1NO
- Maintained, Flush
- Wire diameter: 16-26 AWG, 0.2-1.5 mm²
- Stripping length: 8 mm
- Product type
Pushbutton switch
- Casing/button colour
Green
- Functions
latch
- Switching voltage
400 V
- Switching current (max.)
8 A
- Length
29.9 mm
- Width
20.5 mm
- Height
55.5 mm
- Recess diameter
22.3 mm
- Front panel cut-out
1.0-12.0 mm
- Content
1 pc(s)
- Dim
(L x W x H) 29.9 x 20.5 x 55.5 mm
- RoHS-compliant
Yes
- Type
CP2B-A1E10G
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2986669 DECA CP2B-A1E10G Pushbutton switch 400 V 8 A Green latch (L x W x H) 29.9 x 20.5 x 55.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2986669 DECA CP2B-A1E10G Pushbutton switch 400 V 8 A Green latch (L x W x H) 29.9 x 20.5 x 55.5 mm 1 pc(s)
Description
Scope of delivery
- Pushbutton switch
- Nut
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
