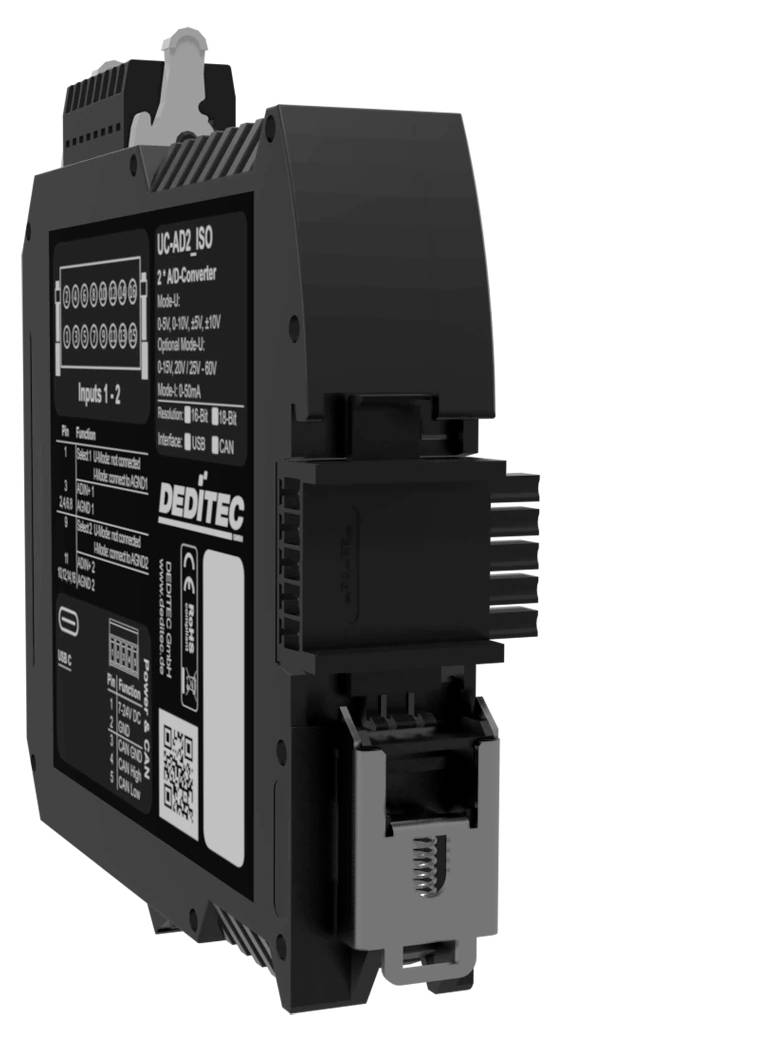

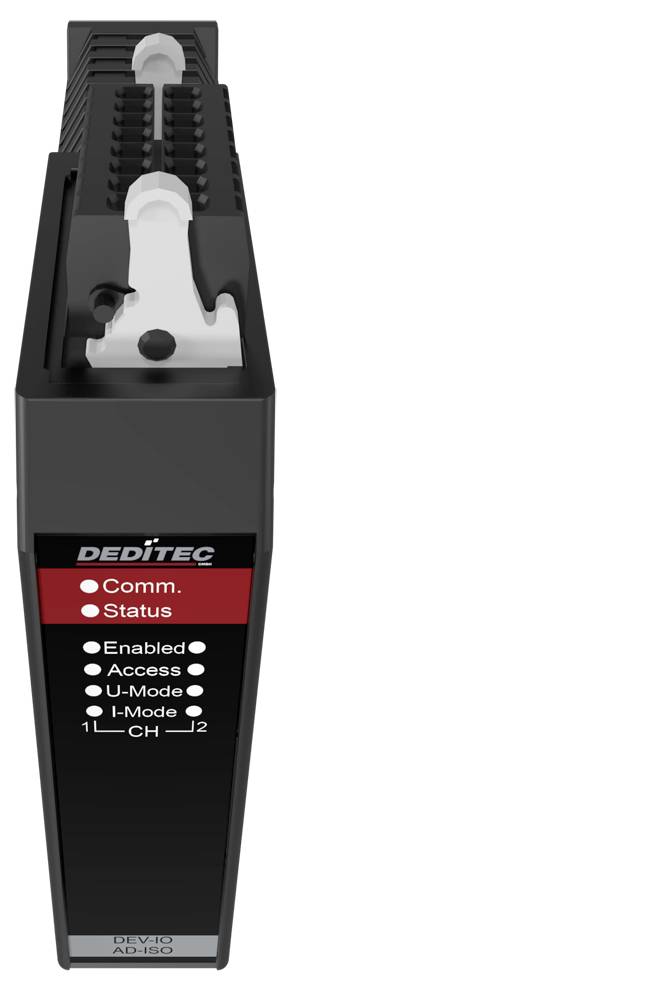

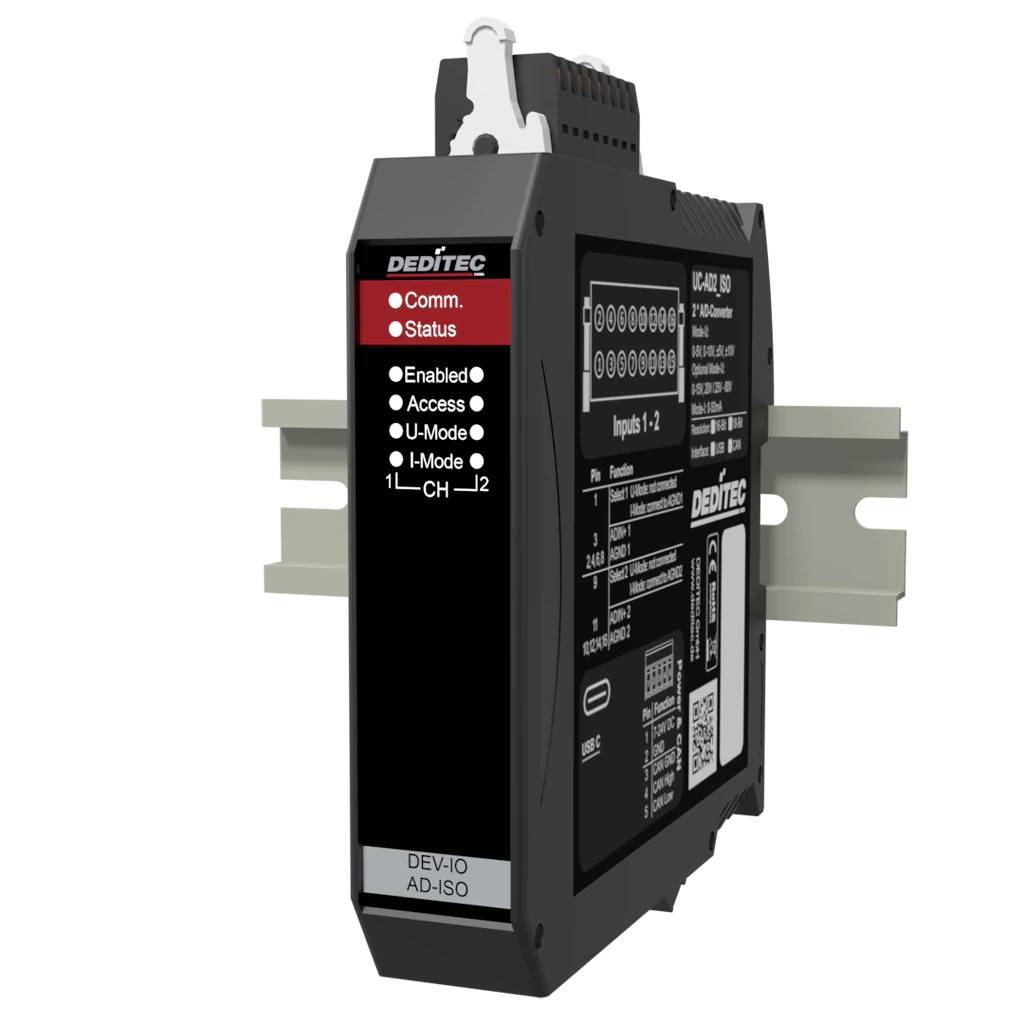

Deditec UC-CAN-U-AD2-16ISO UC-CAN-U-AD2-16ISO Input module CAN bus, USB No. of inputs: 2 x No. of outputs: 0 x I/O numbe
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 646.22 / piece)
€ 646.22
plus VAT.
Highlights & Details
CAN 16-bit A/D industrial module with galvanic separation ideal for test stands - with USB configuration interface
- CAN interface according to ISO 11898
- Open CAN Protocol (RAW CAN)
- Automatic send / receive mode (TX/RX)
- Electrically isolated up to 500 V
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Design: Single ended
- 16-bit resolution of each channel
- 0-5 V, 0-10 V, 0-20 V, 0-40 V, ±5 V, ±10 V, ±20 V, ±40 V
- Current ranges 0-20 mA, 4-20 mA, 0-24 mA
- Galvanic isolation channel to channel: Max. 1 kV AC
- Galvanic isolation for voltage supply: Max. 500 V
- 4 µs conversion rate A/D converter
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Technical specifications
- Galvanic isolation: Up to 1 kV AC (channel-to-channel)
- Conversion time A/D converter 4 µs
- Installation: DIN rail (35 x 7.5 mm)
- Product type
Input module
- Interfaces
CAN bus
USB
- Type
UC-CAN-U-AD2-16ISO
- Operating voltage
12 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
12 - 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
2
- No. of inputs
2 x
- No. of outputs
0 x
- Dim
(W x H) 22.5 mm x 120 mm
- Max. current consumption
100 mA
- Height
120 mm
- Width
22.5 mm
- Manufacturer part #
UC-CAN-U-AD2-16ISO
- Type
Module for rail mounting (DIN-rail) with galvanic separation
- Inputs
2 analogue inputs (single-ended, 16-bit resolution)
- Interfaces
CAN bus (open CAN interface / Auto-RX/TX mode)
USB (for configuration via ICT tool)
- Current consumption
60 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796603 Deditec UC-CAN-U-AD2-16ISO UC-CAN-U-AD2-16ISO Input module CAN bus, USB No. of inputs: 2 x No. of outputs: 0 x I/O numbe
User & Safety Instructions
User & Safety Instructions 3796603 Deditec UC-CAN-U-AD2-16ISO UC-CAN-U-AD2-16ISO Input module CAN bus, USB No. of inputs: 2 x No. of outputs: 0 x I/O numbe
Description
The UC‑CAN A/D module offers 2 electrically isolated 16/18‑bit inputs for precise measurement of voltages and currents via an open CAN interface. Ideal for industrial applications and test stands, e.g. For the acquisition of sensor signals or for the monitoring of process variables. Thanks to Auto-RX/TX mode and rugged design, the module is perfect for reliable measurement tasks in CAN-based systems.
This text is machine translated.
This text is machine translated.
Features
- I mode
- U-Mode
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- USB configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
