Deditec UC-CAN-U-DA2-16ISO UC-CAN-U-DA2-16ISO Level shifter CAN bus, USB No. of inputs: 0 x No. of outputs: 2 x I/O numb
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 609.24 / piece)
€ 609.24
plus VAT.
Highlights & Details

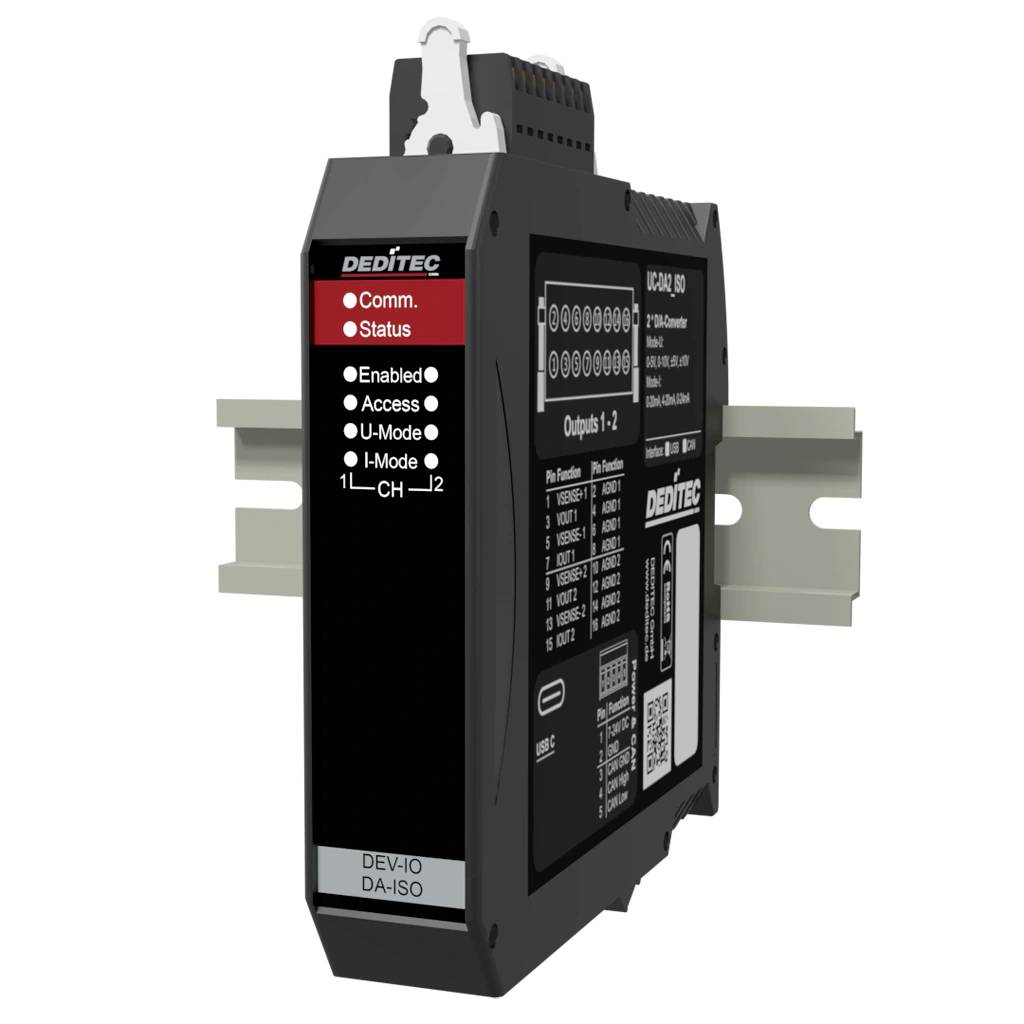

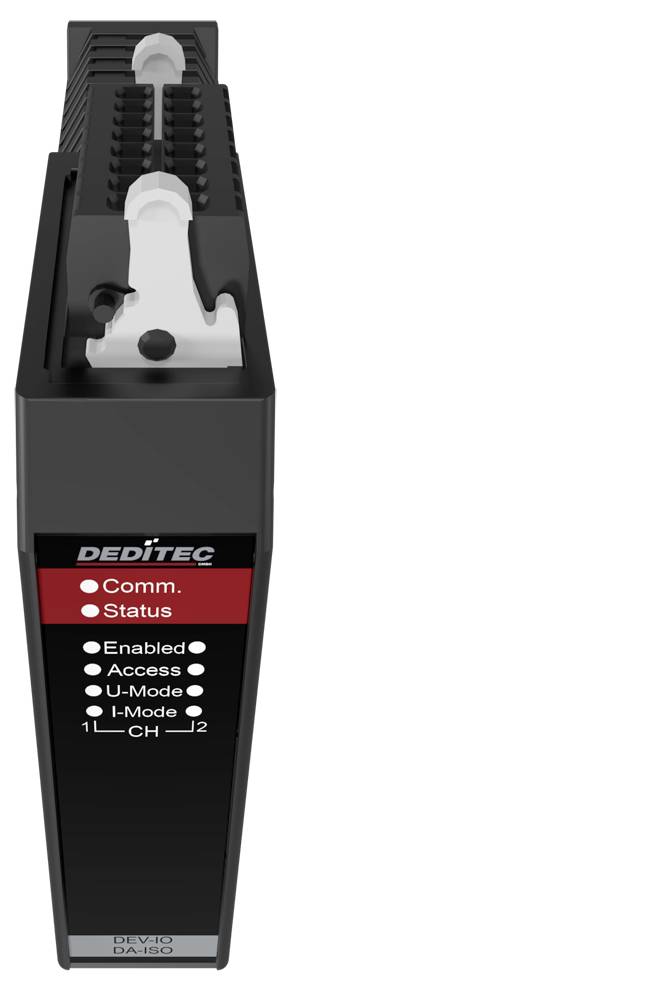

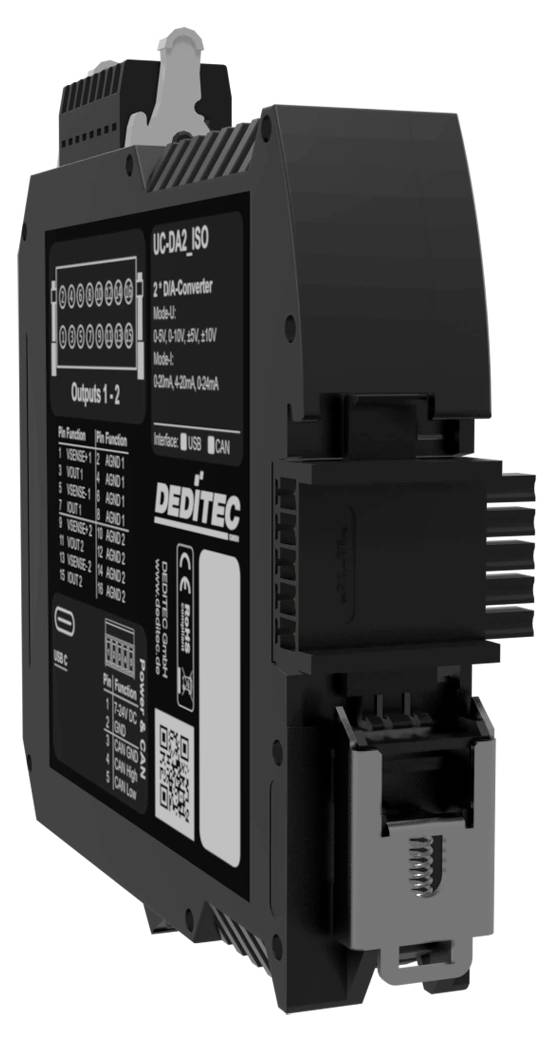

UC-CAN 16-bit D/A converter - 2-channel CAN bus module with galvanic isolation - with USB configuration interface
- CAN D/A converter for analogue setpoint output via CAN bus
- 2 D/A-channels each with 16-bit resolution
- VOLTAGE OUTPUTS: 0–5 V, 0–10 V / 0..10V, ±5 V, ±10 V
- Current outputs 0–20 mA, 4–20 mA, 0–24 mA
- Galvanic isolation of the D/A channels with one another up to max. 1000 V AC
- Galvanic isolation for voltage supply up to max. 500 V AC
- CAN 2.0A / CAN 2.0B with bit rates from 10 kbit/s to 1 Mbit/s.
- Open CAN protocol and Auto-TX/RX mode
- USB-C interface for commissioning and parameter assignment
- Conversion time of the D/A converter: 10–12 µs
- Supply voltage +12 V to +24 V DC
- Mounts on 35 x 7.5 mm top-hat rail
- Two analogue D/A outputs for precise voltage and current signals via CAN-bus
- 16-bit resolution for finely graduated set-point specifications
- Output ranges for common industrial and standard signals such as 0–10 V and 4–20 mA
- Relative accuracy: Min. -16 LSB / max. +16 LSB
- Full scale temperature drift: ±1 ppm / °C.
- Conversion time: 10–12 µs for fast D/A output in control and control applications
- CAN interface via 9-pin D-Sub socket
- CAN 2.0A and CAN 2.0B support
- Galvanically separated CAN interface up to 500 V.
- Open CAN protocol for integration into existing CAN bus architectures
- Auto-TX/RX mode for automatic processing of CAN packets
- USB-C interface with USB 2.0 / USB 1.1 interface up to 480 Mbit/s.
Technical specifications
- Mounting:top hat rail TS 35 x 7.5 mm
- Connection: 16-pin WAGO female multipoint connector (protected against wrong plug-in)
- CAN protocol: Open CAN protocol, Auto-TX/RX mode
- Security: Fail-safe mode in case of loss of communication
- Product type
Level shifter
- Interfaces
CAN bus
USB
- Type
UC-CAN-U-DA2-16ISO
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 V TO 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
2
- No. of inputs
0 x
- No. of outputs
2 x
- Dim
(W x H) 22.5 mm x 120 mm
- Max. current consumption
130 mA
- Height
120 mm
- Width
22.5 mm
- Manufacturer part #
UC-CAN-U-DA2-16ISO
- Type
2-channel CAN-Bus D/A converter module (16-bit) with USB-C configuration interface and galvanic separation
- Outputs
2 x analogue outputs (galvanically isolated, 16-bit resolution)
- Interfaces
CAN Bus (5-pin Phoenix contact)
USB (USB-C for configuration)
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796602 Deditec UC-CAN-U-DA2-16ISO UC-CAN-U-DA2-16ISO Level shifter CAN bus, USB No. of inputs: 0 x No. of outputs: 2 x I/O numb
User & Safety Instructions
User & Safety Instructions 3796602 Deditec UC-CAN-U-DA2-16ISO UC-CAN-U-DA2-16ISO Level shifter CAN bus, USB No. of inputs: 0 x No. of outputs: 2 x I/O numb
Description
The UC-CAN 16-bit D/A converter is a 2-channel CAN bus module for the precise output of analogue setpoints in industry, automation, measurement and control technology. As a CAN-D/A converter, the module converts CAN communication into analogue voltage or current signals and provides two galvanically isolated D/A outputs with 16-bit resolution. It supports 0–5 V, 0–10 V, ±5 V and ±10 V and 0–20 mA, 4–20 mA and 0–24 mA. The conversion time of 10–12 µs enables time-critical control and control tasks, for example for actuators, valves, frequency converters, test stands and distributed CAN systems.
This text is machine translated.
This text is machine translated.
Features
- I mode
- U-Mode
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- USB configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
