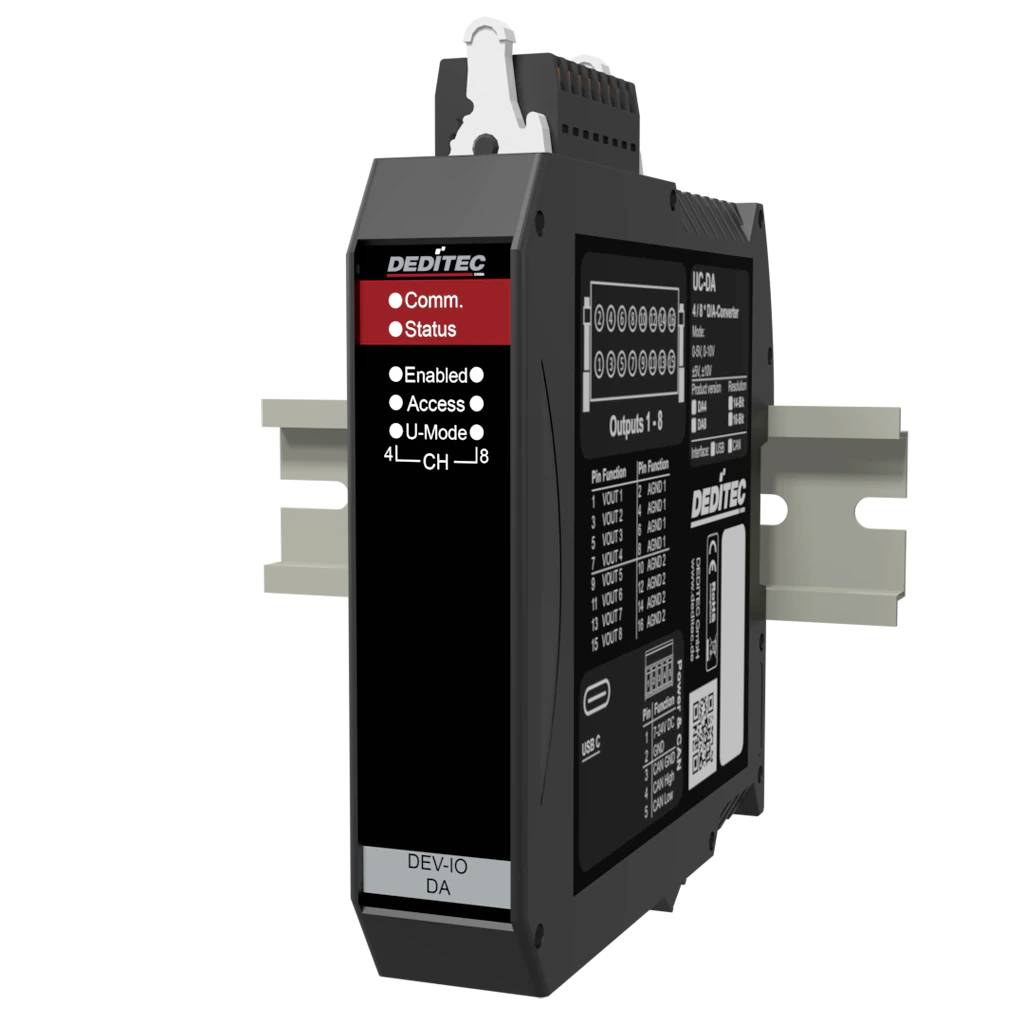

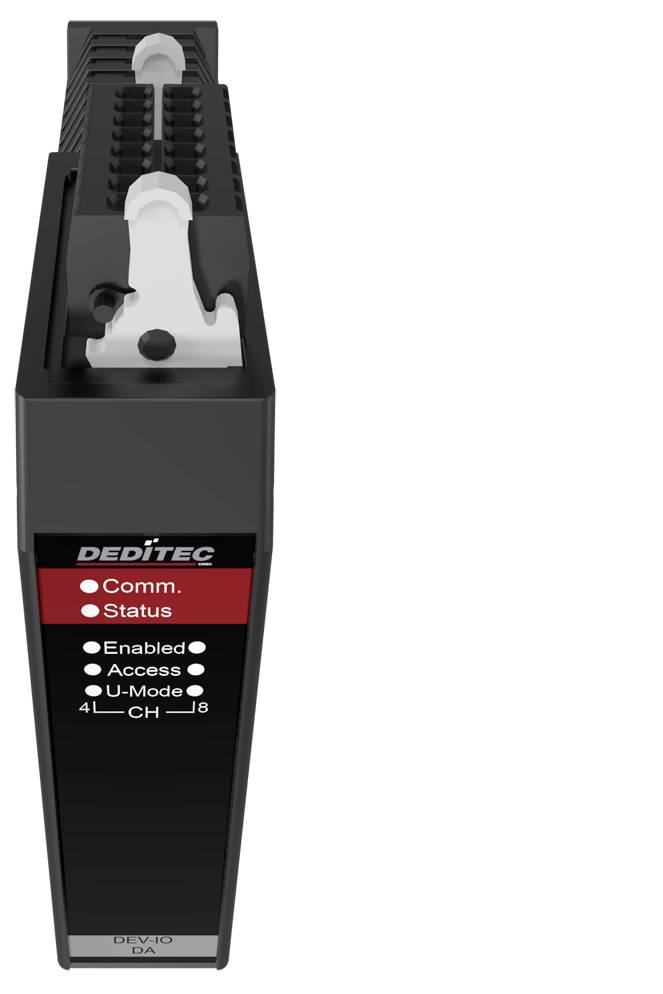

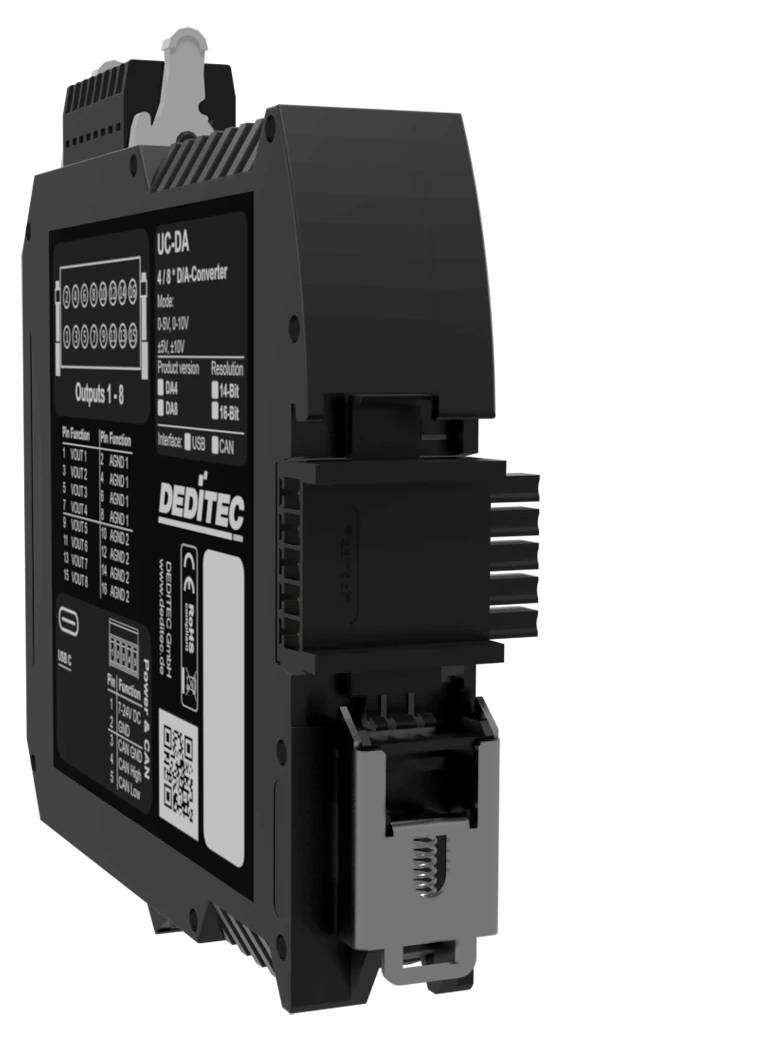

Deditec UC-CAN-U-DA4_16 UC-CAN-U-DA4_16 Output module CAN bus, USB No. of inputs: 0 x No. of outputs: 4 x I/O number: 4
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 410.92 / piece)
€ 410.92
plus VAT.
Highlights & Details
CAN 16-bit D/A analog converter - converts 4 channels - with USB configuration interface
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- CAN interface according to ISO 11898
- Open CAN Protocol (RAW CAN)
- Automatic send / receive mode
- Electrically isolated up to 500 V
- 16-bit resolution of each channel
- 0-5 V, 0-10 V, ±5 V, ±10 V
- Galvanic isolation for voltage supply: Max. 500 V AC
- Conversion time of D/A converter: 10-12 µs
- Load resistance: More or 2 kOhm
Technical specifications
- Mounts on TS 35 x 7.5 mm top-hat rail
- CAN baud rates adjustable from 10 kbit/s to 1 Mbit/s.
- Integrated fail-safe mode (safety status in case of loss of communication)
- Open CAN protocol, Auto-TX/RX mode
- Product type
Output module
- Interfaces
CAN bus
USB
- Type
UC-CAN-U-DA4_16
- Operating voltage
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 V DC to 24 V DC (from voltage supply or rail bus)
- Operating temperature
10 up to 50 °C
- I/O number
4
- No. of inputs
0 x
- No. of outputs
4 x
- Dim
(W x H) 22.5 mm x 120 mm
- Max. current consumption
130 mA
- Height
120 mm
- Width
22.5 mm
- Manufacturer part #
UC-CAN-U-DA4_16
- Type
Rail mounted module (DIN-rail) with galvanically separated CAN-interface and USB configuration
- Outputs
4 analogue outputs (16-bit resolution), galvanically isolated up to 1 kV
- Interfaces
CAN bus (for control/data)
USB (for configuration via Deditec ICT tool)
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796600 Deditec UC-CAN-U-DA4_16 UC-CAN-U-DA4_16 Output module CAN bus, USB No. of inputs: 0 x No. of outputs: 4 x I/O number: 4
User & Safety Instructions
User & Safety Instructions 3796600 Deditec UC-CAN-U-DA4_16 UC-CAN-U-DA4_16 Output module CAN bus, USB No. of inputs: 0 x No. of outputs: 4 x I/O number: 4
Description
The UC‑CAN‑DA4 is a powerful CAN analogue converter with 4 precise D/A channels for output of signal voltages. Ideal for industrial automation and flexible signal provision. Typical applications are the simulation of sensor signals in test benches as well as the control of analog actuators in CAN-based controllers. Robust, galvanically isolated and perfect for demanding measurement and test environments.
This text is machine translated.
This text is machine translated.
Features
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- USB configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
