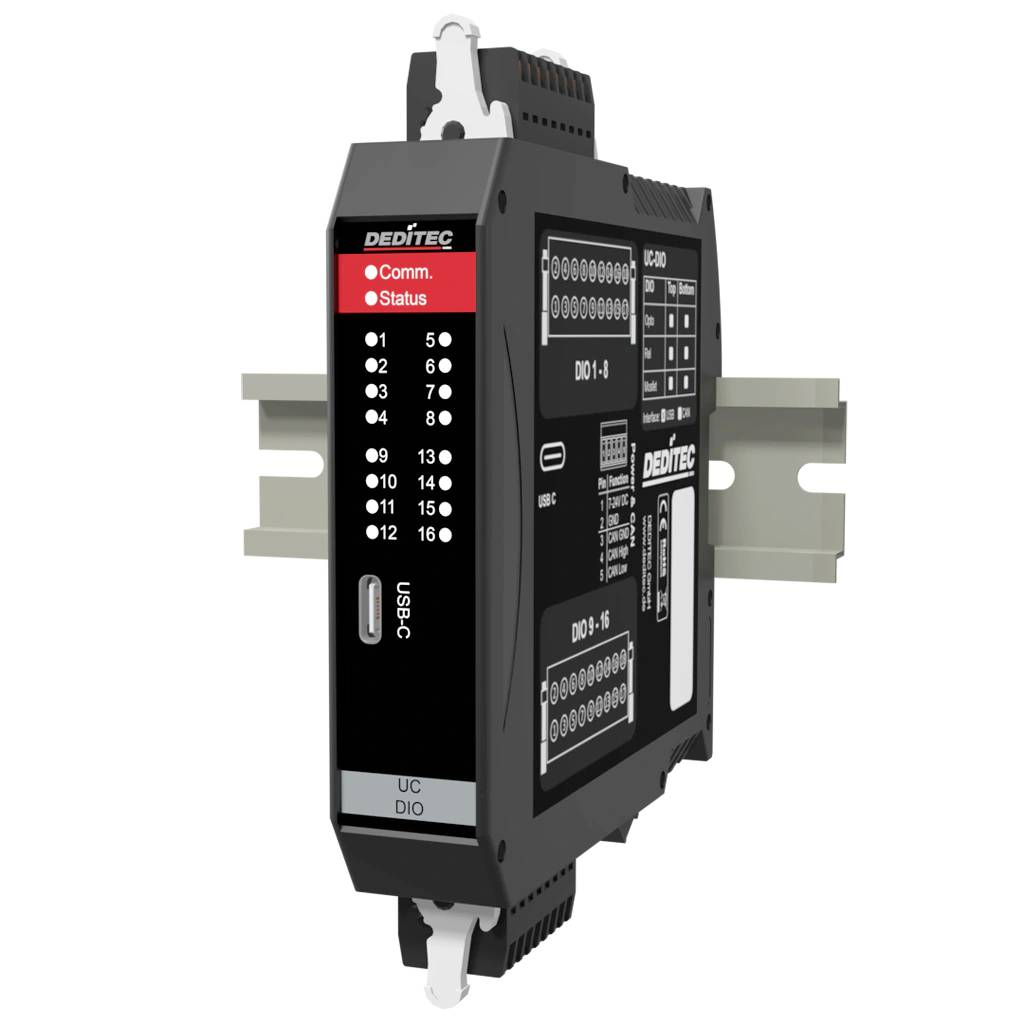

Deditec UC-CAN-U-O8-M8 UC-CAN-U-O8-M8 I/O module CAN bus, USB No. of inputs: 8 x No. of outputs: 8 x I/O number: 16 24 V
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 360.50 / piece)
€ 360.50
plus VAT.
Highlights & Details
CAN Module with 8 DiO EA - can EA DiO module - 8 opto-coupler inputs and 8 digital outputs (MOSFET) - with USB configuration interface
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- CAN interface according to ISO 11898
- Open CAN Protocol (RAW CAN)
- Automatic send / receive mode
- Electrically isolated up to 500 V
- Max. Switching voltage 36 V DC
- Min Switching voltage 2.8 V DC
- Max. Switching current 3 A DC
- Max. Switching capacity 108 W DC
- Timeout-protection function (can be configured via software)
- Status LED for each output
- Type: Optocouplers AC / DC
- Signal level ±5 V to ±15 V or ±15 V to ±30 V.
- 16 bit counter per channel (up to 100Hz)
- Detects a change from Low to High and High to Low Level (Flip-Flop)
- Status LED for each channel
Technical specifications
- Depth: 111 mm
- Humidity: Max. 90% (non-condensing)
- Connection via error plug-protected, plug-in Phoenix Contact spring clamp
- Product type
I/O module
- Interfaces
CAN bus
USB
- Type
UC-CAN-U-O8-M8
- Operating voltage
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 V TO 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
16
- No. of inputs
8 x
- No. of outputs
8 x
- Dim
(W x H) 22.5 mm x 120 mm
- Max. current consumption
130 mA
- Height
120 mm
- Width
22.5 mm
- Manufacturer part #
UC-CAN-U-O8-M8
- Type
DIN rail modules (DIN rail) in a robust housing with galvanic separation
- Outputs
8x digital MOSFET P channel outputs (P-Ch., up to 48 V / 3 A)
- Inputs
8 x digital optocoupler inputs (15 V to 30 V DC)
- Interfaces
CAN bus:
USB (Type B, for configuration via ICT tool)
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796610 Deditec UC-CAN-U-O8-M8 UC-CAN-U-O8-M8 I/O module CAN bus, USB No. of inputs: 8 x No. of outputs: 8 x I/O number: 16 24 V
User & Safety Instructions
User & Safety Instructions 3796610 Deditec UC-CAN-U-O8-M8 UC-CAN-U-O8-M8 I/O module CAN bus, USB No. of inputs: 8 x No. of outputs: 8 x I/O number: 16 24 V
Description
The UC-CAN-U-O8-M8 is a modern CAN EA DiO module with 8 optocoupler inputs and 8 digital outputs (MOSFET). Ideal is suitable for recording sensor signals as well as for switching actuators in industrial applications. Typical application areas are test stands for safe signal processing and automation systems, in which digital inputs and outputs must be controlled reliably via CAN.
This text is machine translated.
This text is machine translated.
Features
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- USB configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector

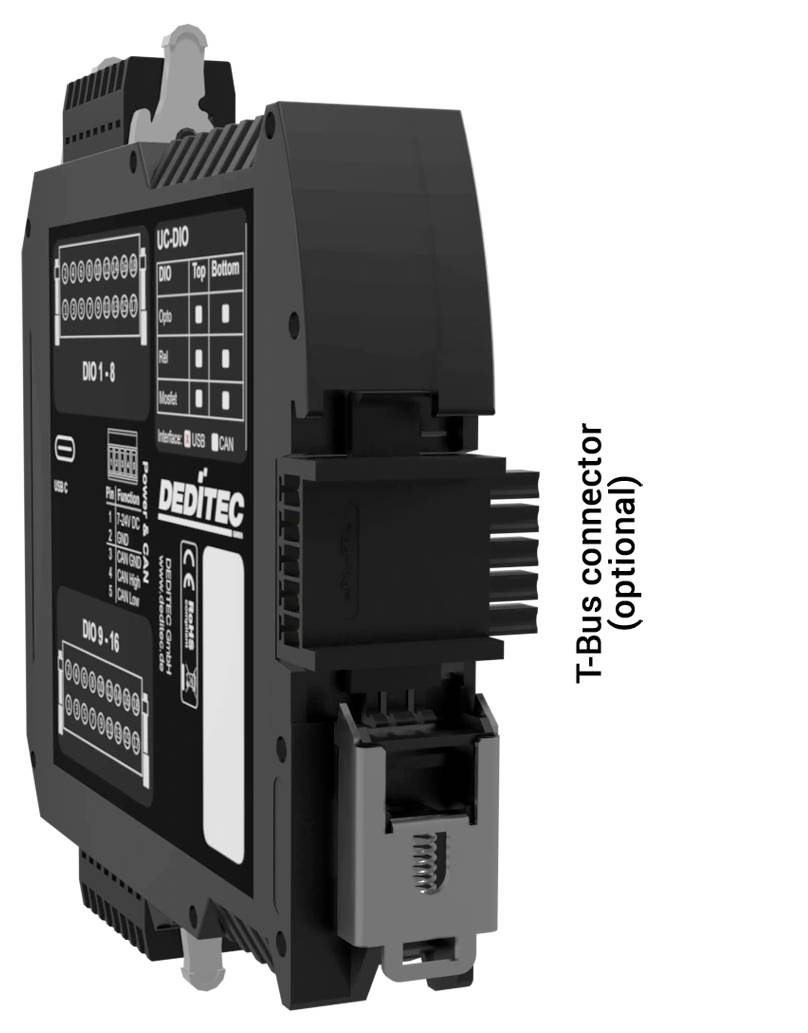

- DIN-rail connector
System requirements
- Windows, Linux
