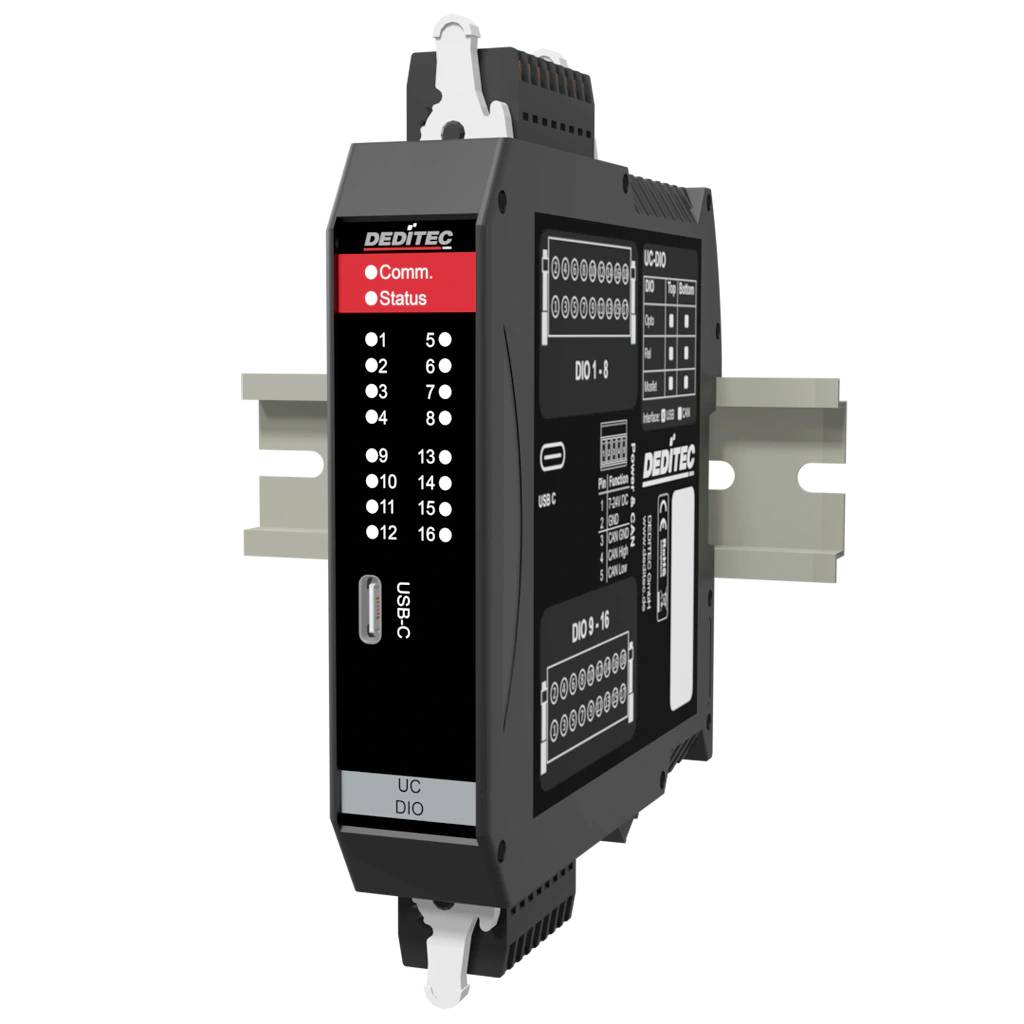

Deditec UC-CAN-U-O8-R8_3A UC-CAN-U-O8-R8_3A I/O module CAN bus, USB No. of inputs: 8 x No. of outputs: 8 x I/O number: 1
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 360.50 / piece)
€ 360.50
plus VAT.
Highlights & Details
CAN module with 8 DiO EA - can EA DiO module - 8 optocoupler inputs and 8 digital outputs (3 A) - with USB configuration interface
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- CAN interface according to ISO 11898
- Open CAN Protocol (RAW CAN)
- Automatic send / receive mode
- Electrically isolated up to 500 V
- Closer (NO)
- Max. SWITCHING VOLTAGE 48 V AC/DC
- Max. SWITCHING CURRENT 3 A AC / DC
- Max. TRANSPORT CURRENT 3 A AC / DC
- Max. breaking capacity 90 W
- Timeout-protection function (can be configured via software)
- Status LED for each output
- Type: Optocouplers AC / DC
- Signal level ±5 V to ±15 V or ±15 V to ±30 V.
- 16 bit counter per channel (up to 100Hz)
- Detects a change from Low to High and High to Low Level (Flip-Flop)
- Status LED for each channel
Technical specifications
- Connection type: Plug-in female multipoint connectors (WAGO / Phoenix Contact) with locking mechanism, 100% polarity reversal protected
- CAN interface: 9-pin D-Sub connector, baud rates of 10 kbit/s up to 1 Mbit/s, open CAN protocol and Auto-TX/RX mode, event control can be configured via ICT tool
- Product type
I/O module
- Interfaces
CAN bus
USB
- Type
UC-CAN-U-O8-R8_3A
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 - 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
16
- No. of inputs
8 x
- No. of outputs
8 x
- Dim
(W x H) 22.5 mm x 120 mm
- Max. current consumption
130 mA
- Height
120 mm
- Width
22.5 mm
- Manufacturer part #
UC-CAN-U-O8-R8_3A
- Type
Compact module for mounting rail / DIN rail mounting (35 x 7.5 mm)
- Outputs
8 x relay outputs (3 A), max. 30 V AC / DC
- Inputs
8x optocoupler inputs (galvanically separated)
- Interfaces
CAN bus (CAN 2.0A / 2.0B, galvanically isolated up to 500 V)
USB-C (USB 2.0 / 1.1 for setup and configuration)
- Current consumption
80 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796611 Deditec UC-CAN-U-O8-R8_3A UC-CAN-U-O8-R8_3A I/O module CAN bus, USB No. of inputs: 8 x No. of outputs: 8 x I/O number: 1
User & Safety Instructions
User & Safety Instructions 3796611 Deditec UC-CAN-U-O8-R8_3A UC-CAN-U-O8-R8_3A I/O module CAN bus, USB No. of inputs: 8 x No. of outputs: 8 x I/O number: 1
Description
The UC-CAN-U-O8-R8_3A is a modern CAN EA DiO module with 8 optocoupler inputs and 8 digital outputs (3 A). Ideal is suitable for recording sensor signals as well as for switching actuators in industrial applications. Typical application areas are test stands for safe signal processing and automation systems, in which digital inputs and outputs must be controlled reliably via CAN.
This text is machine translated.
This text is machine translated.
Features
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- USB configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector

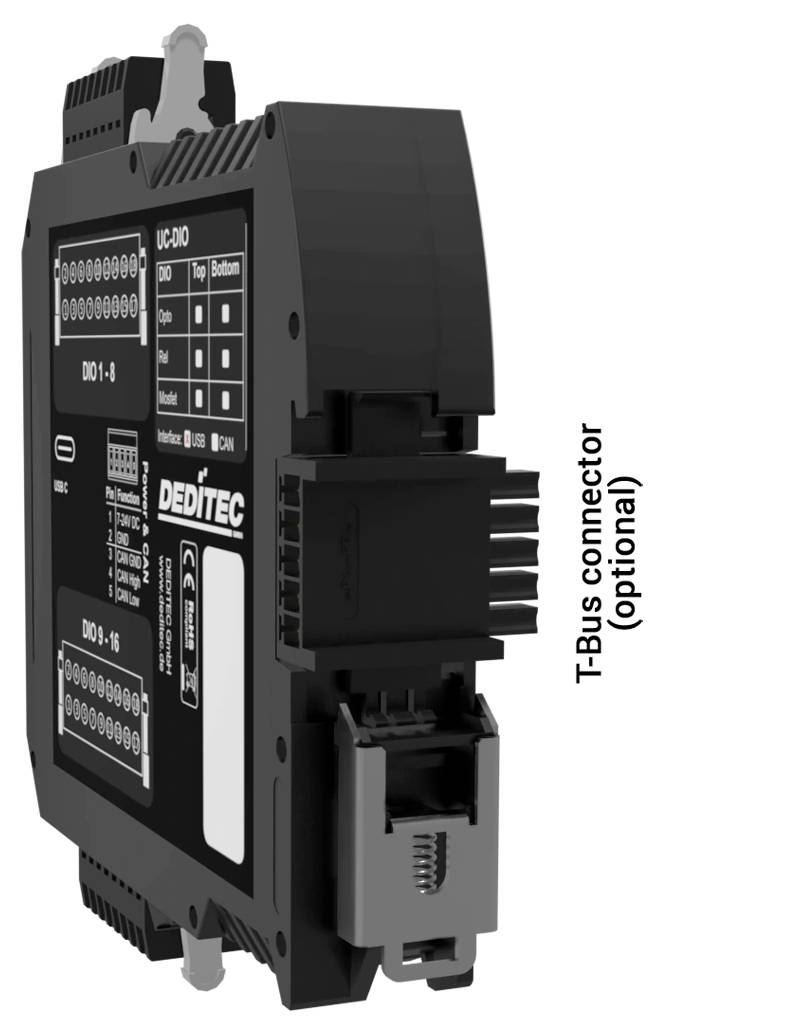

- DIN-rail connector
System requirements
- Windows, Linux
