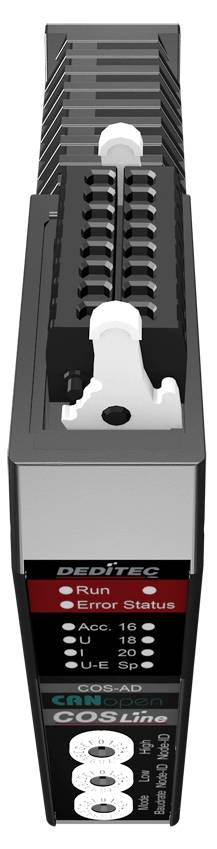

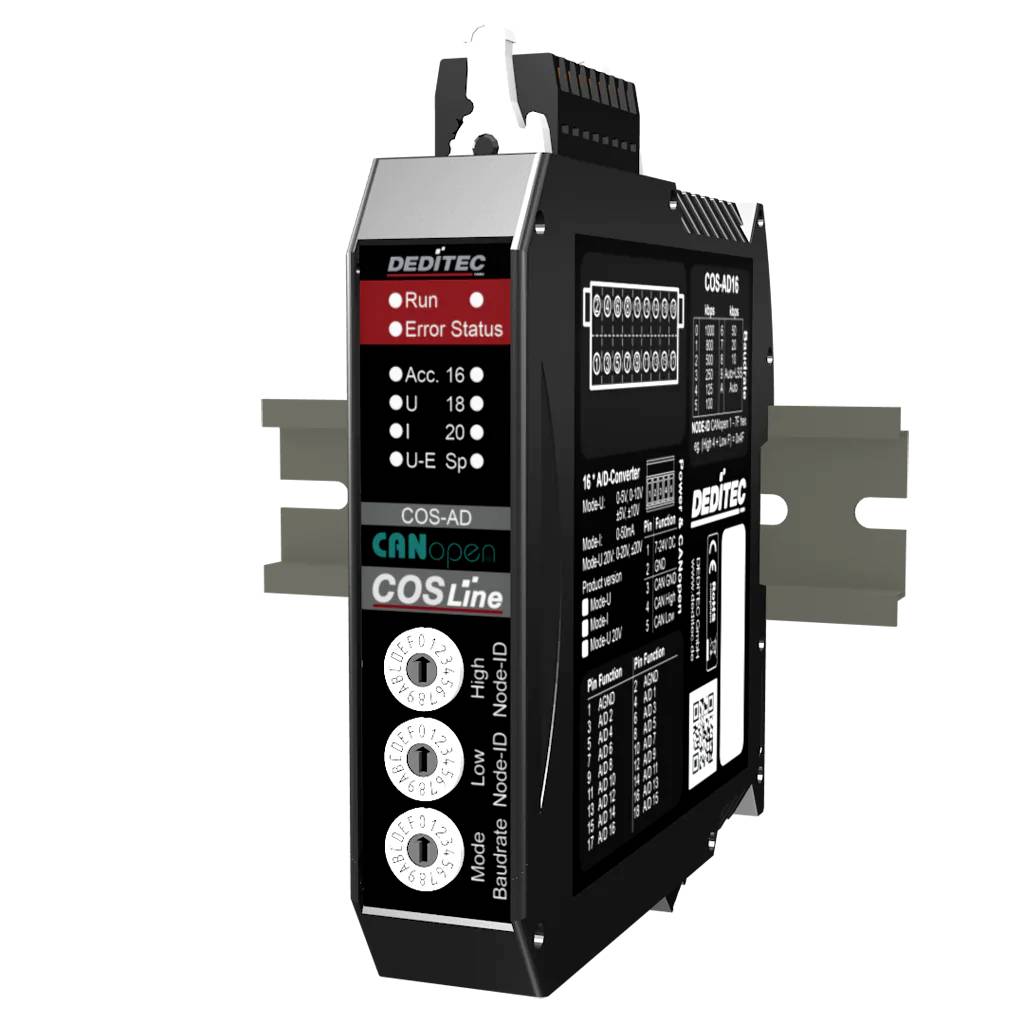

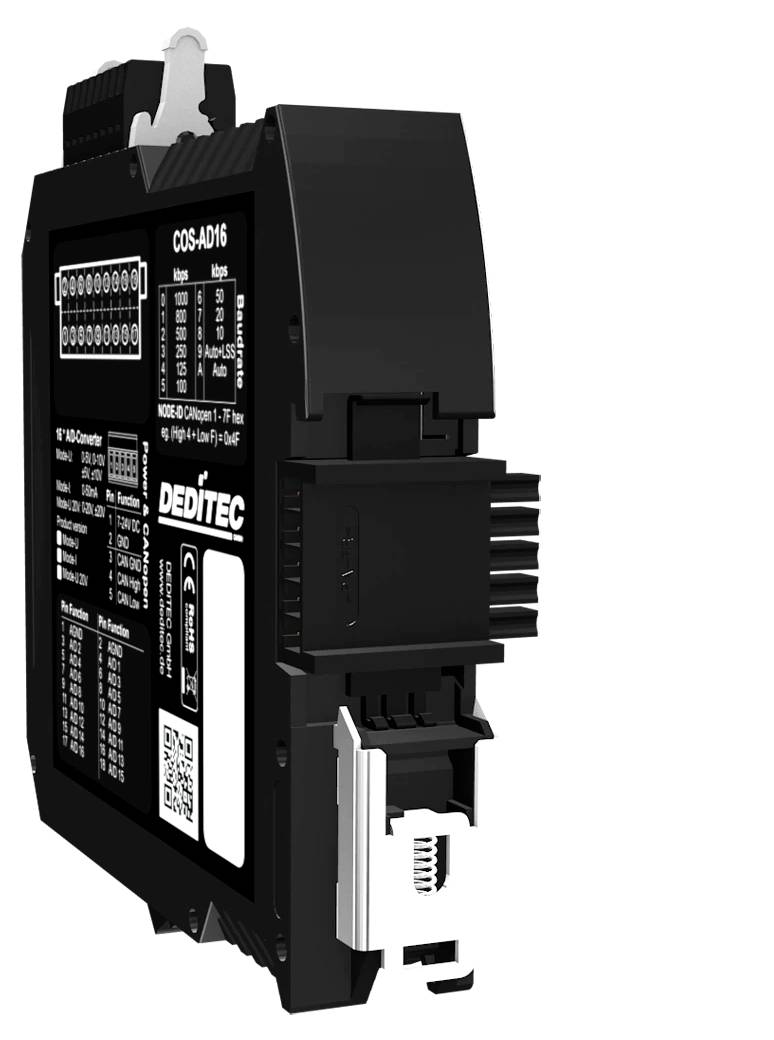

Deditec UC-CANOPEN-AD16-16I UC-CANOPEN-AD16-16I Input module CANopen No. of inputs: 16 x No. of outputs: 0 x I/O number:
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 619.00 / piece)
€ 619.00
incl. VAT
14-day return policy included
Highlights & Details
CANopen AD Current Signal Read * 16 A/D Inputs – Read / Capture Current Signals
- CANopen profiles according to the CIA® specification CIA 301, CIA 305 and CIA 401
- CAN 2.0A OR CAN 2.0B
- Electrically isolated up to 500 V
- Configurable via code switch
- 1 Mbps, 800 Kbps, 500 Kbps, 250 Kbps, 125 Kbps, 100 kbit/s, 50 kbit/s, 20 kbit/s, 10 kbit/s, autobaud
- Design: Single ended
- 16-bit resolution of each channel
- Galvanic isolation for voltage supply: Max. 500 V
- 4 µs conversion rate A/D converter
Technical specifications
- Rail mounting (Mounting rail 35 mm x 7.5 mm)
- Product type
Input module
- Interfaces
CANopen
- Type
UC-CANOPEN-AD16-16I
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 to 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
16
- No. of inputs
16 x
- No. of outputs
0 x
- Dim
(W x H) 22.5 mm x 117 mm
- Max. current consumption
130 mA
- Height
117 mm
- Width
22.5 mm
- Manufacturer part #
UC-CANOPEN-AD16-16I
- Type
Analogue I/O module
- Inputs
16 analogue inputs
- Interfaces
CAN interface, baud rates of 10 kBit/s up to 1 Mbit/s or autobaud
Node ID configurable via code switch or LSS
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796645 Deditec UC-CANOPEN-AD16-16I UC-CANOPEN-AD16-16I Input module CANopen No. of inputs: 16 x No. of outputs: 0 x I/O number:
User & Safety Instructions
User & Safety Instructions 3796645 Deditec UC-CANOPEN-AD16-16I UC-CANOPEN-AD16-16I Input module CANopen No. of inputs: 16 x No. of outputs: 0 x I/O number:
Description
The CANopen AD module enables accurate reading of current signals via high-resolution A/D converters and provides safe signal processing in industrial applications thanks to galvanic isolation. It supports CIA profiles, can be flexibly configured and operates reliably in the network of several CANopen modules. Typical applications are the reading of sensor voltages as well as the monitoring of analogue measurement variables in automation systems.
This text is machine translated.
This text is machine translated.
Features
- Designed for industrial applications in the control cabinet and in distributed automation structures
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Application areas: Engineering, plant automation, test stands, switch cabinet construction, building automation and industrial network controls
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
