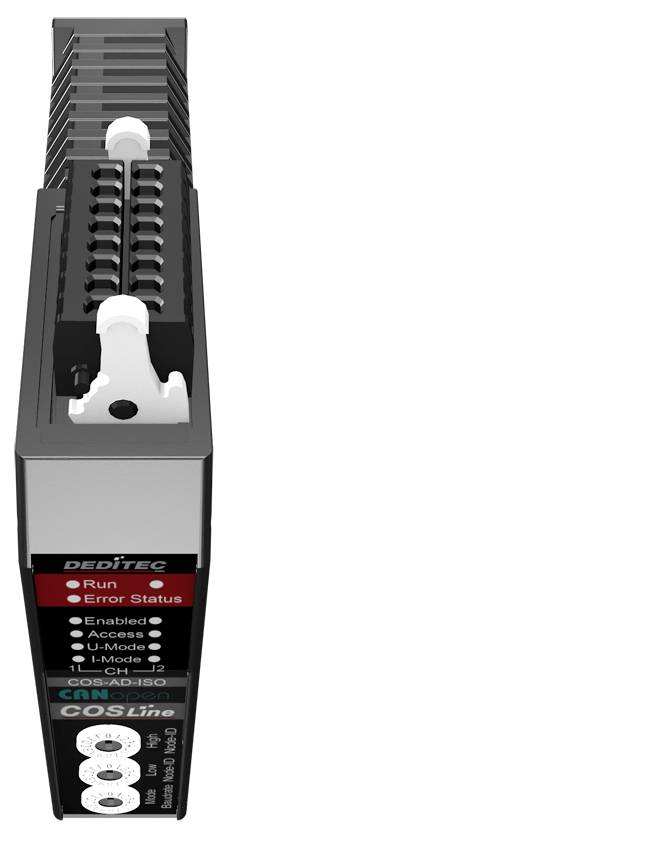

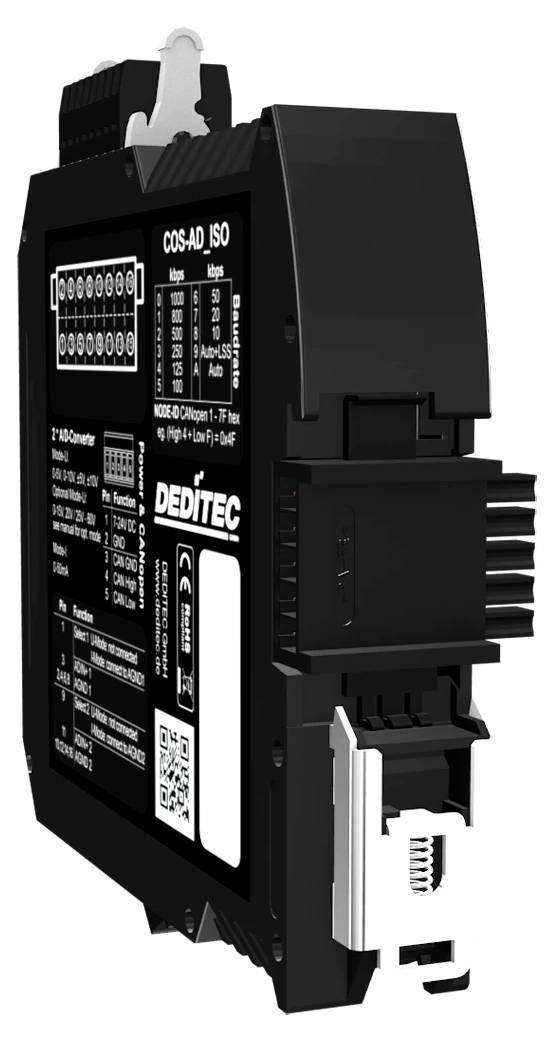

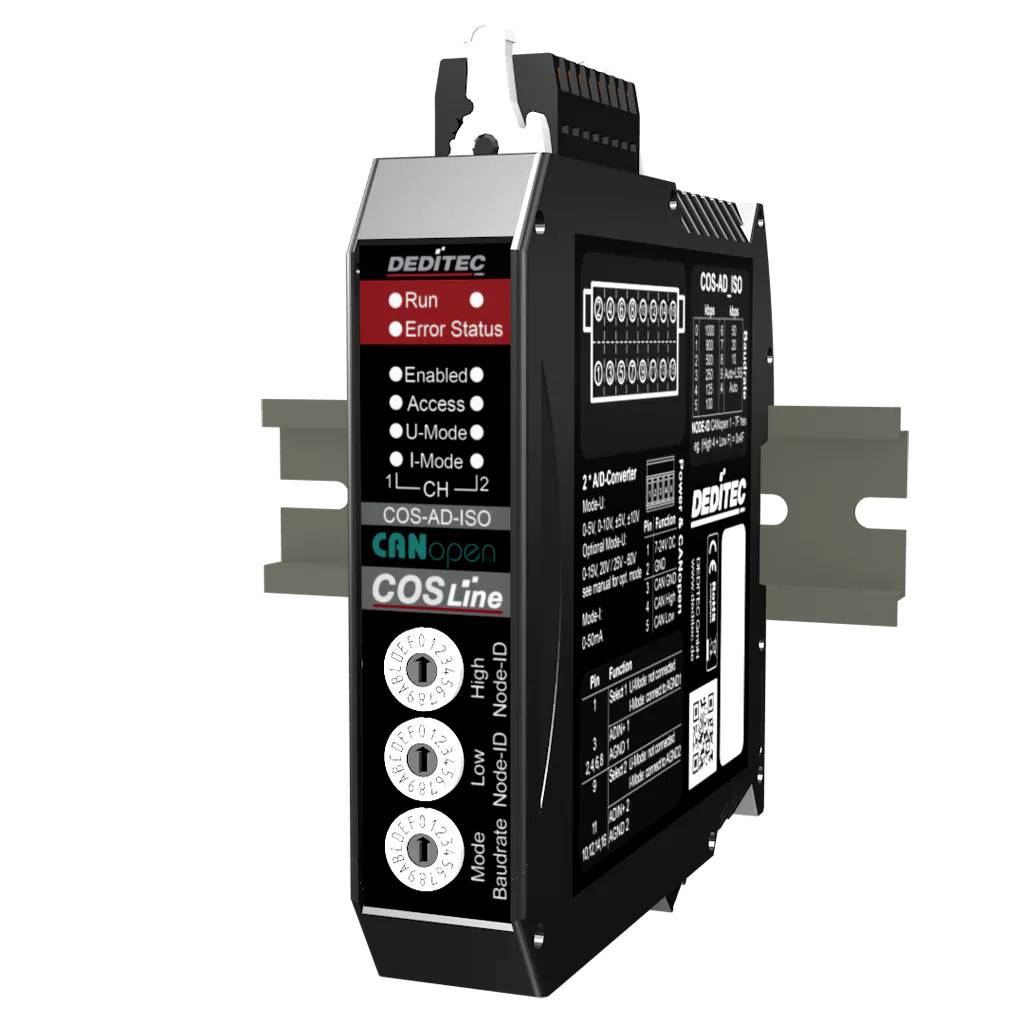

Deditec UC-CANOPEN-AD2-16ISO UC-CANOPEN-AD2-16ISO I/O module CANopen No. of inputs: 2 x No. of outputs: 0 x I/O number:
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 819.00 / piece)
€ 819.00
incl. VAT
14-day return policy included
Highlights & Details
CANopen AD Measuring conductor isolated * 2 A/D channels - 16-bit resolution
- CANopen profiles according to the CIA® specification CIA 301, CIA 305 and CIA 401
- CAN 2.0A OR CAN 2.0B
- Electrically isolated up to 500 V
- Configurable via code switch
- 1 Mbps, 800 Kbps, 500 Kbps, 250 Kbps, 125 Kbps, 100 kbit/s, 50 kbit/s, 20 kbit/s, 10 kbit/s, autobaud
- Design: Single ended
- 16-bit resolution of each channel
- 0-5 V, 0-10 V, 0-20 V, 0-40 V, ±5 V, ±10 V, ±20 V, ±40 V
- Current ranges 0-20 mA, 4-20 mA, 0-24 mA
- Galvanic isolation channel to channel: Max. 1 kV AC
- Galvanic isolation for voltage supply: Max. 500 V
- 4 µs conversion rate A/D converter
Technical specifications
- Rail mounting (Mounting rail 35 mm x 7.5 mm)
- Product type
I/O module
- Interfaces
CANopen
- Type
UC-CANOPEN-AD2-16ISO
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 to 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
2
- No. of inputs
2 x
- No. of outputs
0 x
- Dim
(W x H) 22.5 mm x 120 mm
- Max. current consumption
130 mA
- Height
120 mm
- Width
22.5 mm
- Manufacturer part #
UC-CANOPEN-AD2-16ISO
- Type
Analogue input module for rail mounting with galvanic isolation
- Inputs
2 analogue inputs (voltage/current)
- Interfaces
CAN bus (galvanically isolated via opto couplers)
In-Rail Bus connector
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796643 Deditec UC-CANOPEN-AD2-16ISO UC-CANOPEN-AD2-16ISO I/O module CANopen No. of inputs: 2 x No. of outputs: 0 x I/O number:
User & Safety Instructions
User & Safety Instructions 3796643 Deditec UC-CANOPEN-AD2-16ISO UC-CANOPEN-AD2-16ISO I/O module CANopen No. of inputs: 2 x No. of outputs: 0 x I/O number:
Description
The UC‑CANopen‑AD2‑16ISO module captures precise AD measured values via two 16‑bit channels and can capture these safely and with low interference isolation. The integration into CANopen networks in accordance with the CIA standard enables reliable integration into industrial systems. Typical application areas are the recording of analog sensor signals as well as the monitoring of process values in automation systems.
This text is machine translated.
This text is machine translated.
Features
- Designed for industrial applications in the control cabinet and in distributed automation structures
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Application areas: Engineering, plant automation, test stands, switch cabinet construction, building automation and industrial network controls
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
