Deditec UC-CANOPEN-DA2-16ISO UC-CANOPEN-DA2-16ISO Output module CANopen No. of inputs: 0 x No. of outputs: 2 x I/O numbe
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 585.00 / piece)
€ 585.00
incl. VAT
14-day return policy included
Highlights & Details
CANopen DA voltage output module * 2 analog outputs – 16-bit D/A converter with galvanic isolation
- CANopen profiles according to the CIA® specification CIA 301, CIA 305 and CIA 401
- CAN 2.0A OR CAN 2.0B
- Electrically isolated up to 500 V
- Configurable via code switch
- 1 Mbps, 800 Kbps, 500 Kbps, 250 Kbps, 125 Kbps, 100 kbit/s, 50 kbit/s, 20 kbit/s, 10 kbit/s, autobaud
- 16-bit resolution of each channel
- 0-5 V, 0-10 V, ±5 V, ±10 V
- Current ranges 0-20 mA, 4-20 mA, 0-24 mA
- Galvanic isolation channel to channel: Max. 1 kV AC
- Galvanic isolation for voltage supply: Max. 500 V AC
- Load resistance: ≥ 1 kOhm
- All D/A channels galvanically separated from each other
Technical specifications
- Rail mounting (Mounting rail 35 mm x 7.5 mm)
- CANopen Profile: CIA® specification CIA 301, CIA 305 and CIA 401
- Product type
Output module
- Interfaces
CANopen
- Type
UC-CANOPEN-DA2-16ISO
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 to 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
2
- No. of inputs
0 x
- No. of outputs
2 x
- Dim
(W x H) 22.5 mm x 117 mm
- Max. current consumption
130 mA
- Height
117 mm
- Width
22.5 mm
- Manufacturer part #
UC-CANOPEN-DA2-16ISO
- Type
2-channel analogue output module with 16-bit resolution and galvanic isolation
- Outputs
2 Channels each with 16-bit resolution
- Interfaces
CAN bus (galvanically isolated via optocoupler, max. 500V insulation)
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796646 Deditec UC-CANOPEN-DA2-16ISO UC-CANOPEN-DA2-16ISO Output module CANopen No. of inputs: 0 x No. of outputs: 2 x I/O numbe
User & Safety Instructions
User & Safety Instructions 3796646 Deditec UC-CANOPEN-DA2-16ISO UC-CANOPEN-DA2-16ISO Output module CANopen No. of inputs: 0 x No. of outputs: 2 x I/O numbe
Description

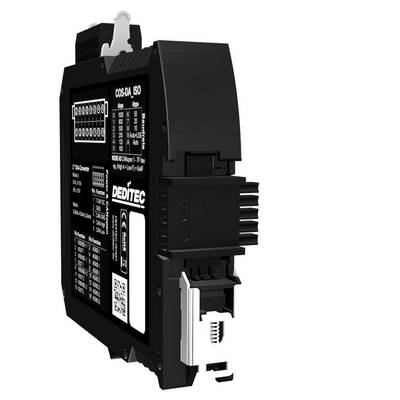

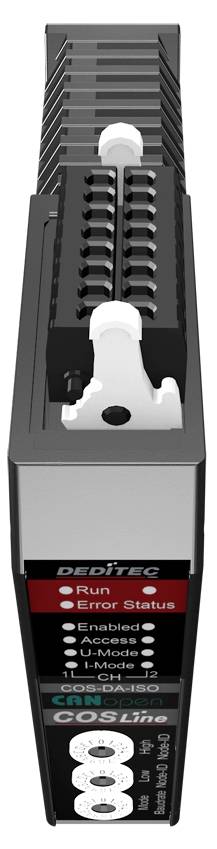

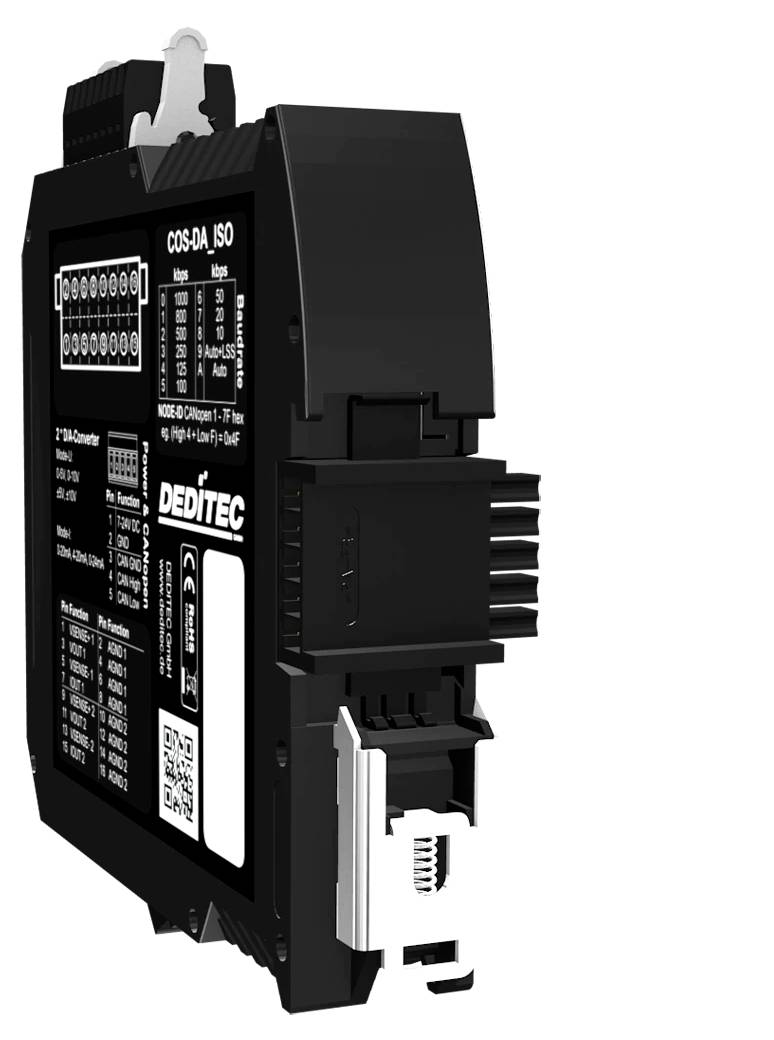

The UC‑CANopen‑DA2‑16ISO is a precise DA‑voltage output module with two 16‑bit channels for reliable control of analog actuators. It integrates seamlessly into industrial networks via CANopen and offers high operational reliability thanks to galvanic separation. Ideal for precise valve control and output of defined control signals in automation and test bench applications.
This text is machine translated.
This text is machine translated.
Features
- Designed for industrial applications in the control cabinet and in distributed automation structures
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism

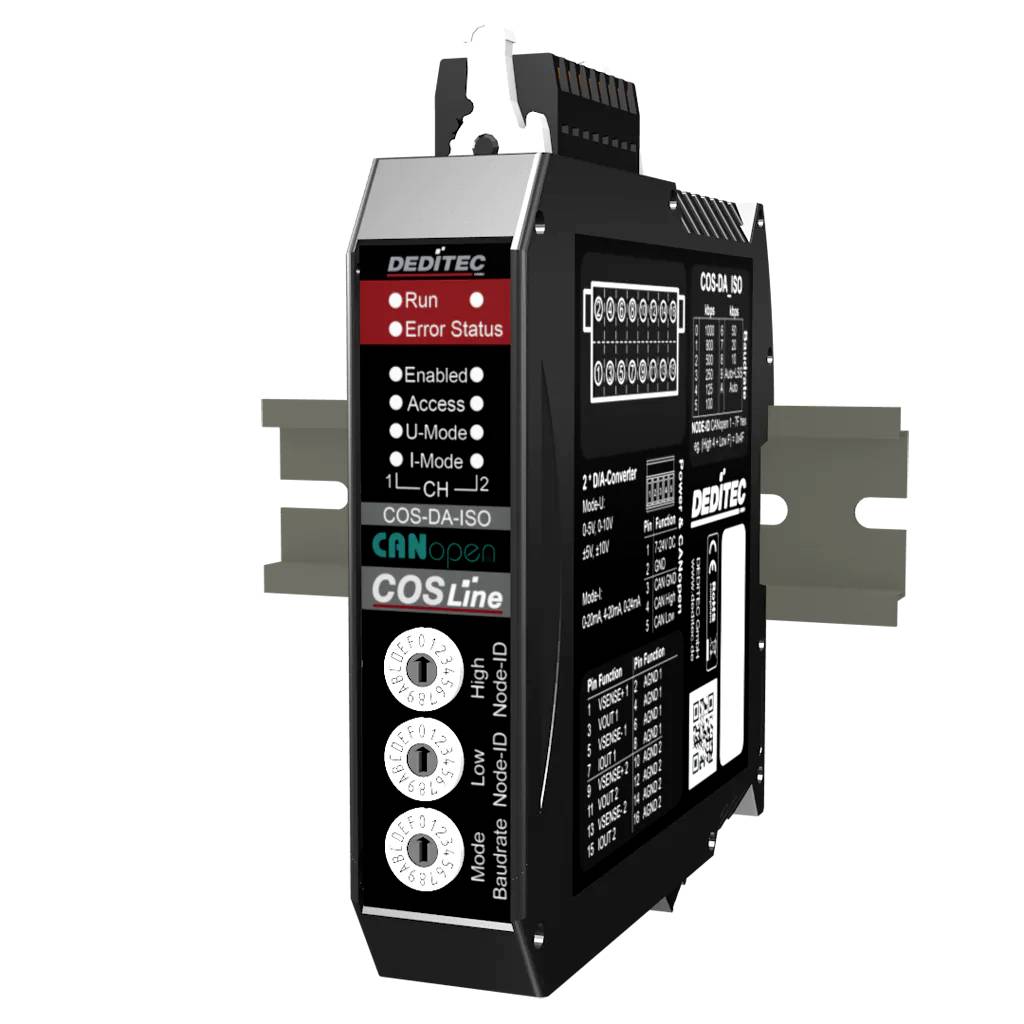

- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Application areas: Engineering, plant automation, test stands, switch cabinet construction, building automation and industrial network controls
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
