Deditec UC-CANOPEN-DA8_16 UC-CANOPEN-DA8_16 Output module CANopen, CAN bus No. of inputs: 0 x No. of outputs: 8 x I/O nu
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 945.00 / piece)
€ 945.00
incl. VAT
14-day return policy included
Highlights & Details
CANopen remote EA DA DAC module with 8 analogue outputs
- CANopen profiles according to the CIA® specification CIA 301, CIA 305 and CIA 401
- CAN 2.0A OR CAN 2.0B
- Electrically isolated up to 500 V
- Configurable via code switch
- 1 Mbps, 800 Kbps, 500 Kbps, 250 Kbps, 125 Kbps, 100 kbit/s, 50 kbit/s, 20 kbit/s, 10 kbit/s, autobaud
- 16-bit resolution of each channel
- 0-5 V, 0-10 V, ±5 V, ±10 V
- Galvanic isolation for voltage supply: Max. 500 V AC
- Conversion time of D/A converter: 10-12 µs
- Load resistance: ≥ 2 kOhm
Technical specifications
- Rail mounting (Mounting rail 35 mm x 7.5 mm)
- Node ID: Configurable by code switch or LSS
- Product type
Output module
- Interfaces
CANopen
CAN bus
- Type
UC-CANOPEN-DA8_16
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 to 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
8
- No. of inputs
0 x
- No. of outputs
8 x
- Dim
(W x H) 22.5 mm x 117 mm
- Max. current consumption
130 mA
- Height
117 mm
- Width
22.5 mm
- Manufacturer part #
UC-CANOPEN-DA8_16
- Type
DIN rail / DIN rail module
- Outputs
8 Channels each with 16-bit resolution
- Interfaces
CAN bus, galvanically separated via opto couplers
CANopen profile with CiA-Specifications CiA 301, CiA 305 and CiA 401
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796651 Deditec UC-CANOPEN-DA8_16 UC-CANOPEN-DA8_16 Output module CANopen, CAN bus No. of inputs: 0 x No. of outputs: 8 x I/O nu
User & Safety Instructions
User & Safety Instructions 3796651 Deditec UC-CANOPEN-DA8_16 UC-CANOPEN-DA8_16 Output module CANopen, CAN bus No. of inputs: 0 x No. of outputs: 8 x I/O nu
Description

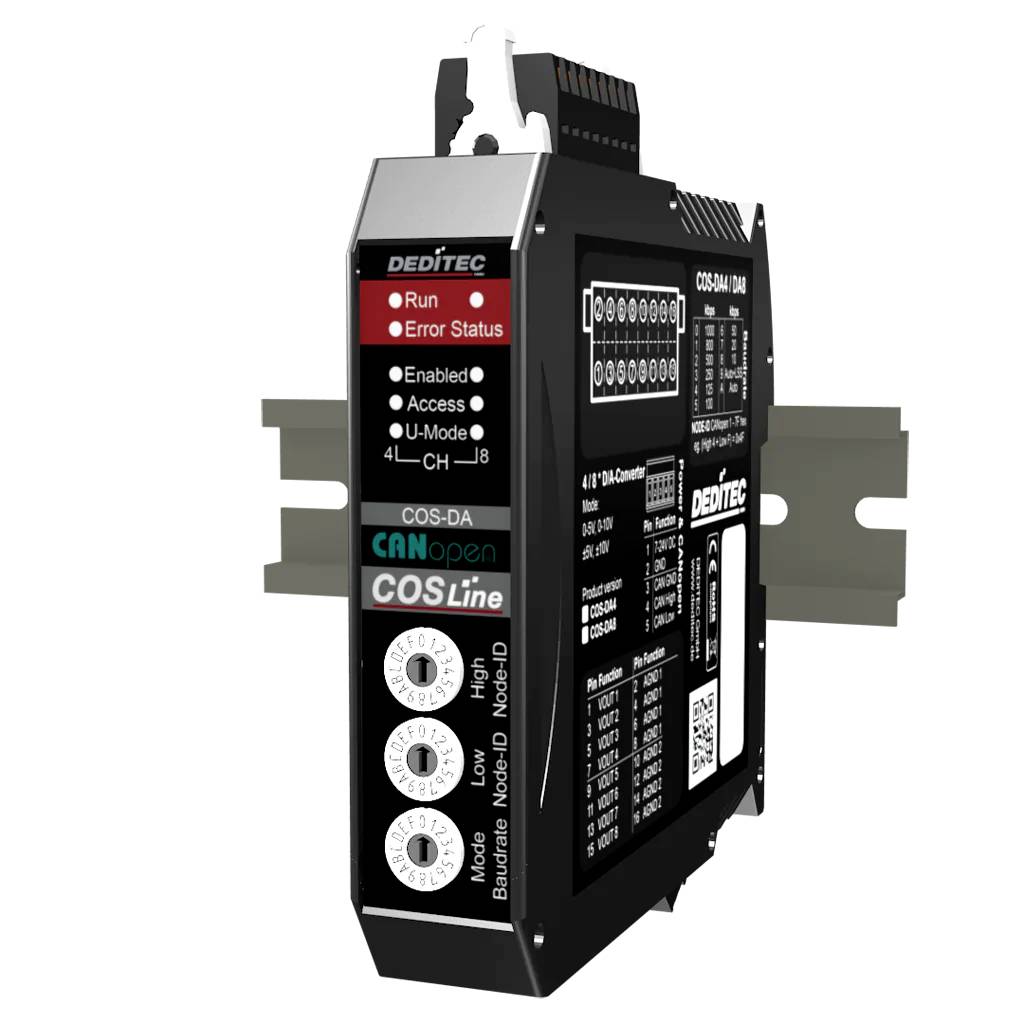

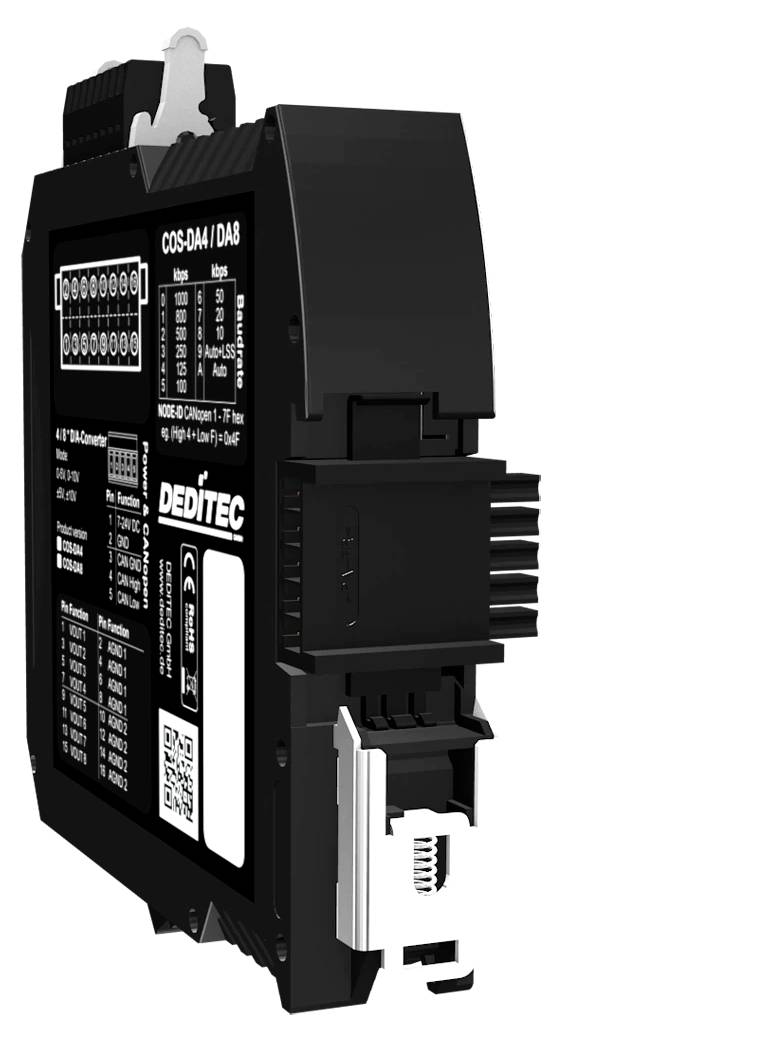

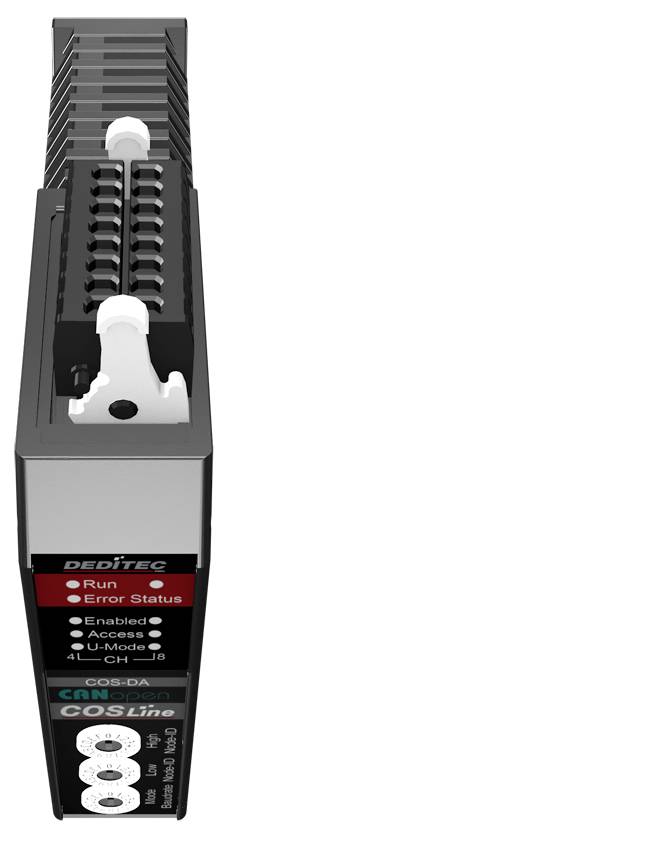

The UC‑CANopen‑DA8‑16ISO is a precise CANopen Remote I/O D/A DAC module with 8 galvanically isolated 16‑bit output channels for precise output of analog voltage signals. It integrates seamlessly into CANopen networks and offers high signal stability for demanding industrial environments. Typical application areas are the precise actuator control as well as the simulation of analogue signals in testing and automation systems.
This text is machine translated.
This text is machine translated.
Features
- Designed for industrial applications in the control cabinet and in distributed automation structures
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Application areas: Engineering, plant automation, test stands, switch cabinet construction, building automation and industrial network controls
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
