Deditec UC-CANOPEN-DIO8 UC-CANOPEN-DIO8 I/O module CANopen No. of inputs: 8 x No. of outputs: 8 x I/O number: 8 7 V DC,
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 259.66 / piece)
€ 259.66
plus VAT.
Highlights & Details
CANopen digital IO DiO module with 8 digital inputs/outputs
- CANopen digital IO DiO module with 8 digital inputs/outputs
- 8 DiO-channels, separately configurable as input or output via CAN
- Digital inputs for 3.3 V to 36 V DC
- Reference voltage input for determining the high/low switching threshold
- Plus-switching high-side outputs for 5.5 V to 36 V DC
- Max. Switching current per output 3 A DC
- Max. Switching capacity per output 60 W DC
- CANopen according to CiA 301, CiA 305 and CiA 401
- CAN 2.0A OR CAN 2.0B
- Galvanically separated CANopen interface up to 500 V.
- Baud rates from 10 kbit/s up to 1 Mbit/s as well as autobaud
- Node ID and baud rate configurable via coding switch
- Supply as stand alone device: +7 V DC to +24 V DC
- DIN rail assembly 35 x 7.5 mm
- Optional module network via DIN-rail bus connector
Technical specifications
- Operating temperature: +10°C to + +50°C.
- Rail mounting (Mounting rail 35 mm x 7.5 mm)
- Product type
I/O module
- Interfaces
CANopen
- Type
UC-CANOPEN-DIO8
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 to 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
8
- No. of inputs
8 x
- No. of outputs
8 x
- Dim
(W x H) 22.5 mm x 117 mm
- Max. current consumption
130 mA
- Height
117 mm
- Width
22.5 mm
- Manufacturer part #
UC-CANOPEN-DIO8
- Type
Compact I/O module for DIN rail mounting for modern automation technology
- Outputs
High side driver (plus switching) with integrated over current and over temperature protection
- Inputs
Input voltage 3.3 V to 36 V DC
- Interfaces
CAN bus, galvanically separated via opto couplers
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796647 Deditec UC-CANOPEN-DIO8 UC-CANOPEN-DIO8 I/O module CANopen No. of inputs: 8 x No. of outputs: 8 x I/O number: 8 7 V DC,
User & Safety Instructions
User & Safety Instructions 3796647 Deditec UC-CANOPEN-DIO8 UC-CANOPEN-DIO8 I/O module CANopen No. of inputs: 8 x No. of outputs: 8 x I/O number: 8 7 V DC,
Description

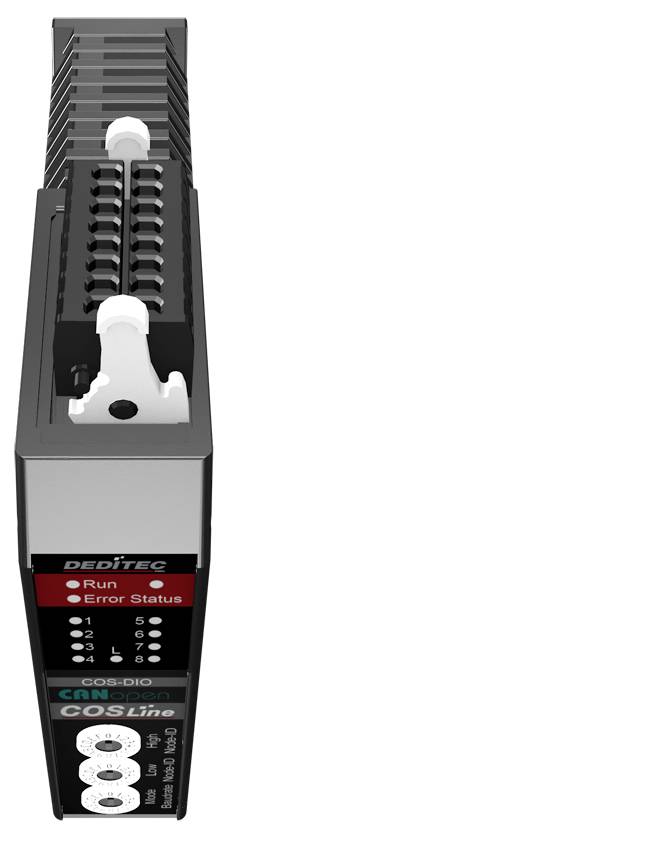

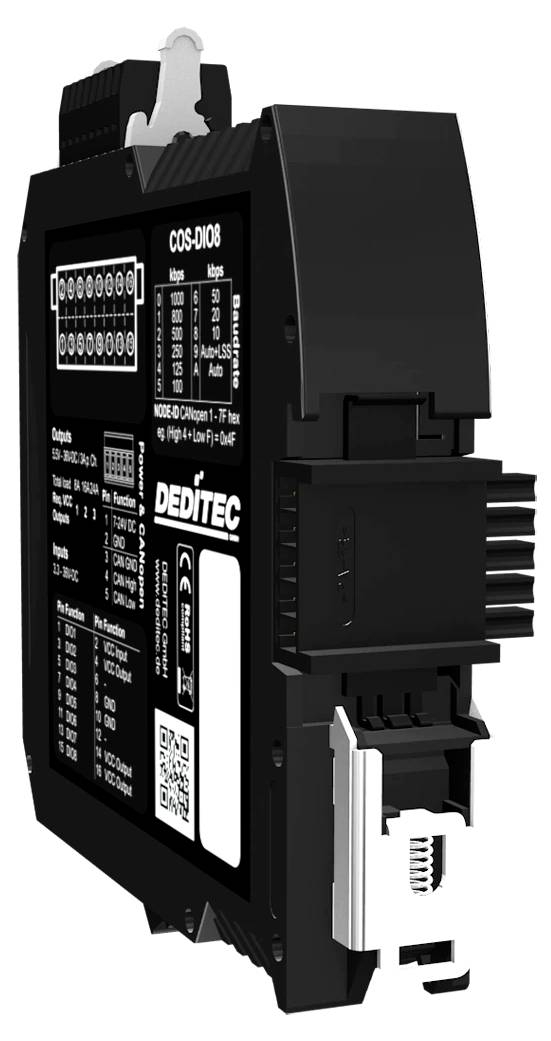

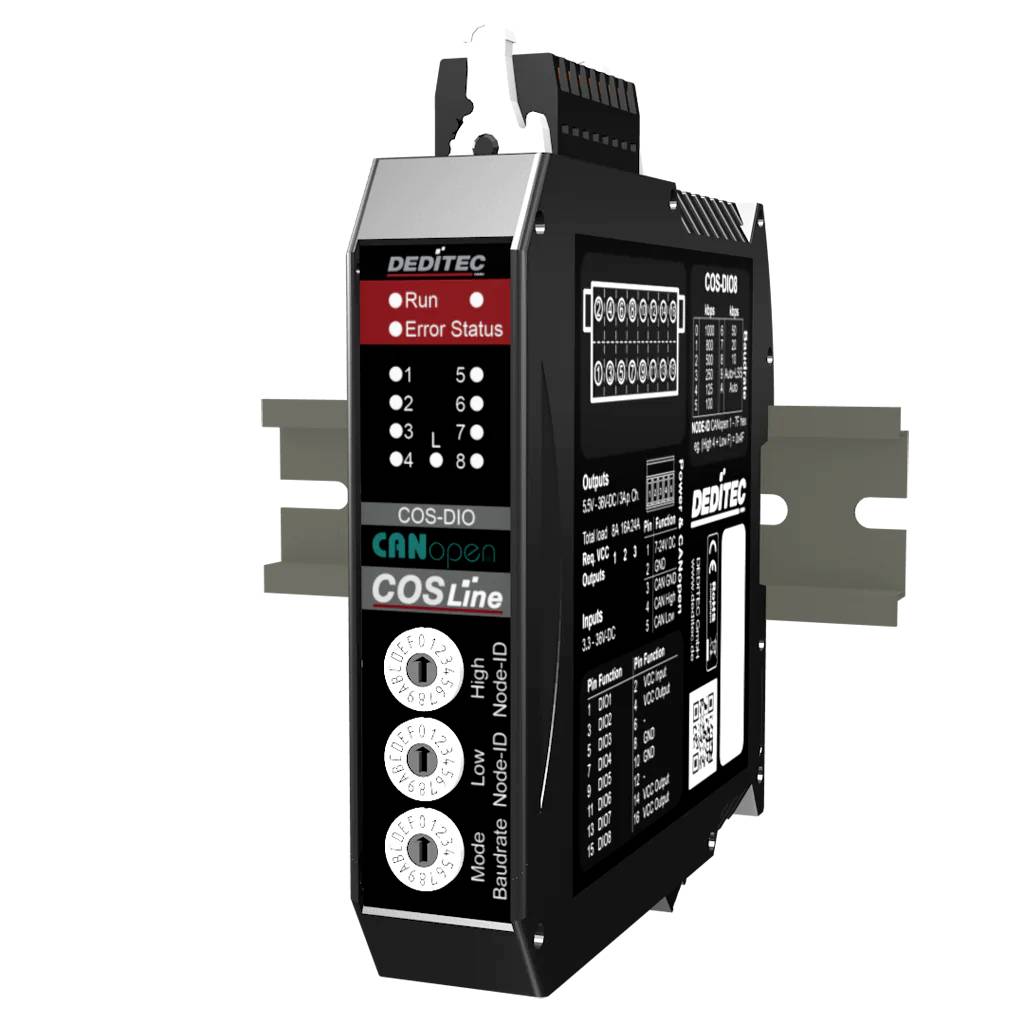

The UC-CANOPEN-DIO8 is a CANopen digital IO module for 8 digital inputs/outputs that can be configured on channels as an input or plus-switching high-side output. The CANopen Remote I/O module detects and switches digital signals in CANopen-based PLC/PLC environments, machine controls, process controls and test bench systems. CANopen communication according to CIA 301, CIA 305 and CIA 401 supports standardized integration into industrial automation networks.
This text is machine translated.
This text is machine translated.
Features
- Designed for industrial applications in the control cabinet and in distributed automation structures
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Application areas: Engineering, plant automation, test stands, switch cabinet construction, building automation and industrial network controls
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
