Deditec UC-CANOPEN-REL16_5A UC-CANOPEN-REL16_5A I/O module CANopen No. of inputs: 0 x No. of outputs: 16 x I/O number: 1
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 452.94 / piece)
€ 452.94
plus VAT.
Highlights & Details

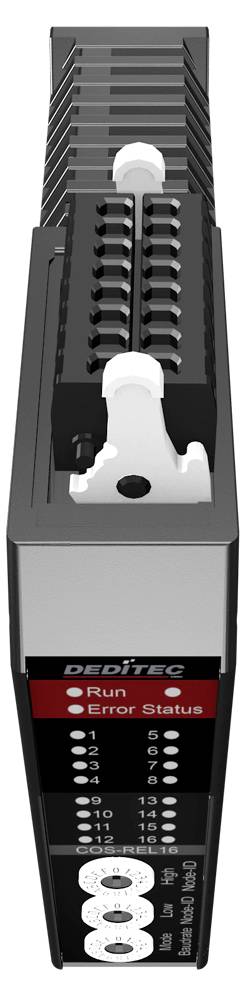

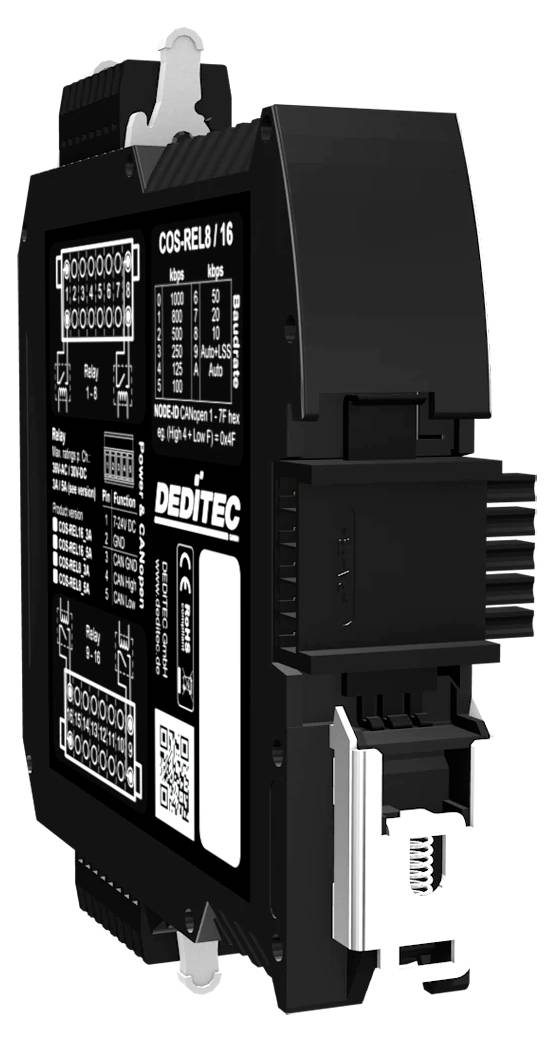

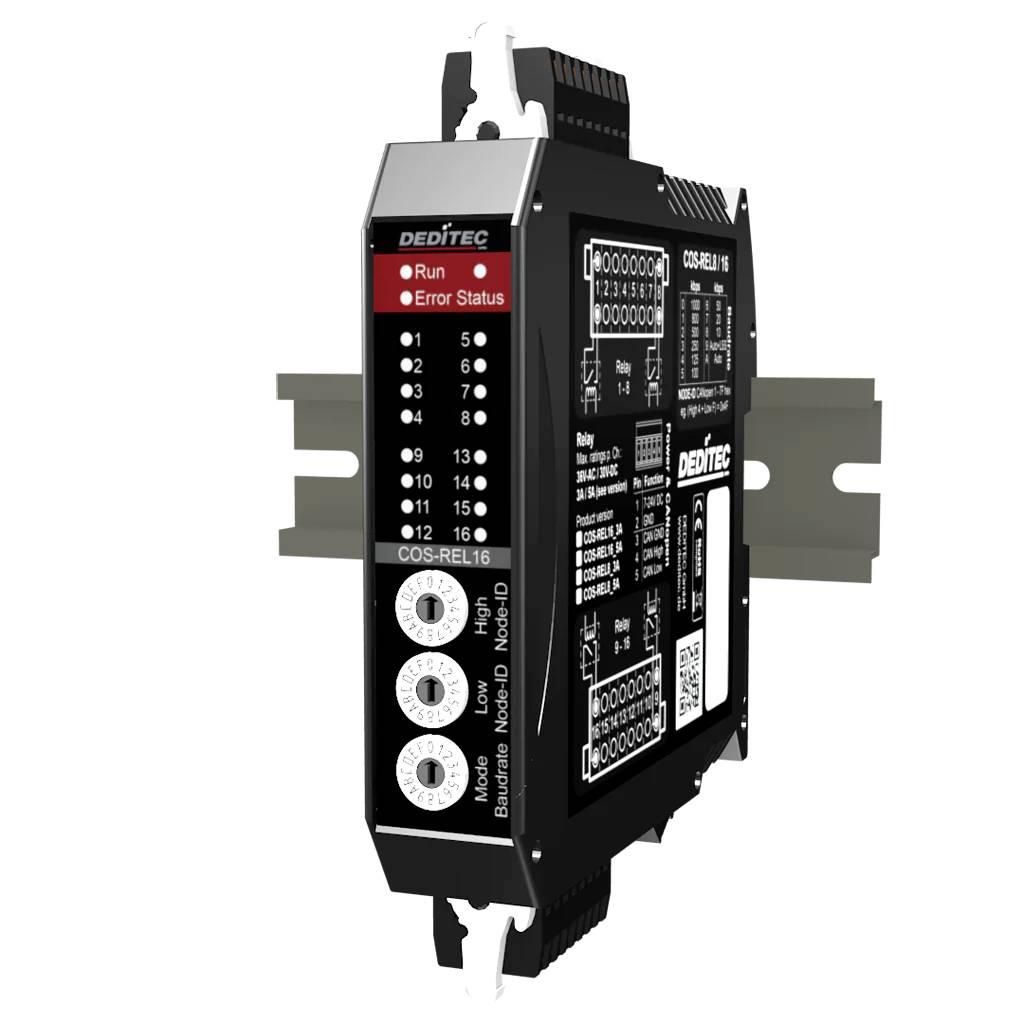

CANopen interface relay output module * 16 digital outputs
- CANopen profiles according to the CIA® specification CIA 301, CIA 305 and CIA 401
- CAN 2.0A OR CAN 2.0B
- Electrically isolated up to 500 V
- Configurable via code switch
- 1 Mbps, 800 Kbps, 500 Kbps, 250 Kbps, 125 Kbps, 100 kbit/s, 50 kbit/s, 20 kbit/s, 10 kbit/s, autobaud
- Closer (NO)
- Max. SWITCHING VOLTAGE 48 V AC/DC
- Max. SWITCHING CURRENT 5 A AC / DC
- Max. breaking capacity 150 W
- Timeout-protection function (can be configured via software)
- Status LED for each output
Technical specifications
- Rail mounting (Mounting rail 35 mm x 7.5 mm)
- Product type
I/O module
- Interfaces
CANopen
- Type
UC-CANOPEN-REL16_5A
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 to 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
16
- No. of inputs
0 x
- No. of outputs
16 x
- Dim
(W x H) 22.5 mm x 117 mm
- Max. current consumption
130 mA
- Height
117 mm
- Width
22.5 mm
- Manufacturer part #
UC-CANOPEN-REL16_5A
- Type
Top-hat rail module (COS Line) with 16 digital relay outputs
- Outputs
16 channels, normally open contact (NO)
- Interfaces
CANopen (profiles according to CIA® specification CIA 301, CIA 305 and CIA 401)
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796648 Deditec UC-CANOPEN-REL16_5A UC-CANOPEN-REL16_5A I/O module CANopen No. of inputs: 0 x No. of outputs: 16 x I/O number: 1
User & Safety Instructions
User & Safety Instructions 3796648 Deditec UC-CANOPEN-REL16_5A UC-CANOPEN-REL16_5A I/O module CANopen No. of inputs: 0 x No. of outputs: 16 x I/O number: 1
Description
The UC‑CANopen‑REL16 is a robust relay output module with 16 powerful 5‑A relays that can be seamlessly integrated into industrial networks via a reliable CANopen‑Interface. Galvanic isolation and status LEDs per channel ensure high operational safety. Typical applications are the safe switching of industrial loads and the decentralized machine control system in the CANopen network.
This text is machine translated.
This text is machine translated.
Features
- Designed for industrial applications in the control cabinet and in distributed automation structures
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Application areas: Engineering, plant automation, test stands, switch cabinet construction, building automation and industrial network controls
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
