Deditec UC-CANOPEN-REL4_12A UC-CANOPEN-REL4_12A I/O module CANopen No. of inputs: 0 x No. of outputs: 4 x I/O number: 4
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 234.45 / piece)
€ 234.45
plus VAT.
Highlights & Details
CANopen control module digital DO relay output * 4 changeover relay (changeover contact)
- CANopen profiles according to the CIA® specification CIA 301, CIA 305 and CIA 401
- CAN 2.0A OR CAN 2.0B
- Electrically isolated up to 500 V
- Configurable via code switch
- 1 Mbps, 800 Kbps, 500 Kbps, 250 Kbps, 125 Kbps, 100 kbit/s, 50 kbit/s, 20 kbit/s, 10 kbit/s, autobaud
- 4 Relay outputs changer (CO)
- Max. SWITCHING VOLTAGE 48 V AC/DC
- Max. power rating 12A
- Timer function.
- Timeout-output protection
Technical specifications
- Casing length 111 mm
- Rail mounting (Mounting rail 35 mm x 7.5 mm)
- Protocols: CANopen profiles according to CIA® specification CIA 301, CIA 305 and CIA 401
- Product type
I/O module
- Interfaces
CANopen
- Type
UC-CANOPEN-REL4_12A
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 to 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
4
- No. of inputs
0 x
- No. of outputs
4 x
- Dim
(W x H) 22.5 mm x 117 mm
- Max. current consumption
130 mA
- Height
117 mm
- Width
22.5 mm
- Manufacturer part #
UC-CANOPEN-REL4_12A
- Type
CANopen relay output module for DIN rail
- Outputs
4 changer relays (CO / change-over)
- Interfaces
CAN bus / CANopen (galvanically isolated via optocoupler)
Supports baud rates from 10 kbit/s to 1 Mbit/s or Autobaud
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796652 Deditec UC-CANOPEN-REL4_12A UC-CANOPEN-REL4_12A I/O module CANopen No. of inputs: 0 x No. of outputs: 4 x I/O number: 4
User & Safety Instructions
User & Safety Instructions 3796652 Deditec UC-CANOPEN-REL4_12A UC-CANOPEN-REL4_12A I/O module CANopen No. of inputs: 0 x No. of outputs: 4 x I/O number: 4
Description

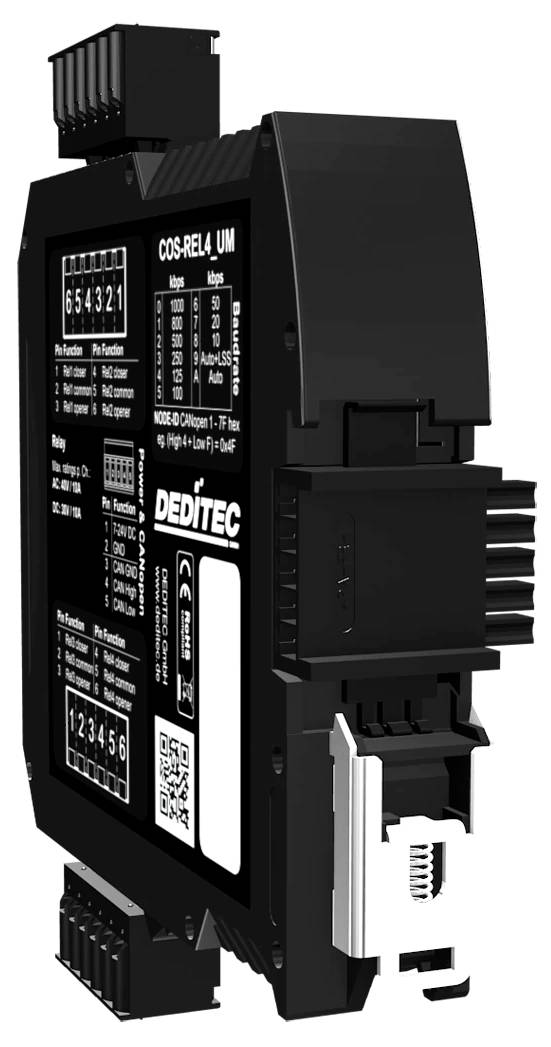

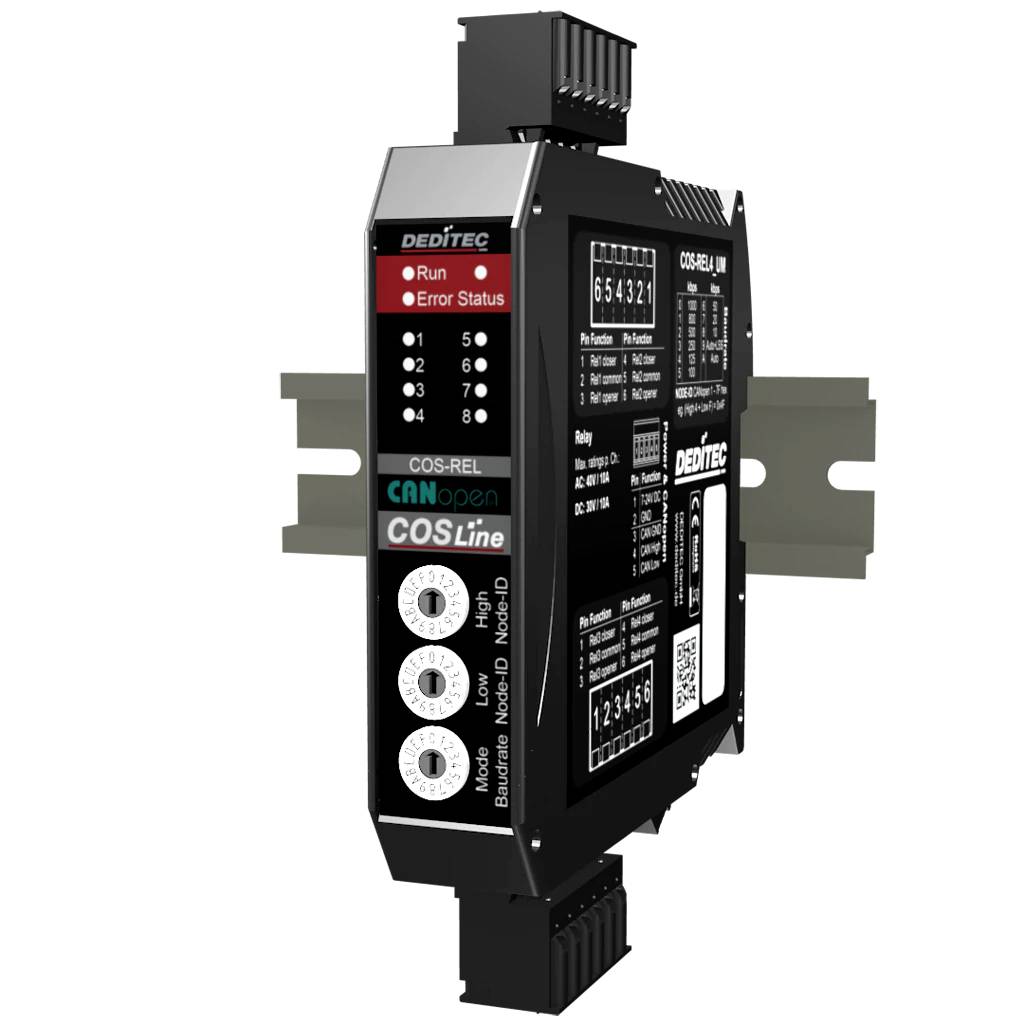

The UC‑CANopen‑REL4_12A is a compact CANopen control module with four powerful changeover relays (8 A / 12 A), Ideal for robust switching tasks. The digital‑DO relay output enables reliable switching of external loads, supported by galvanic isolation and CANopen‑profile CIA‑401. Typical areas of application are the switching of machine functions as well as the control of external consumers in automation systems.
This text is machine translated.
This text is machine translated.
Features
- Designed for industrial applications in the control cabinet and in distributed automation structures
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Application areas: Engineering, plant automation, test stands, switch cabinet construction, building automation and industrial network controls
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
