Name: Deditec UC-ETH-AD2-16ISO UC-ETH-AD2-16ISO Input module Ethernet No. of inputs: 2 x No. of outputs: 0 x I/O number: 2 7 V
Brand: Deditec
SKU: 3796633
Availability: BackOrder

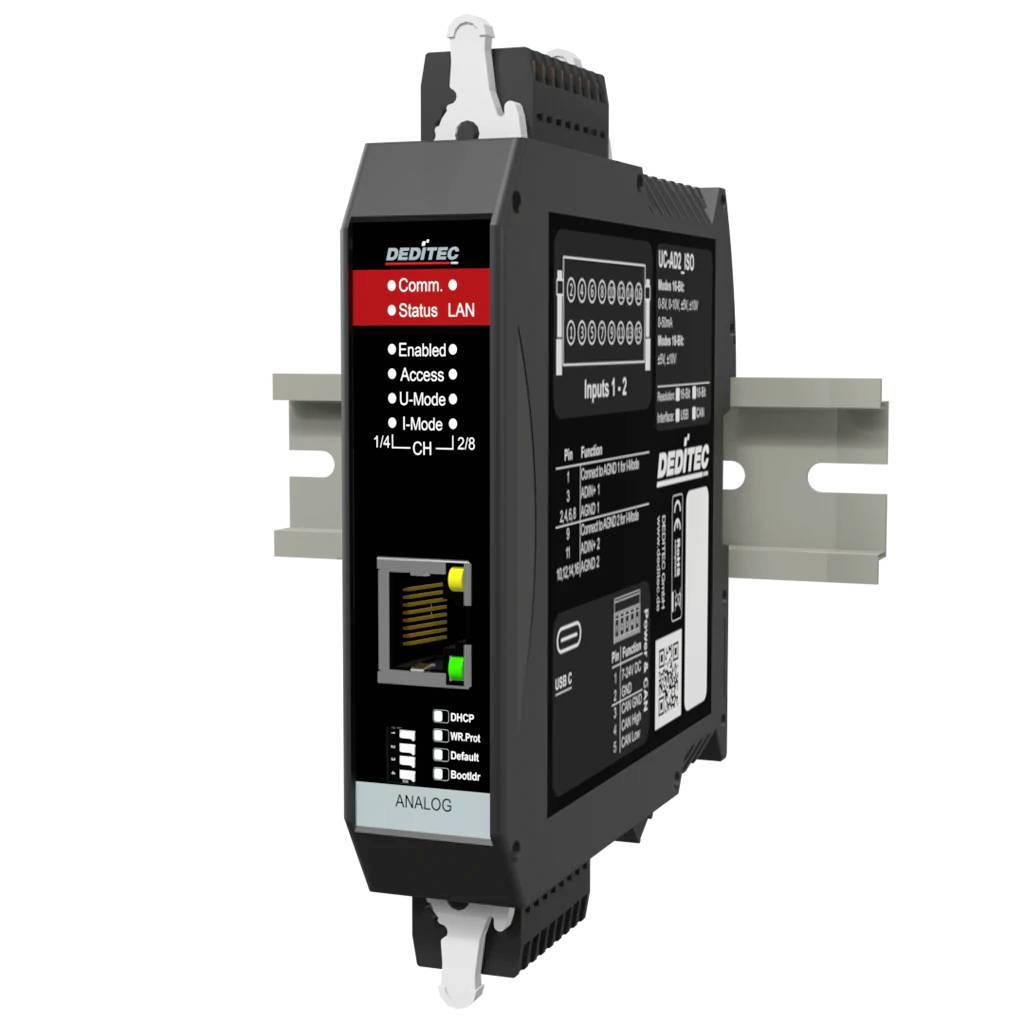

Black DIN-rail industrial communication module with status LEDs, labeled inputs/outputs, and 'DEDITEC' branding.<br>

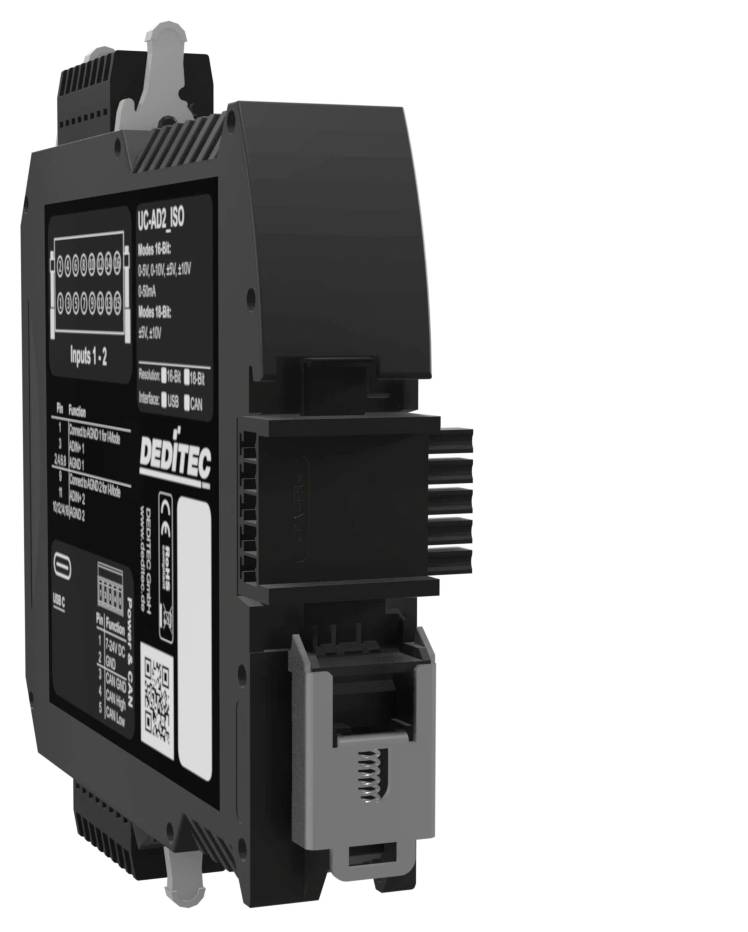

Black industrial DIN-rail module labeled 'UCAD-ISO' with LED indicators and a terminal connector, shown on a white background.

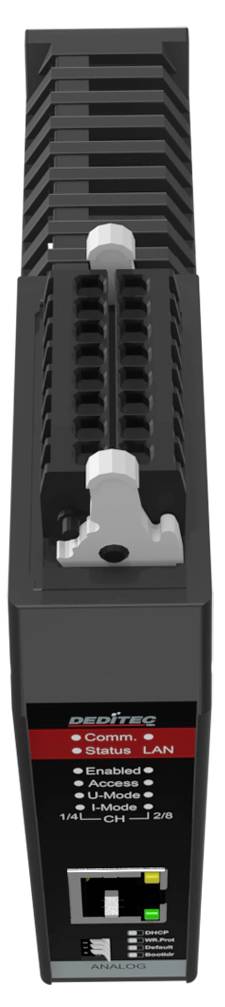

Compact black industrial controller/module with side cooling fins, front ports and indicator lights, labeled DeFiFire and Comm/Status LAN.

1/3

Datasheet (PDF)

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 709.00 / piece)

€ 709.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Modbus TCP analog module * Ethernet 16-bit A/D converter with galvanic separation - 2 channels

Ethernet 10/100 Mbit/s
Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
Encrypted Ethernet communication is possible
Open standard or Modbus TCP protocol
Web interface and APP (smartphone and tablet)
Possible to connect via Wi-Fi
WPS function
WPS button
Design: Single ended
16-bit resolution of each channel
0-5 V, 0-10 V, 0-20 V, 0-40 V, ±5 V, ±10 V, ±20 V, ±40 V
Current ranges 0-20 mA, 4-20 mA, 0-24 mA
Galvanic isolation channel to channel: Max. 1 kV AC
Galvanic isolation for voltage supply: Max. 500 V
4 µs conversion rate A/D converter

Technical specifications

Rail mounting (Mounting rail 35 mm x 7.5 mm)
Current measuring range: 0-24mA
Galvanic isolation: Max. 1000 V AC between channel 1 and 2; max. 500 V AC for supply voltage
Product dimension, length (depth): 111 mm

Product type: Input module

Interfaces: Ethernet

Type: UC-ETH-AD2-16ISO

Operating voltage: 7 V DC
24 V DC

Max. operating temperature: 50 °C

Min. operating temperature: 10 °C

Operating voltage: 7V DC TO 24V DC

Operating temperature: 10 up to 50 °C

I/O number: 2

No. of inputs: 2 x

No. of outputs: 0 x

Dim: (W x H) 22.5 mm x 120 mm

Max. current consumption: 130 mA

Height: 120 mm

Width: 22.5 mm

Manufacturer part #: UC-ETH-AD2-16ISO

Type: Stand-alone module in compact housing for top hat rail mounting (TS 35 x 7.5 mm)

Outputs: 0

Inputs: 2

Interfaces: Ethernet 100/10Mbit/WiFi

Current consumption: 130 mA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3796633 Deditec UC-ETH-AD2-16ISO UC-ETH-AD2-16ISO Input module Ethernet No. of inputs: 2 x No. of outputs: 0 x I/O number: 2 7 V

User & Safety Instructions

User & Safety Instructions 3796633 Deditec UC-ETH-AD2-16ISO UC-ETH-AD2-16ISO Input module Ethernet No. of inputs: 2 x No. of outputs: 0 x I/O number: 2 7 V

Description

The Modbus-TCP analog converter module UC-ETH-AD2-16ISO with 2 galvanically isolated AD channels captures voltage and current signals with a resolution of 16-bit and converts them into digital measurement data. Ethernet and Modbus TCP can be used to efficiently integrate values into control and IoT systems. Ideal for connecting analogue sensors in industrial automation or for monitoring energy and process data.

This text is machine translated.
