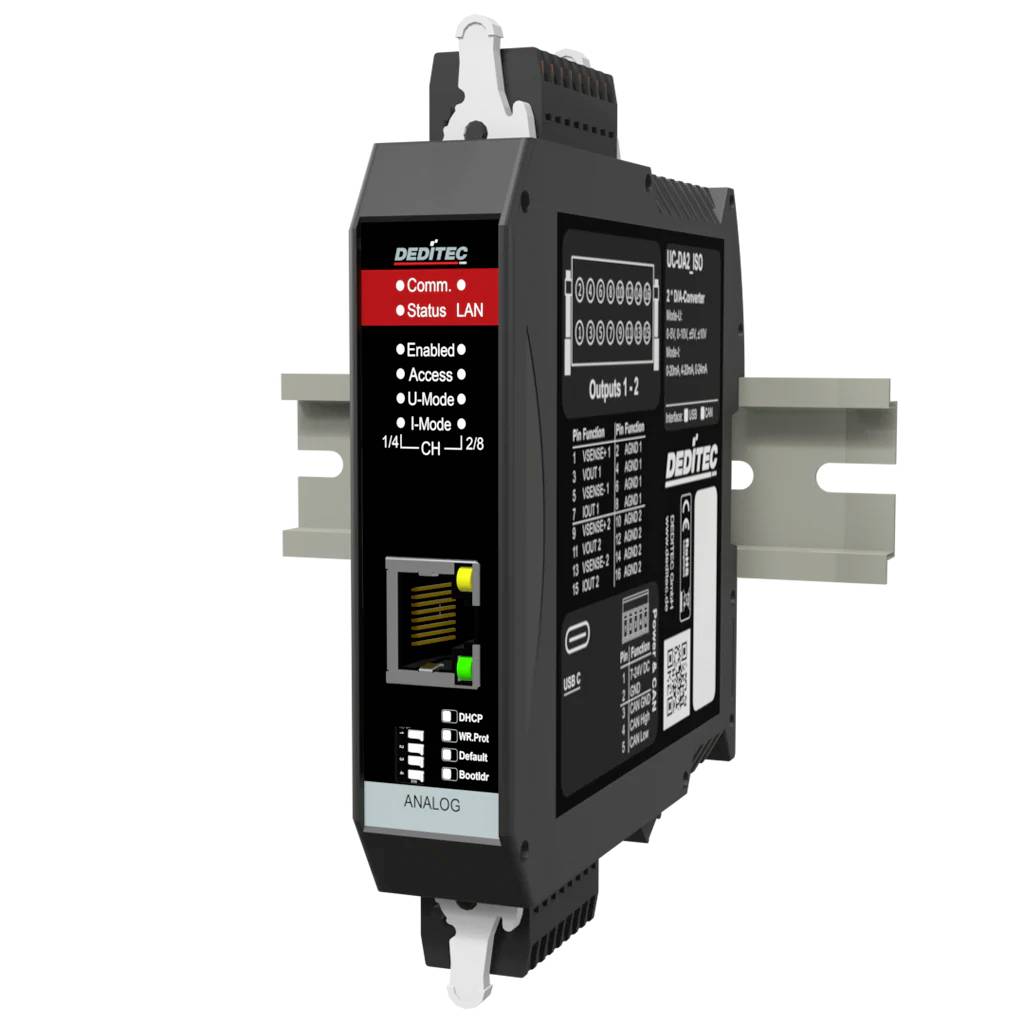

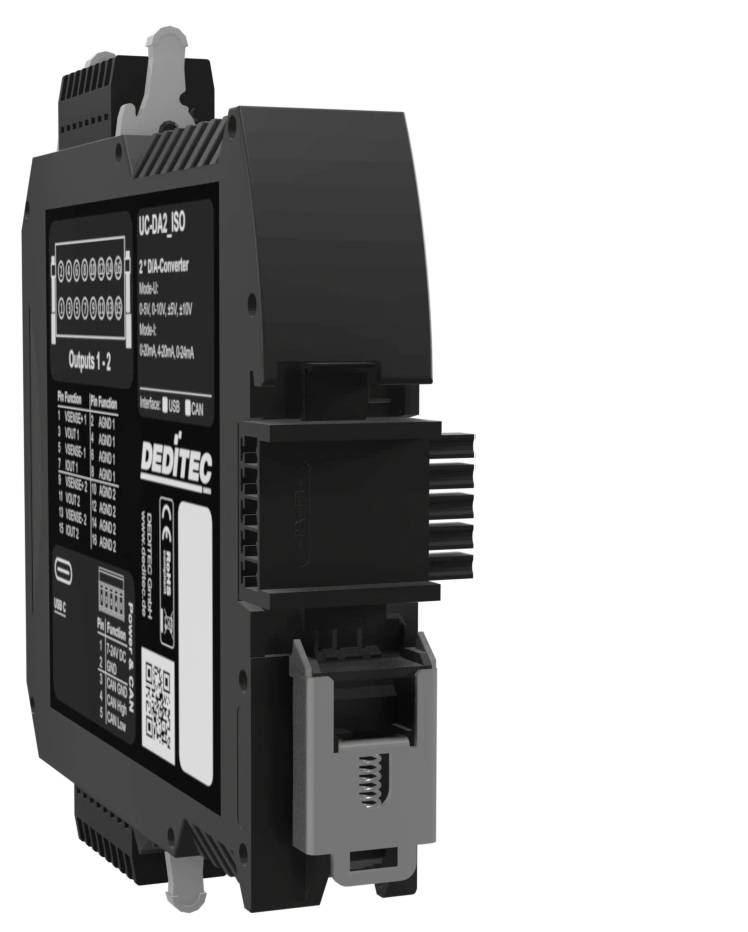

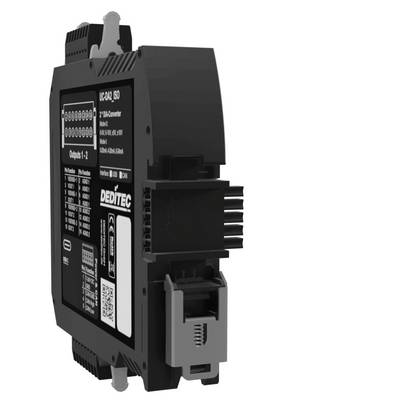

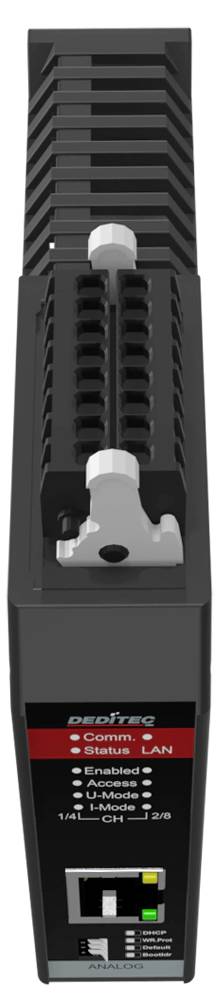

Deditec UC-ETH-DA2-16ISO UC-ETH-DA2-16ISO Output module Ethernet No. of inputs: 0 x No. of outputs: 2 x I/O number: 2 7
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 525.21 / piece)
€ 525.21
plus VAT.
Highlights & Details
Modbus TCP 4-20mA 0-10V D/A Ethernet converter with galvanic isolation - 2 channels
- Ethernet 10/100 Mbit/s
- Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
- Encrypted Ethernet communication is possible
- Open standard or Modbus TCP protocol
- Web interface and APP (smartphone and tablet)
- Possible to connect via Wi-Fi
- WPS function
- WPS button
- 16-bit resolution of each channel
- 0-5 V, 0-10 V, ±5 V, ±10 V
- Current ranges 0-20 mA, 4-20 mA, 0-24 mA
- Galvanic isolation channel to channel: Max. 1 kV AC
- Galvanic isolation for voltage supply: Max. 500 V AC
- Load resistance: ≥ 1 kOhm
- All D/A channels galvanically separated from each other
Technical specifications
- 16-bit resolution
- Rail mounting (Mounting rail 35 mm x 7.5 mm)
- Galvanic isolation: Max. 500 V
- Product type
Output module
- Interfaces
Ethernet
- Type
UC-ETH-DA2-16ISO
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7V DC TO 24V DC
- Operating temperature
10 up to 50 °C
- I/O number
2
- No. of inputs
0 x
- No. of outputs
2 x
- Dim
(W x H) 22.5 mm x 120 mm
- Max. current consumption
130 mA
- Height
120 mm
- Width
22.5 mm
- Manufacturer part #
UC-ETH-DA2-16ISO
- Type
Modular stand-alone device in plastic housing for rail mounting (TS 35 x 7.5 mm)
- Outputs
2 insulated 16-bit analogue outputs
- Interfaces
Ethernet 100/10Mbit / Wi-Fi
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796634 Deditec UC-ETH-DA2-16ISO UC-ETH-DA2-16ISO Output module Ethernet No. of inputs: 0 x No. of outputs: 2 x I/O number: 2 7
User & Safety Instructions
User & Safety Instructions 3796634 Deditec UC-ETH-DA2-16ISO UC-ETH-DA2-16ISO Output module Ethernet No. of inputs: 0 x No. of outputs: 2 x I/O number: 2 7
Description
The UC-ETH-DA2-16ISO with Ethernet and Modbus-TCP interface converts precise analogue signals into 4–20 mA and 0–10 V and is suitable for Ideal for industrial automation. With 16-bit resolution, galvanic isolation and safe fail-safe mode, it enables reliable controls. Typical applications are the control of valves in process automation as well as the simulation of analog sensor signals in test benches.
This text is machine translated.
This text is machine translated.
Features
- 16-bit analog outputs for 4–20 mA and 0–10 V.
- Modbus TCP, HTTP and open TCP protocol
- Fail-safe mode
- Configurable event control
- M2M functionality
- Free configuration and testing software
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
