Name: Deditec UC-ETH-DA4_16 UC-ETH-DA4_16 Output module Ethernet No. of inputs: 0 x No. of outputs: 4 x I/O number: 4 7 V DC,
Brand: Deditec
SKU: 3796635
Availability: BackOrder

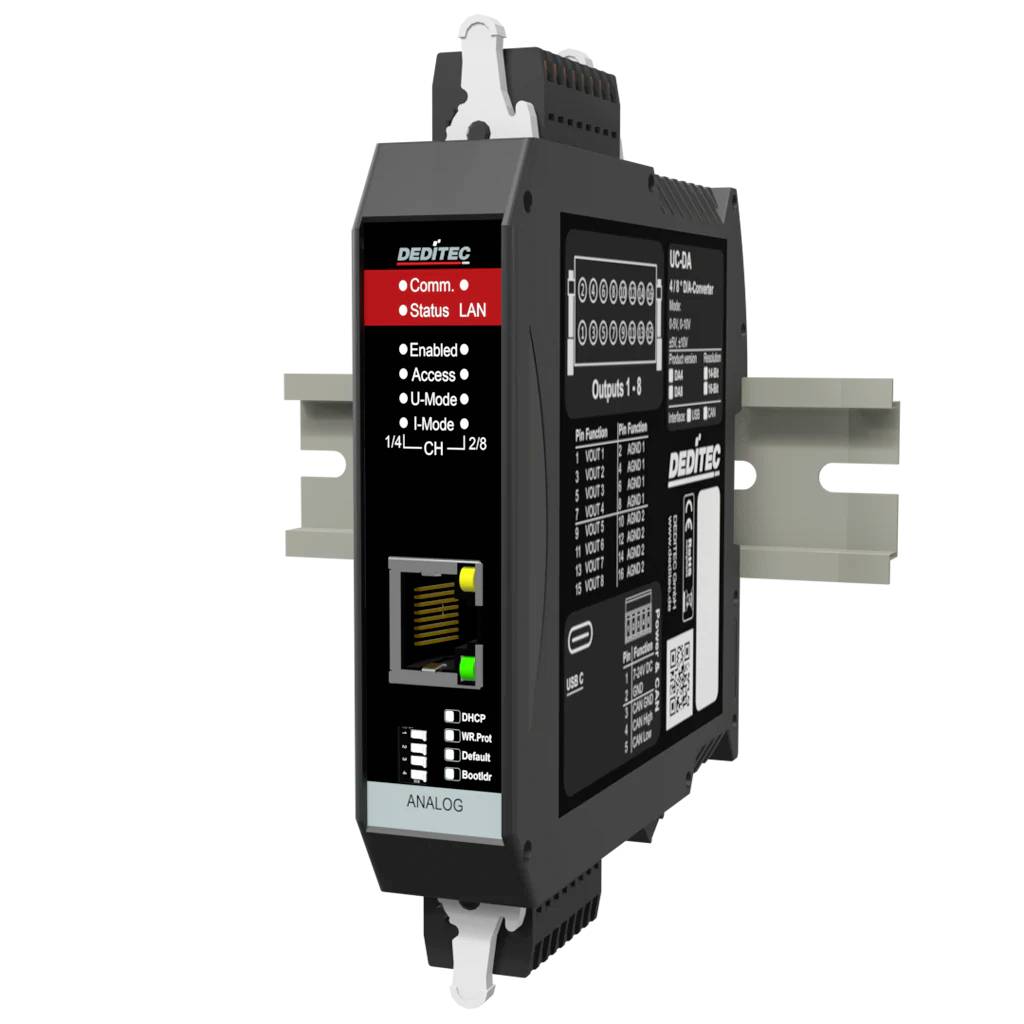

Black DIN-rail industrial control module with LAN status lights and labeled analog I/O terminals.

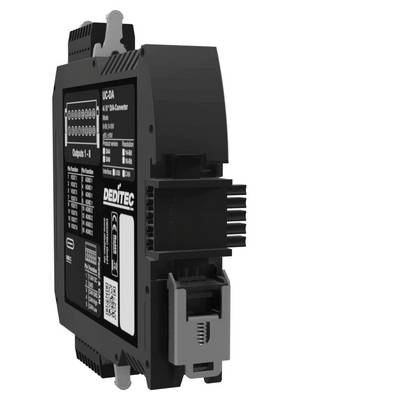

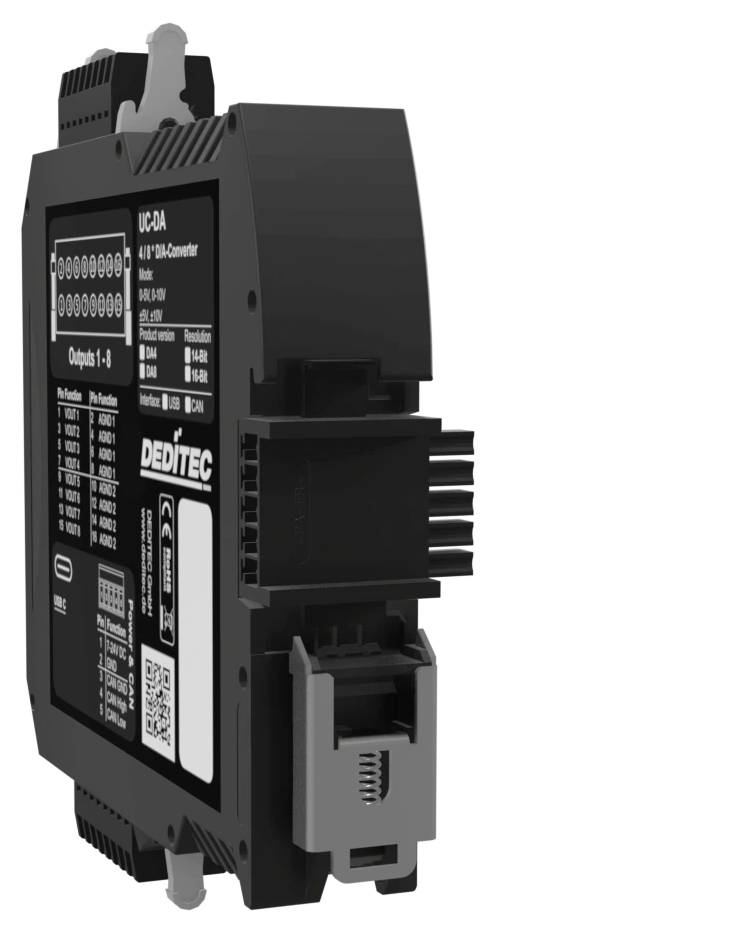

Black industrial DIN-rail electrical module with labeled terminal blocks and front indicators, shown in three-quarter view on a white background.

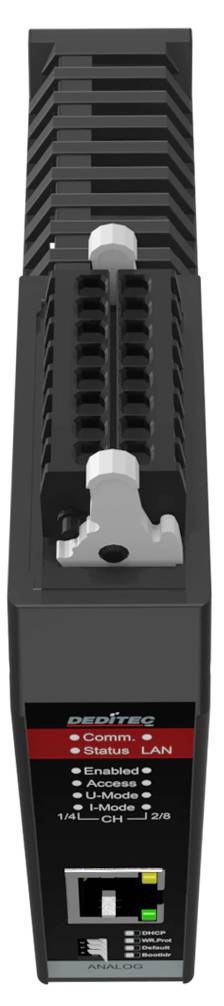

Black electronic module with front status panel and ports, labeled 'DeFiniQ', 'Comm. Status: LAN', 'Enabled', 'Ascend', 'I-Mode', 'U-Mode', and 'LAN 1/2'.

1/3

Datasheet (PDF)

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 439.00 / piece)

€ 439.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Modbus TCP voltages output * Ethernet 16-bit D/A converter - 4 channels

Ethernet 10/100 Mbit/s
Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
Encrypted Ethernet communication is possible
Open standard or Modbus TCP protocol
Web interface and APP (smartphone and tablet)
Possible to connect via Wi-Fi
WPS function
WPS button
16-bit resolution of each channel
0-5 V, 0-10 V, ±5 V, ±10 V
Galvanic isolation for voltage supply: Max. 500 V AC
Conversion time of D/A converter: 10-12 µs
Load resistance: ≥ 2 kOhm

Technical specifications

Rail mounting (Mounting rail 35 mm x 7.5 mm)
Galvanic isolation: Max. 500 V
Permissible humidity: Max. 90% (condensation not allowed)

Product type: Output module

Interfaces: Ethernet

Type: UC-ETH-DA4_16

Operating voltage: 7 V DC
24 V DC

Max. operating temperature: 50 °C

Min. operating temperature: 10 °C

Operating voltage: 7 to 24 V DC

Operating temperature: 10 up to 50 °C

I/O number: 4

No. of inputs: 0 x

No. of outputs: 4 x

Dim: (W x H) 22.5 mm x 120 mm

Max. current consumption: 130 mA

Height: 120 mm

Width: 22.5 mm

Manufacturer part #: UC-ETH-DA4_16

Type: Modular I/O module system for DIN rail mounting

Outputs: 4 Channels each with 16-bit resolution

Inputs: 0

Interfaces: Ethernet 100/10Mbit (LAN/WiFi)

Current consumption: 130 mA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3796635 Deditec UC-ETH-DA4_16 UC-ETH-DA4_16 Output module Ethernet No. of inputs: 0 x No. of outputs: 4 x I/O number: 4 7 V DC,

User & Safety Instructions

User & Safety Instructions 3796635 Deditec UC-ETH-DA4_16 UC-ETH-DA4_16 Output module Ethernet No. of inputs: 0 x No. of outputs: 4 x I/O number: 4 7 V DC,

Description

The Modbus-TCP‑D/A module UC-ETH-DA4_16 enables precise voltages to be output to 4 channels with 16-bit resolution. Ideal for industrial applications like the control of actuators and power supplies or the simulation of analogue sensor signals. Thanks to Ethernet / Wi-Fi, galvanic isolation and M2M functionality, the module can be integrated well into automation and test systems.

This text is machine translated.
