Name: Deditec UC-ETH-M16 UC-ETH-M16 Output module Ethernet No. of inputs: 0 x No. of outputs: 16 x I/O number: 16 7 V DC, 24 V
Brand: Deditec
SKU: 3796639
Availability: BackOrder

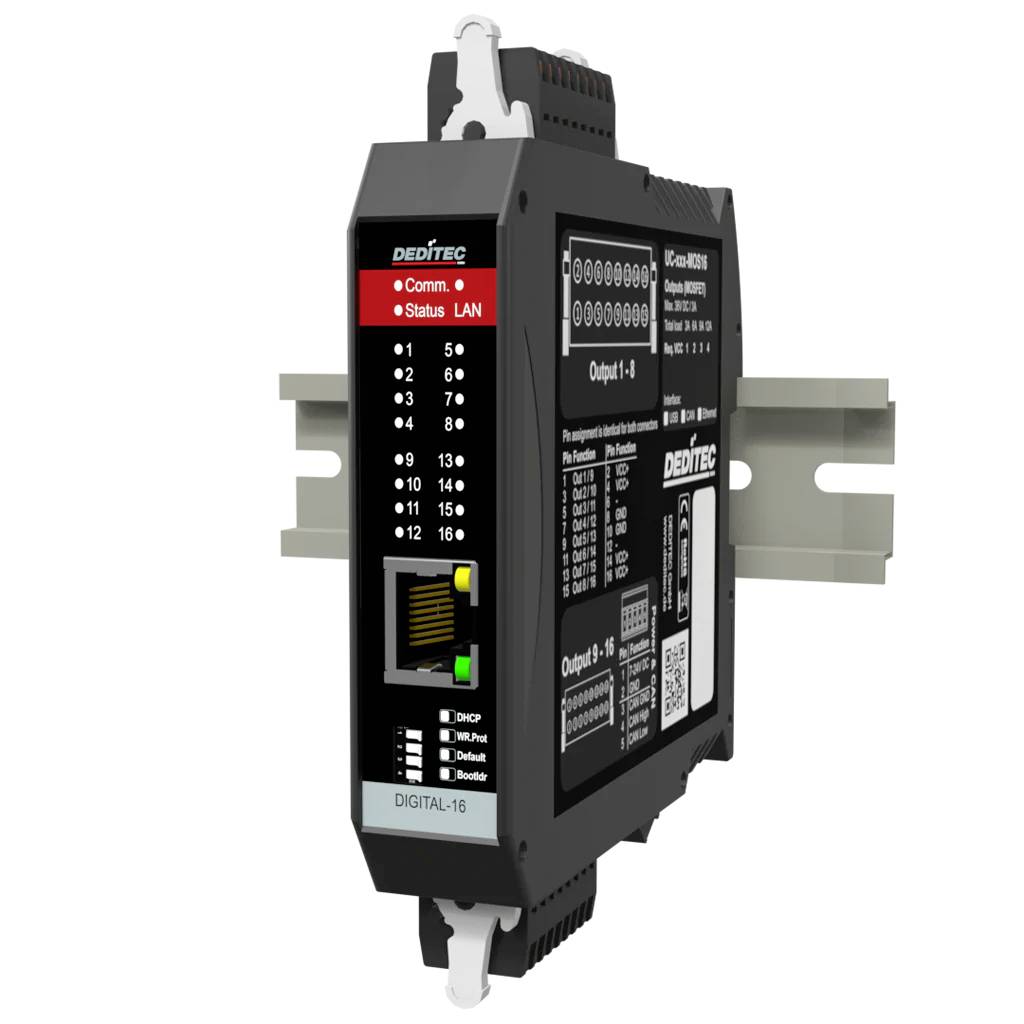

Black DIN-rail mounted DEETEC DIGITAL-16 industrial I/O module with LAN status LEDs, numbered terminals, and wiring diagrams printed on the side.

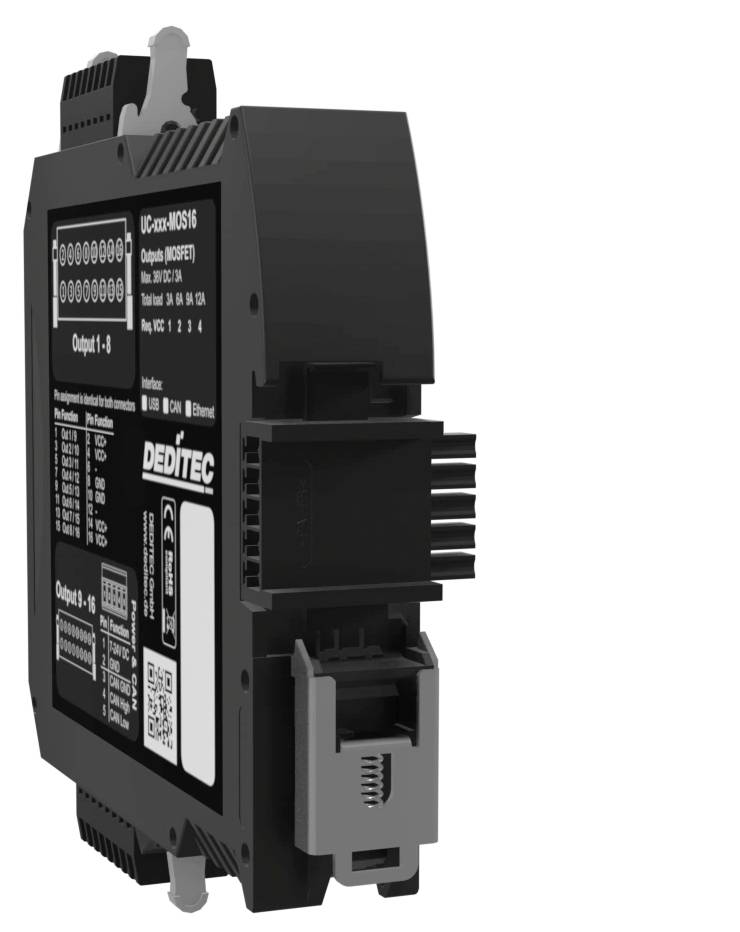

Black DIN-rail industrial control module with labeled terminals and connector ports, shown in side view on a white background.

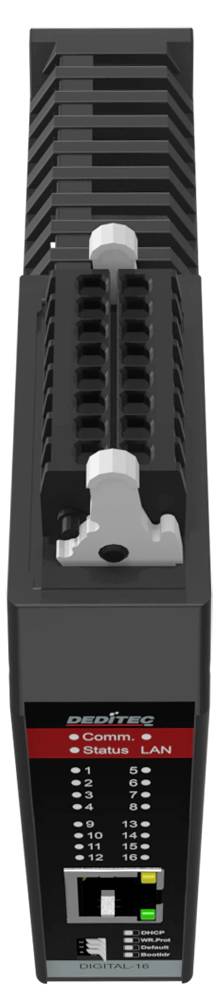

Front view of a black industrial communication module with status LEDs and labeled indicators for power, comm, status, and LAN.

1/3

Datasheet (PDF)

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 429.00 / piece)

€ 429.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

WEB relay module with 16 digital MOSFET outputs (Ethernet Modbus TCP capable)

Ethernet 10/100 Mbit/s
Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
Encrypted Ethernet communication is possible
Open standard or Modbus TCP protocol
Web interface and APP (smartphone and tablet)
Galvanically separated up to 1.5 kV
Possible to connect via Wi-Fi
WPS function
Max. Switching voltage 36 V DC
Min Switching voltage 2.8 V DC
Max. Switching current 3 A DC
Max. Switching capacity 108 W DC
Timeout-protection function (can be configured via software)
Status LED for each output

Technical specifications

Product dimension, depth (length): 111 mm
Rail mounting (Mounting rail 35 mm x 7.5 mm)

Product type: Output module

Interfaces: Ethernet

Type: UC-ETH-M16

Operating voltage: 7 V DC
24 V DC

Max. operating temperature: 50 °C

Min. operating temperature: 10 °C

Operating voltage: 7 to 24 V DC

Operating temperature: 10 up to 50 °C

I/O number: 16

No. of inputs: 0 x

No. of outputs: 16 x

Dim: (W x H) 22.5 mm x 120 mm

Max. current consumption: 130 mA

Height: 120 mm

Width: 22.5 mm

Manufacturer part #: UC-ETH-M16

Type: MOSFET P channel digital output module for top hat rail mounting

Outputs: 16 outputs, divided in 2 blocks to 8 channels each

Interfaces: Ethernet 100/10Mbit (LAN cable or WiFi)

Current consumption: 130 mA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3796639 Deditec UC-ETH-M16 UC-ETH-M16 Output module Ethernet No. of inputs: 0 x No. of outputs: 16 x I/O number: 16 7 V DC, 24 V

User & Safety Instructions

User & Safety Instructions 3796639 Deditec UC-ETH-M16 UC-ETH-M16 Output module Ethernet No. of inputs: 0 x No. of outputs: 16 x I/O number: 16 7 V DC, 24 V

Description

The web relay UC-ETH-M16 is a powerful Ethernet module for flexible control of 16 digital outputs via network, browser or Modbus TCP. Thanks to the integrated web interface and encrypted communication, the Ideal Web relay is suitable for industrial and building automation. Typical applications are the remote switching of machines as well as the automatic control of lighting or safety systems.
