Name: Deditec UC-ETH-O16 UC-ETH-O16 Input module Ethernet No. of inputs: 16 x No. of outputs: 0 x I/O number: 16 7 V DC 1 pc(s
Brand: Deditec
SKU: 3796640
Availability: BackOrder

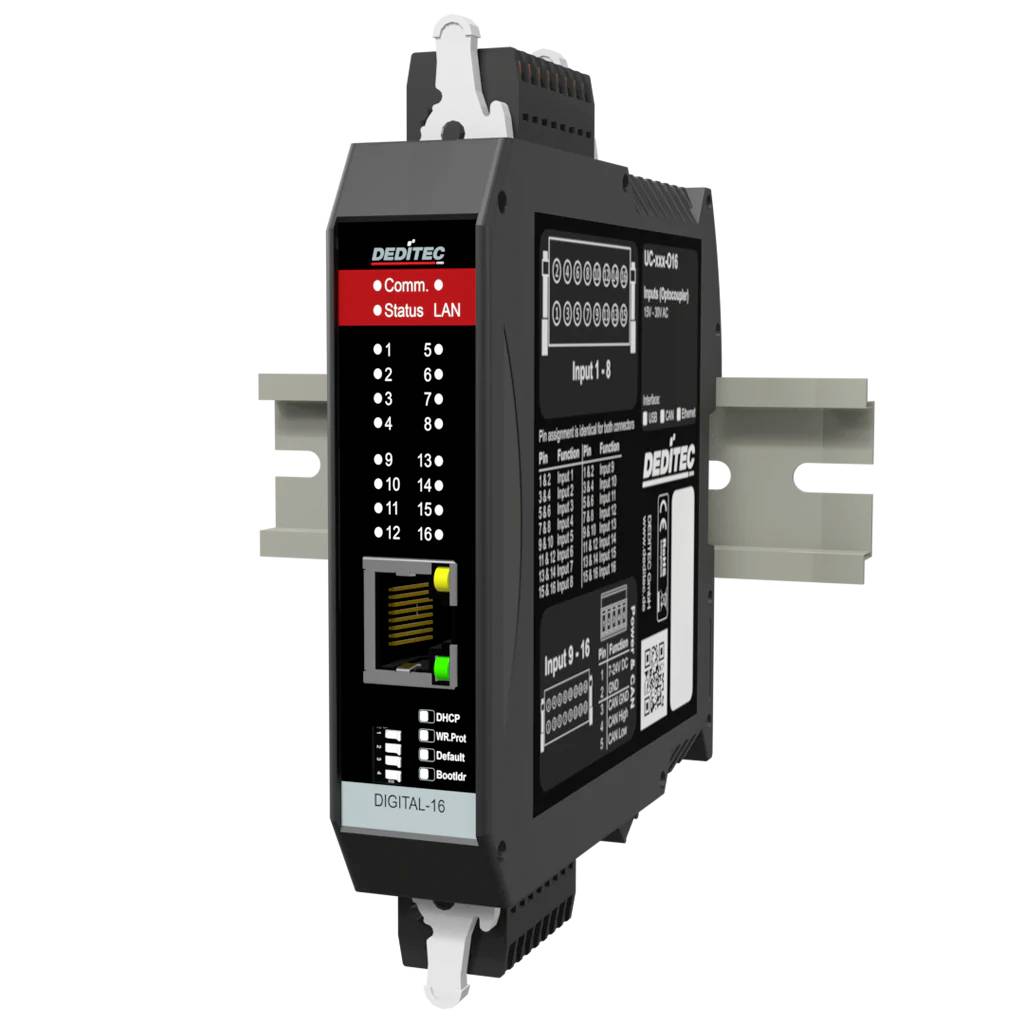

Industrial DIN-rail digital I/O module labeled 'DIGIT-16' with Comm/Status indicators, LAN port, and numbered input/output terminals<br>

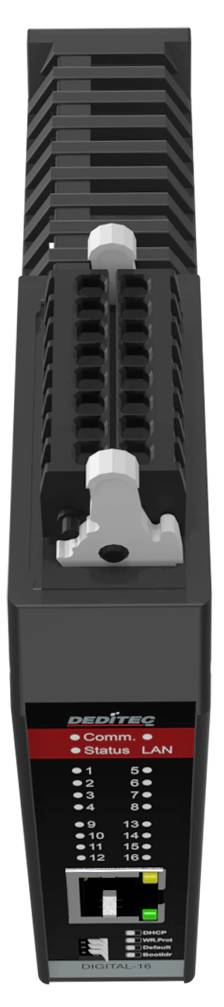

A black network device with multiple ports and red labels for Com, Status, and LAN, shown front-on as a hardware unit.

1/3

Datasheet (PDF)

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 375.00 / piece)

€ 375.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Ethernet module possesses 16 opto-couplers digital inputs, WEB Interface (Modbus-TCP-enabled)

Ethernet 10/100 Mbit/s
Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
Encrypted Ethernet communication is possible
Open standard or Modbus TCP protocol
Web interface and APP (smartphone and tablet)
Possible to connect via Wi-Fi
WPS function
Type: Optocouplers AC / DC
Signal level ±5 V to ±15 V or ±15 V to ±30 V.
16 bit counter per channel (up to 100Hz)
Detects a change from Low to High and High to Low Level (Flip-Flop)
Status LED for each channel

Technical specifications

Humidity: Max. 90% (condensation not permitted)
Rail mounting (Mounting rail 35 mm x 7.5 mm)

Product type: Input module

Interfaces: Ethernet

Type: UC-ETH-O16

Operating voltage: 7 V DC

Max. operating temperature: 50 °C

Min. operating temperature: 10 °C

Operating voltage: 24 V DC

Operating temperature: 10 up to 50 °C

I/O number: 16

No. of inputs: 16 x

No. of outputs: 0 x

Dim: (W x H) 22.5 mm x 120 mm

Max. current consumption: 130 mA

Height: 120 mm

Width: 22.5 mm

Manufacturer part #: UC-ETH-O16

Type: Optocoupler input module for DIN rail mounting

Inputs: 16 digital inputs with galvanically isolated optocoupler, divided in blocks of 8 channels each

Interfaces: Ethernet 100/10Mbit (LAN/WiFi)

Current consumption: 130 mA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3796640 Deditec UC-ETH-O16 UC-ETH-O16 Input module Ethernet No. of inputs: 16 x No. of outputs: 0 x I/O number: 16 7 V DC 1 pc(s

User & Safety Instructions

User & Safety Instructions 3796640 Deditec UC-ETH-O16 UC-ETH-O16 Input module Ethernet No. of inputs: 16 x No. of outputs: 0 x I/O number: 16 7 V DC 1 pc(s

Description

The UC‑ETH‑O16 offers 16 electrically isolated digital inputs for reliable recording of 5–50 V signals via Ethernet or Modbus‑TCP. Ideal for industrial monitoring, e.g. For monitoring machine states or for recording external switching signals in building and process automation. With Web interface, input filter and 16-bit counters per channel.

This text is machine translated.
