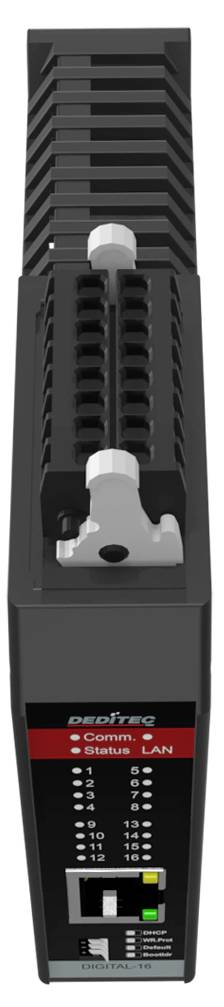

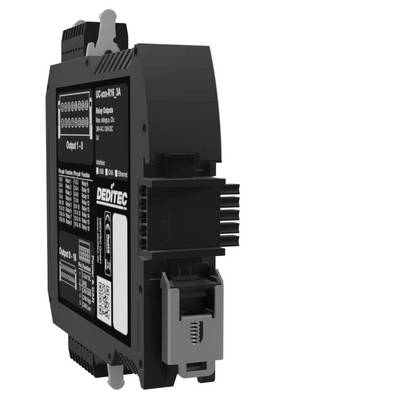

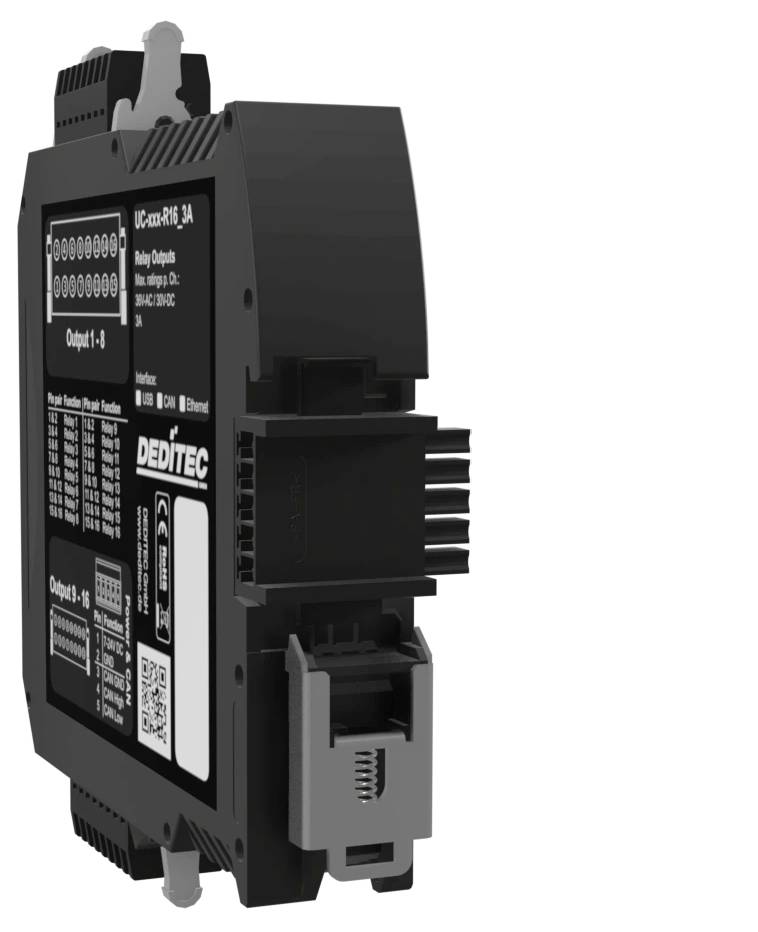

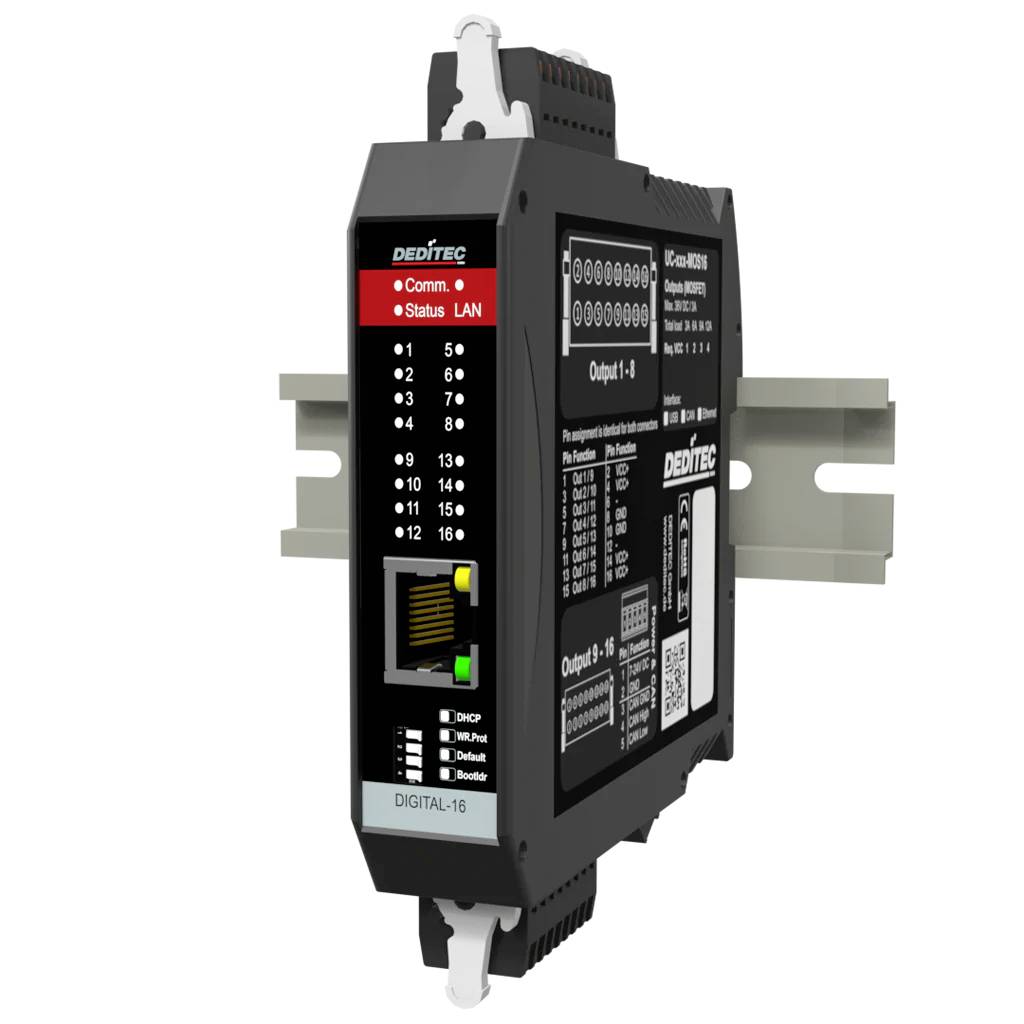

Deditec UC-ETH-R16_3A UC-ETH-R16_3A Output module Ethernet No. of inputs: 0 x No. of outputs: 16 x I/O number: 16 7 V DC
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
Highlights & Details
WEB relay module with 16 digital 3 A outputs (Ethernet Modbus TCP capable)
- Ethernet 10/100 Mbit/s
- Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
- Encrypted Ethernet communication is possible
- Open standard or Modbus TCP protocol
- Web interface and APP (smartphone and tablet)
- Galvanically separated up to 1.5 kV
- Possible to connect via Wi-Fi
- WPS function
- Closer (NO)
- Max. SWITCHING VOLTAGE 48 V AC/DC
- Max. SWITCHING CURRENT 3 A AC / DC
- Max. TRANSPORT CURRENT 3 A AC / DC
- Max. breaking capacity 90 W
- Timeout-protection function (can be configured via software)
- Status LED for each output
Technical specifications
- Rail mounting (Mounting rail 35 mm x 7.5 mm)
- Product dimension, depth (length): 111 mm
- Status LEDs: One LED per channel (channels 1–16) indicates the status
- Product type
Output module
- Interfaces
Ethernet
- Type
UC-ETH-R16_3A
- Operating voltage
7 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
16
- No. of inputs
0 x
- No. of outputs
16 x
- Dim
(W x H) 22.5 mm x 120 mm
- Max. current consumption
130 mA
- Height
120 mm
- Width
22.5 mm
- Manufacturer part #
UC-ETH-R16_3A
- Type
Relay output module for DIN rail mounting
- Outputs
16x relay outputs (normally open contact / NO), divided into 2 blocks of 8 channels each
- Interfaces
Ethernet 100/10Mbit (LAN/WiFi)
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796638 Deditec UC-ETH-R16_3A UC-ETH-R16_3A Output module Ethernet No. of inputs: 0 x No. of outputs: 16 x I/O number: 16 7 V DC
User & Safety Instructions
User & Safety Instructions 3796638 Deditec UC-ETH-R16_3A UC-ETH-R16_3A Output module Ethernet No. of inputs: 0 x No. of outputs: 16 x I/O number: 16 7 V DC
Description
The web relay UC-ETH-R16_3A is a high performance Ethernet module for flexible control of 16 digital outputs via network, browser or Modbus TCP. Thanks to the integrated web interface and encrypted communication, the Ideal Web relay is suitable for industrial and building automation. Typical applications are the remote switching of machines as well as the automatic control of lighting or safety systems.
This text is machine translated.
This text is machine translated.
Features
- Modbus TCP, HTTP and open TCP protocol
- Fail-safe mode
- Configurable event control
- M2M functionality
- Free configuration and testing software
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
