Deditec UC-USB-AD16-16I UC-USB-AD16-16I USB card USB No. of inputs: 16 x No. of outputs: 0 x I/O number: 16 24 V DC, 12
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 629.00 / piece)
€ 629.00
incl. VAT
14-day return policy included
Highlights & Details

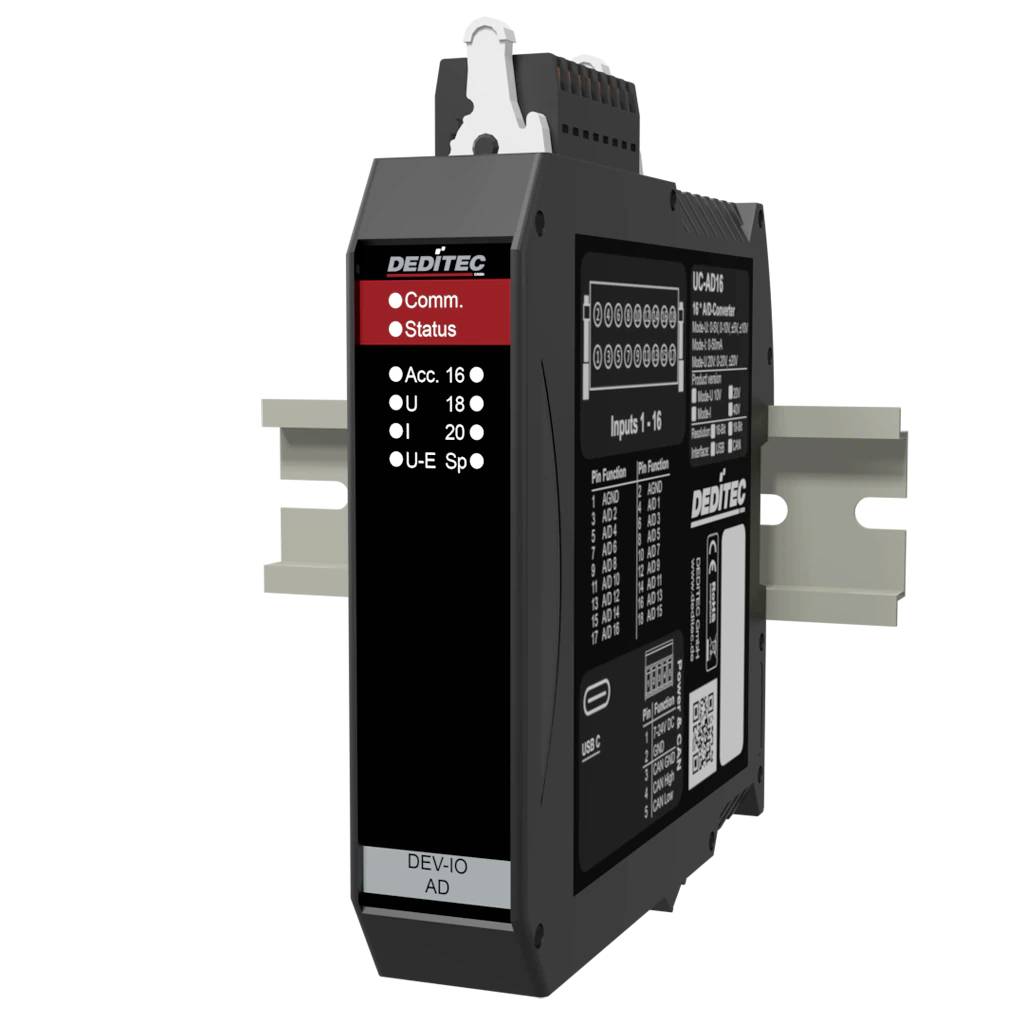

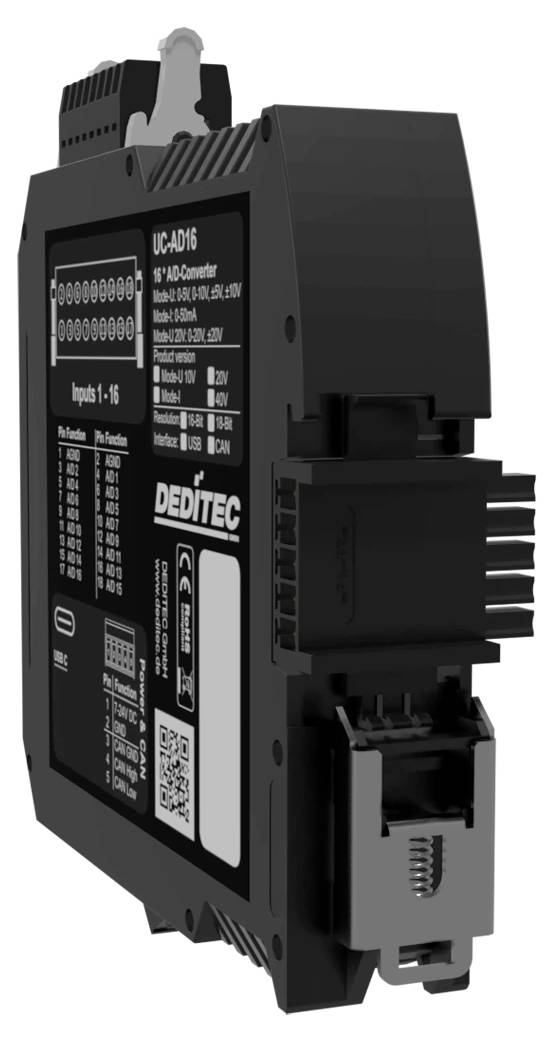

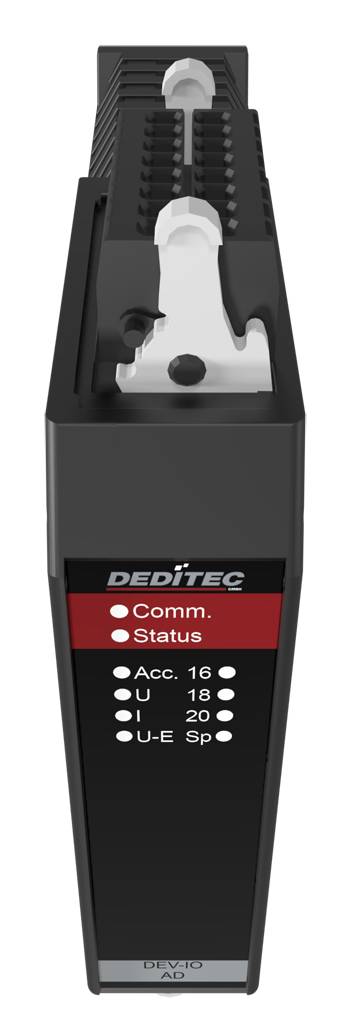

USB measurement box – measuring module 16-bit A/D – 16 channels (I-mode)
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- Design: Single ended
- 16-bit resolution of each channel
- Optional current ranges: 0-20 mA, 4-20 mA, 0-24 mA
- Galvanic isolation for voltage supply: Max. 500 V
- 4 µs conversion rate A/D converter
Technical specifications
- A/D conversion time 4 µs per channel
- Galvanic isolation: Up to max. 500 V for power supply
- Mounting: Top-hat rail (35 mm x 7.5 mm)
- Product type
USB card
- Interfaces
USB
- Type
UC-USB-AD16-16I
- Operating voltage
24 V DC
12 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
12 to 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
16
- No. of inputs
16 x
- No. of outputs
0 x
- Dim
(W x H) 22.5 mm x 120 mm
- Max. current consumption
130 mA
- Height
120 mm
- Width
22.5 mm
- Manufacturer part #
UC-USB-AD16-16I
- Type
USB-A/D measuring box in compact top-hat rail housing for precise current measurement
- Inputs
16 analogue current inputs (single-ended, 16-bit resolution, galvanically isolated up to max. 500 V)
- Interfaces
USB-C (compatible with USB 2.0 / 1.1, transfer rate up to 480 Mbit / s)
- Current consumption
60 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796626 Deditec UC-USB-AD16-16I UC-USB-AD16-16I USB card USB No. of inputs: 16 x No. of outputs: 0 x I/O number: 16 24 V DC, 12
User & Safety Instructions
User & Safety Instructions 3796626 Deditec UC-USB-AD16-16I UC-USB-AD16-16I USB card USB No. of inputs: 16 x No. of outputs: 0 x I/O number: 16 24 V DC, 12
Description
The USB measurement box / USB measurement module UC-USB-AD16-16 offers 16 analogue inputs with 16-bit resolution, galvanic separation up to 500 V and flexible voltage / current ranges. Ideal for precise industrial measurement tasks. Typical applications: Temperature and pressure monitoring or signal recording in test stands. Plug-&-play via USB‑C facilitates integration.
This text is machine translated.
This text is machine translated.
Features
- A/D filter
- Configurable event control
- M2M functionality
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Free configuration and testing software
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
