Deditec UC-USB-AD2-16ISO UC-USB-AD2-16ISO I/O module USB No. of inputs: 2 x No. of outputs: 0 x I/O number: 2 7 V DC, 24
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 729.00 / piece)
€ 729.00
incl. VAT
14-day return policy included
Highlights & Details

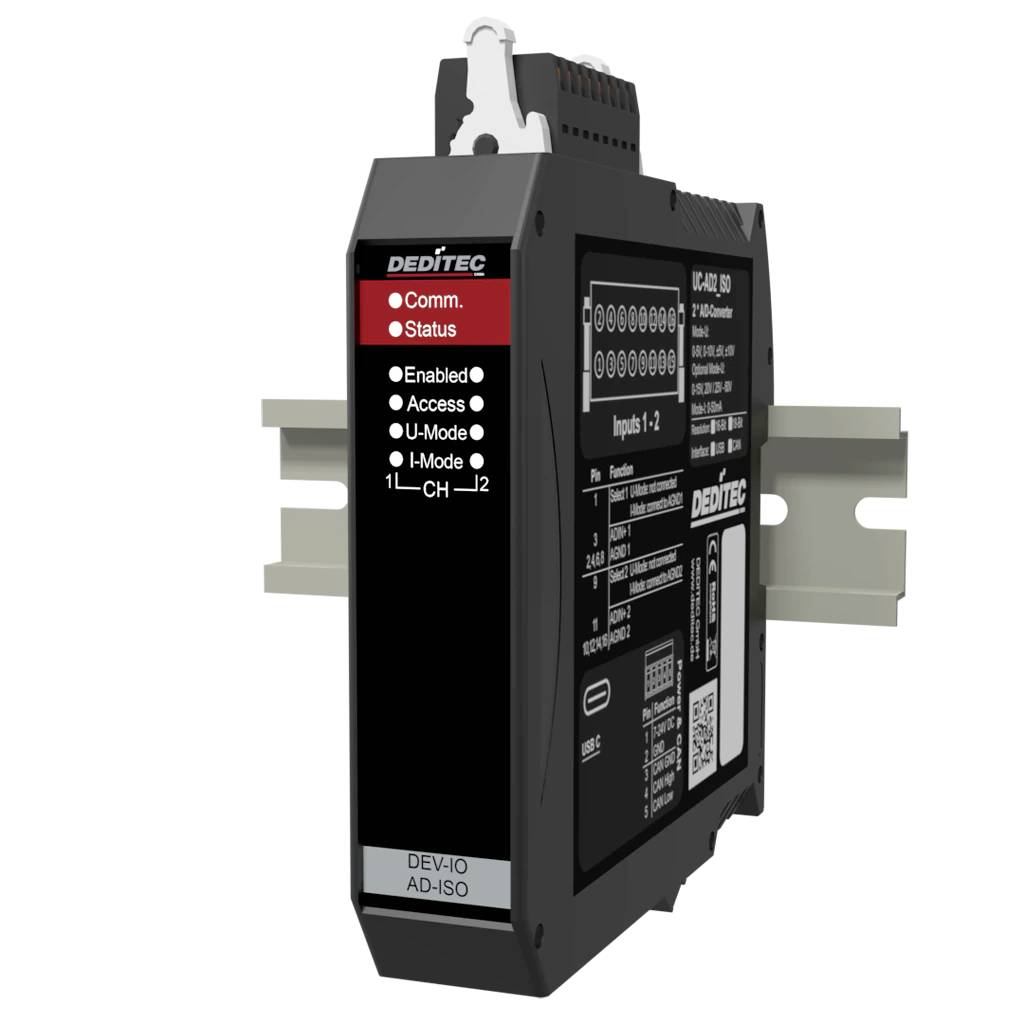

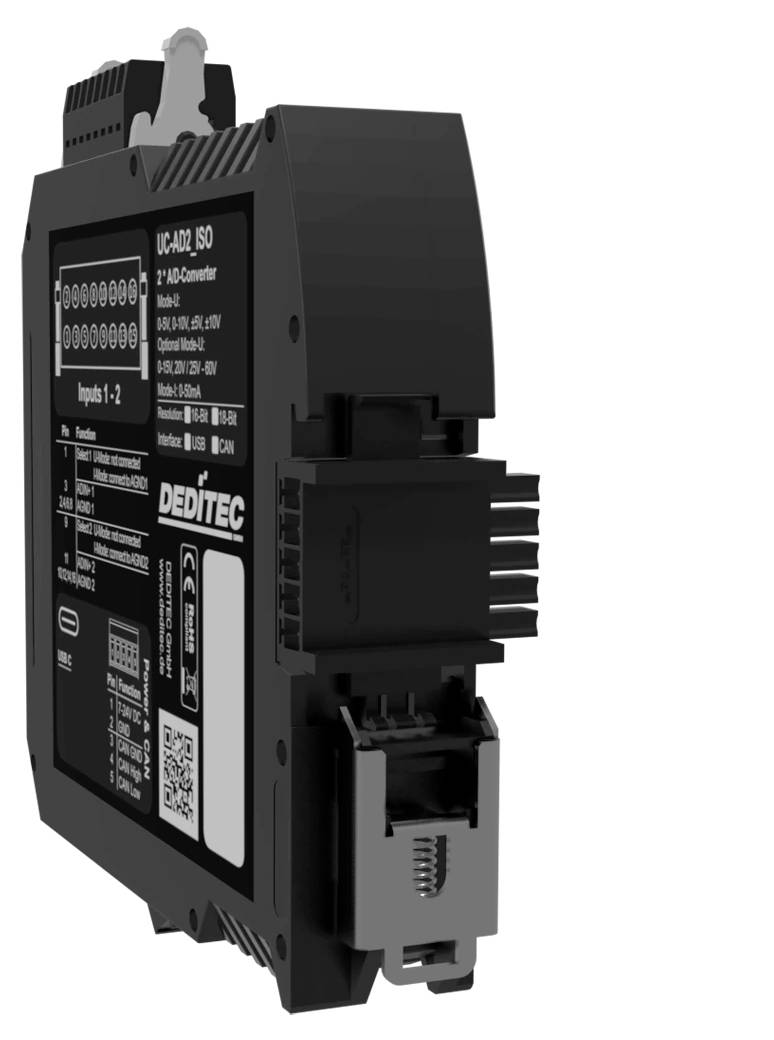

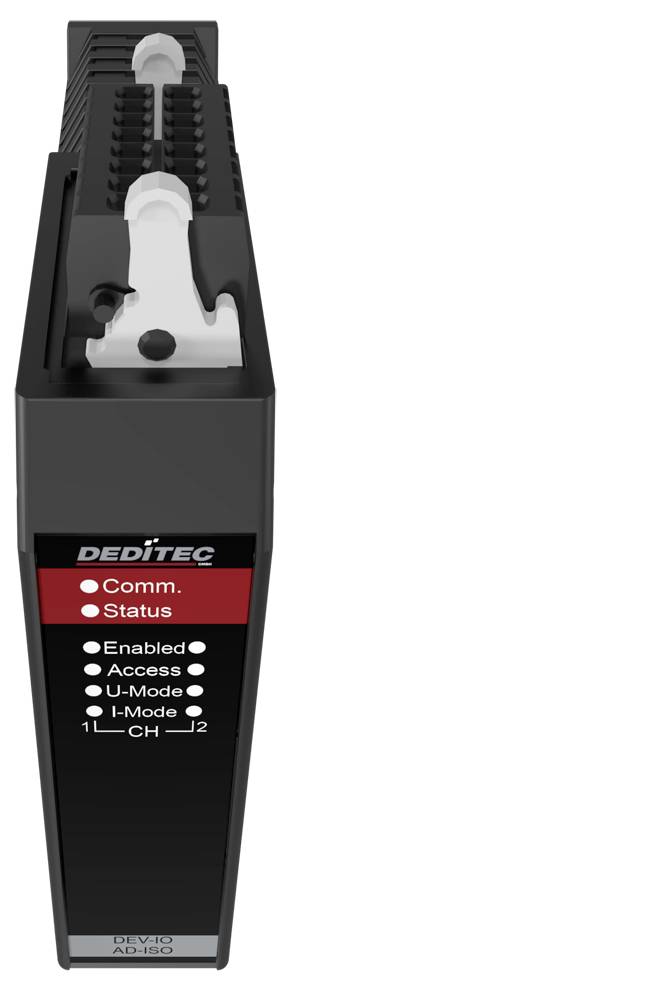

USB analogue converter galvanically isolated – industrial 16-bit A/D converter 2 channels
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- Design: Single ended
- 16-bit resolution of each channel
- 0-5 V, 0-10 V, 0-20 V, 0-40 V, ±5 V, ±10 V, ±20 V, ±40 V
- Current ranges 0-20 mA, 4-20 mA, 0-24 mA
- Galvanic isolation channel to channel: Max. 1 kV AC
- Galvanic isolation for voltage supply: Max. 500 V
- 4 µs conversion rate A/D converter
Technical specifications
- Galvanic isolation: Up to 500 V
- Mounting: Rail mount (35 x 7.5 mm)
- Product type
I/O module
- Interfaces
USB
- Type
UC-USB-AD2-16ISO
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 to 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
2
- No. of inputs
2 x
- No. of outputs
0 x
- Dim
(W x H) 22.5 mm x 120 mm
- Max. current consumption
130 mA
- Height
120 mm
- Width
22.5 mm
- Manufacturer part #
UC-USB-AD2-16ISO
- Type
2-channel 16-bit A/D converter with galvanic isolation in top-hat rail housing
- Inputs
2x analogue inputs (16-bit resolution, galvanically separated)
- Interfaces
USB-C (USB 2.0 / 480 MBit/s)
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796624 Deditec UC-USB-AD2-16ISO UC-USB-AD2-16ISO I/O module USB No. of inputs: 2 x No. of outputs: 0 x I/O number: 2 7 V DC, 24
User & Safety Instructions
User & Safety Instructions 3796624 Deditec UC-USB-AD2-16ISO UC-USB-AD2-16ISO I/O module USB No. of inputs: 2 x No. of outputs: 0 x I/O number: 2 7 V DC, 24
Description
The Industrial USB Analog Converter UC-USB-AD2-16_ISO offers two high-resolution A/D channels with 16-bit and galvanic isolation up to 1 kV. Measures voltages up to 40 V and currents up to 24 mA – Ideal for precise industrial measurements. Typical applications: Sensor monitoring in plants and data acquisition in laboratory and test stands. Plug-&-play via USB‑C facilitates integration.
This text is machine translated.
This text is machine translated.
Features
- A/D filter
- Configurable event control
- M2M functionality
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Free configuration and testing software
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
