Deditec UC-USB-DA2-16ISO UC-USB-DA2-16ISO I/O module USB No. of inputs: 0 x No. of outputs: 2 x I/O number: 2 12 V DC, 2
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 685.00 / piece)
€ 685.00
incl. VAT
14-day return policy included
Highlights & Details
USB 20mA analogue industrial IO box – 16-bit D/A converter with galvanic isolation – 2 channels U / I mode
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- 16-bit resolution of each channel
- 0-5 V, 0-10 V, ±5 V, ±10 V
- Current ranges 0-20 mA, 4-20 mA, 0-24 mA
- Galvanic isolation channel to channel: Max. 1 kV AC
- Galvanic isolation for voltage supply: Max. 500 V AC
- Load resistance: ≥ 1 kOhm
- All D/A channels galvanically separated from each other
Technical specifications
- WAGO plug-in spring terminals (713 series)
- Product type
I/O module
- Interfaces
USB
- Type
UC-USB-DA2-16ISO
- Operating voltage
12 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
12 to 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
2
- No. of inputs
0 x
- No. of outputs
2 x
- Dim
(W x H) 22.5 mm x 120 mm
- Max. current consumption
150 mA
- Height
120 mm
- Width
22.5 mm
- Manufacturer part #
UC-USB-DA2-16ISO
- Type
USB 20mA analogue industrial I/O-box with galvanic isolation
Top hat DIN rail mounting
- Outputs
2 analogue outputs, 16-bit D/A resolution
- Interfaces
USB 2.0 (high-speed up to 480 Mbit/s, Type-C connection (also supports USB 1.1)
- Current consumption
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796623 Deditec UC-USB-DA2-16ISO UC-USB-DA2-16ISO I/O module USB No. of inputs: 0 x No. of outputs: 2 x I/O number: 2 12 V DC, 2
User & Safety Instructions
User & Safety Instructions 3796623 Deditec UC-USB-DA2-16ISO UC-USB-DA2-16ISO I/O module USB No. of inputs: 0 x No. of outputs: 2 x I/O number: 2 12 V DC, 2
Description

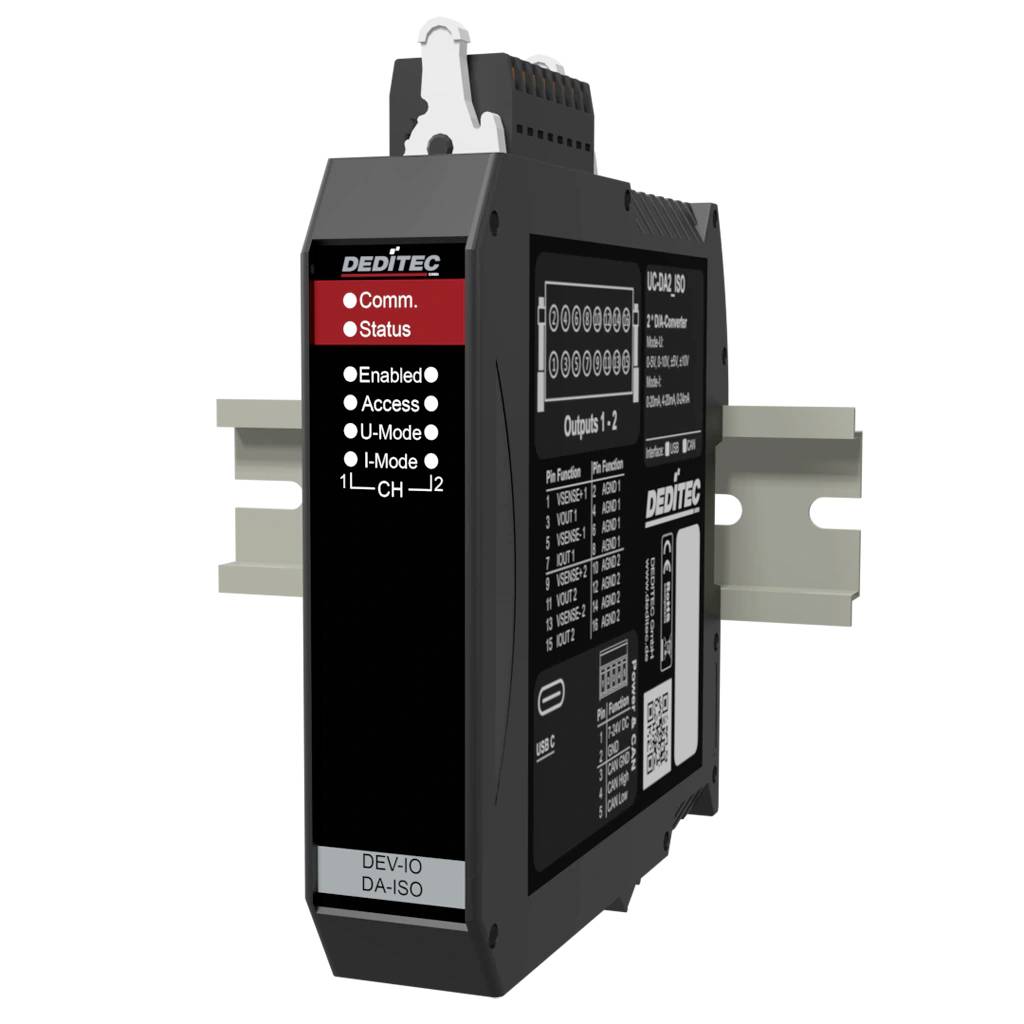

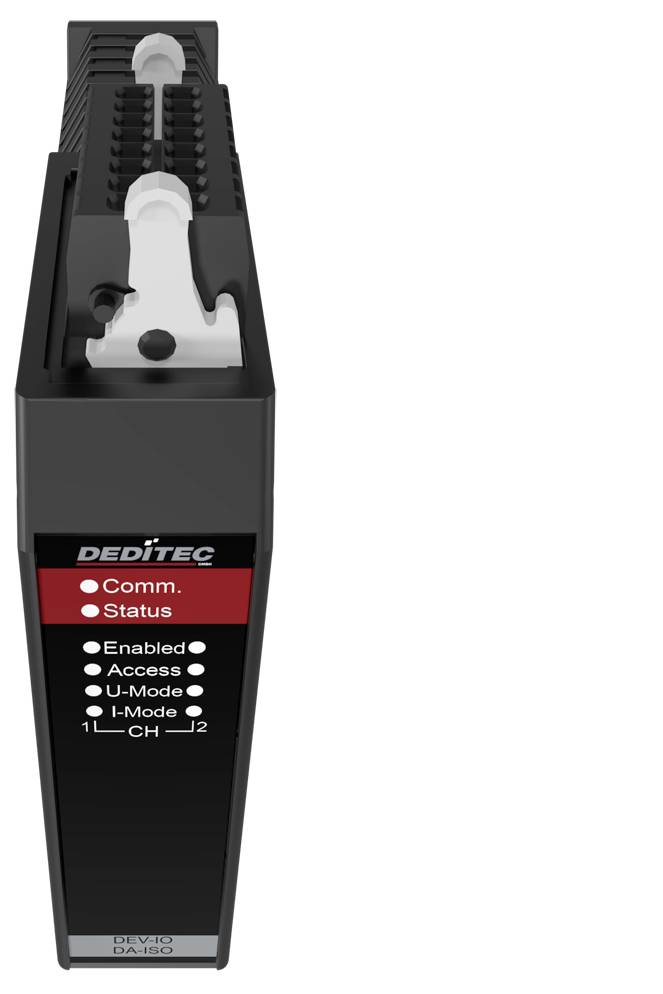

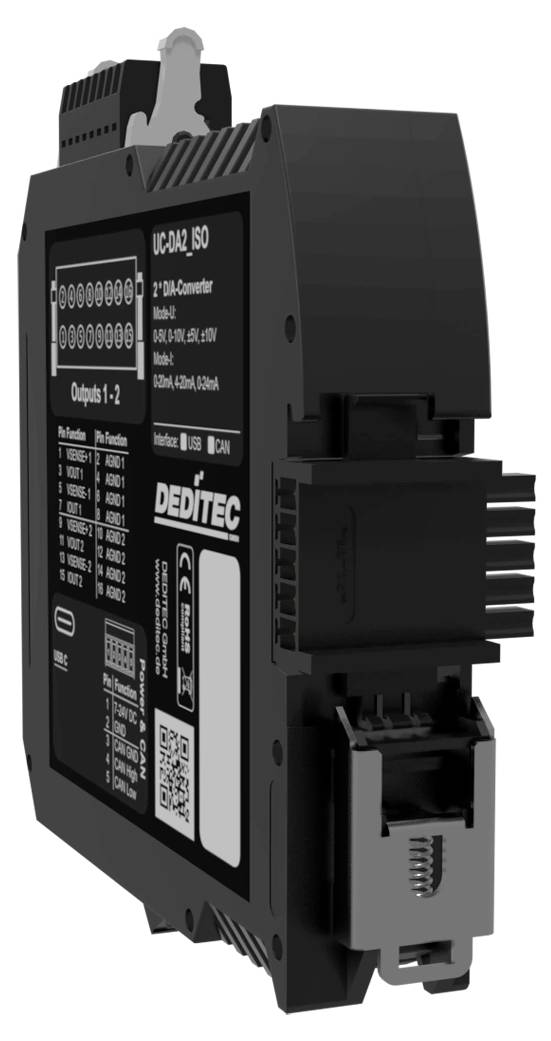

The USB 20mA analogue industry IO Box UC-USB-DA2-16ISO offers two galvanically isolated 16-bit D/A outputs for precise voltage and current signals up to 24 mA. Ideal for industrial control and regulation tasks. Typical applications: Control of valves or actuators as well as simulation of analog process signals in laboratory and test bench environments. Plug-&-play via USB‑C facilitates integration.
This text is machine translated.
This text is machine translated.
Features
- Configurable event control
- M2M functionality
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Free configuration and testing software
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
