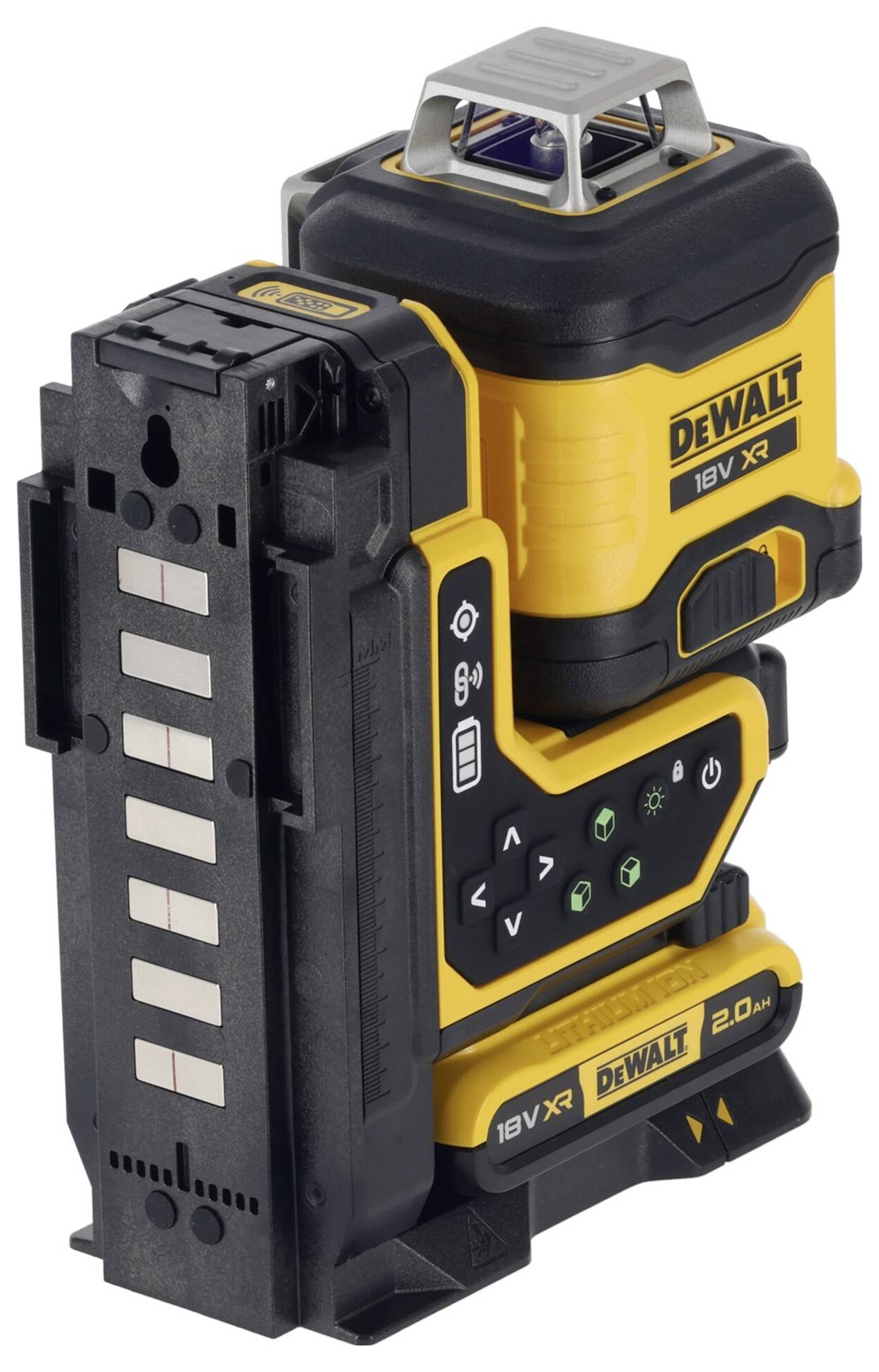

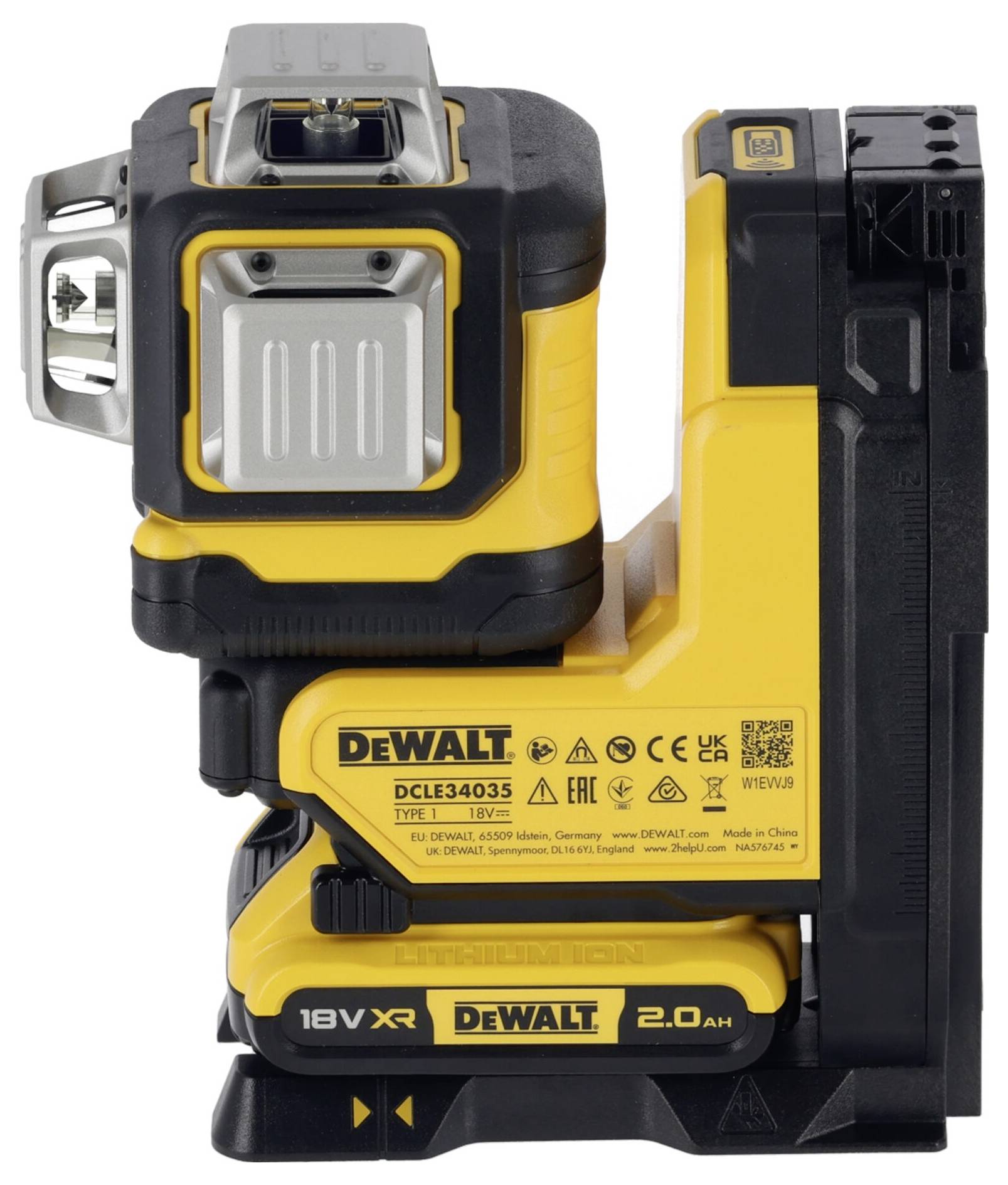

DEWALT DCLE34035D1-QW Multi-line laser Range (max.): 80 m
EAN:
Part number:
Item no:
Technical specifications
- Range (max.)
80 m
- Accuracy (+/-)
3 mm/10m
- Dim
Manufacturer's standards (no certificate)
- Type
DCLE34035D1-QW
- Product type
Multi-line laser
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3340467 DEWALT DCLE34035D1-QW Multi-line laser Range (max.): 80 m
Description
Features

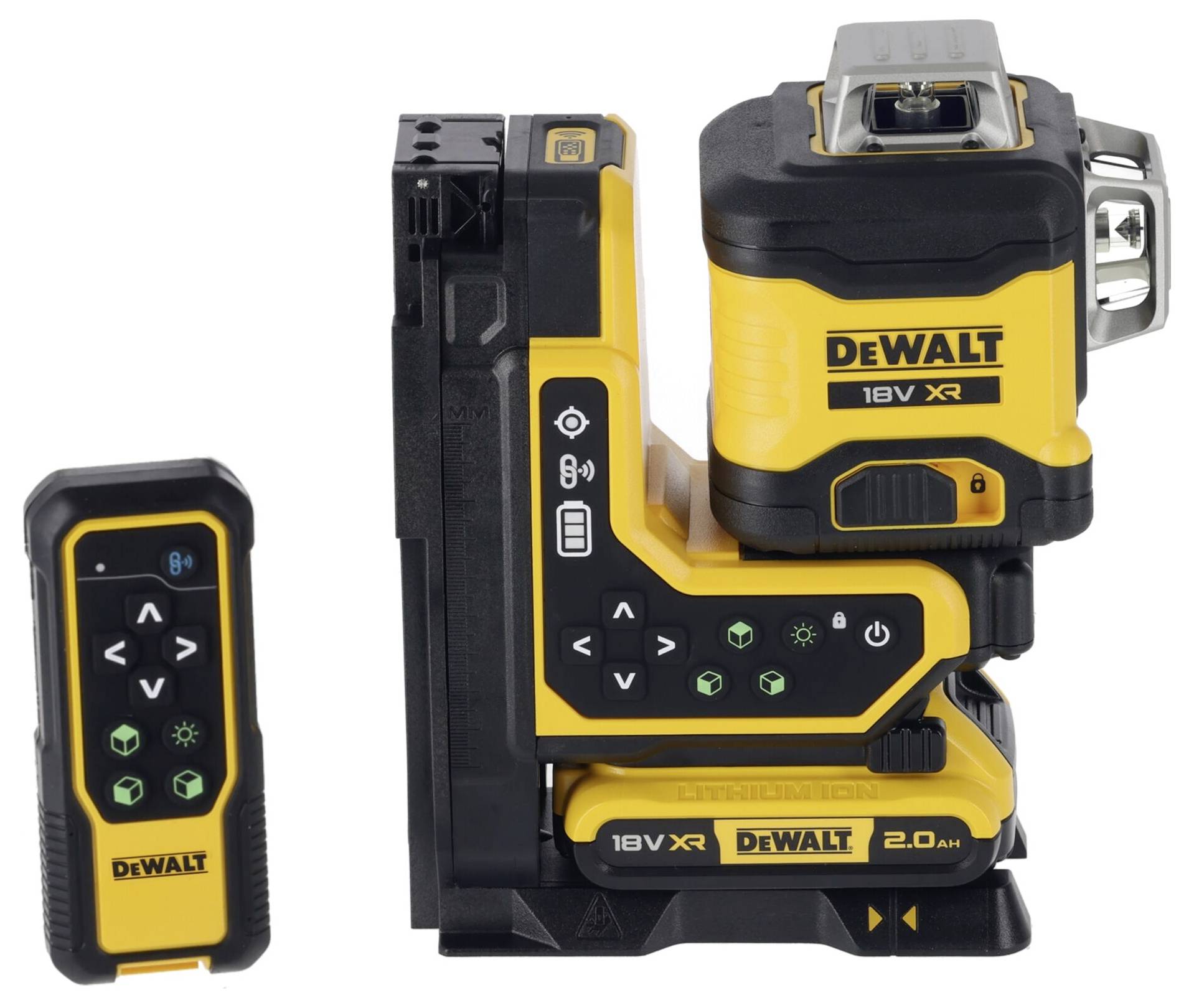

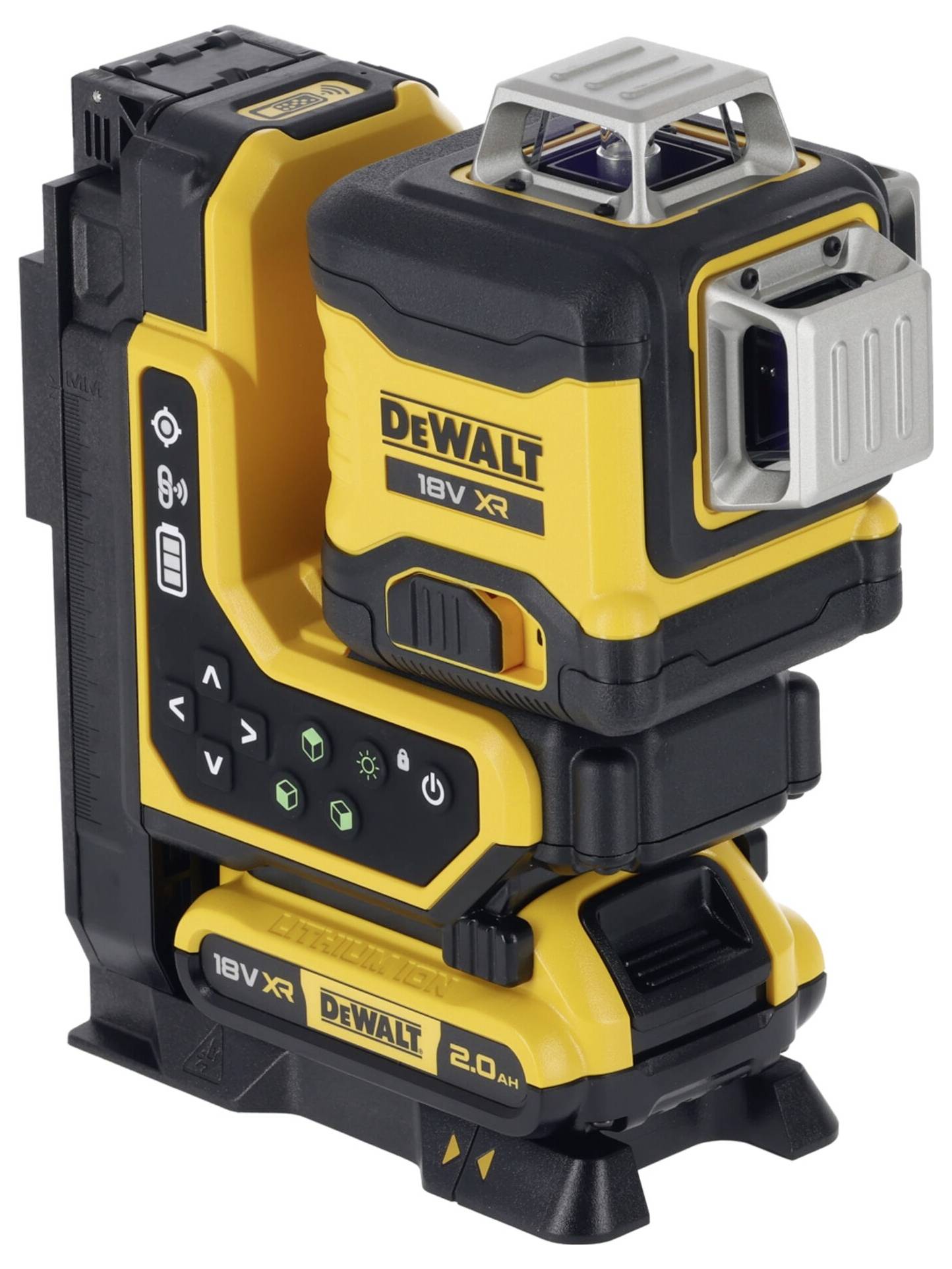

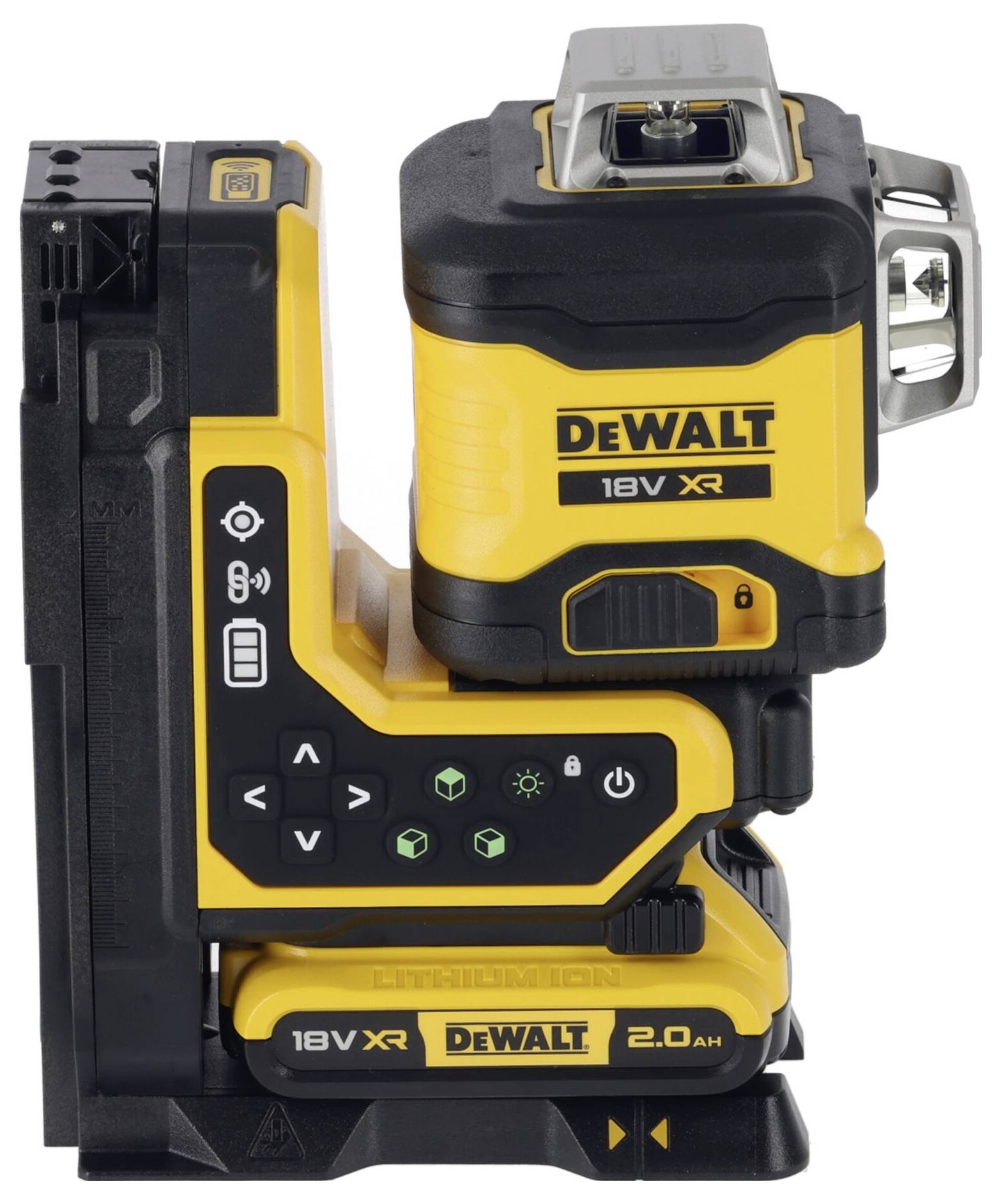

- Dewalt 18V 3x360° line laser with remote control
- Highly visible green laser lines with 3x360° layout – for a working range of up to 80m (100m with receiver)
- Motor-controlled leveling via remote control: Vertical rotation by 90mm, horizontal rotation by 174 degrees
- 3-position switch (manual tilt/self leveling/pendulum lock)
- Adjusting the beam brightness (three brightness levels)
- Magnetic holder for fixing on metal
- Fall alarm – activation in case of free fall from 1m height
- Battery level indicator
- Operating elements for laser movement/fine adjustment to left/right/up/down
- Individual switchable diodes
- Compatible with Dewalt 18V-batteries
- Remote control for a work area of up to 100m for precise settings (fine adjustment, on/off switching of the laser lines and beam brightness)
- Accuracy: +/- 3mm @ 10m
- Automatic leveling +/-3°
- Self-leveling duration ≤ 5s
- IP class IP54
- Drop test 1m
- Power supply 18V
- Runtime: Up to 9 hours (with two lines, full brightness)
- Tripod stand thread 5/8" (in bracket)

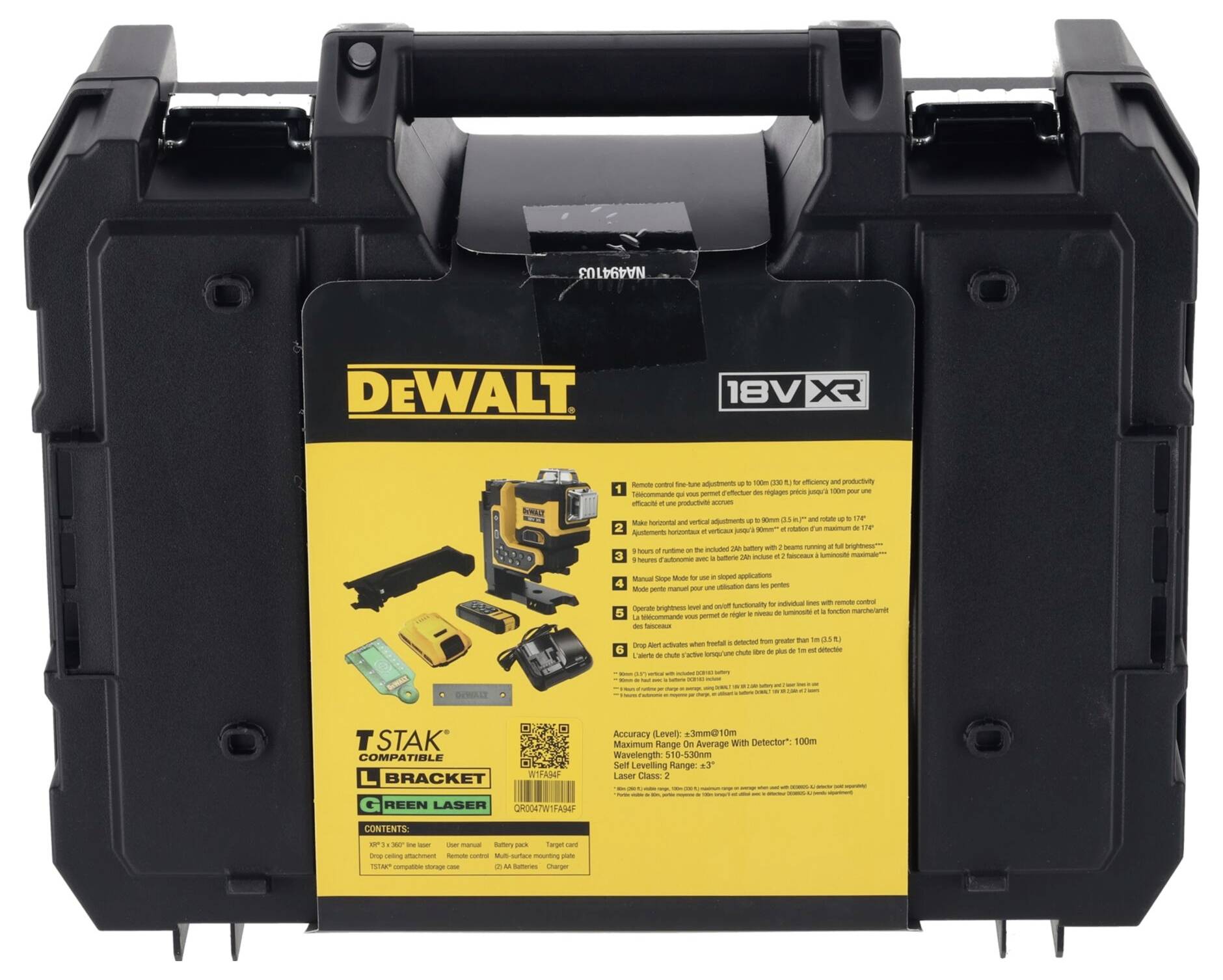

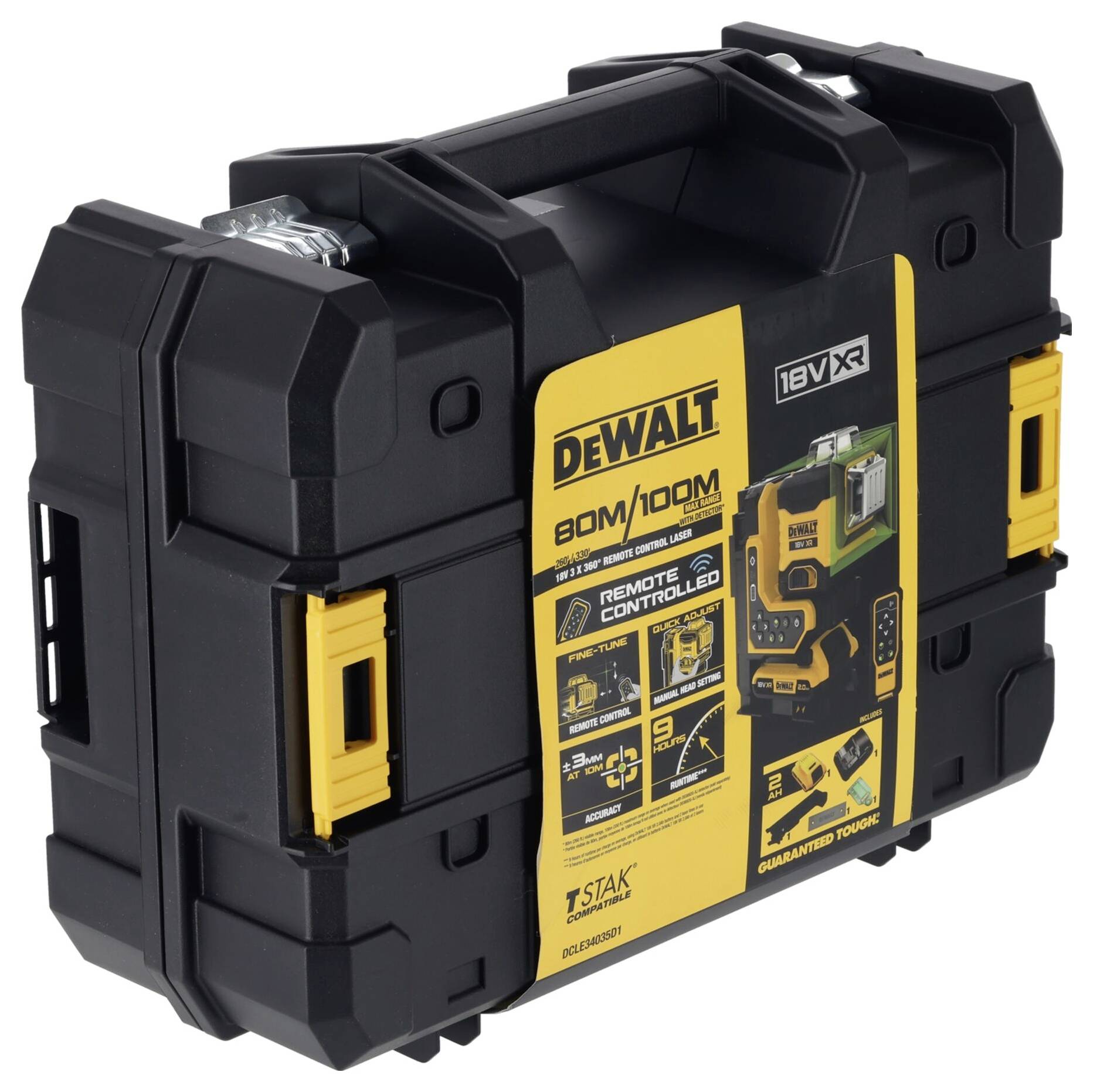

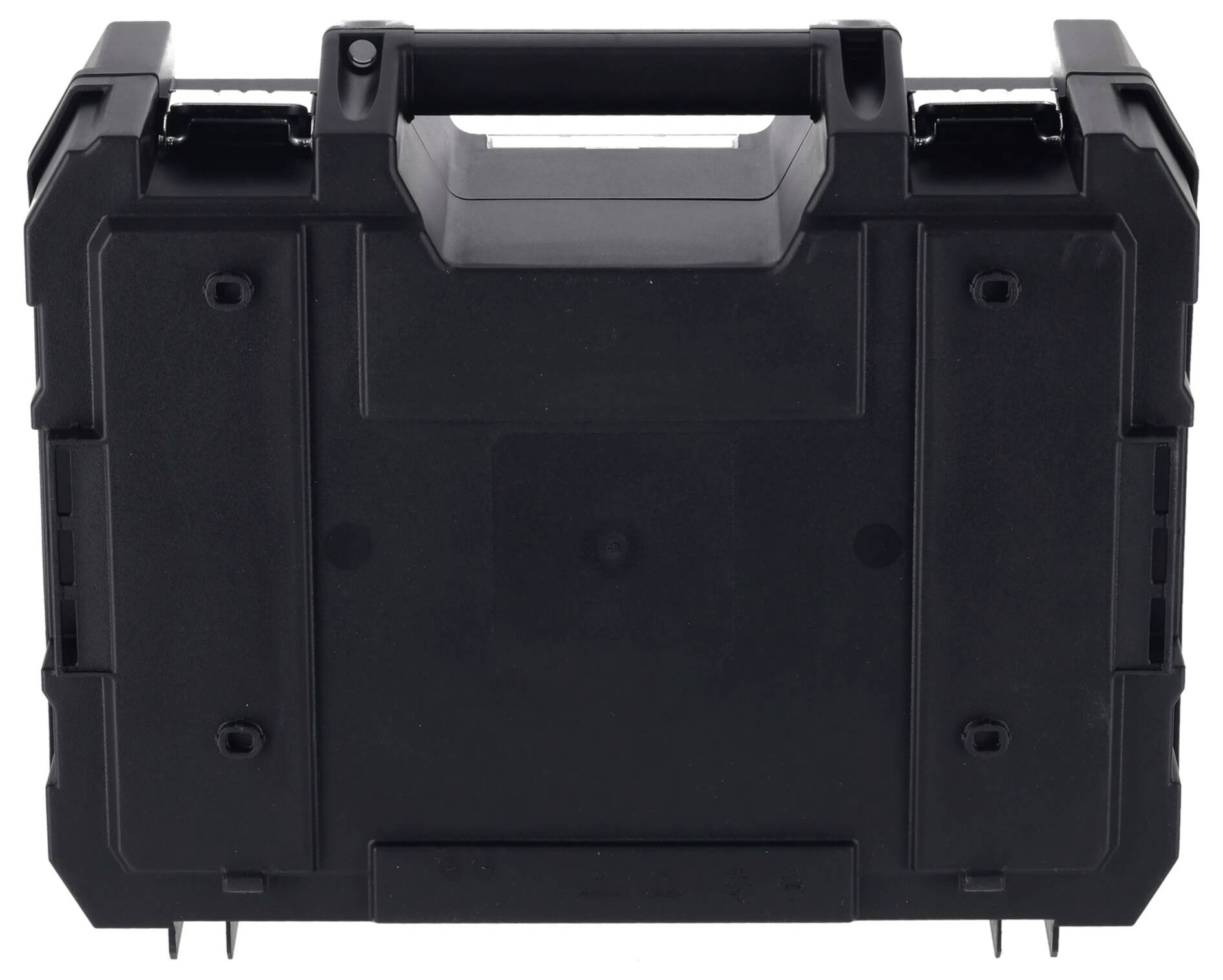

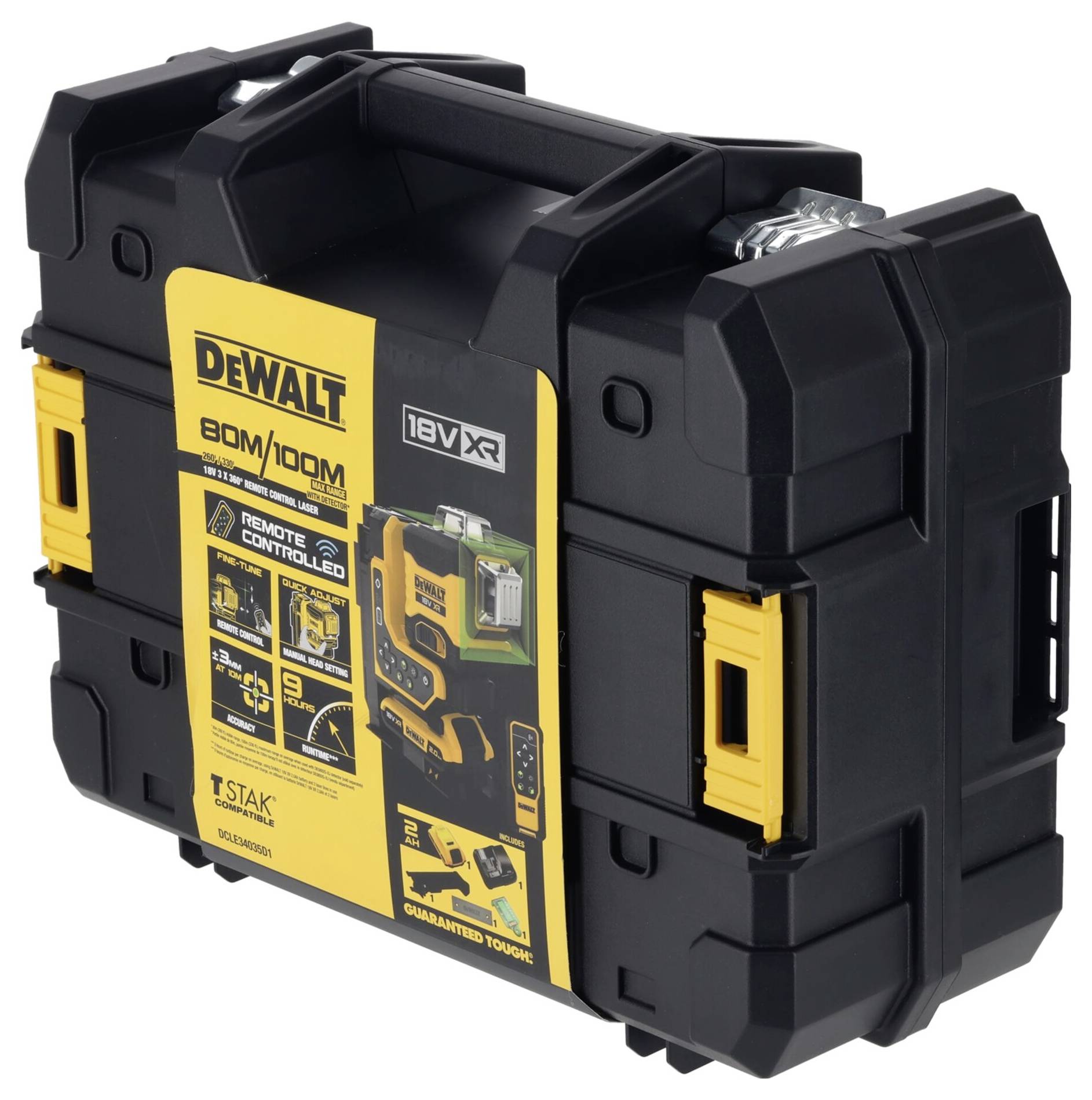

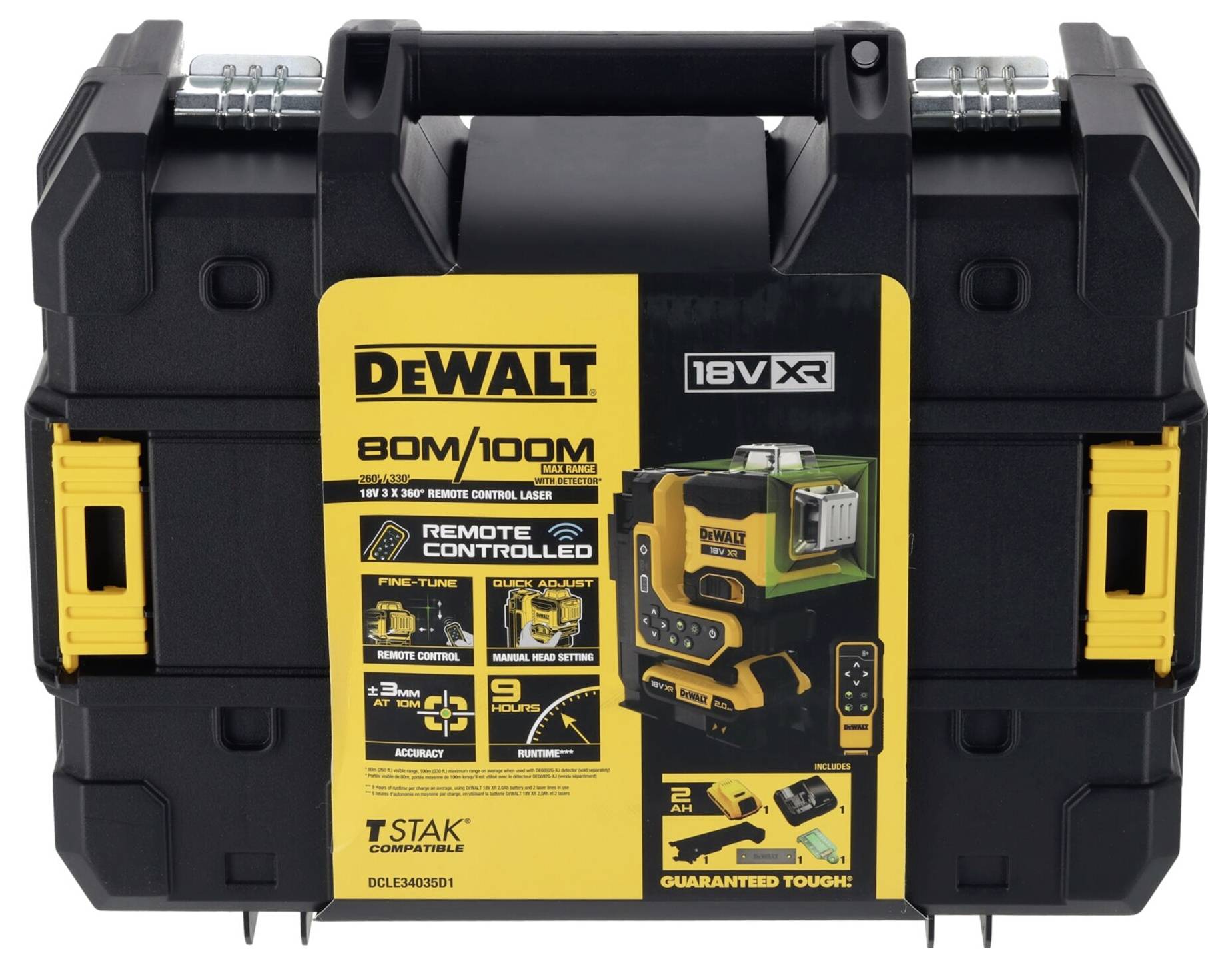

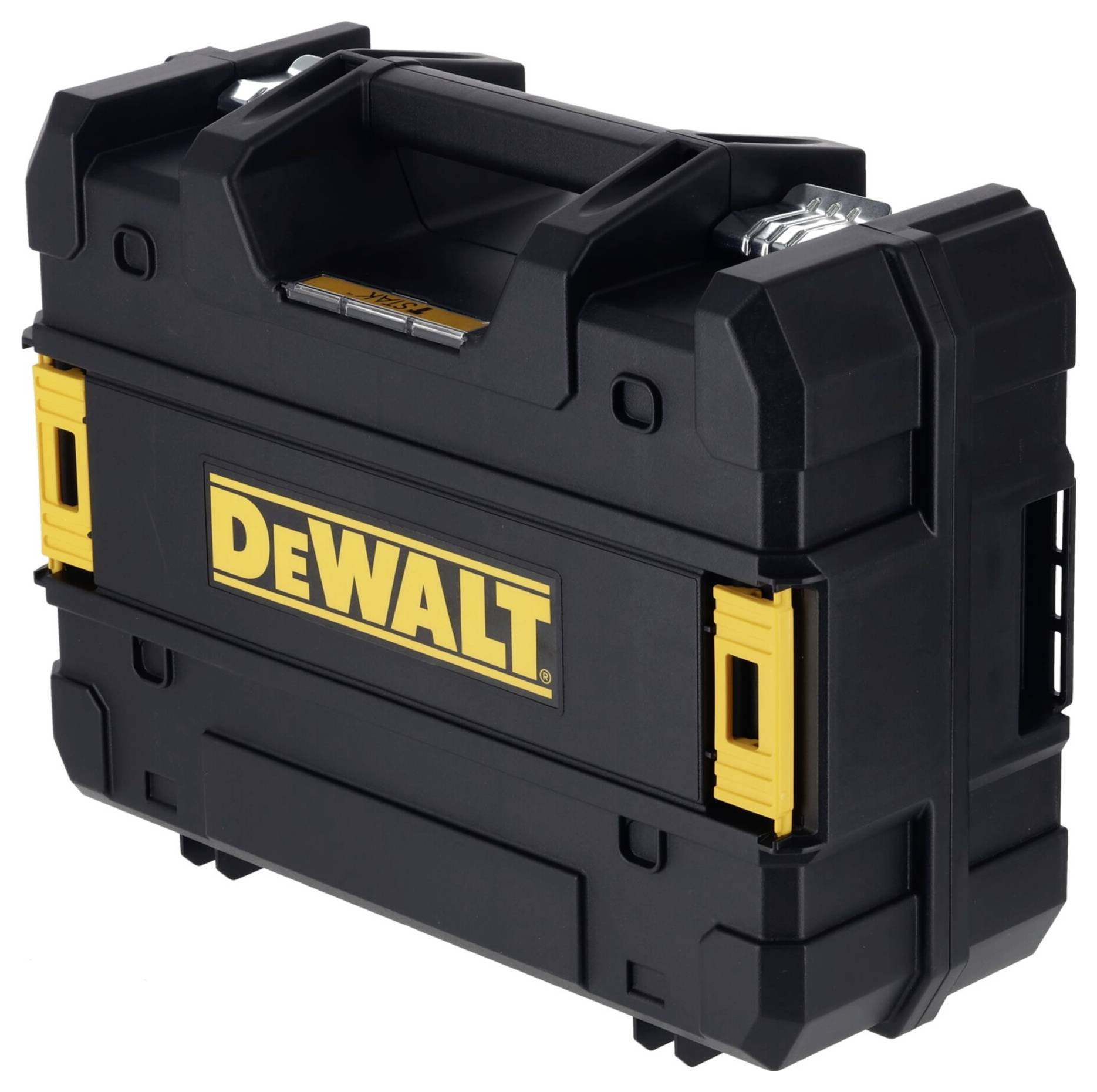

- Set contents: T-STAK case, 18V XR battery, charger, remote control, holder, Target plate
- This text is machine translated.
Scope of delivery

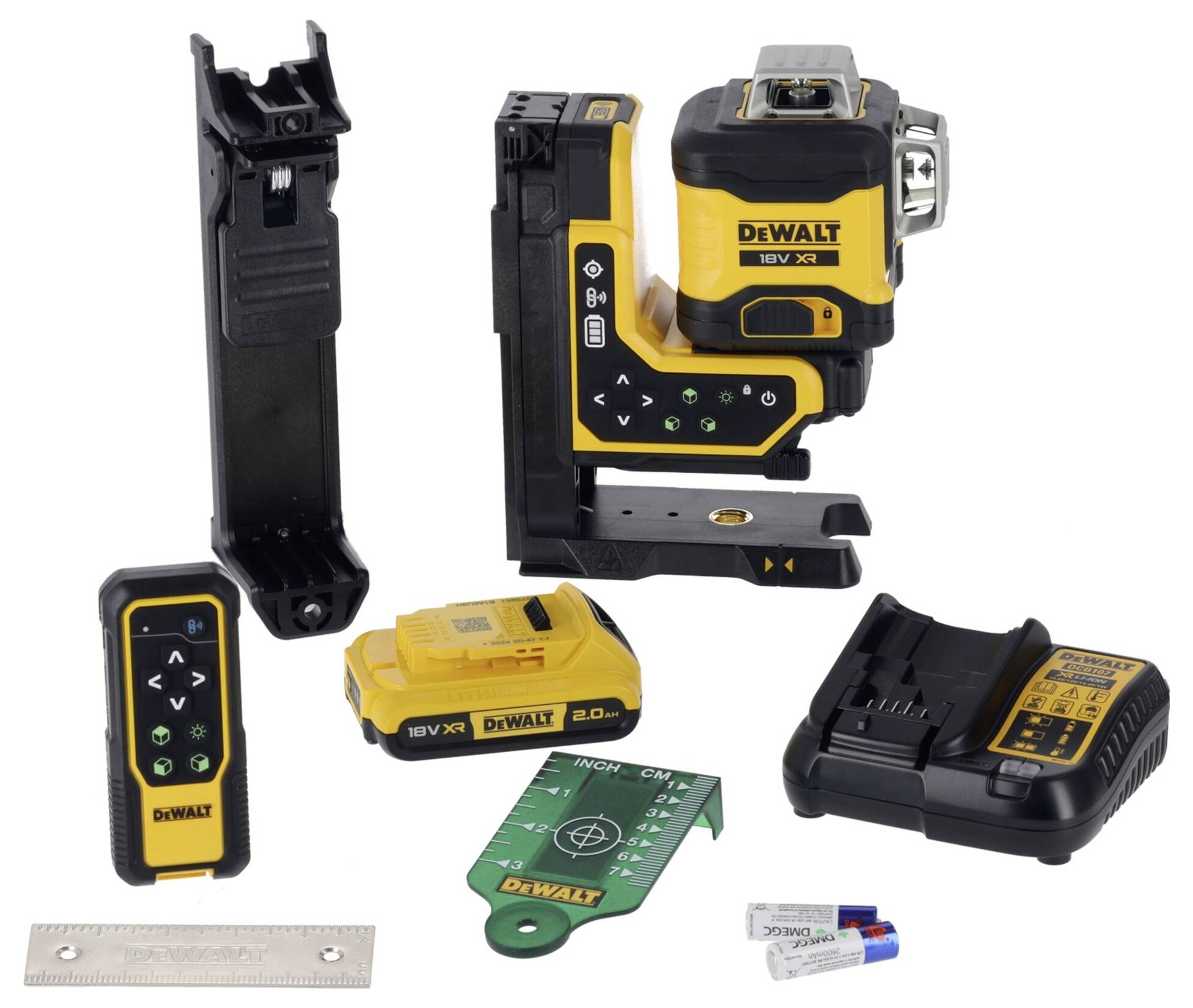

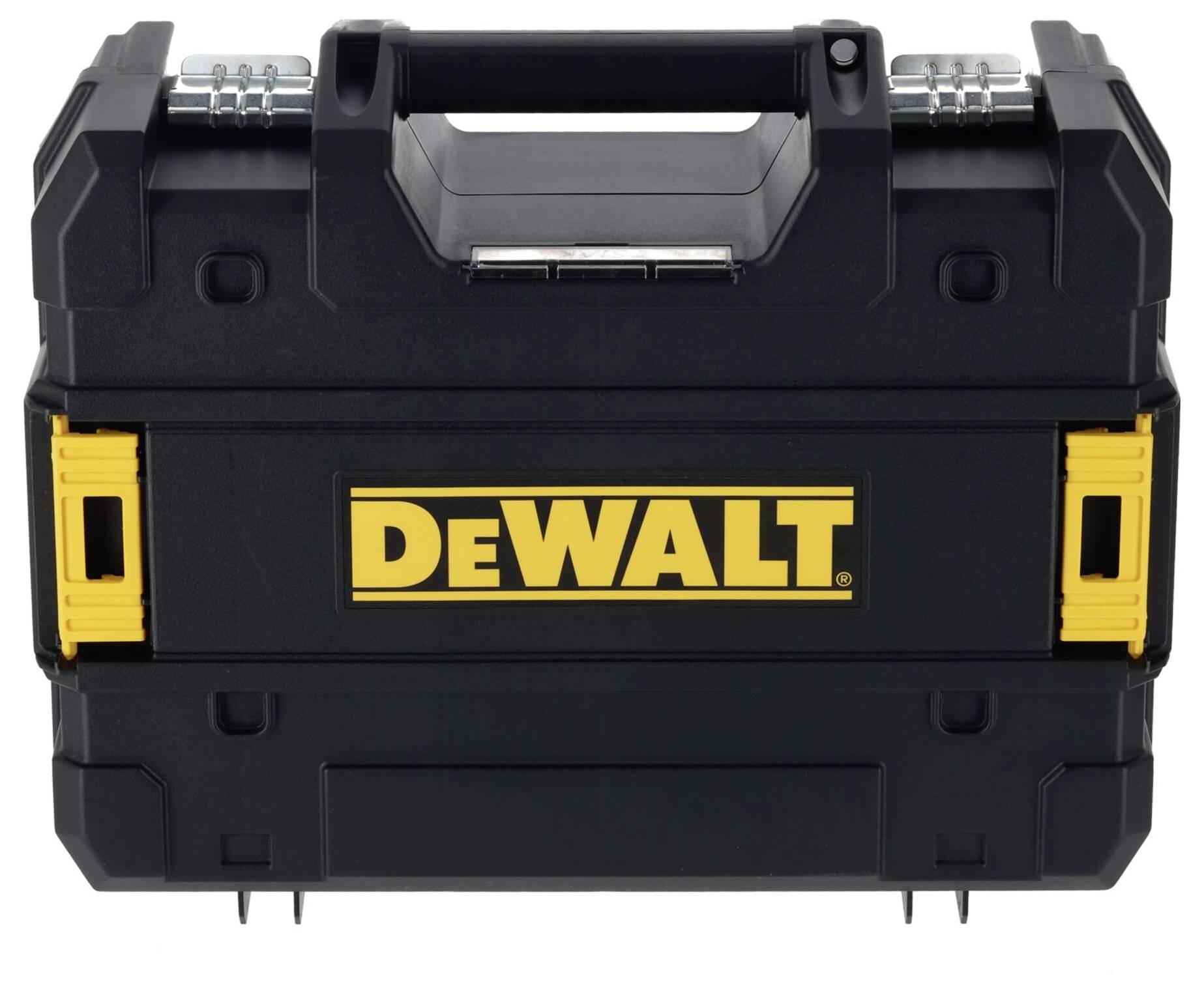

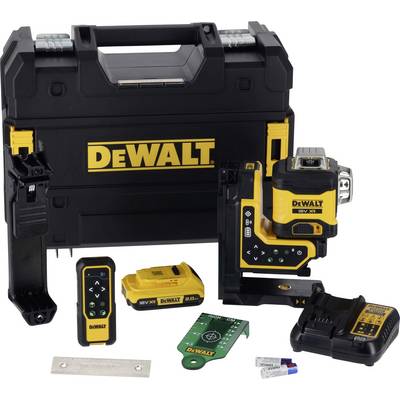

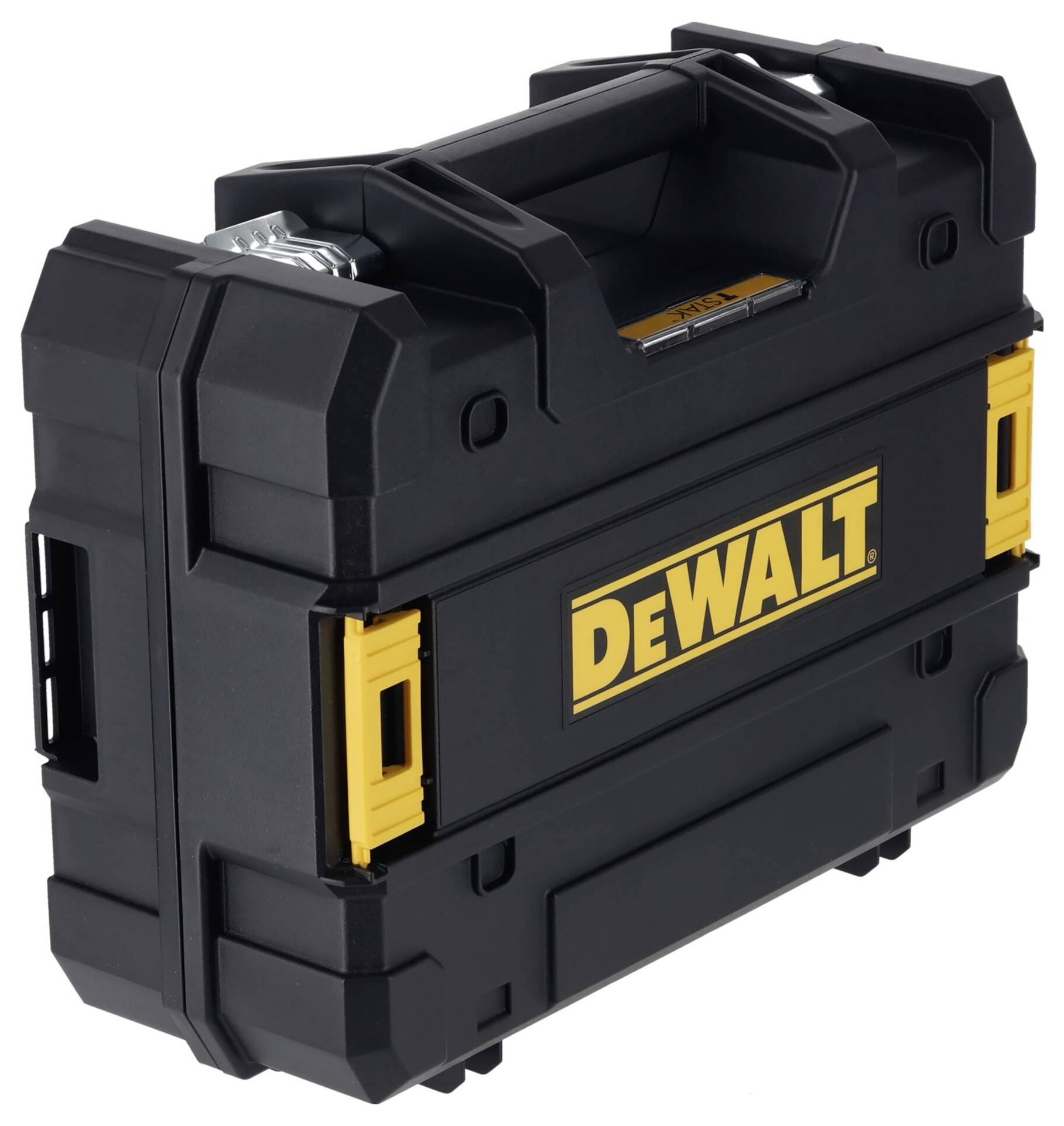

- T-STAK compatible case, laser, 18V XR battery, charger, remote control, Holder, target board
