Buy Digitus DN-170076 UPS system 2000 VA

Black uninterruptible power supply (UPS) with digital display on the front, designed to protect electronic devices.

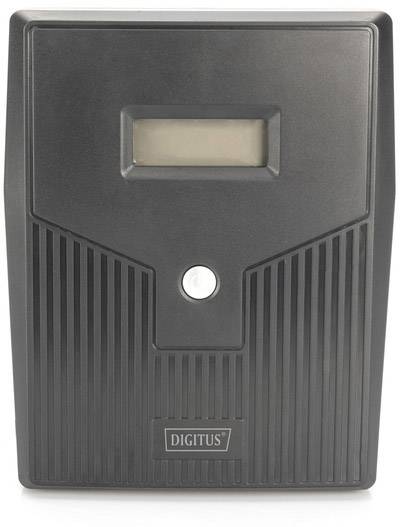

Black electronic access control with display and push button switch.

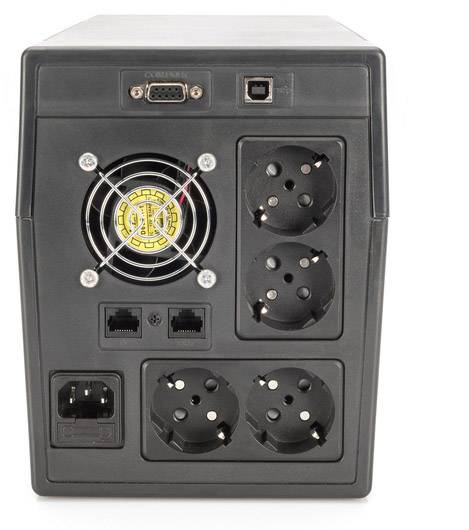

A black UPS device with a fan, 4 Schuko power sockets, mains connection, and communication ports on the rear.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 168.06 / piece)

€ 168.06

plus VAT.

Report legal concerns

Highlights & Details

Digitus DN-170076 UPS system 2000 VA

Step-up/down converter to stabilize the voltage
Fast bridging time in case of power failures
Compact housing for space-saving installation in your IT infrastructure
Fast charging time
Produces a low noise level below 40 dB

Technical specifications

Product type: UPS system

Nominal power: 2000 VA

No. of outputs: 4 x

of which battery-buffered: 4

Output: PG socket

Features: Alarm
LCD
Serial port
USB port

Type: DN-170076

Width: 158 mm

Height: 198 mm

Depth: 380 mm

Weight: 10.5 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1881634 Digitus DN-170076 UPS system 2000 VA

Security datasheet

Security datasheet 1881634 Digitus DN-170076 UPS system 2000 VA

Description

The DIGITUS Line-Interactive UPS systems come with a compact size and excellent microprocessor control, which guarantees high reliability. With their user-friendly handling, they offer high performance and security for your business and office computer systems against data loss and damage. Features such as overload, discharge and overload protection, a cold-start function and energy-saving features as well as an acoustic alarm system are just a few of the advantages of the DIGITUS Line-Interactive UPS systems.

This text is machine translated.

Features

Excellent microprocessor control guarantees high reliability in the event of a power failure
Automatic restart while the voltage is restored
Cold start function
Connection: 4x earthing contact socket outlets, 2x RJ45, 1x RS232, 1x USB 2.0 type B.
Input voltage 230 VAC
Voltage range 162-290 VAC
Frequency range: 50-60 Hz (auto sensing)
Output voltage 230 VAC ± 10%
AC regulation (battery mode): 10%
Capacity 2000 VA/1200 W.
Frequency range (battery mode): 50 Hz ± 1%
Typical transfer time: 2-6 ms
Waveform (battery mode): Simulated sine wave
Battery 12V/9Ah x2
Typical recharge time: 6-8 hours to restore 90% of capacity
Alarm sounds: Battery mode (sounds every 10 seconds), low battery status (sounds every second), overload (sounds every 0.5 seconds), error (sounds continuously)
Humidity 0-95% RH @ 0 °C to +40 °C (non-condensing)
Noise level: Less than 40 dB
With overload, discharge and overload protection
Step-up/down converter to stabilize the voltage
LCD screen
Dimensions (H x W x D) 198 x 158 x 380 mm
Weight: 10.5 kg
