Name: Digitus DN-19 09-U 19" wall cabinet (W x H x D) 600 x 509 x 450 mm 9 U Grey-white (RAL 7035)
Brand: Digitus
SKU: 972278
Availability: SoldOut

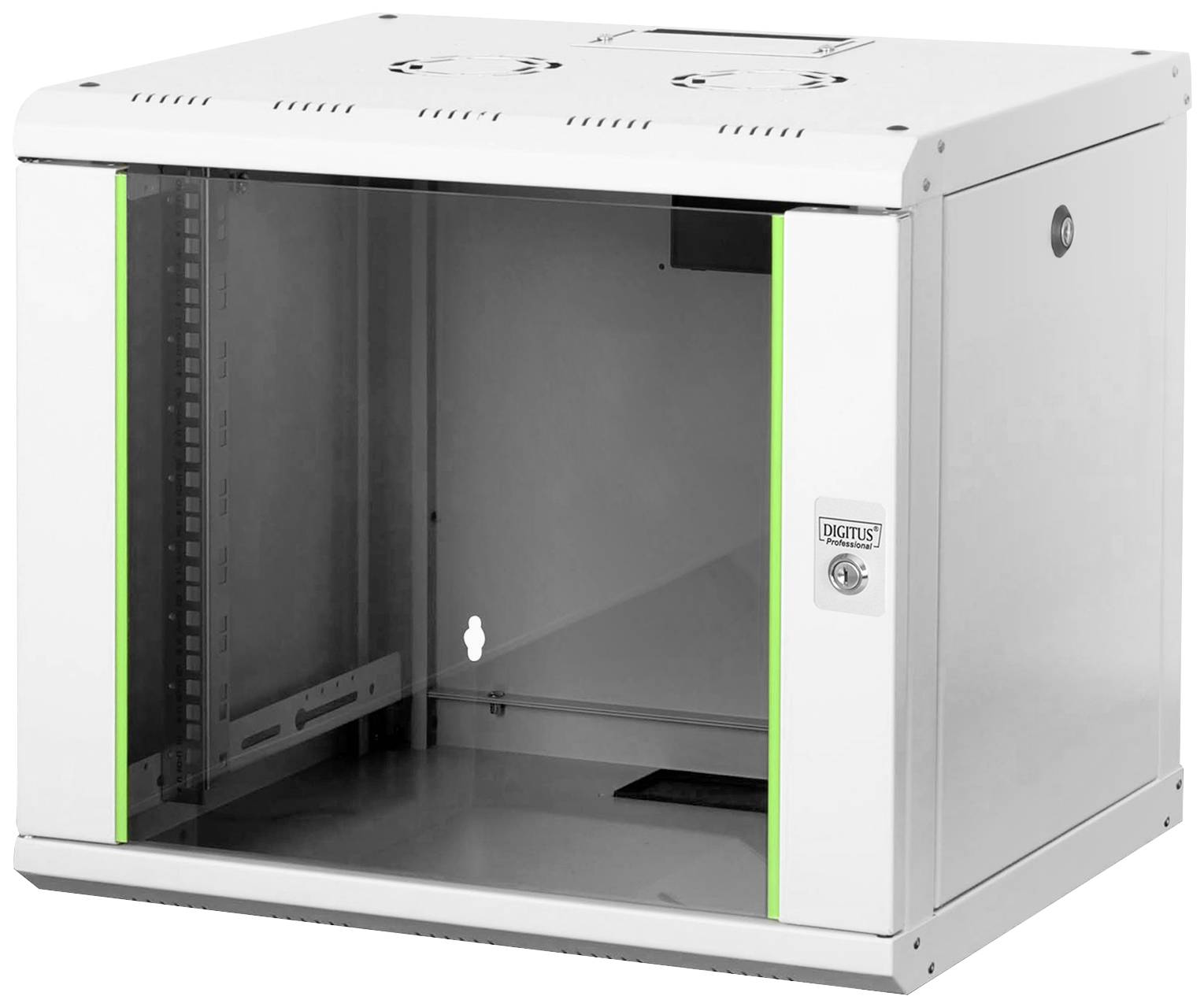

White, empty server rack cabinet with a glass door. Sides are made of metal, front with a green accent. A lock is fitted to the door.

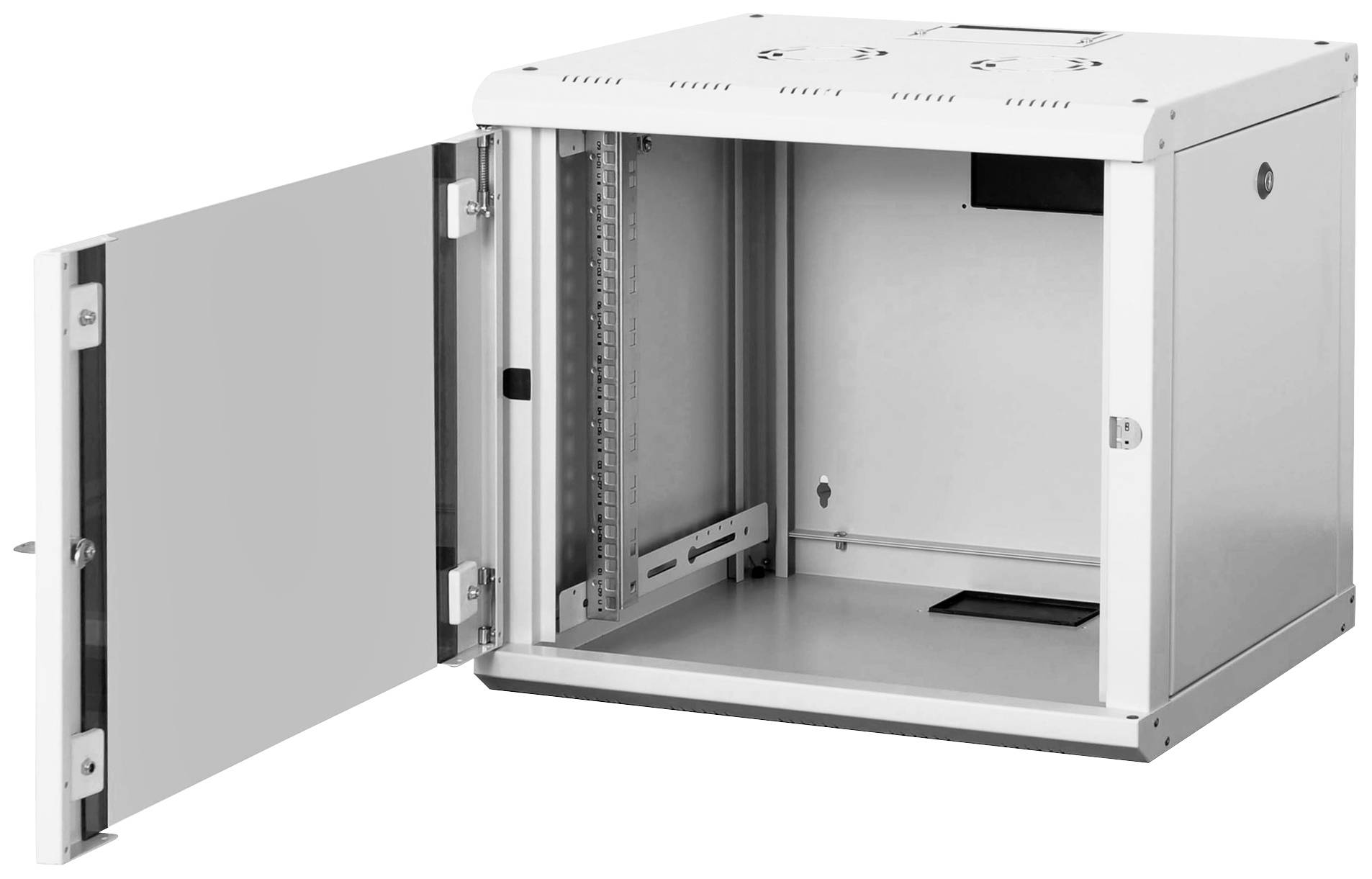

Metal cabinet with an open door, showing an empty internal compartment for technical equipment or storage.

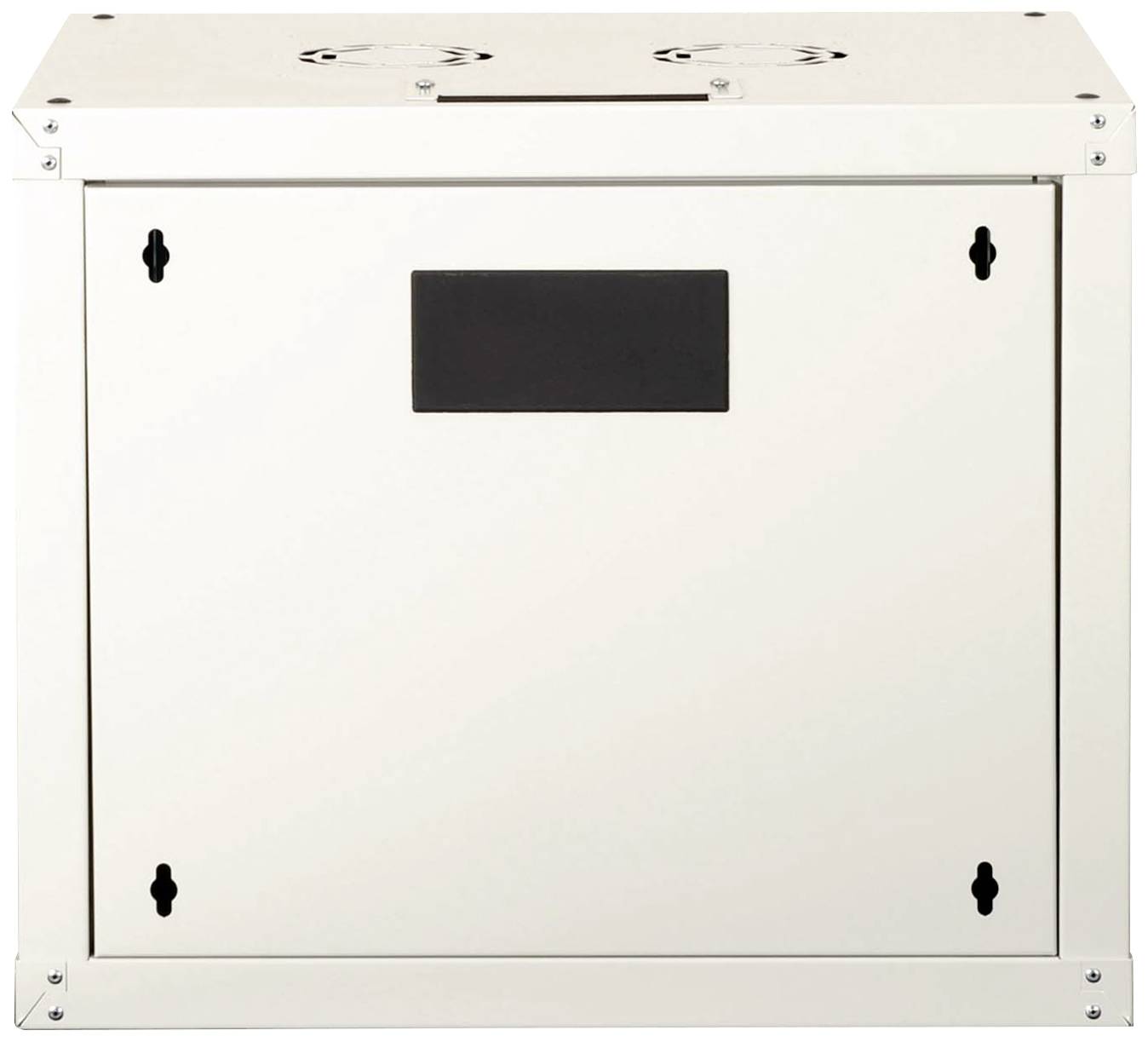

White metal box, rectangular, with a black panel mounted on the front. Four mounting points at the corners.

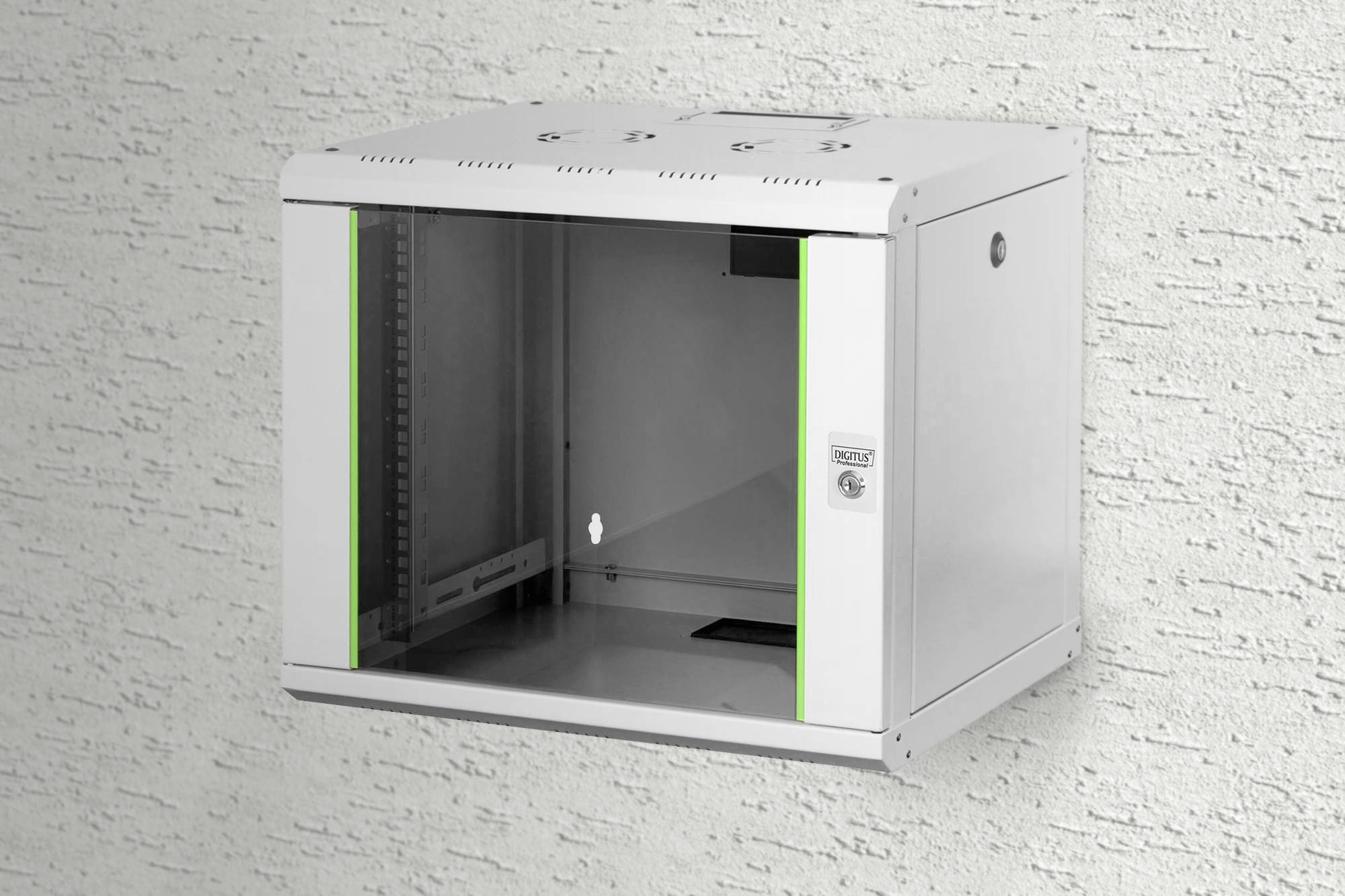

Metal wall-mounted cabinet, open, with a grey front panel and green accents, against a white wall.

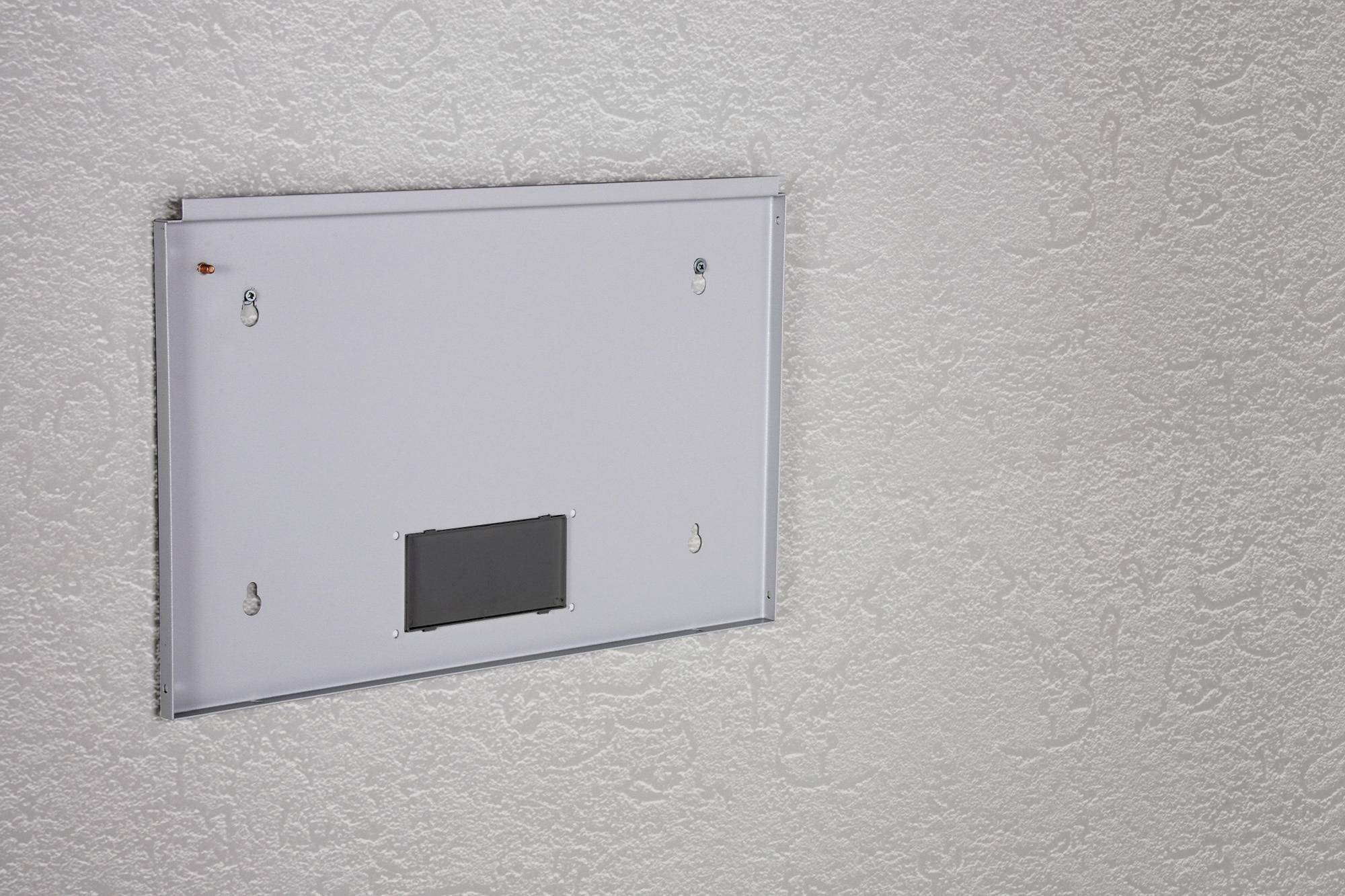

Heating panel mounted on a textured wall.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 179.99 / piece)

€ 179.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

wall mounting cabinet

1.1 - 1.5 mm robust steel sheet with high load capacity, powder-coated
Side parts are removable and can be locked
Ventilation slots for active and passive ventilation

Technical specifications

Product type: 19" wall cabinet

Rack unit: 9 U

Width: 600 mm

Height: 509 mm

Depth: 450 mm

Material: Safety glass
Steel

Dim: (W x H x D) 600 x 509 x 450 mm

Weight: 20 kg

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 972278 Digitus DN-19 09-U 19" wall cabinet (W x H x D) 600 x 509 x 450 mm 9 U Grey-white (RAL 7035)

User & Safety Instructions

User & Safety Instructions 972278 Digitus DN-19 09-U 19" wall cabinet (W x H x D) 600 x 509 x 450 mm 9 U Grey-white (RAL 7035)

Description

The DIGITUS® wall mounting cabinets are made of a robust steel sheet construction with a minimum of seams. The side sections are detachable and lockable. It is fast and easy to mount the cabinet. Separately there are levelling feet or castors available. Due to their flexibility the cabinets are ideal for all current IT- and Telecommunication applications.

· 1.1 – 1.5 mm strong sheet steel with high load capacity, powder coated
· Side sections detachable and lockable
· Ventilation slots for active and passive ventilation and exhaustion
· Lockable safety-glass door with steel frame
· IP 20 rating
· 483 mm (19") profile rails on the front side, adjustable in depth
· Cable entry on the rear side and bottom with plastic cover and top with sliding cover
· Inclusive 8 pieces mounting set
· Extensive range of accessories available

Features

Lockable safety glass door with steel framesProtection type IP20483 mm (19") profile rails on the front, adjustable depthCable feed at rear and bottom with plastic cover and top with sliding coverIncludes 8 x 19" mounting screws 100 kg load capacityCabinet type: Wall housingFront door: Glass door
