Digitus DN-931096 FTTH junction box set White 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
5
5% = € 0.19
€ 3.42
10
7% = € 0.27
€ 3.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.

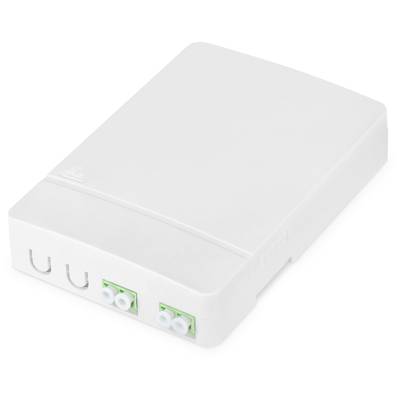

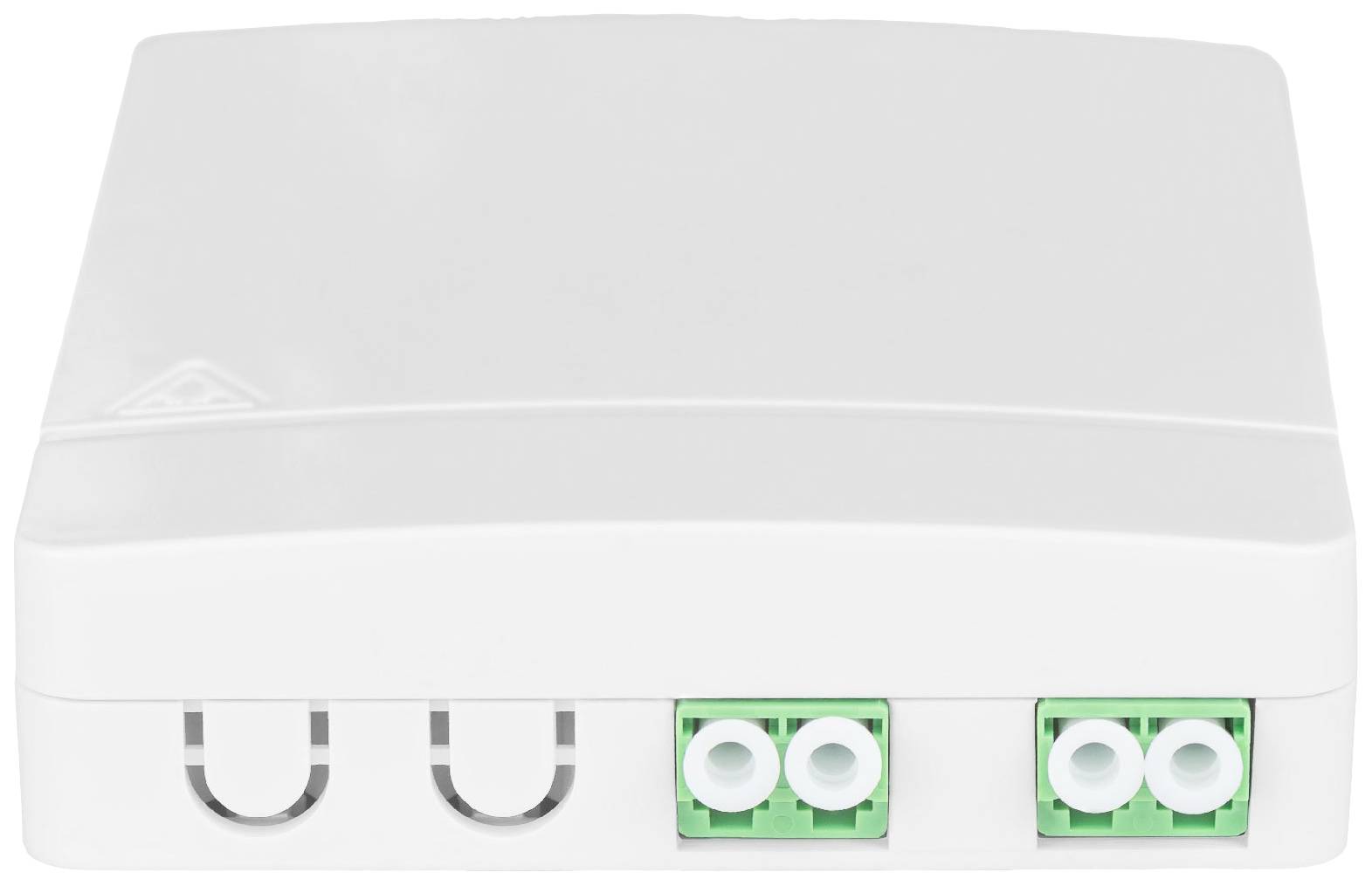

FTTH housing with 2x LC (APC) DX adapter Wall mounting
Highlights & Details
- Ideal connection box for glass fiber cables in the field of FTTH
- Suitable for wall mounting

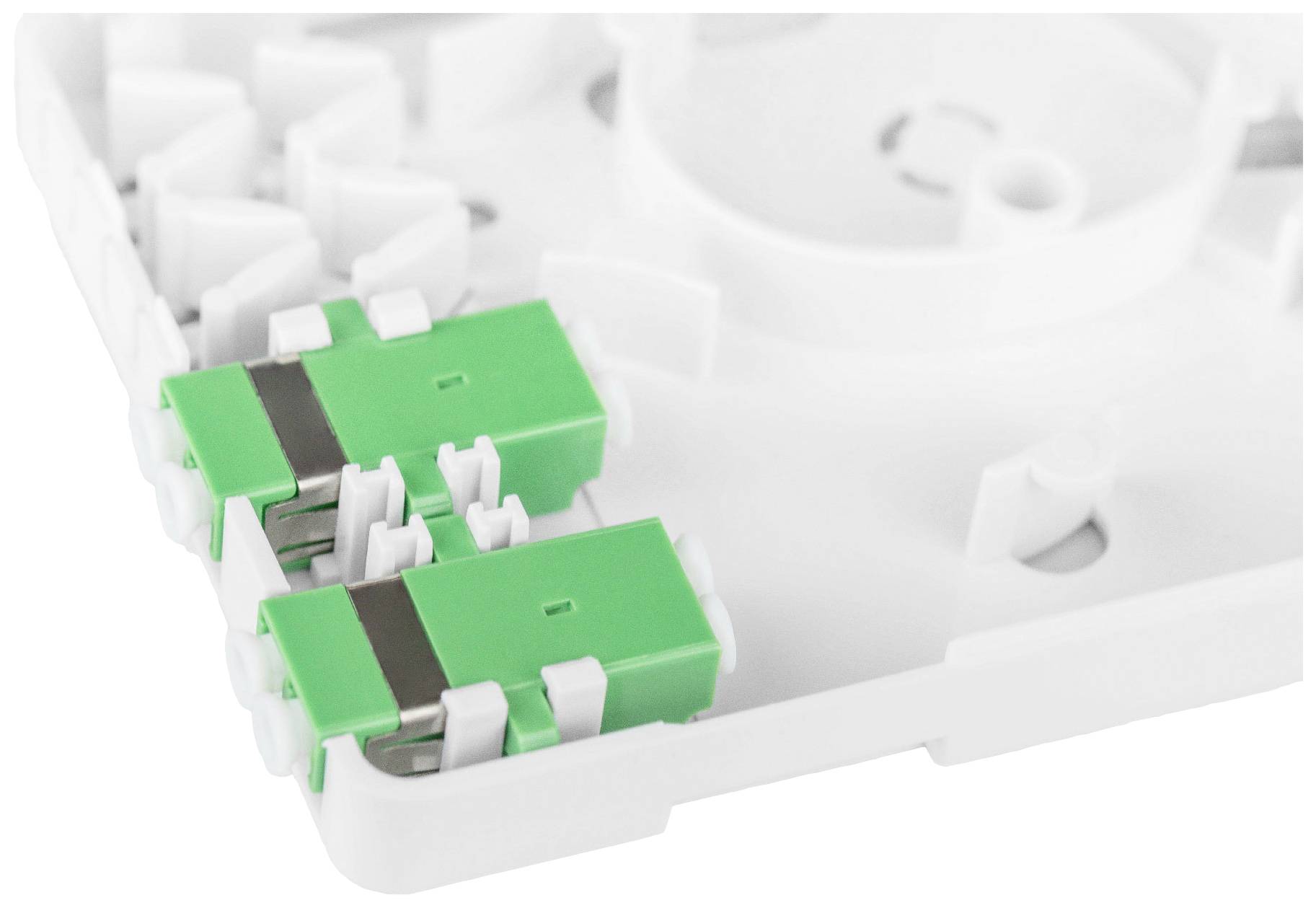

- Equipped with LC/APC coupling
- Designed for connecting installation cables with pigtails or for direct connection of pre-assembled cables

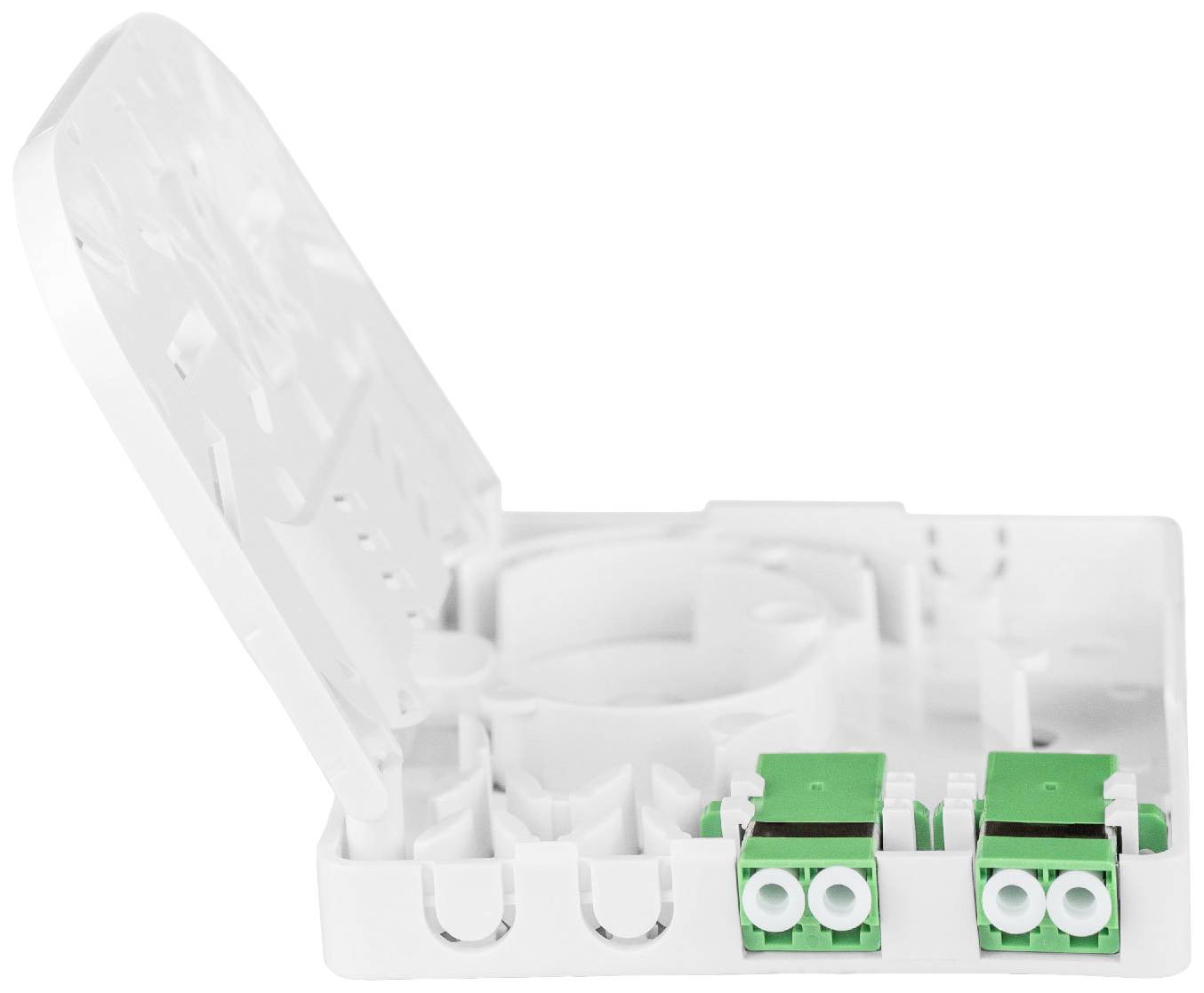

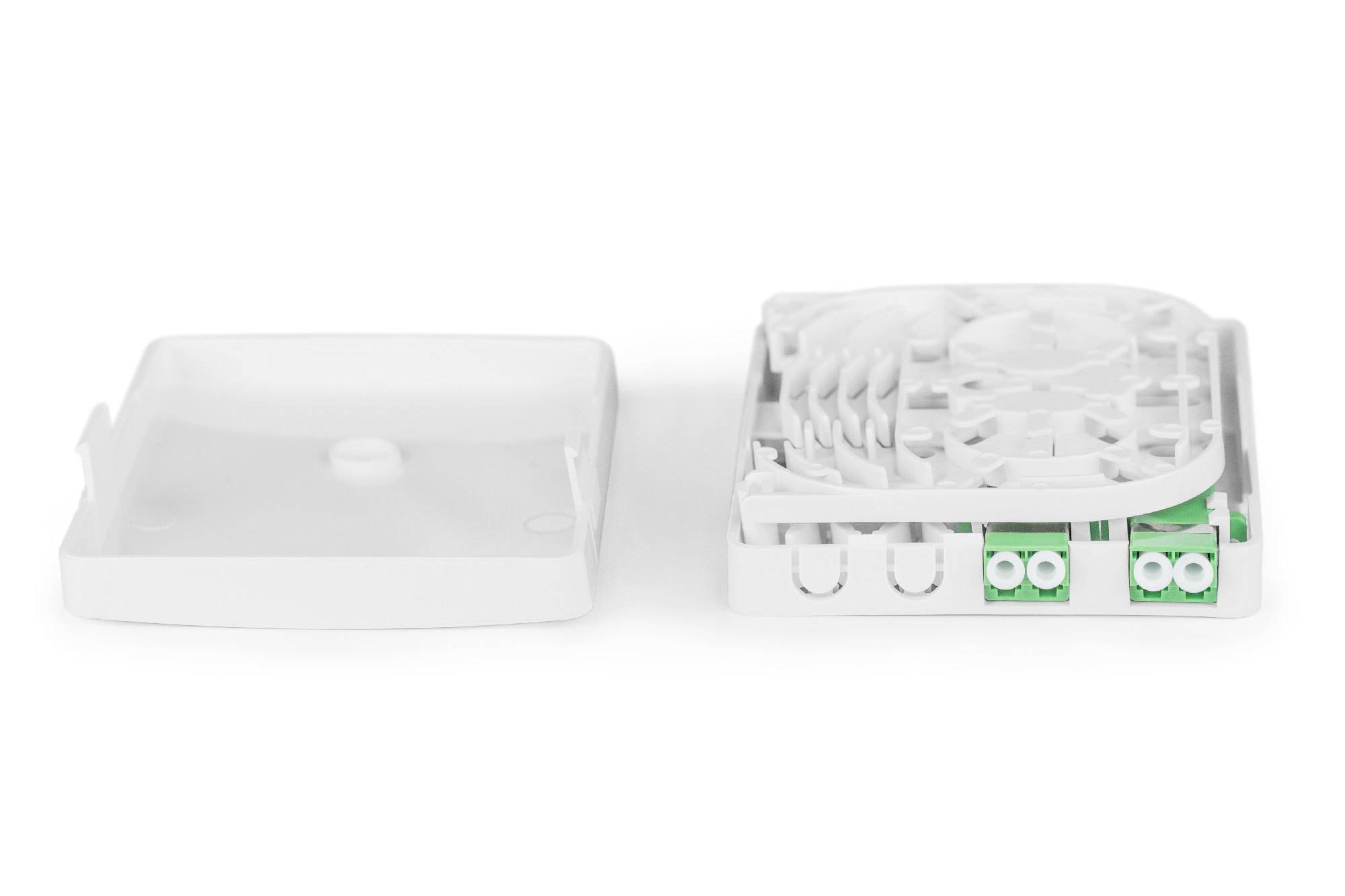

- Integrated splice box, hinged with cable routing
- Suitable for fusion splice devices or mechanical splice devices
Technical specifications
- Product type
FTTH junction box set
- Type A
LC APC socket
LC/APC 8° socket
Duplex
- Patch panel design
Unequipped
Singlemode
- Material
Polycarbonate (PC)
ABS-PC
Plastic
- Factory colour
White
- Width
80 mm
- Height
104 mm
- Depth
23 mm
- Version
Cable
- Cable use
PC
- Wireless charging
No
- Connection type
Connector
- Weight
100.00
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3207663 Digitus DN-931096 FTTH junction box set White 1 pc(s)
Description

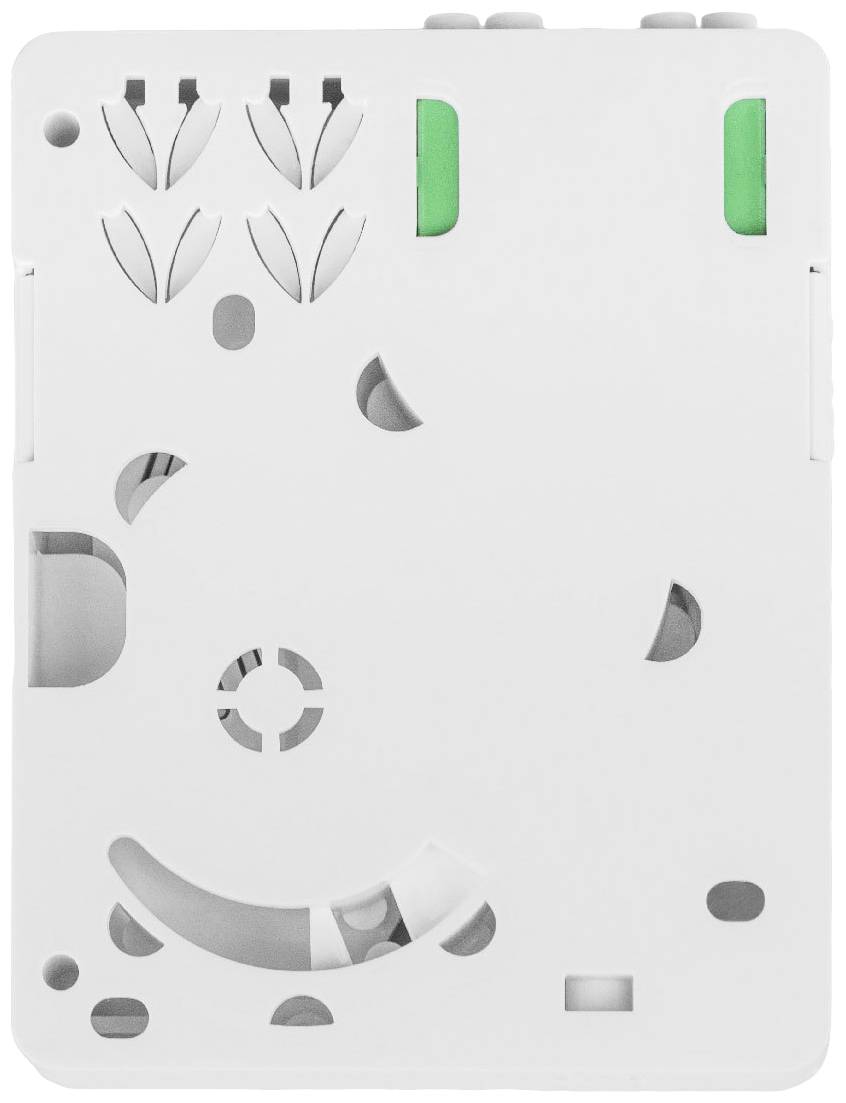

The fiber optic connection box is designed as an optical telecommunications housing. It is an ultra-compact housing for managing up to 4 fibers in the apartment, which can be mounted easily on the wall and offers the connection point for up to 4 terminals. It is pre-assembled with 2 x LC/APC duplex couplers and provides entry points on the rear, bottom and top for flexible cable entries as required. It efficiently combines fiber splicing, finishing, storage and connections in the smallest space. Even the screw holes on the back allow for easy installation and positioning with the housing flush to the wall.
This text is machine translated.
This text is machine translated.
Features
- Wall housing
- Mounting: Surface mounting
- Transmission technology : Glass fiber
- Integrated splice box
- Fibre type: Single mode
- Connector interface: LC duplex
- Connector type: LC/APC
- Cable access/outlet : rear, top, bottom
- PC + ABS casing
- Protection class IP45
