Buy Digitus DN-FO-FC FO cutting tools Blue 1 pc(s)

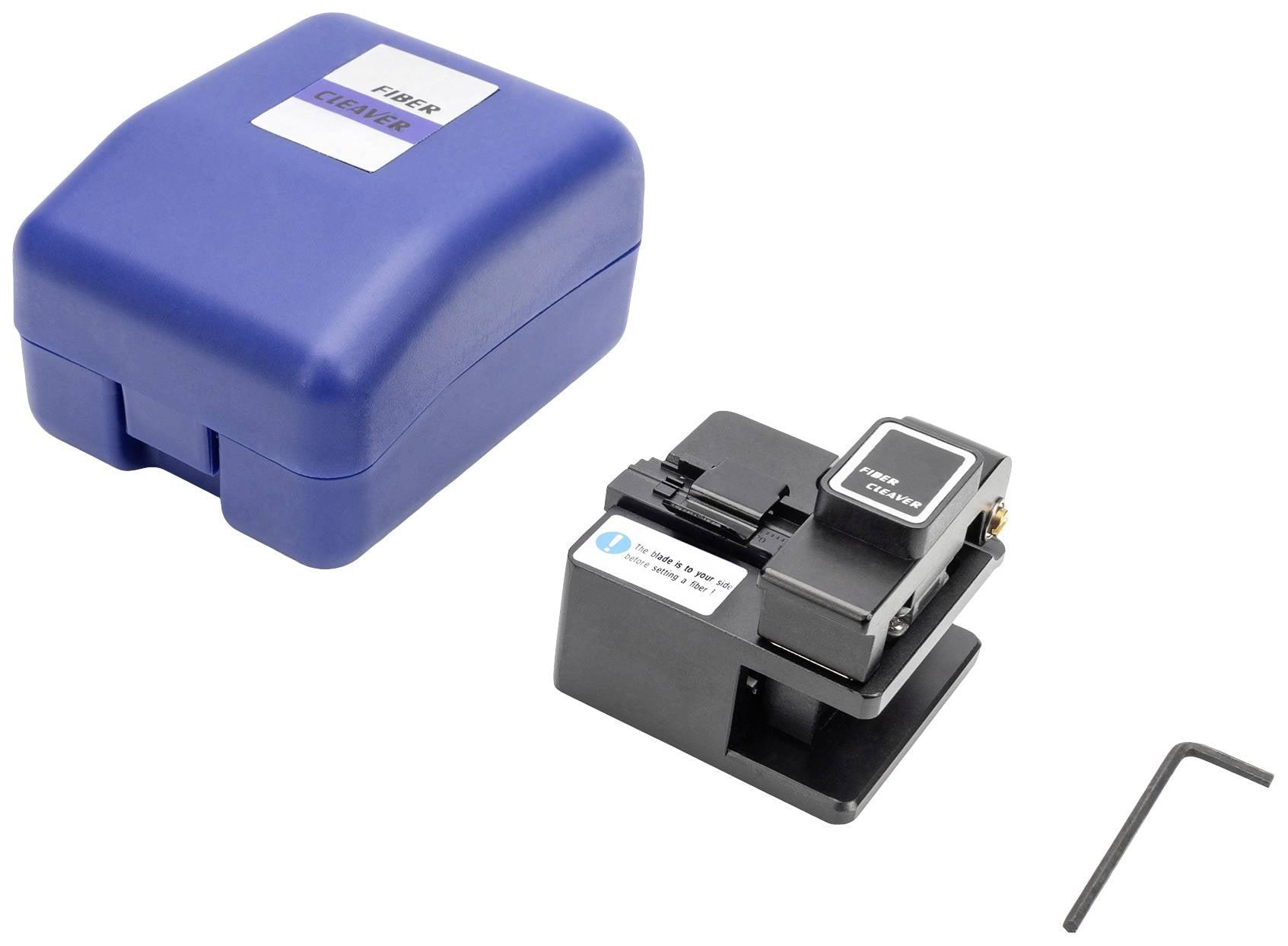

Fibre splicing device with blue storage box and Allen key, used for precision cutting of optical glass fibres.

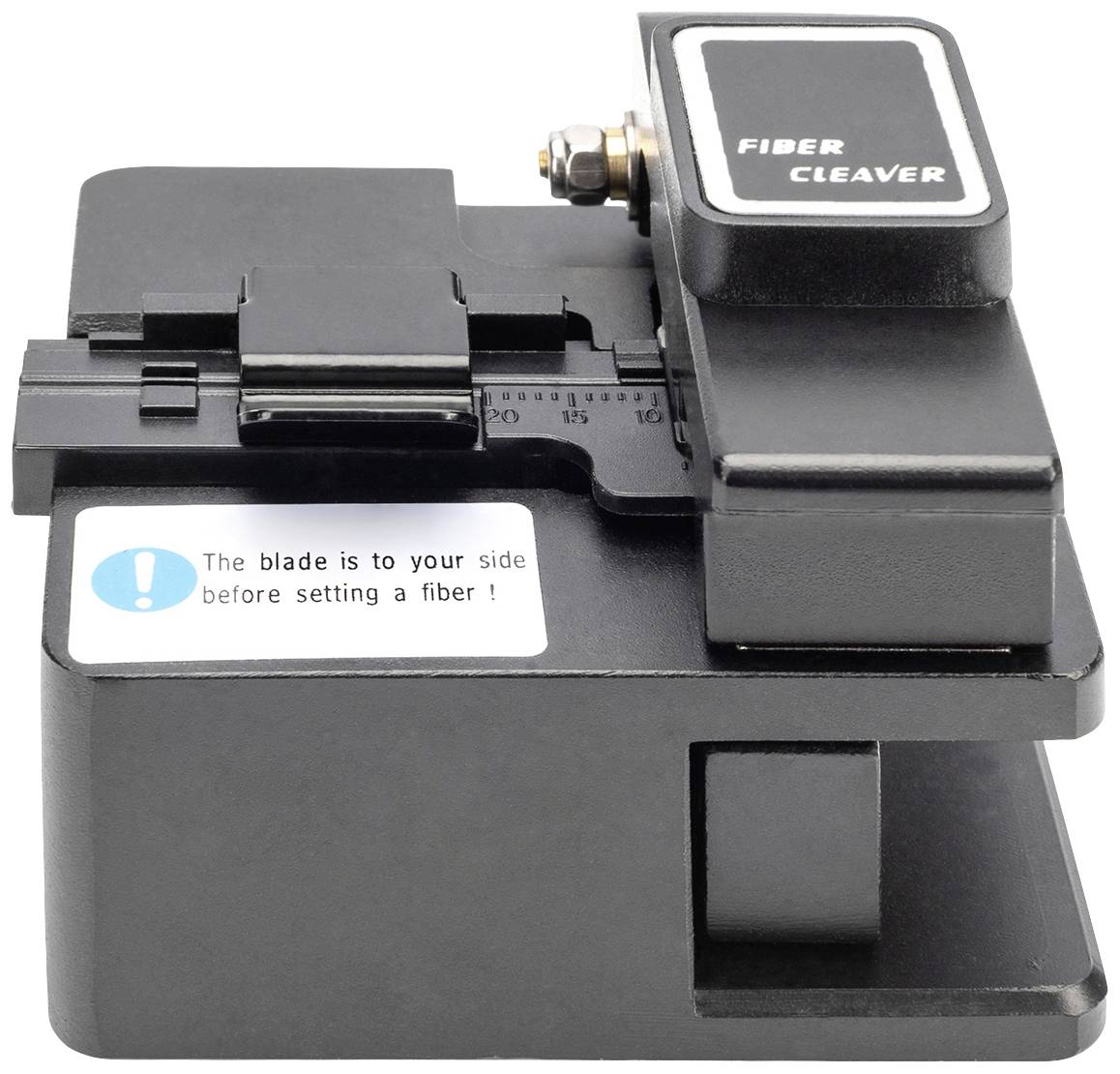

Digitus DN-FO-FC FO cutting tools Blue 1 pc(s)-1

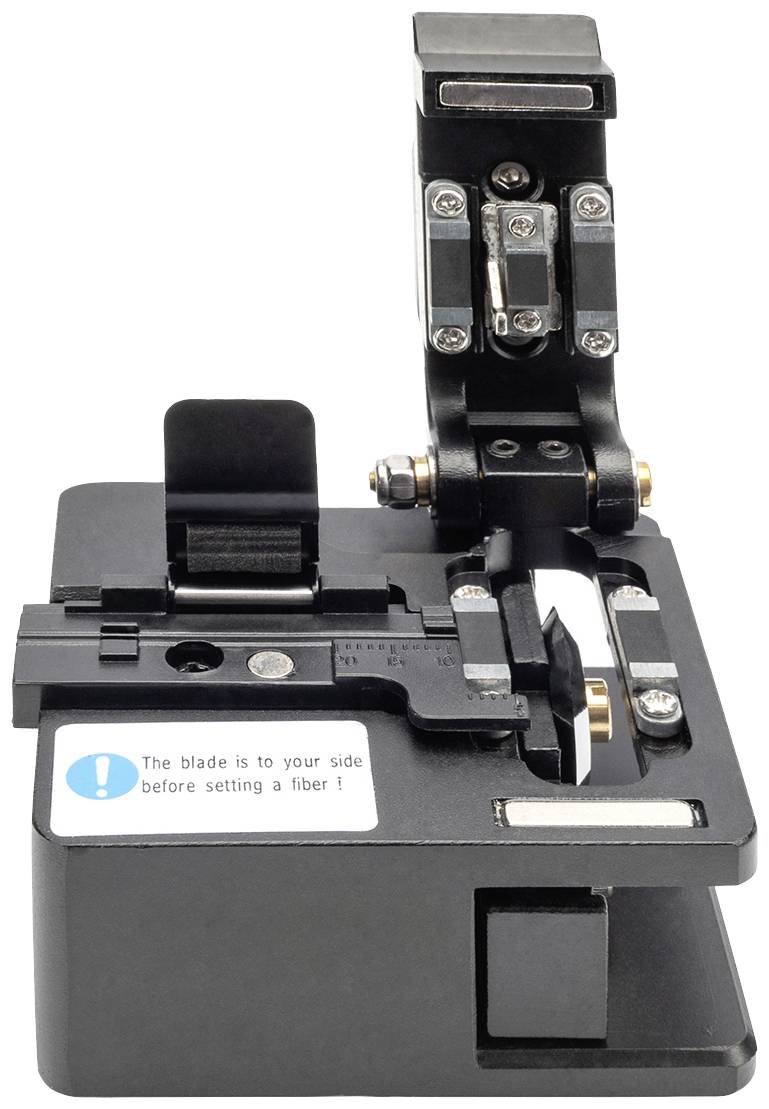

A fibre optic cutter with an open blade, prepared for the cutting process. A note on the surface indicates the safety position.

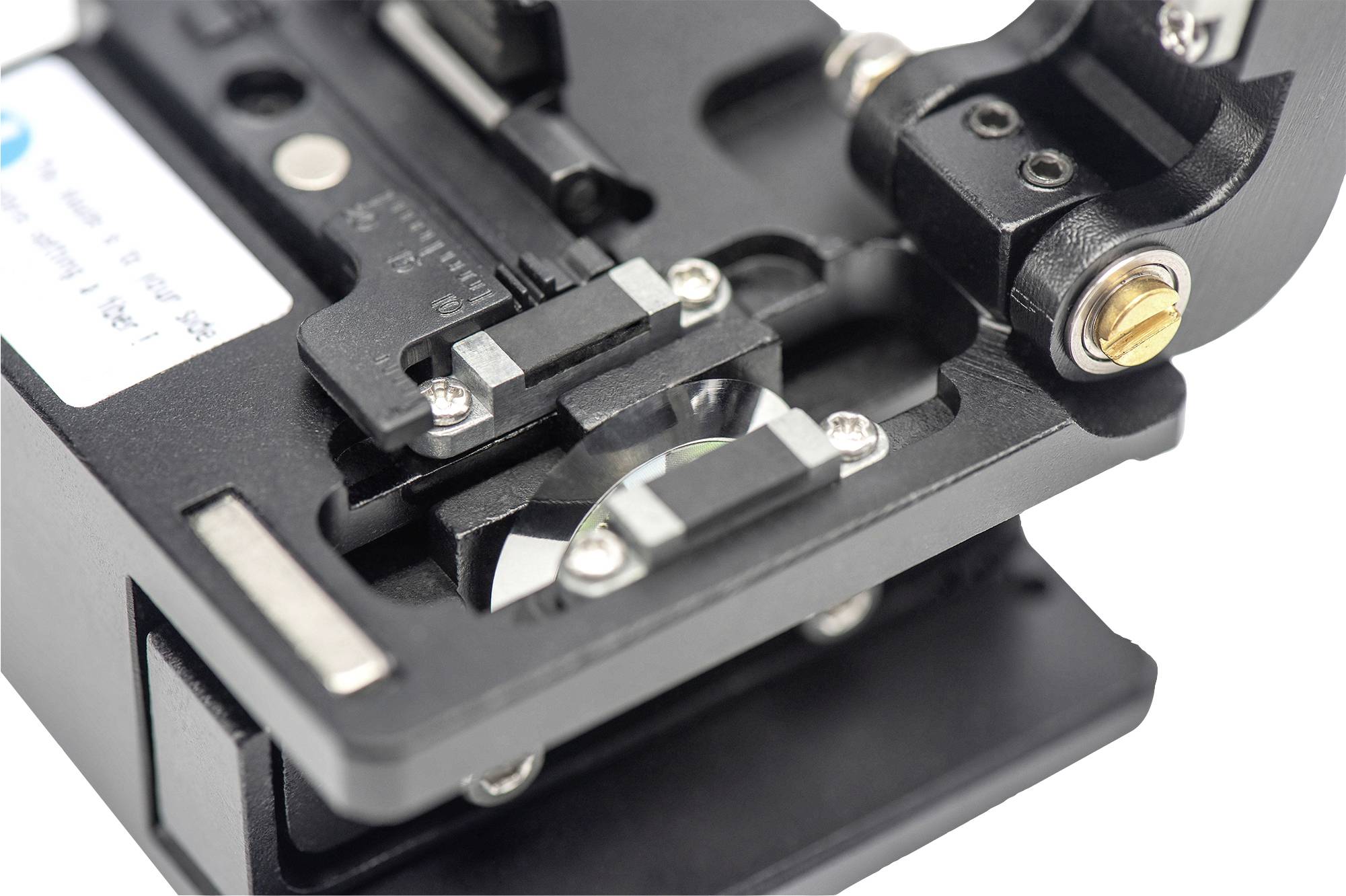

A device for precise fibre optic processing, showing a close-up view of holders and blade mechanisms for the fibre cutting process.

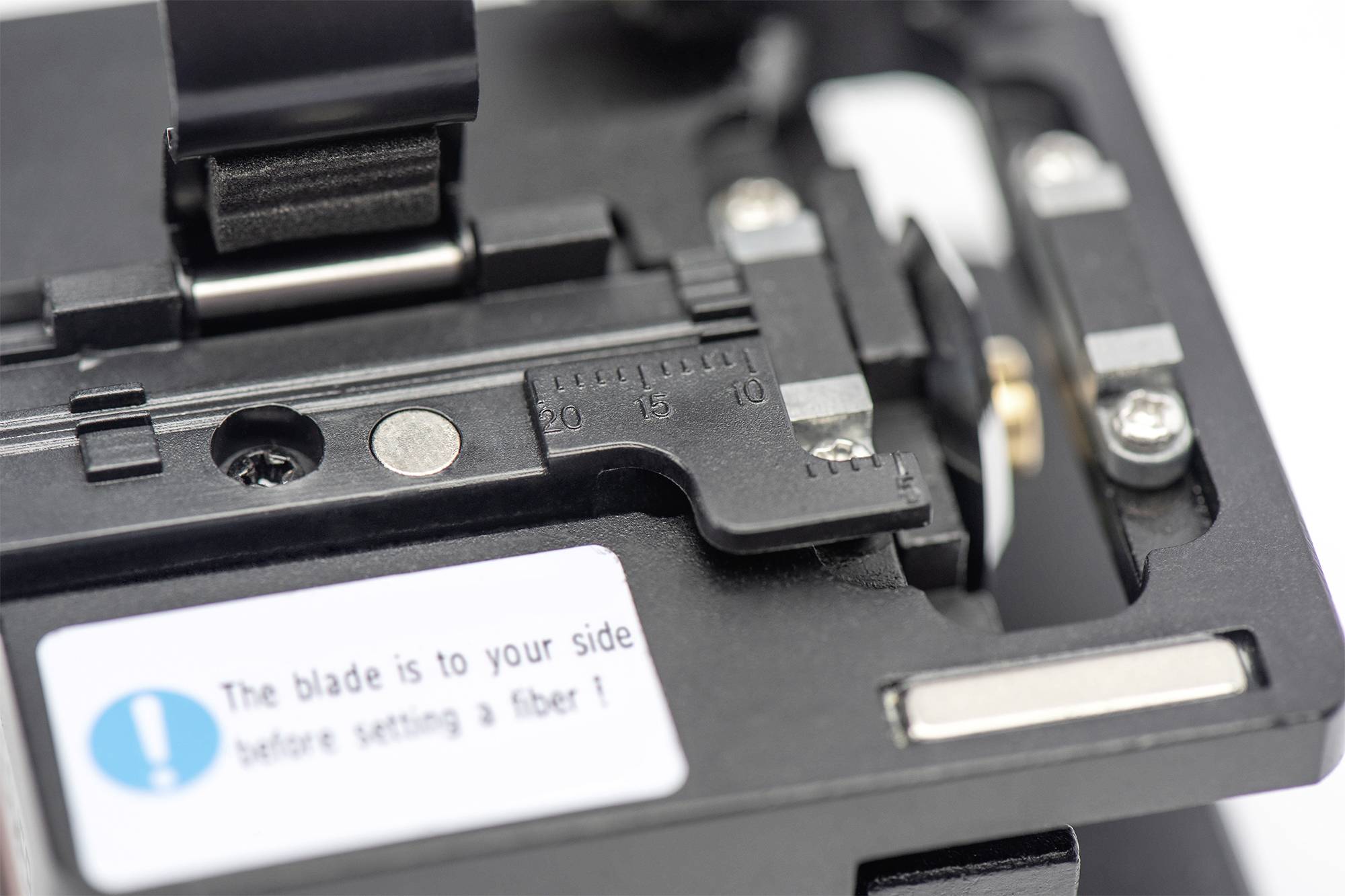

Close-up of a fibre optic cutter with scale and instruction label 'The blade is to your side before setting a fibre!'<br><br>Note: I've used "fibre" (British spelling) instead of "fiber" and made the text sound more natural in British English.

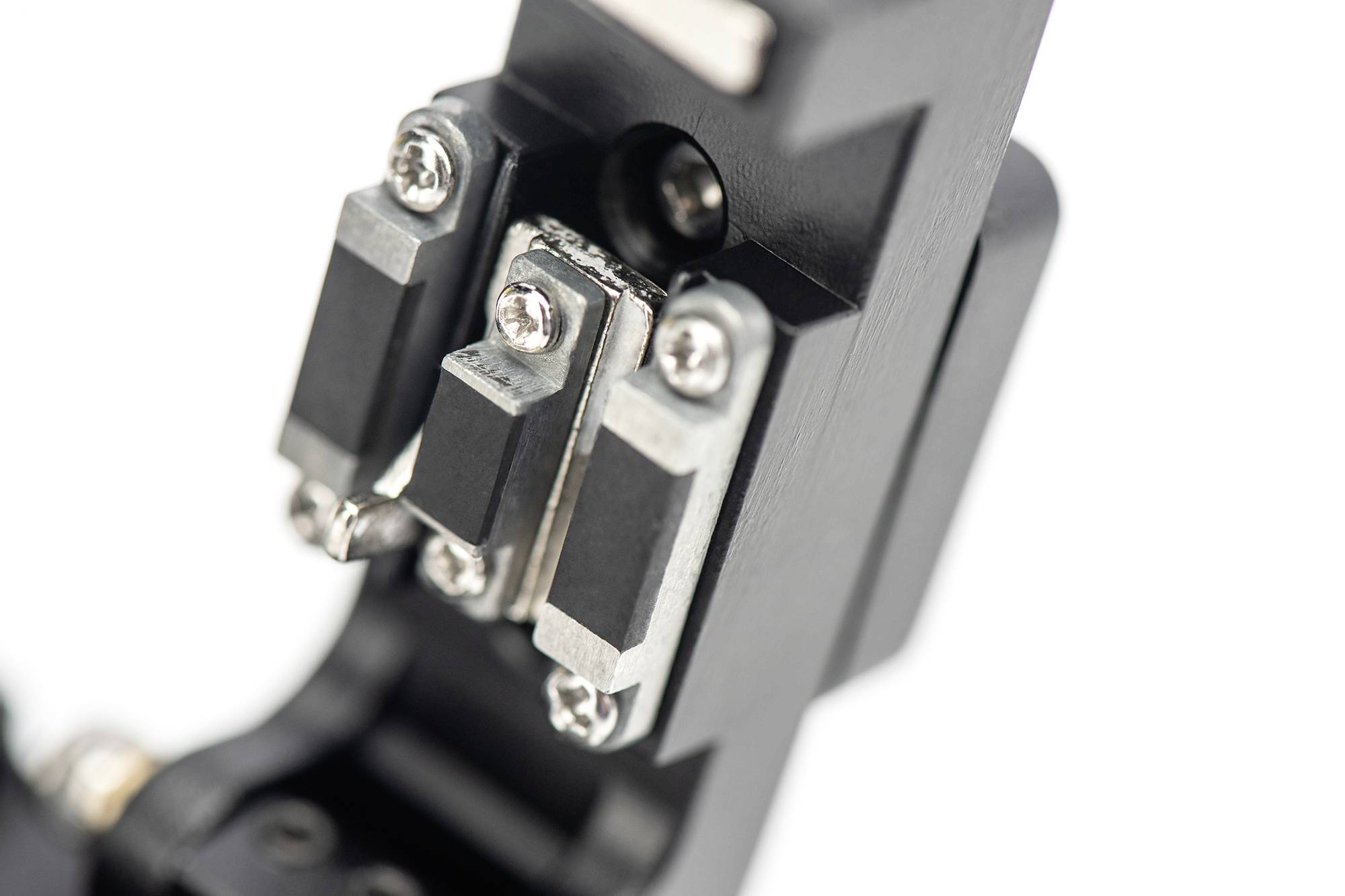

Close-up of a mechanical component with multiple screws and metallic parts, possibly part of a larger device or machine.

1/6

Dispatches on Wed, 23 Sep

24 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 88.23 / piece)

€ 88.23

plus VAT.

Report legal concerns

Digitus fiber optic isolation device

Highlights & Details

Compact dimensions
High stability and precision
Consistent cutting quality for up to 48,000 cutting operations

Technical specifications

Supported fiber diameter: 125um
Supported fiber diameter inclusive Coating: 250um, 900um
Supported fiber type: Optical silicone fiber
The average cutting angle (slot angle): ≤0.7 degrees (single core fiber)
The maximum cutting angle (sliding angle): ≤1.2 degrees (single core fiber)
Cutting fraction rate ≤5%
Cutting length: Coating diameter 250um: 9~16mm; coating diameter 900um: 10~16mm
Blade life: 48,000 fibers (24 positions, one position 1000 times, 3 times height adjustable)
With 3-in-1 multifunction bracket, supports bare fibers, leather cables (butterfly and round), ribbon cables
Operating temperature: -10℃ ~ +50℃
Storage temperature -30°C ~ +60°C
Other environmental characteristics : relative humidity: ≤90% (no condensation); altitude: 0 m ~ 3600 m; working height in the plateau range : 0 m ~ 5000 m. Wind density Properties : Wind speed ≤15 m/s.
Equipped with a dust proof / shock proof protective box, and offers the blade replacement manual and supporting tools
Dimensions (H × W × D): 6 x 5.5 x 5.5 cm
Dimensions of the transport box (plastic case) (H × W × D): 11.2 x 8.5 x 6.8 cm
Weight: 255 g (without packaging), 355 g (with packaging)

Product type: FO cutting tools

Factory colour: Blue

Width: 60 mm

Height: 55 mm

Depth: 55 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2902123 Digitus DN-FO-FC FO cutting tools Blue 1 pc(s)

Description

The splice can be used for different fiber types. Due to its compact construction and light weight, it can be used anywhere and is suitable Ideal for the preparation of field pre-fabricated plugs or occasional splicing. The knife has a service life of 48,000 fiber core separations with high precision. Then the blade is easy to change.

This text is machine translated.

Features

Changeable blade

Scope of delivery

LWL-Cleaver
1 x Allen keys
