Digitus HDMI IP Extender Set, 4K/60Hz
Highlights & Details

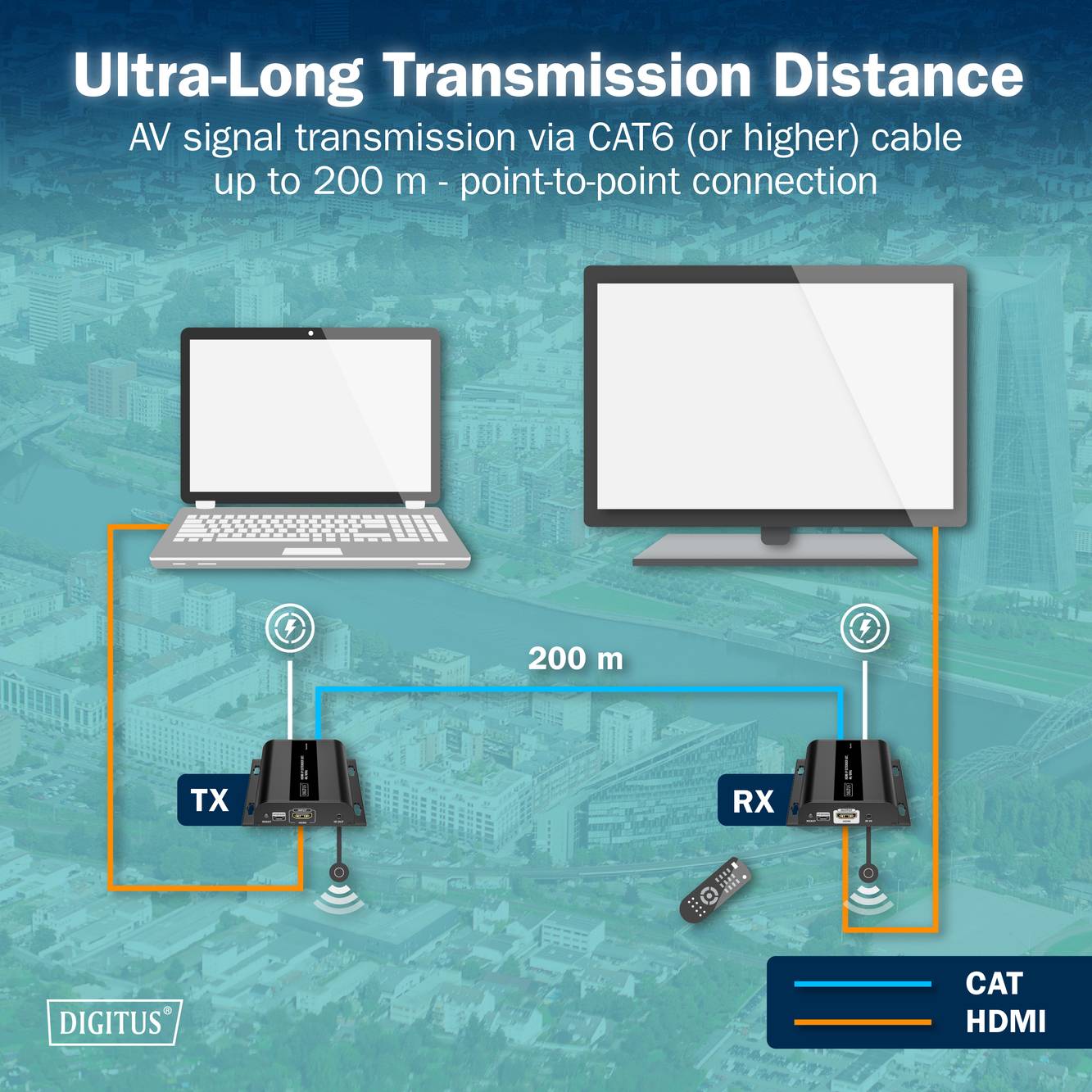

- High range: AV-signal transmission via CAT6 (or higher) cable on up to 200 m - point-to-point connection

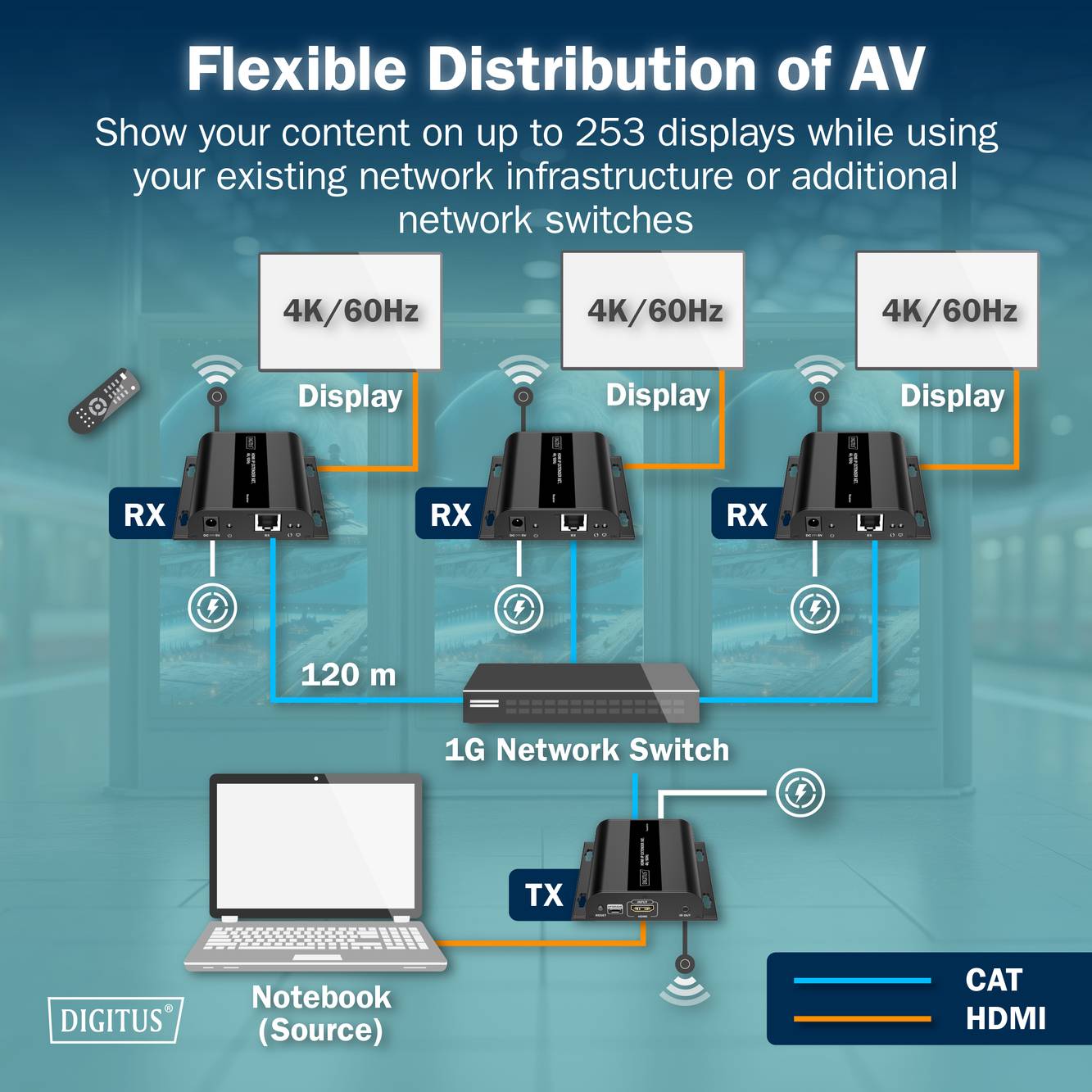

- Expandable via IP: Supports up to 253 receivers (displays) - point-to-multipoint connection
- Flexible & powerful via IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission in an unlimited distance possible - Cascading
- Expansion options: Additional receiver (RX) available separately (model DS-55352)
- Excellent picture quality: Transfer in UHD of up to 4K/60Hz (4096 x 2160p) with low latency of 150-220 ms
- IR interface allows remote control of the input source from the output screen
- Supports CAT6 (or higher) network cable
- Suitable for wall mounting
Technical specifications
- Max. Resolution ultra HD 4K/60Hz (4096 × 2160p)
- Max. Point-to-point range 200 m
- Max. Range point-to-multipoint: 120 m
- Max. Cascading range per distance: 120 m.
- Max. Video bandwidth 18 Gbps
- Latency: 150–220 ms (4K/60Hz), 80–130 ms (full HD)
- Supports up to 253 receiver units
- Operating temperature: -20 °C to +60°C
- Power consumption: TX approx. 3.5 W, RX approx. 2.5 W
- Dimensions (1 unit) 9.7 × 9.4 × 2.4 cm
- Weight TX 156 g, RX 154 g
- Product type
HDMI extender set
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
HDMI® input
USB
USB type A
USB A (USB 1.1)
RJ45
Micro USB
- Interfaces (output)
HDMI™
USB
USB type A
USB A (USB 1.1)
RJ45
Micro USB
HDMI® output
- Features
built-in LED display
- Resolution (max.)
4096 x 2160 p
- Range (max.)
200 m
- Factory colour
Black
- Weight
0.71 kg
- No. of outputs
1 x
- No. of inputs
1 x
- Supported monitors
1
- Power supply (LOV)
via PSU
- Type A
HDMI plug
- Type B
HDMI plug
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3462071 Digitus DS-55351 HDMI™, HDMI® input, USB, USB type A, USB A (USB 1.1), RJ45, Micro USB HDMI extender set via RJ45 networ
User & Safety Instructions
User & Safety Instructions 3462071 Digitus DS-55351 HDMI™, HDMI® input, USB, USB type A, USB A (USB 1.1), RJ45, Micro USB HDMI extender set via RJ45 networ
Description
The HDMI IP Extender Set, 4K/60Hz enables the transmission of HDMI AV signals in ultra-high-resolution 4K quality (4096x2160p at 60Hz) over great distances of up to 200 meters - thanks to the powerful point-to-point connection via a CAT6 network cable or higher. With the extension via IP the system can be flexibly scaled and supports up to 253 receivers (displays) for a point-to-multipoint transmission. In addition, the existing 1G network infrastructure can be used so that an unlimited signal range is possible via network switches through cascading. Additional receivers (RX) are available separately (DS-55352 model) for even greater flexibility. Outstanding image quality is maintained at all times: Thanks to low latency of only 150-220 ms, the transmission takes place flicker-free and pin-sharp in UHD. Another practical feature is the integrated IR-interface, which enables a remote control of the input source directly from the output screen. In addition, the device is suitable for wall mounting, WAS permits a space-saving installation. Ideal for professional AV-applications, home-theater setups or for use in companies - this HDMI IP Extender set combines the highest transmission quality with maximum flexibility.
This text is machine translated.
This text is machine translated.
Features
- Supports CAT6 or higher network cable
- HDMI 2.0
- HDCP 2.2 / 1.4
- Suitable for wall mounting
- Protection against: Short circuit, overvoltage, ESD

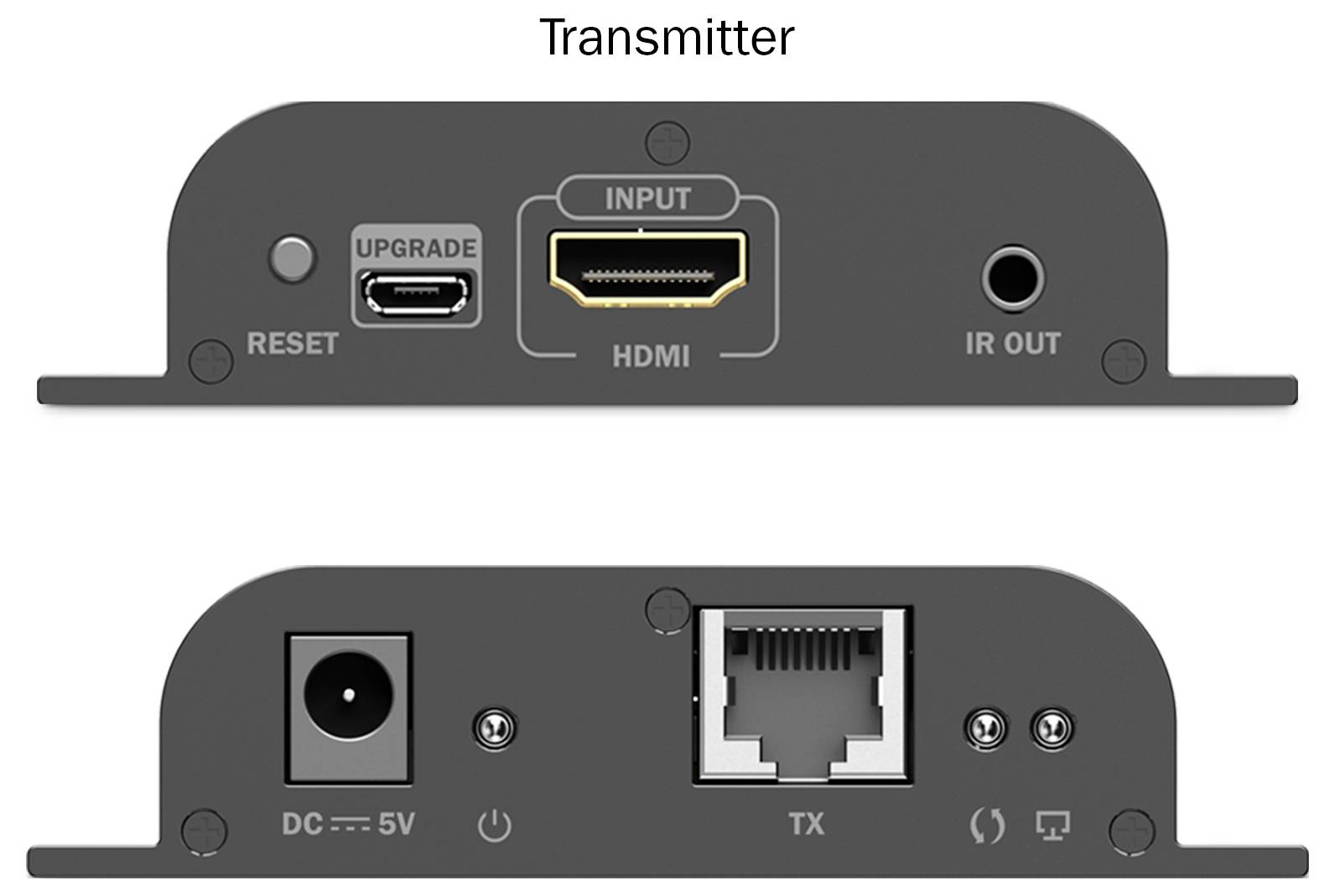

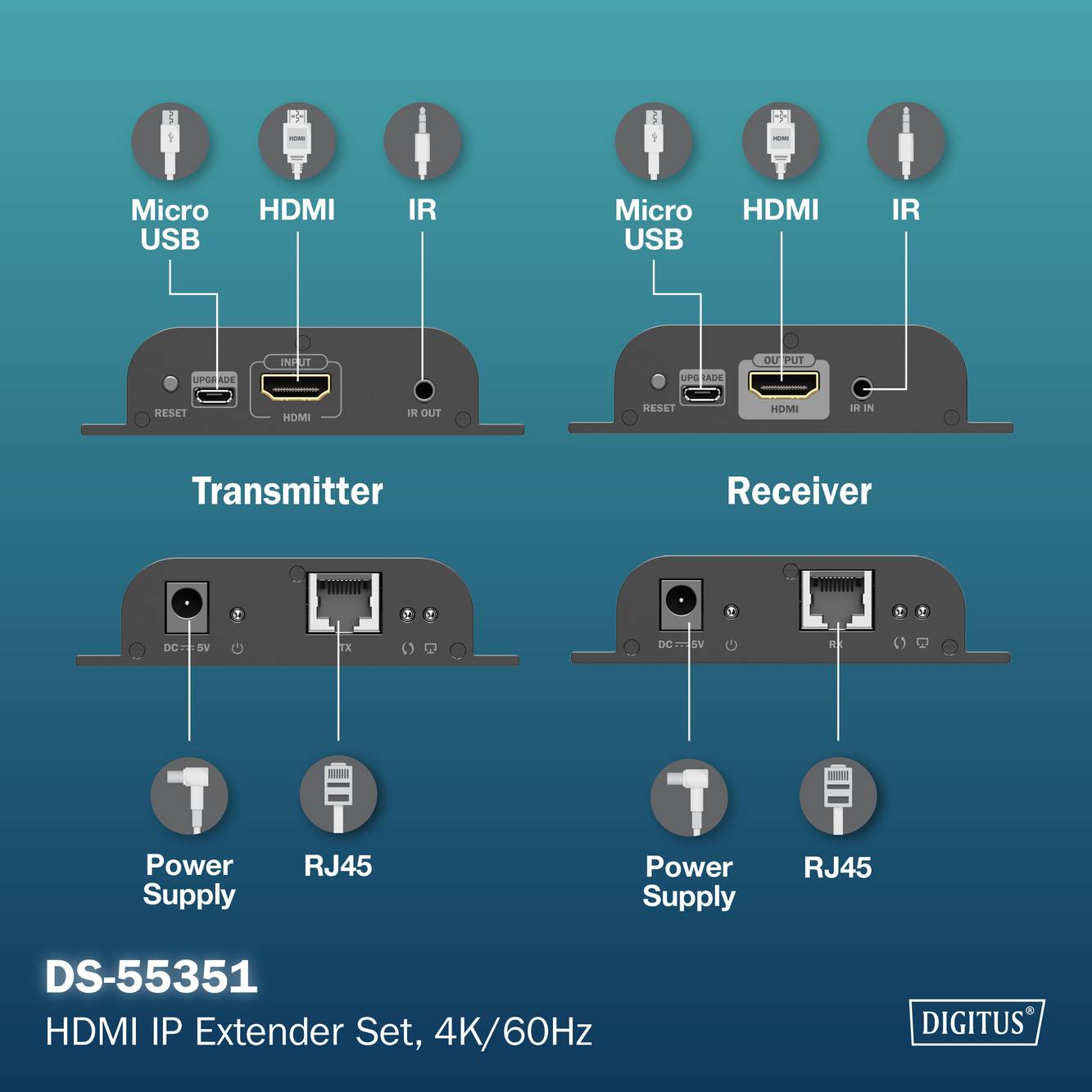

- Connections in the transmitter unit (TX):
- 1 × HDMI input (4K/60Hz) – signal source
- 1 × RJ45 output (Gigabit Ethernet) – CAT transfer cable
- 1 × IR output – receiving IR-signal
- 1 × power supply connection (DC 5V/1A) - external mains adapter
- 1 × Micro USB – FW update port
- 1 × Reset button
- 3 × Status LED

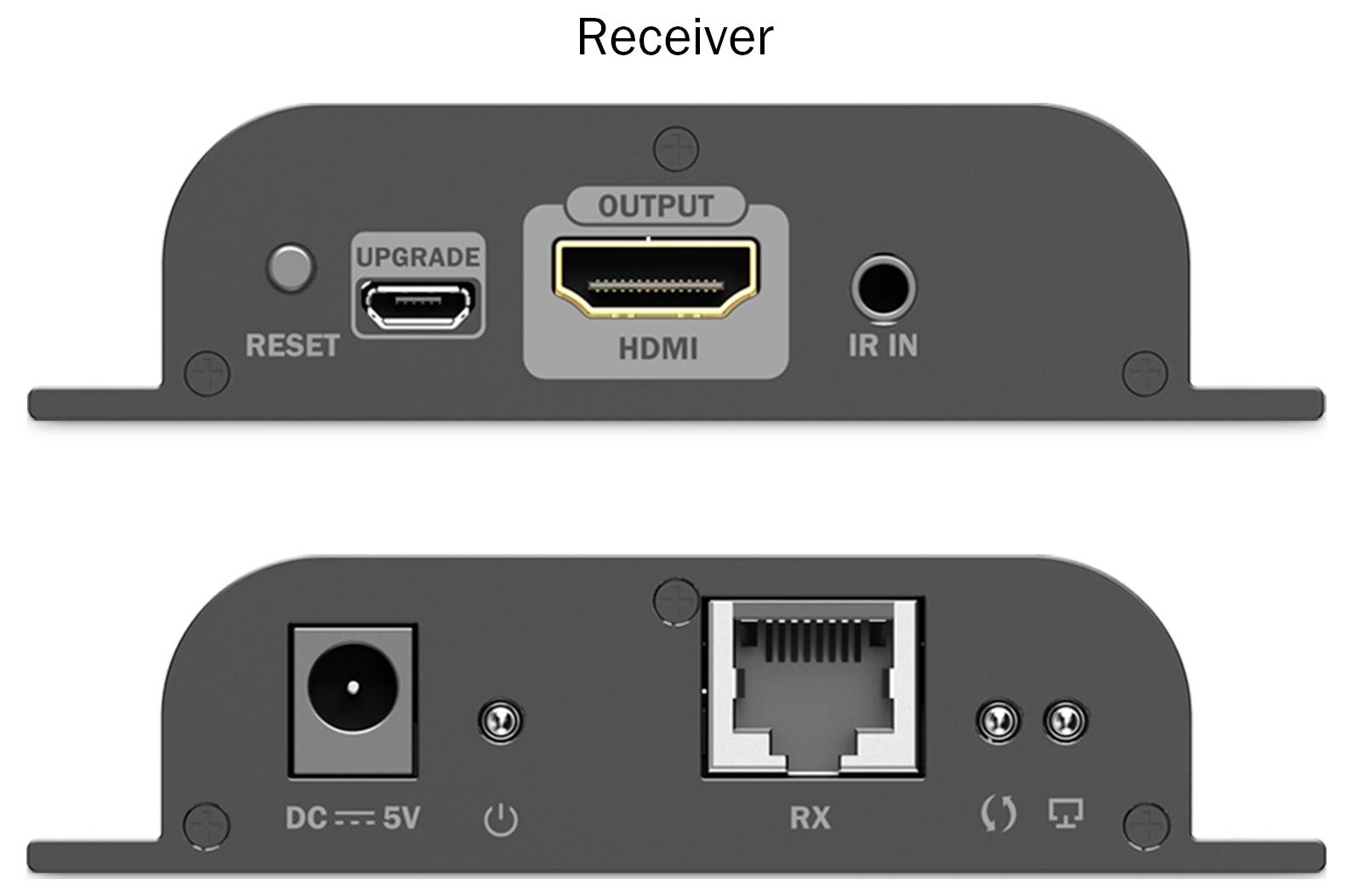

- Receiver unit connections (RX):
- 1 × HDMI output (4K/60Hz) – display
- 1 × RJ45 input (Gigabit Ethernet) – CAT transmission cable
- 1 × IR input – transmission of IR signal
- 1 × power supply connection (DC 5V/1A) - external mains adapter
- 1 × Micro USB – FW update port
- 1 × Reset button
- 3 × Status LED
- Housing: metal
- Colour, black
Scope of delivery

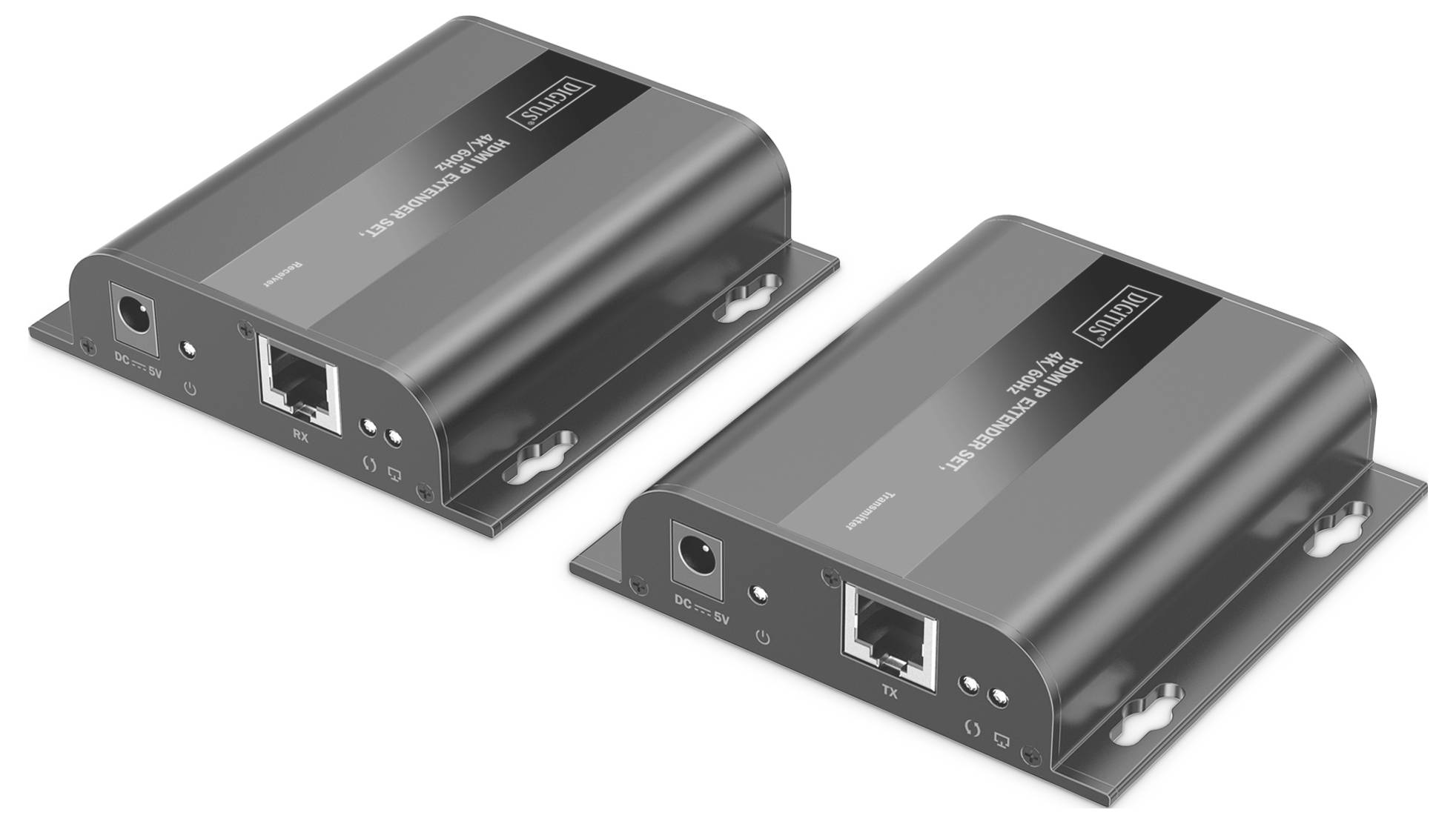

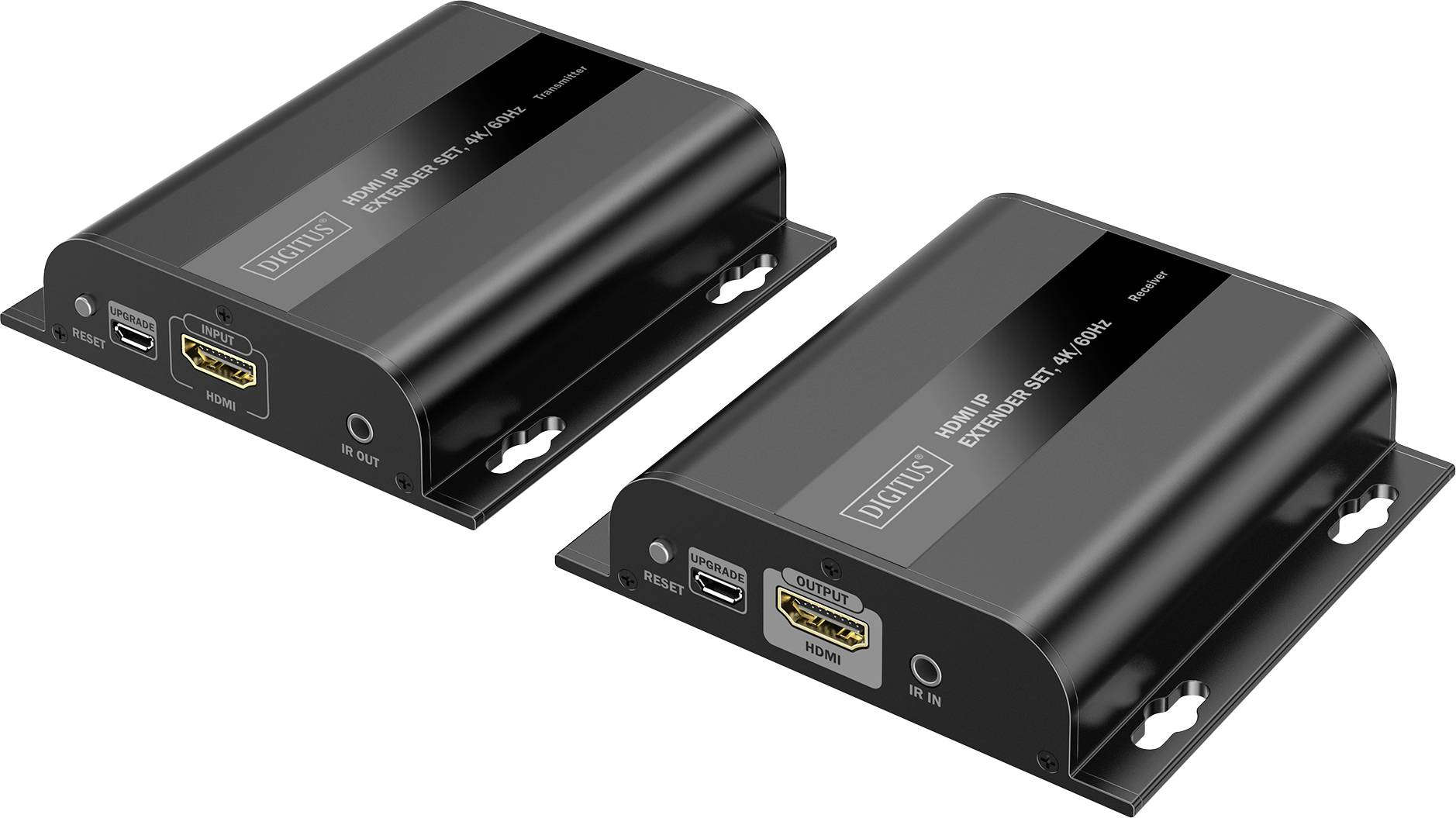

- 1x transmitter unit
- 1x receiver unit
- 2x power supply, EU plug (DC 5V/1A, 1.5 m)
- 2x IR cable/extension (1.0 m)
- 1x user manual
