Buy Digitus DS-72220-3US 16 ports KVM console VGA Mouse, Keyboard 1920 x 1080 Pixel

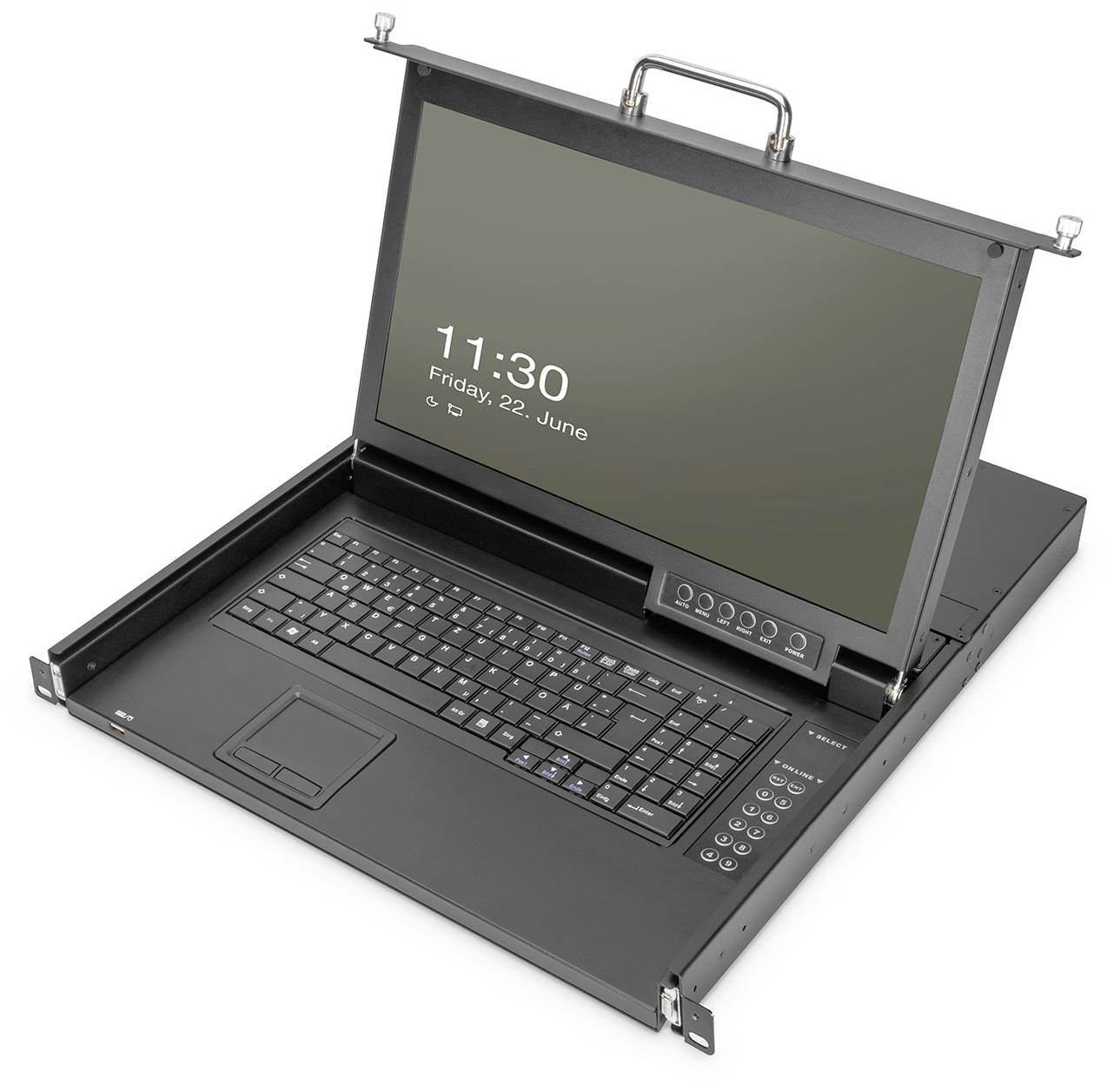

A foldable monitor with integrated keyboard, used for server maintenance. The screen displays the date and time: '11:30, Friday, 22 June'.

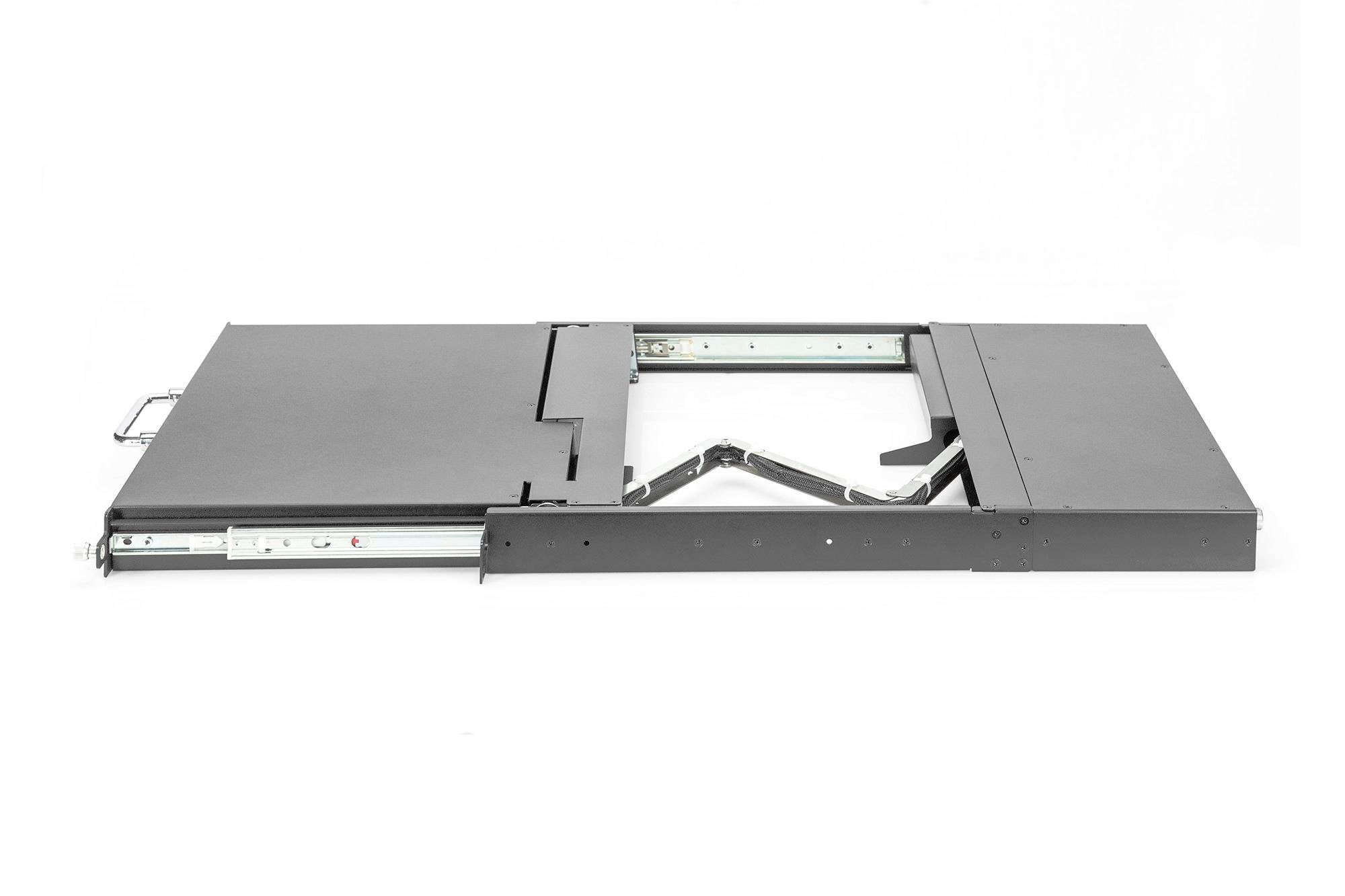

Black, flat metal construction with extendable rails and handle, suitable for server cabinets or technical equipment.

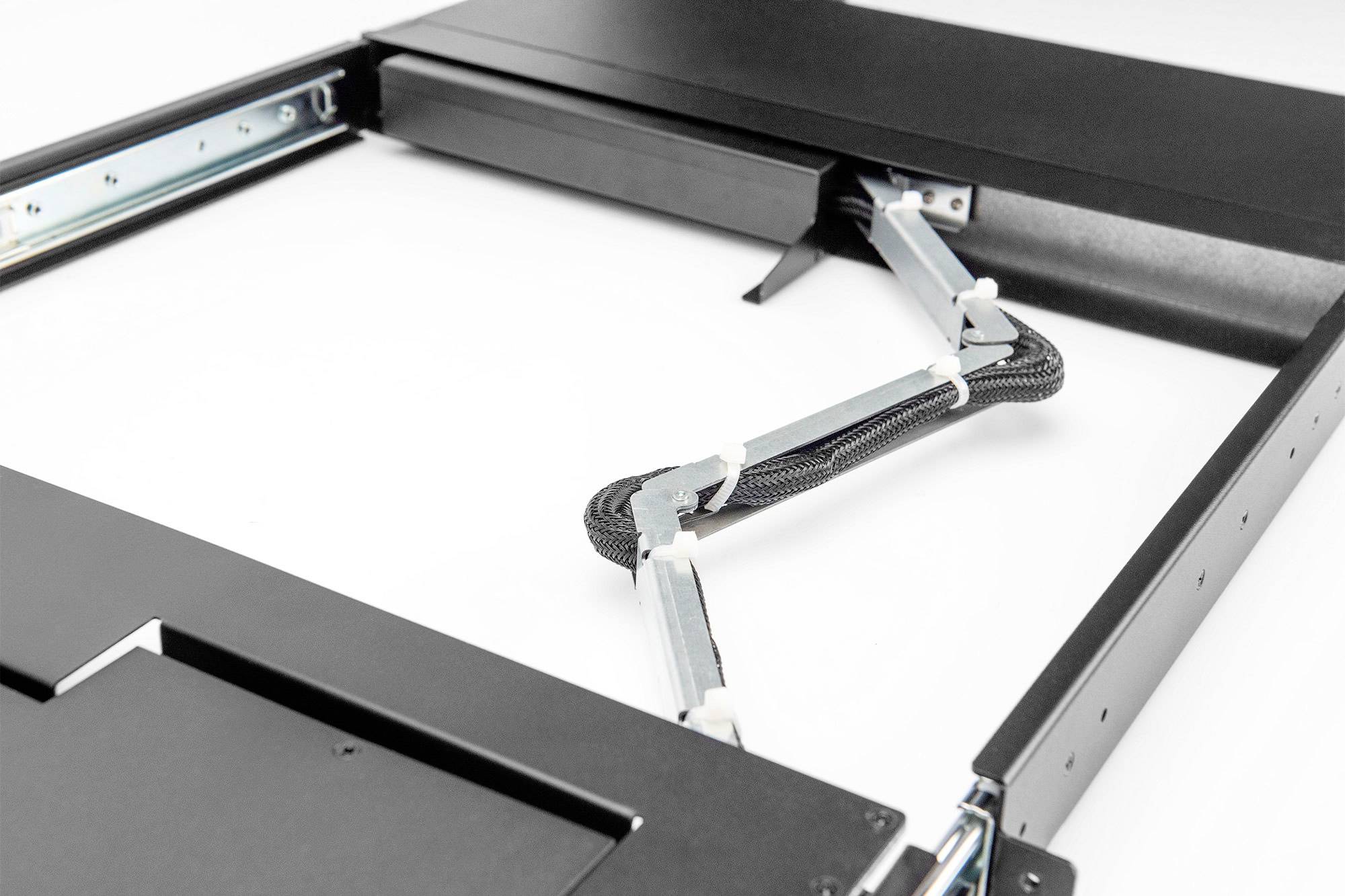

Metal frame with rails and a folded cable in the centre; part of a technical or mechanical device.

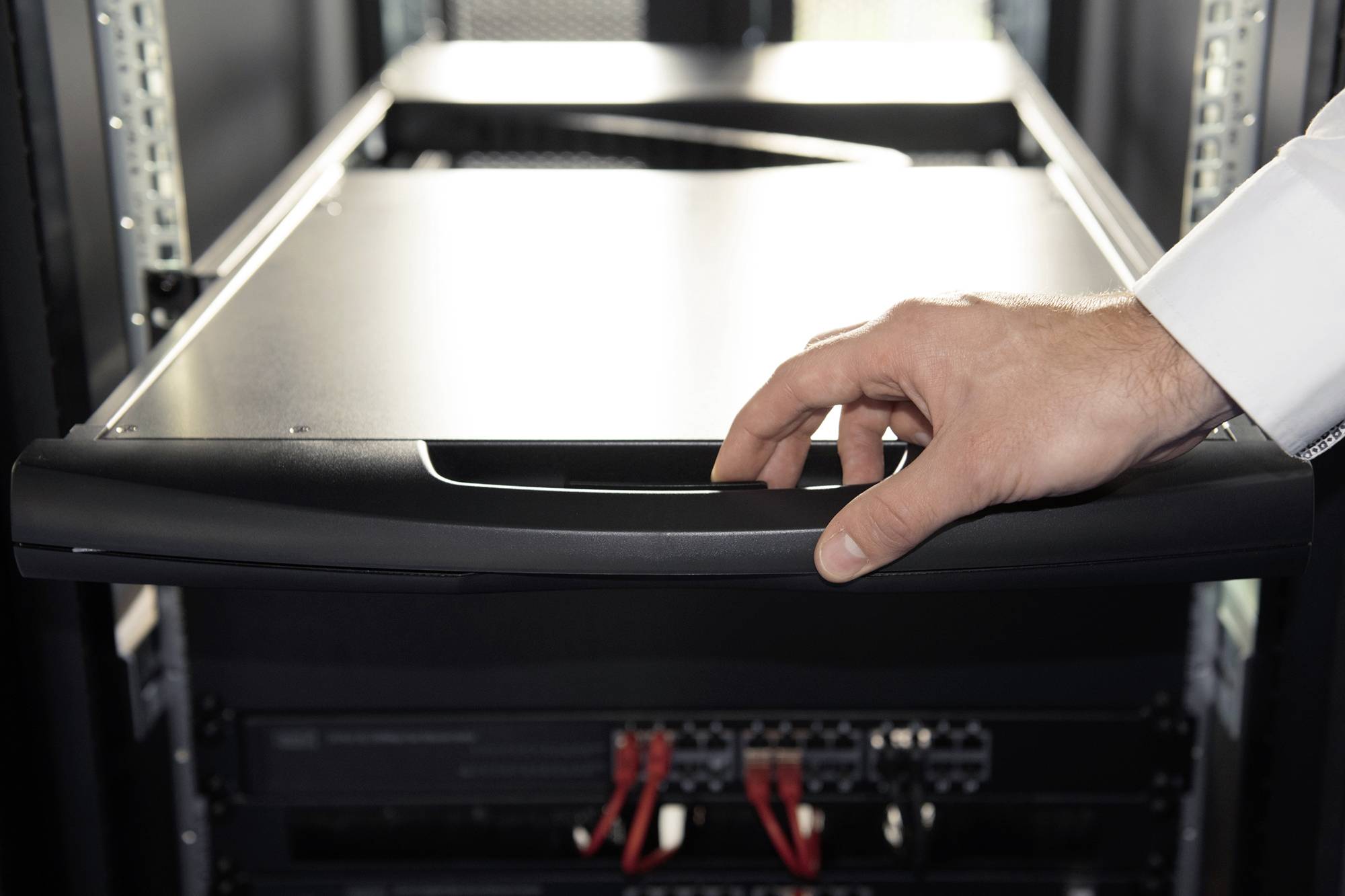

A hand pulls out a server drawer in a data centre. Cables and additional servers are visible in the background.

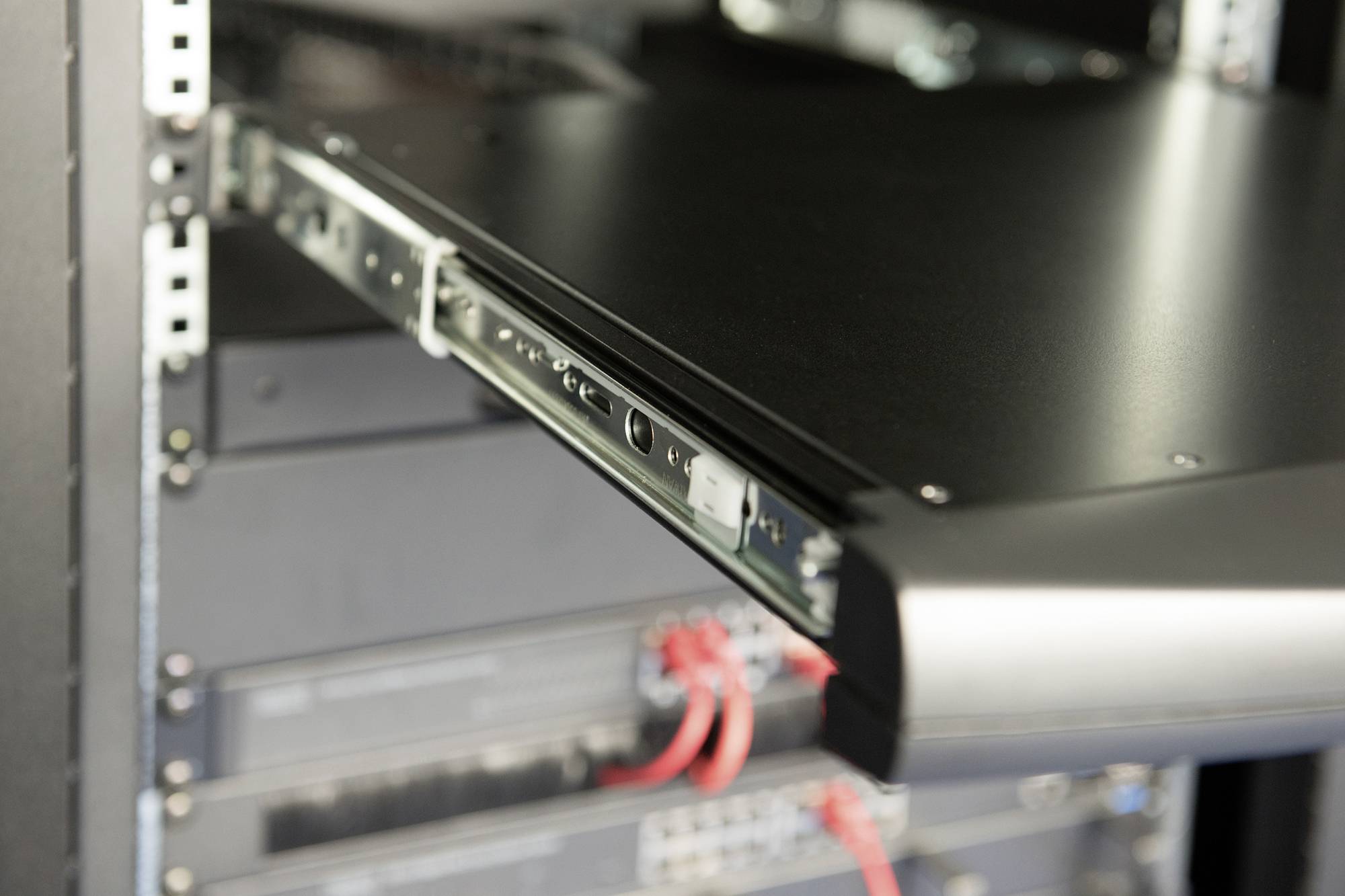

A computer server cabinet with an extended drawer housing a keyboard. Cables are connected to devices in the background.

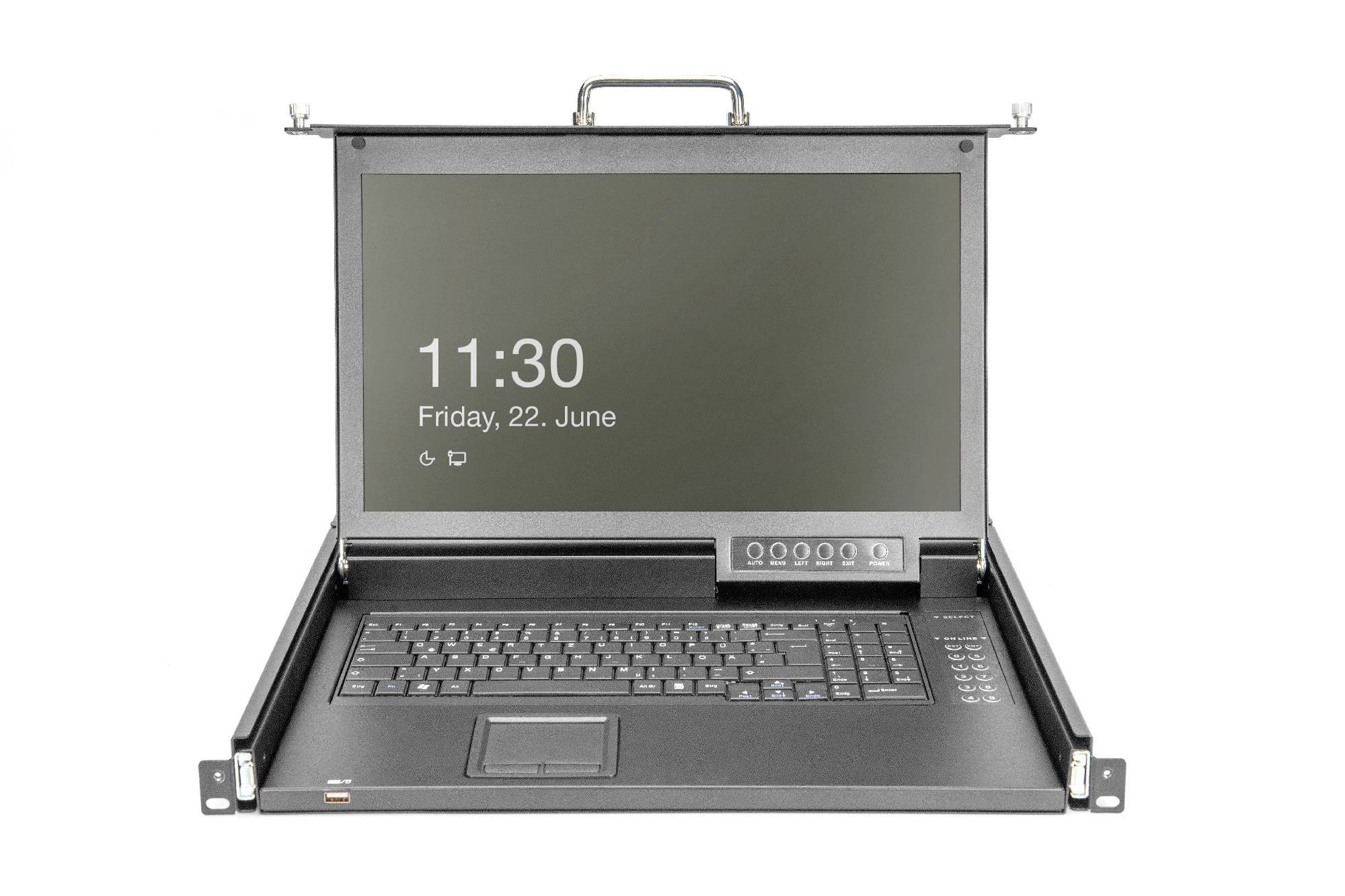

A black server rack device with a screen displays '11:30 Friday, 22nd June'. Below it is an integrated keyboard with a trackpad.

1/7

Dispatches on Wed, 21 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,226.05 / piece)

€ 1,226.05

plus VAT.

14-day return policy included

Report legal concerns

Module 43.2cm HD LCD TFT console, 16-port VGA,US with 16-port VGA KVM, US keyboard, RAL 9005 black

Highlights & Details

Full HD resolution 1080P
1x USB peripheral port in console area
LED display for the connection status
TFT monitor 43.2 cm (17"), with anti-glare, shatterproof safety glass panel

Technical specifications

Product type: KVM console

No. of switchable PCs: 16

Video via: VGA

Video resolution: 1920 x 1080 Pixel

Controller: Mouse
Keyboard

Audio headphones: No

Audio microphone: No

Stackable: Yes

Rack mount option: Yes

Switch function: Manual
Key

Distributor/switch features: Steel casing
+ built-in converter
suitable for indoor and outdoor use
suitable for indoor use
PC-controlled

Power supply (LOV): via PSU
mains-powered

Factory colour: Black
Black (RAL 9005)

Weight: 14290 g

Length: 650 mm

Width: 480 mm

Height: 45 mm

Port: 16 ports

Dim: (L x W x H) 650 x 480 x 45 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207694 Digitus DS-72220-3US 16 ports KVM console VGA Mouse, Keyboard 1920 x 1080 Pixel

Description

The Digitus HD LCD KVM console – with a 17" TFT monitor with anti-glare and anti-breaking protective glass screen. The console can be completely pulled out of the server cabinet and the TFT screen can be tilted 120 degrees. This console supports various cabinets from 800mm to 1200mm depth and comes complete with all KVM cables. With Full HD 1080P resolution and connection status LED indicator, this console also has a USB peripheral port in the console area. Enjoy up to 85% more space with this console and a contrast ratio of 1000:1 as well as support for 16.7 million colors. The package includes a 8-port VGA adapter, a keyboard and a two-function keyboard mouse. With a modular and expandable design, this console can also be cascaded.
