Name: Digitus Networks Adapter CAT 7 Black
Brand: Digitus
SKU: 3556306
Availability: InStock

Two gray rectangular magnetic door contact sensors with mounting holes and wire ports, shown side by side on a white background.

Black plastic electrical connector box with two cable holes, shown as a 2-pack.

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 7.99 / piece)

€ 7.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

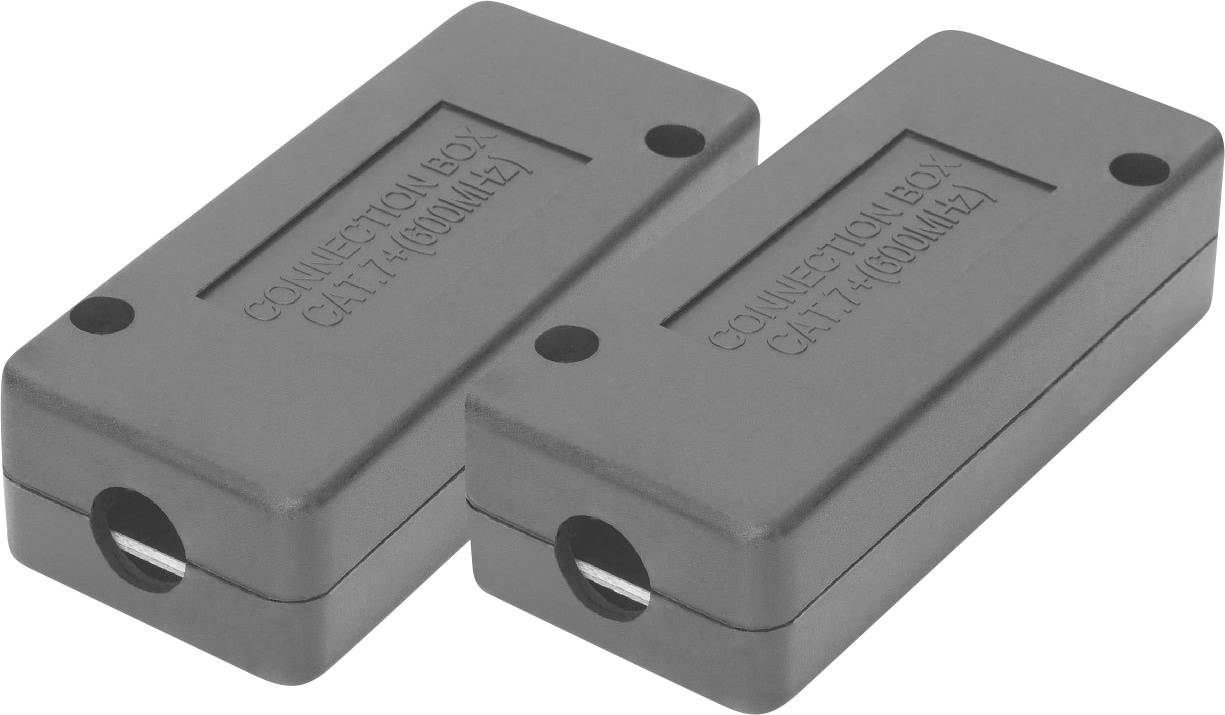

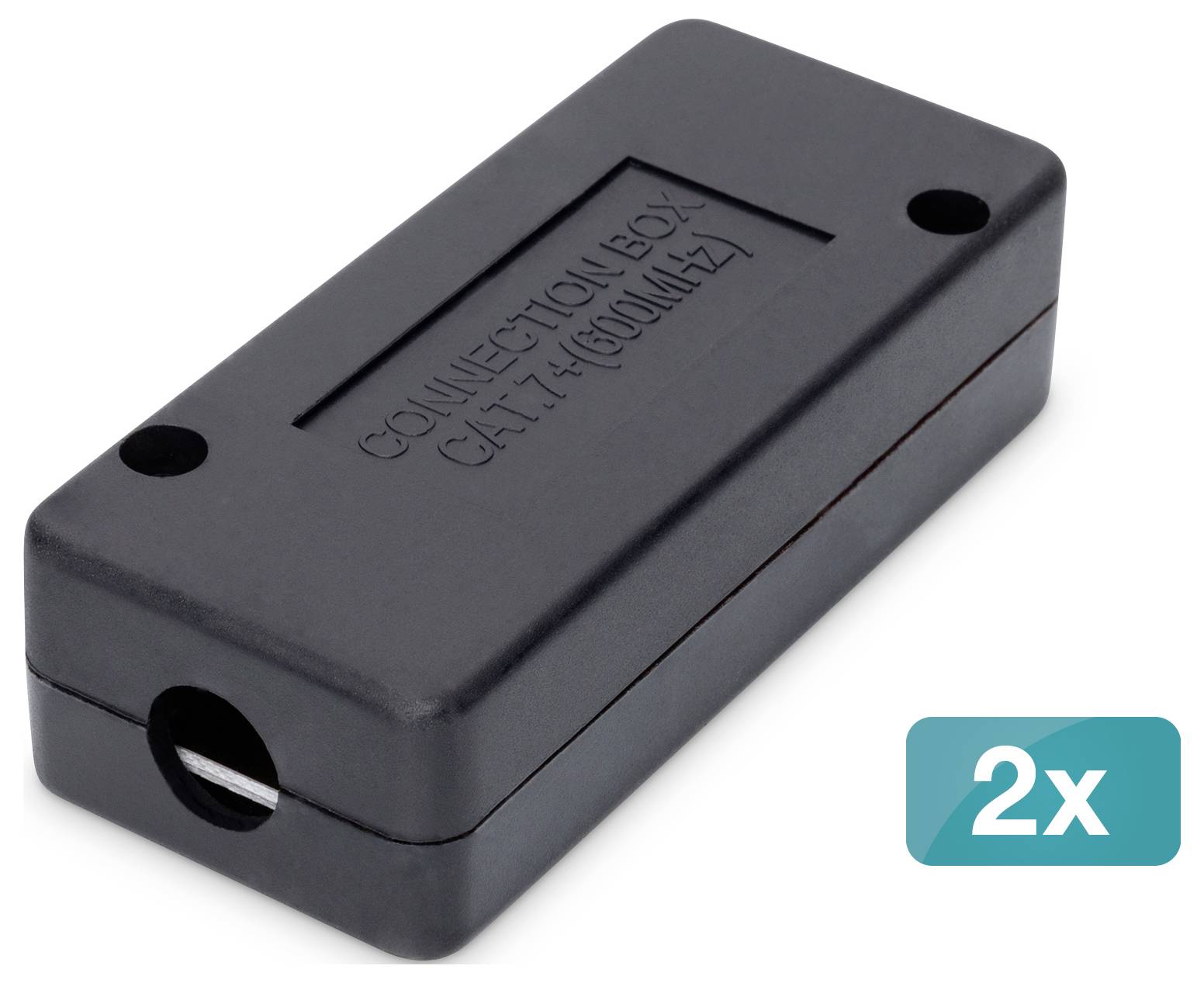

Digitus connection module CAT 7 - 2 pcs

Junction box CAT 7, 600 MHz, LSA strips for AWG 22-26, fully shielded, comp. Design,26x35x80mm
Future-oriented standards and high-end quality for your network

Technical specifications

Standards: ISO/IEC 11801, 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
Suitable for cables AWG 22-26
Material specifications (ABS UL-94V-0, ABS UL-94V-0, nickel-plated alloys etc.)
Operating temperature: -20 °C to +70 °C
Terminal life 200
Wire intake 22–26 AWG
Insulation resistance 500 MΩ
Contact resistance 20 mΩ
Voltage resistance 1000 VDC (contact/contact), 1500 VDC (contact/earth)
Number of items: 2

Product type: Networks Adapter

: CAT 7

Factory colour: Black

Cable use: Networks

Version: Adapter

Cable design: Round

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3556306 Digitus Networks Adapter CAT 7 Black

Description

The Digitus® connection module CAT 7 is used for optimum connection of shielded data cables. Use the connector module to extend the cabling or replace damaged cables by reconnecting without reinstalling the entire wiring section. For quick and easy installation the cable connector uses the proven LSA technology with 45° inclined position of the contacts.

This text is machine translated.

Features

Suitable for installation in dado trunking / flush mounting / surface mounting
Cable installation via LSA strips (color code A & B)
Use for extension / repair of installation cables
Integrated strain relief
Suitable for AWG 22–26 (property, non-measurable shape)
General suitability and function descriptions (e.g. protection, connection, material function)

Hints

Please check the adapter pin layout. Depending on use, required pin layouts may differ.
