Name: Dino Lite USB microscope 5 MP 220 x Digital zoom (max.): 220 x
Brand: Dino Lite
SKU: 2391239
Availability: BackOrder

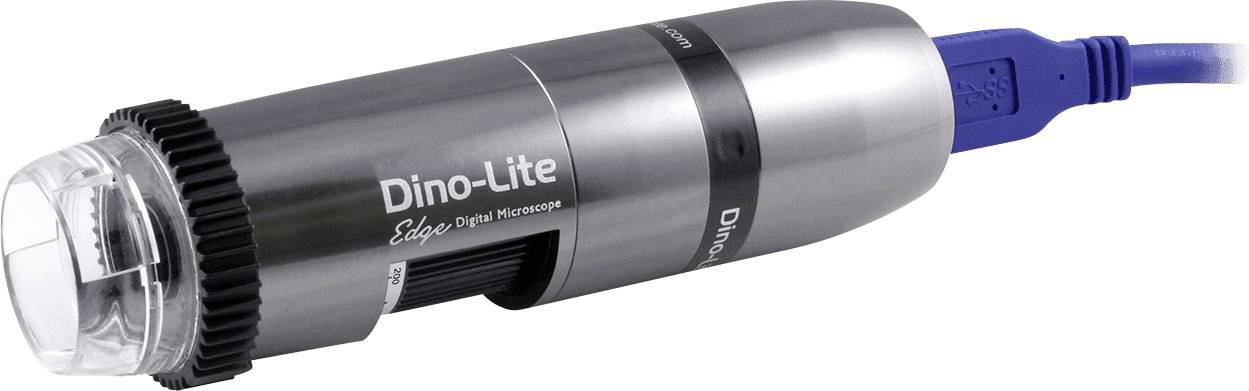

A portable digital microscope with a USB connection, in a silver cylindrical form with a black focus ring, marked with 'Dino-Lite'.

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,335.00 / piece)

€ 1,335.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IMAGE FORMATS: BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Video format: WMV, FLV, SWF (max. 1.3 MPX)
Calibration and measurement function by software
Image repetition: Max. 45 fps, 20 fps for videos
Cable length: 1,8 m

Product type: USB microscope

Digital zoom (max.): 220 x

Digital zoom (min.): 10 x

Optical magnification (max.): 220 x

Optical magnification (min.): 20 x

Built-in optical zoom: Yes

Video resolution: 2560 x 1920 Pixel

Resolution: 5 MP

Operating voltage: Via USB

Dim: (L x W) 119 mm x 33 mm

Length: 119 mm

Width: 33 mm

Type: USB

Weight: 110 g

Type: AM73115MZT

Documents & Downloads

Datasheet

Datasheet 2391239 Dino Lite USB microscope 5 MP 220 x Digital zoom (max.): 220 x

User & Safety Instructions

User & Safety Instructions 2391239 Dino Lite USB microscope 5 MP 220 x Digital zoom (max.): 220 x

Description

With the use of the USB 3.0 connection, the AM73115MZT is in a position to capture uniform and high-quality images. The optics of the Edge series and the special flexible LED control (FLC) make the AM73115MZT the best choice for more demanding applications. It offers excellent uncompressed image quality and color reproduction in a rugged, compact and attractive metal housing.
The AM73115MZT is part of the high-speed real-time series and with its USB 3.0 port offers a maximum speed of 45fps for 1280x960 and 15fps for 2560x1920. With its magnification range of 20 – 220x, it is suitable for a wide range of applications. The built-in polarization filter makes this model particularly suitable for working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The main features of the AM73115MZT are: 5 megapixel edge sensor, USB 3.0 with up to 45fps, magnification 20 – 220x, integrated polarizer, aluminum housing, flexible LED control (FLC), extensive measurement functions, Calibration, replaceable front caps and more.

This text is machine translated.
