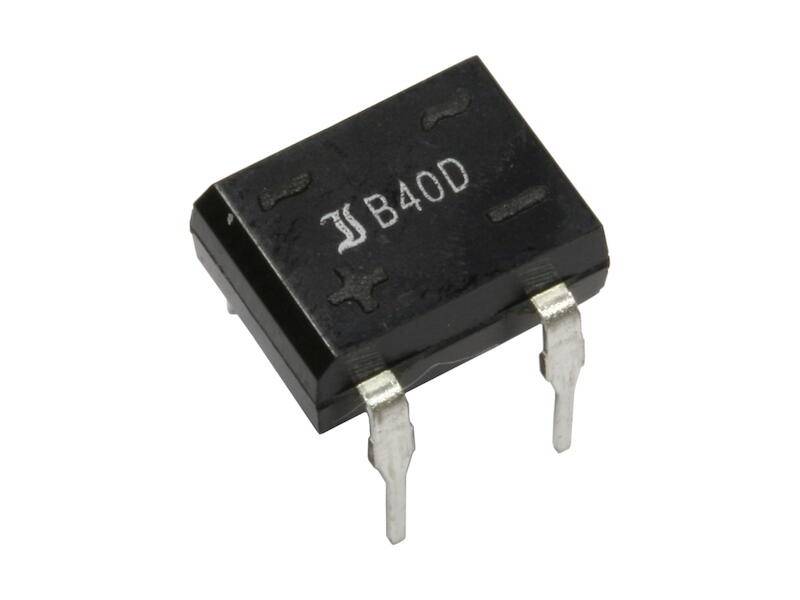

Image similar
1/2
Image similar
Diotec B250D Diode bridge DIL 4 600 V 1 A 1-phase
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.28
30
11% = € 0.03
€ 0.25
50
14% = € 0.04
€ 0.24
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.28 / piece)
€ 2.80
plus VAT.
Highlights & Details
Diotec B250D Diode bridge DIL 4 600 V 1 A 1-phase
- Extremely compact.
Technical specifications
- Operating temperature range: -55 – +125 °C
- Type
B250D
- Enclosure
DIL 4
- Manufacturer
Diotec
- Manuf. code
DIO
- Configuration (diode)
1-phase
- U(RRM)
600 V
- Forward current I(F)
1 A
- Forward voltage U(F)
1.1 V
- Forward voltage reference
1 A
- I(FSM) 50Hz
40 A
- I(FSM) 60Hz
44 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
600 V
- Operating temperature (min.)
-50 °C
- Operating temperature (max.)
+150 °C
- Mounting type
Through-hole
- RoHS-compliant
Yes
- Nominal current (details)
1 A
- Voltage
250 V
- Casing
DIL (7.5 x 5 mm grid)
- UKCA
yes
- Product type
Diode bridge
Documents & Downloads
Datasheet
Datasheet 501212 Diotec B250D Diode bridge DIL 4 600 V 1 A 1-phase
Description
Extremely compact, for high packing density in PCBs.
