Image similar

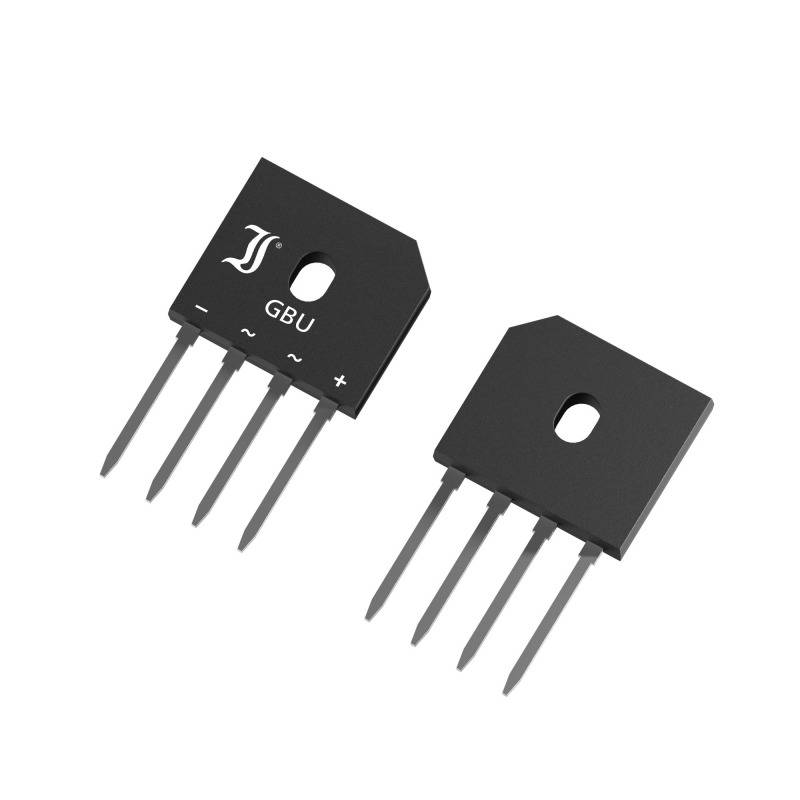

Diotec GBU4A-T Diode bridge GBU 50 V 4 A
Product type
Diode bridge
Enclosure
GBU
U(RRM)
50 V
Forward current I(F)
4 A
Forward voltage U(F)
1 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 70
Total (€ 0.33161 / piece)
€ 0.33
incl. VAT
14-day return policy included
Highlights & Details
Diode bridge
Our service for you
Technical specifications
- Type SILHousing GBUPeriodic Peak Reverse Voltage - VRRM 50 VContinuous current - IFAV 4.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 135.00 AForward voltage - VF 1.00 VIF 4.00 AReverse current - IR 5,000 µAVR 50 VLock layer capacity - CJ 50 pFVR 4 V
- Type
GBU4A-T
- Product type
Diode bridge
- Enclosure
GBU
- Manufacturer
Diotec
- Manuf. code
DIO
- U(RRM)
50 V
- Forward current I(F)
4 A
- Forward voltage U(F)
1 V
- Forward voltage reference
4.00 A
- I(FSM) 50Hz
135 A
- I(FSM) 60Hz
135.00 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
50 V
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2809771 Diotec GBU4A-T Diode bridge GBU 50 V 4 A
User & Safety Instructions
User & Safety Instructions 2809771 Diotec GBU4A-T Diode bridge GBU 50 V 4 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
