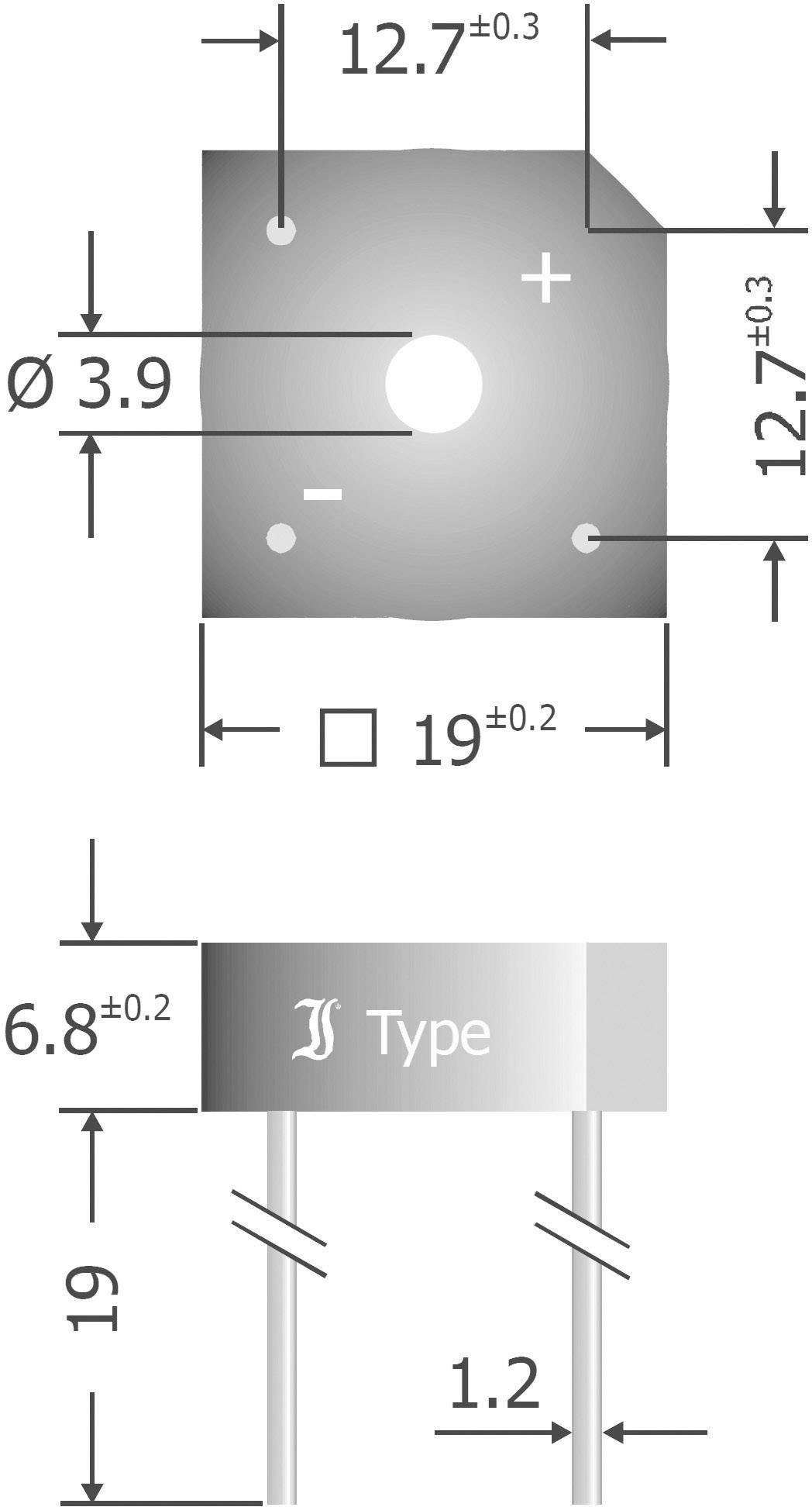

Stroke drawing/circuit diagram
Diotec KBPC808 Diode bridge KBPC 800 V 8 A 1-phase
Product type
Diode bridge
Enclosure
KBPC
Configuration (diode)
1-phase
U(RRM)
800 V
Forward current I(F)
8 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 2
Total (€ 1.79 / piece)
€ 1.79
incl. VAT
14-day return policy included
Highlights & Details
Diotec KBPC808 Diode bridge KBPC 800 V 8 A 1-phase
Our service for you
Technical specifications
- Type
KBPC808
- Product type
Diode bridge
- Enclosure
KBPC
- Manufacturer
Diotec
- Manuf. code
DIO
- Configuration (diode)
1-phase
- U(RRM)
800 V
- Forward current I(F)
8 A
- Forward voltage U(F)
1.2 V
- Forward voltage reference
4 A
- I(FSM) 50Hz
135 A
- I(FSM) 60Hz
150 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
800 V
- Operating temperature (min.)
-50 °C
- Operating temperature (max.)
+150 °C
- Mounting type
Through-hole
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 140737 Diotec KBPC808 Diode bridge KBPC 800 V 8 A 1-phase
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
