Image similar

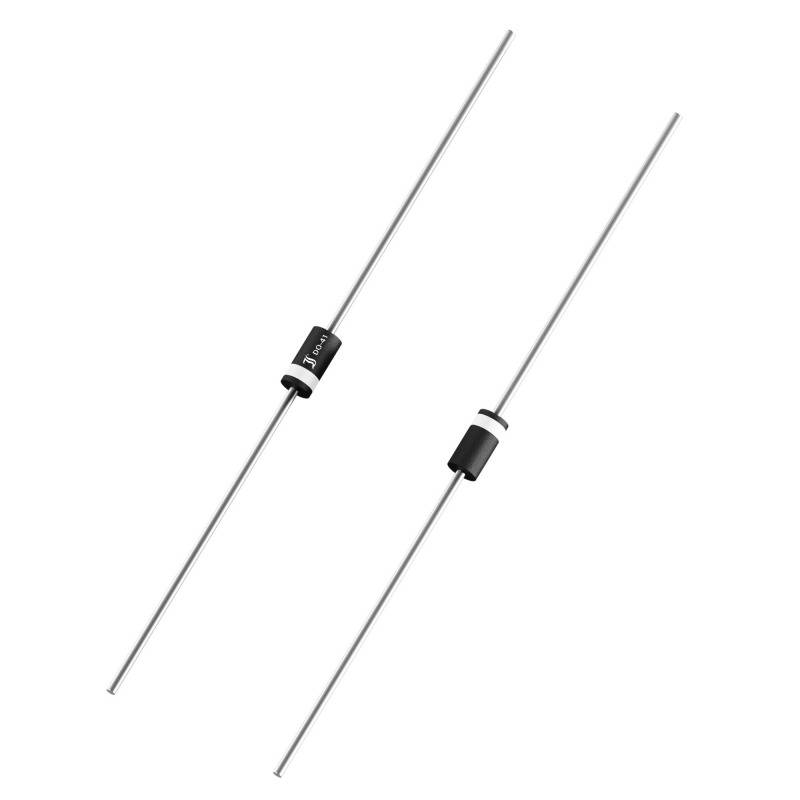

Diotec Rectifier 1N4004GP-AQ DO 41 400 V 1 A
Product type
Rectifier
Enclosure
DO 41
Forward current I(F)
1 A
Reverse voltage U(R)
400 V
Forward voltage U(F)
1.10 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 0.06015 / piece)
€ 0.06
incl. VAT
14-day return policy included
Technical specifications
- Type
1N4004GP-AQ
- Product type
Rectifier
- Enclosure
DO 41
- Manufacturer
Diotec
- Forward current I(F)
1 A
- Reverse voltage U(R)
400 V
- Forward voltage U(F)
1.10 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
175 °C
- Mounting type
Through-hole mounting
- I(FSM) 50Hz
27 A
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2806738 Diotec Rectifier 1N4004GP-AQ DO 41 400 V 1 A
User & Safety Instructions
User & Safety Instructions 2806738 Diotec Rectifier 1N4004GP-AQ DO 41 400 V 1 A
