Buy Diotec Rectifier BY296 DO 201 100 V 3 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

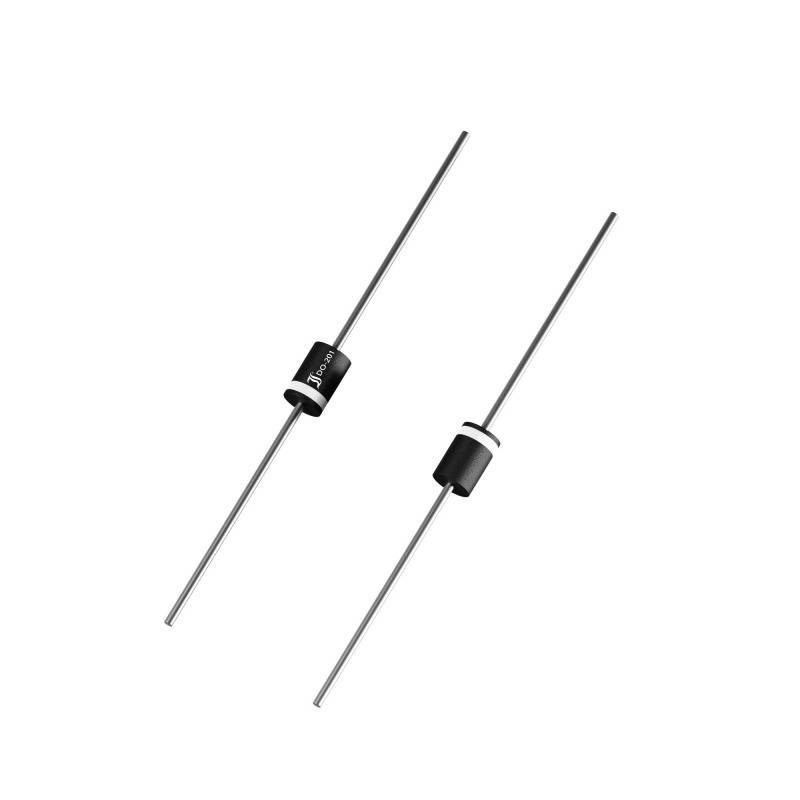

Two black diodes with silver connections on a white background.

Two black diodes with silver connections on a white background.

Image similar

Diotec

Product type

Rectifier

Enclosure

DO 201

Forward current I(F)

3 A

Reverse voltage U(R)

100 V

Forward voltage U(F)

1.30 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

1100 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 250

Total (€ 0.09391 / piece)

€ 0.09

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type AxialDO-201 housingPeriodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 2.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 500 nsSurge current - IFSM 70.00 AForward voltage - VF 1.30 VIF 3.00 AReverse current - IR 5,000 µAVR 100 VLock layer capacity - CJ: PFVR V

Type: BY296

Product type: Rectifier

Enclosure: DO 201

Manufacturer: Diotec

Forward current I(F): 3 A

Reverse voltage U(R): 100 V

Forward voltage U(F): 1.30 V

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

I(FSM) 50Hz: 70 A

Reverse recovery time T(rr): 500 ns

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2807338 Diotec Rectifier BY296 DO 201 100 V 3 A

User & Safety Instructions

User & Safety Instructions 2807338 Diotec Rectifier BY296 DO 201 100 V 3 A
