Buy Diotec Rectifier PT800D TO 220AC 200 V 8 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

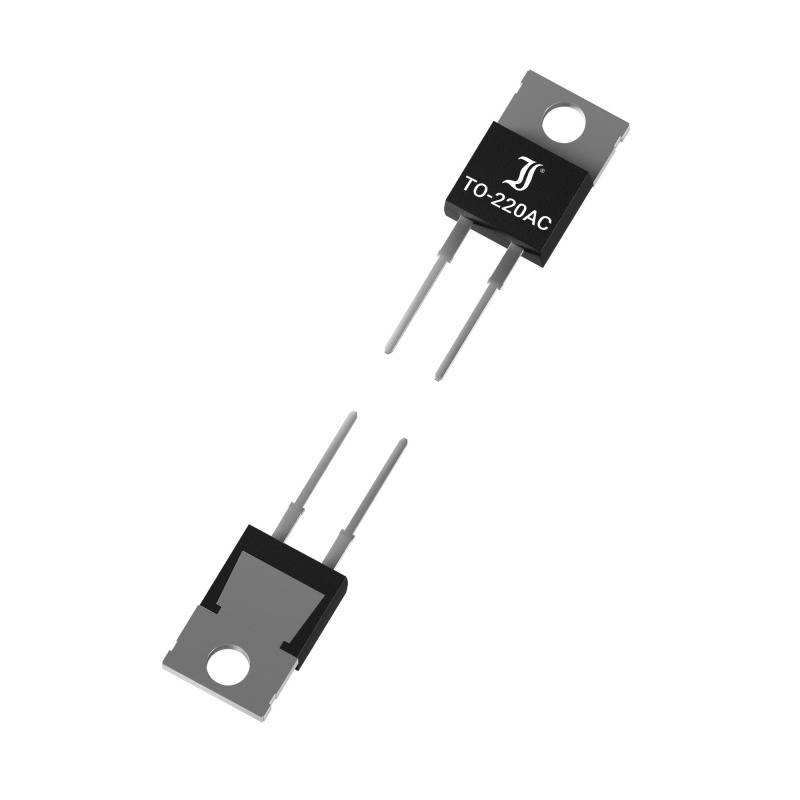

Two black electronic components marked 'TO-220AC', each with two silver pins. They are positioned diagonally opposite each other.

Two black electronic components marked 'TO-220AC', each with two silver pins. They are positioned diagonally opposite each other.

Image similar

Diotec

Product type

Rectifier

Enclosure

TO 220AC

Forward current I(F)

8 A

Reverse voltage U(R)

200 V

Forward voltage U(F)

1.10 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed, 20 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 50

Total (€ 0.44079 / piece)

€ 0.44

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rectifier

Our service for you

Technical specifications

Type wire-leadCasing TO-220AC.Periodic Peak Reverse Voltage - VRRM 200 VContinuous current - IFAV 8.00 AJunction temperature - Tjmax 150 °CForward voltage - VF 1.10 VIF 8.00 ASurge current - IFSM 135.00 AReverse current - IR 5,000 µAVR 200 VLock layer capacity - CJ: PFVR V

Type: PT800D

Product type: Rectifier

Enclosure: TO 220AC

Manufacturer: Diotec

Forward current I(F): 8 A

Reverse voltage U(R): 200 V

Forward voltage U(F): 1.10 V

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

I(FSM) 50Hz: 135 A

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 2808674 Diotec Rectifier PT800D TO 220AC 200 V 8 A

User & Safety Instructions

User & Safety Instructions 2808674 Diotec Rectifier PT800D TO 220AC 200 V 8 A
