Buy Diotec Rectifier PX1500K D8x7.5 800 V 5 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

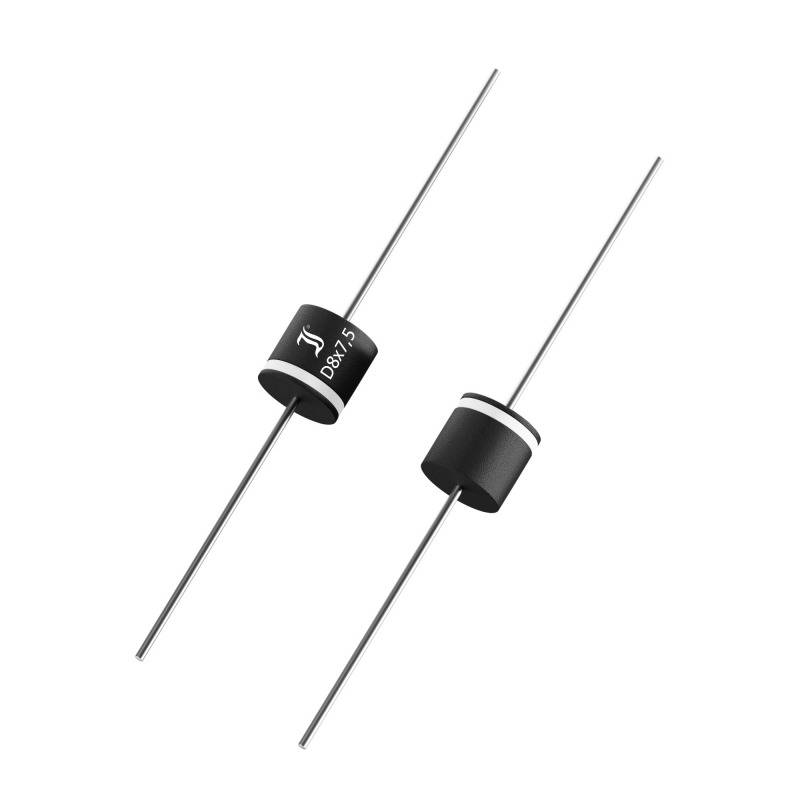

Two cylindrical diodes with black casings and silver terminals, lying side by side on a white background.

Two cylindrical diodes with black casings and silver terminals, lying side by side on a white background.

Image similar

Diotec

Product type

Rectifier

Enclosure

D8x7.5

Forward current I(F)

5 A

Reverse voltage U(R)

800 V

Forward voltage U(F)

0.90 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 40

Total (€ 0.65165 / piece)

€ 0.65

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rectifier

Our service for you

Technical specifications

Type AxialHousing: D8x7.5Periodic Peak Reverse Voltage - VRRM 800 VContinuous current - IFAV 15.00 AJunction temperature - Tjmax 175 °CForward voltage - VF 0.90 VIF 5.00 ASurge current - IFSM 400.00 AReverse current - IR 10,000 µAVR 800 VLock layer capacity - CJ: PFVR V

Type: PX1500K

Product type: Rectifier

Enclosure: D8x7.5

Manufacturer: Diotec

Forward current I(F): 5 A

Reverse voltage U(R): 800 V

Forward voltage U(F): 0.90 V

Reverse leakage current I(r): 10 µA

Operating temperature (max.): 175 °C

Mounting type: Through-hole mounting

I(FSM) 50Hz: 400 A

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 2808687 Diotec Rectifier PX1500K D8x7.5 800 V 5 A

User & Safety Instructions

User & Safety Instructions 2808687 Diotec Rectifier PX1500K D8x7.5 800 V 5 A
