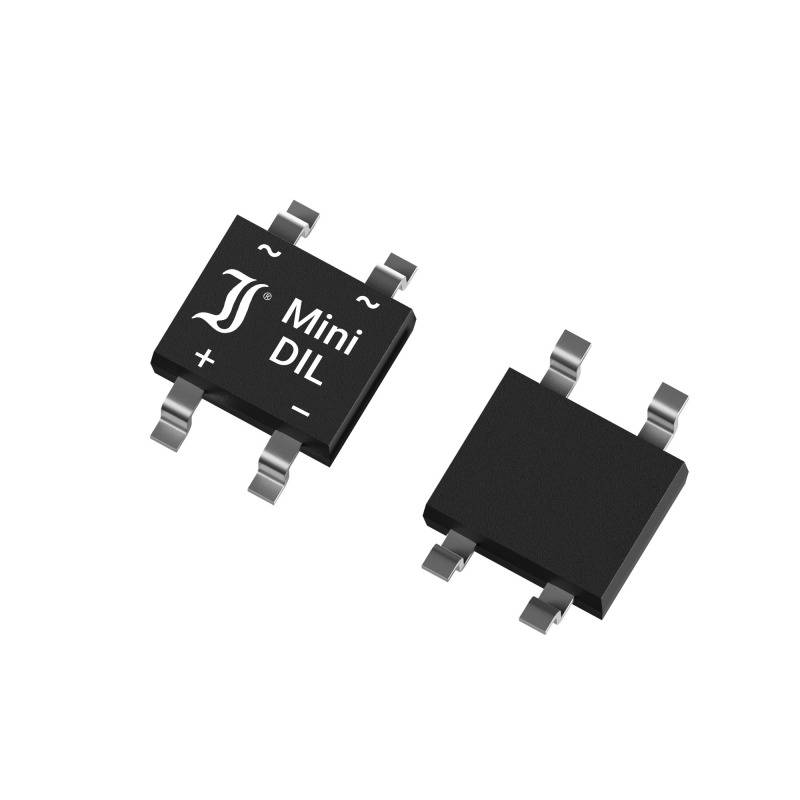

Image similar
Diotec S125 Diode bridge TO 269AA 600 V 0.80 A
Product type
Diode bridge
Enclosure
TO 269AA
U(RRM)
600 V
Forward current I(F)
0.80 A
Forward voltage U(F)
1.10 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 200
Total (€ 0.14252 / piece)
€ 0.14
incl. VAT
14-day return policy included
Technical specifications
- Type SMDHousing TO-269AA/MiniDILPeriodic Peak Reverse Voltage - VRRM 600 VContinuous current - IFAV 0.80 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 1500 nsSurge current - IFSM 40.00 AForward voltage - VF 1.10 VIF 0.80 AReverse current - IR 5,000 µAVR 250 VLock layer capacity - CJ: PFVR V
- Type
S125
- Product type
Diode bridge
- Enclosure
TO 269AA
- Manufacturer
Diotec
- Manuf. code
DIO
- U(RRM)
600 V
- Forward current I(F)
0.80 A
- Forward voltage U(F)
1.10 V
- Forward voltage reference
0.80 A
- I(FSM) 50Hz
40 A
- I(FSM) 60Hz
40.00 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
250 V
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2810502 Diotec S125 Diode bridge TO 269AA 600 V 0.80 A
User & Safety Instructions
User & Safety Instructions 2810502 Diotec S125 Diode bridge TO 269AA 600 V 0.80 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
