Name: Diotec Transistor (BJT) - Discrete BC556BBK TO-92BK PNP
Brand: Diotec
SKU: 2809169
Availability: InStock

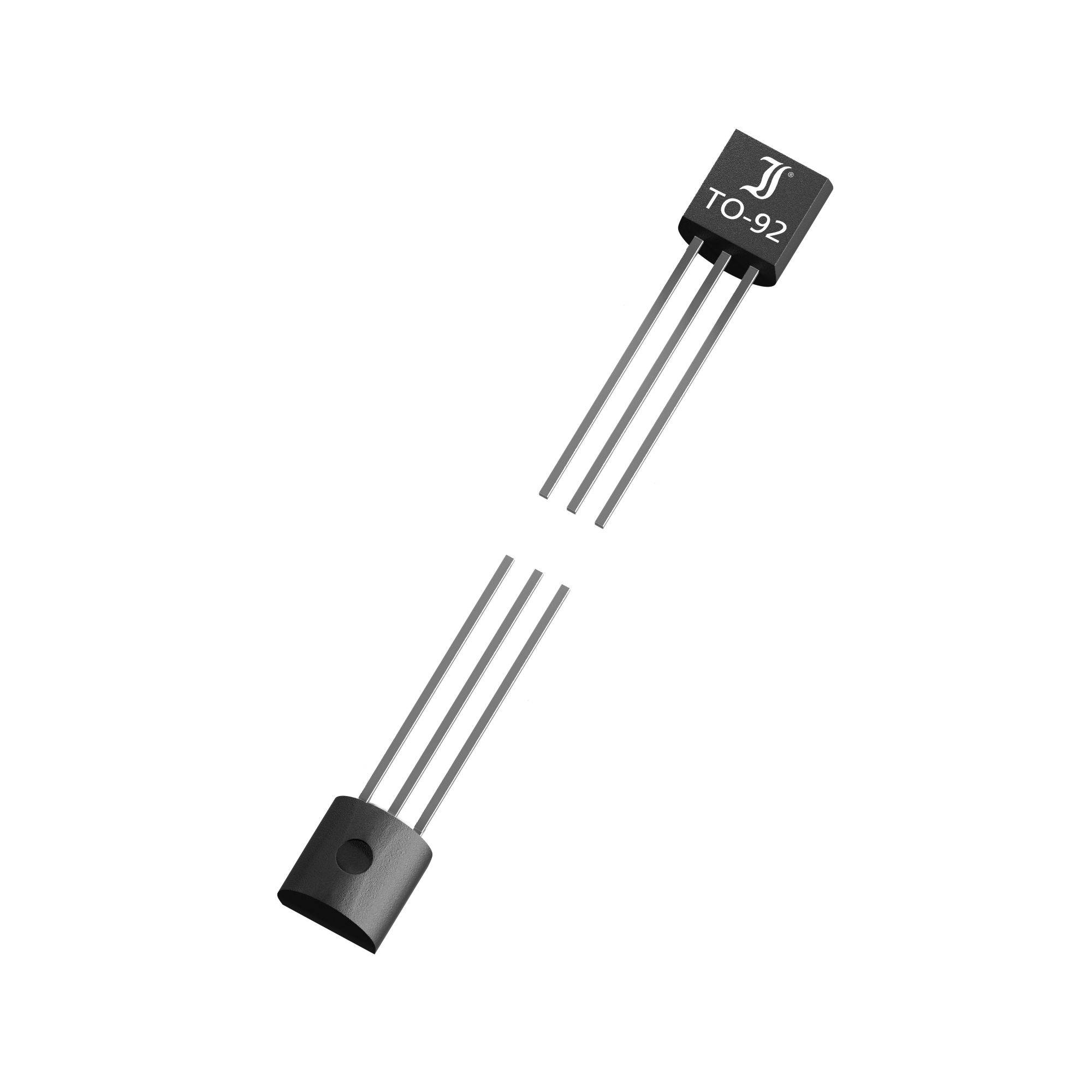

A black, three-legged transistor in a TO-92 package, depicted in a dismantled state to illustrate its structure.

Image similar

Product type

Transistor (BJT) - Discrete

Enclosure

TO-92BK

Type

PNP

Collector current

100 mA

Collector emitter voltage U(CEO)

65 V

Datasheet (PDF)

Dispatches on Thu 22 Oct

4250 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 1000

Total (€ 0.0285 / piece)

€ 28.50

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type wire-leadCasing TO-92BK.Collector emitter voltage - VCEO 65 VDC collector current - IC: 100 mAPolarity - pin PNPJunction temperature - Tjmax 150 °CPower loss - Ptot 0,500 W.Collector base current ratio - hfe: 200VCE 5 VIC 100 mACollector saturation voltage - VCEsat 250 mVIC 100 mAIB 5 mATransit frequency - ft:150 MHzIC 10 mAVCE 5 VF 100 MHz

Type: BC556BBK

Product type: Transistor (BJT) - Discrete

Enclosure: TO-92BK

Manufacturer: Diotec

Type: PNP

Collector current: 100 mA

Collector emitter voltage U(CEO): 65 V

Collector-emitter saturation voltage (max.): 250 mV

Power (max) P(TOT): 0.5 W

DC current gain (hFE): 200

Transit frequency f(T): 100 MHz

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Content: 1 pc(s)

Operating temperature (max.): 150 °C

UKCA: yes
