Dobot Magician E6 DT-MG-6R075-02E Robotic arm assembly kit
EAN:
Part number:
Item no:
Number
Total (€ 6,004.20 / piece)
€ 6,004.20
plus VAT.
Only 6 Piece(s) available
Highlights & Details

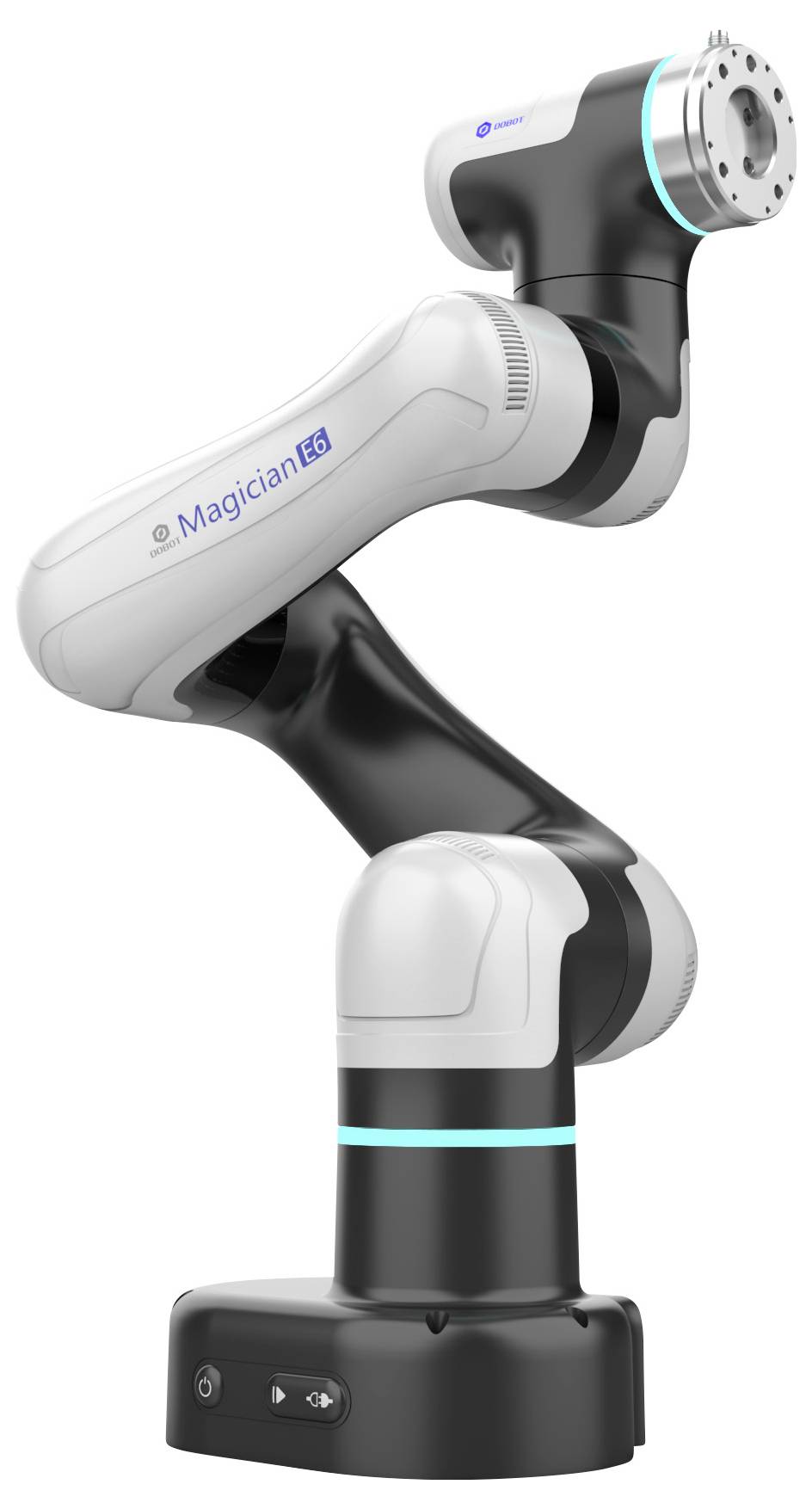

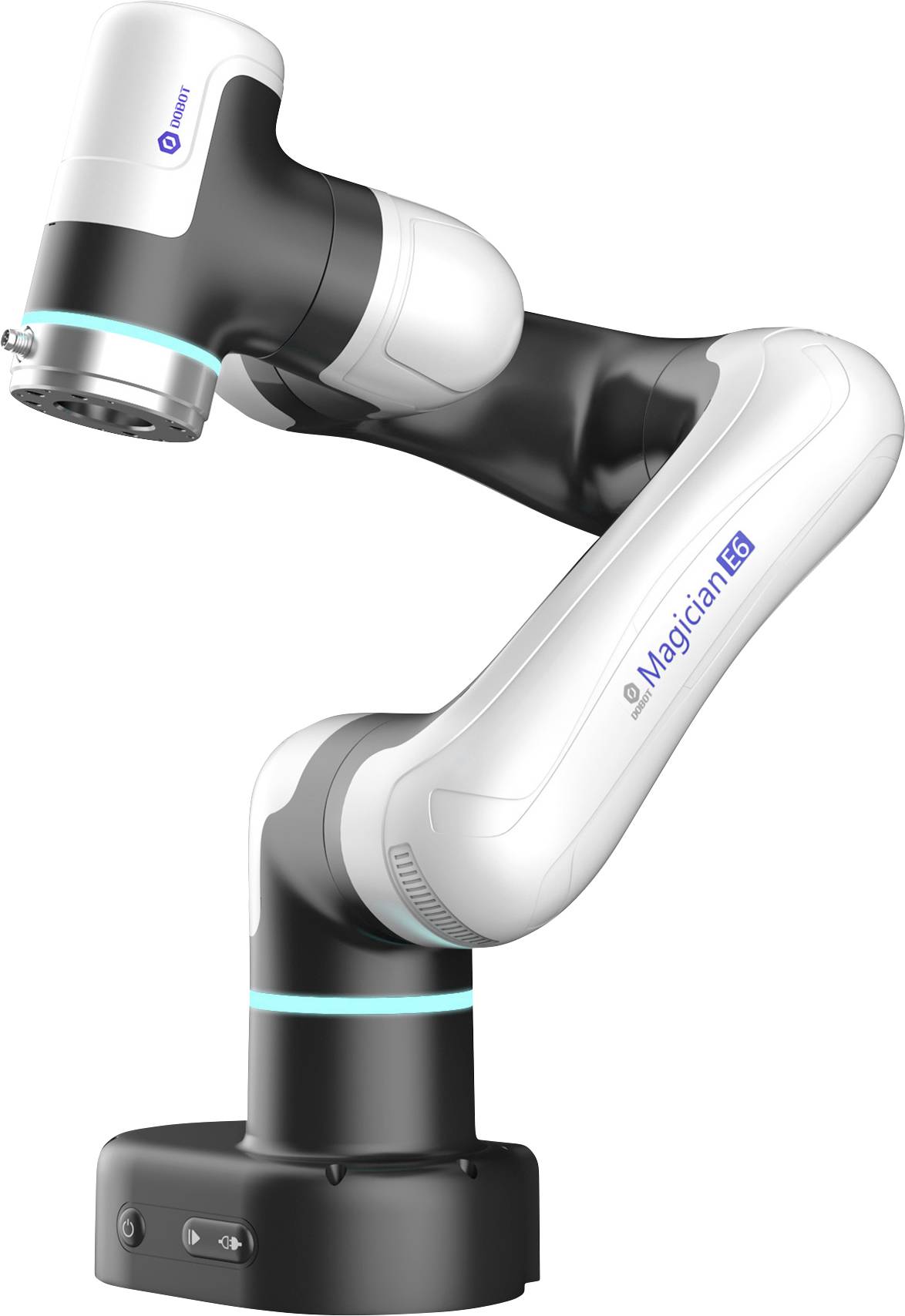

Dobot Robot arm Magician E6
- Tremendous safety
- Simple implementation
- User friendly
Technical specifications
- DOF: 6
- Maximum payload 750 g
- Working range 450 mm
- Repeatability ±0.1 mm
- Max. TCP speed 0.5 m/s.
- Range;
- J1: ±360°
- J2 ±135°
- J3: ±154°
- J4: ±160°
- J5: ±173°
- J6: ±360°
- Maximum joint speed 120°/s.
- Power consumption 100 - 240 V/AC, 50/60 Hz
- Nominal power 48 V DC 5 A
- Nominal power intake 130 W
- Communication interface
- Ethernet: 2, for TCP/IP and Modbus TCP communication
- USB 1, wireless connection
- I/O-interface;
- Tip: DI x 2, DO x 2, 24 V x 1, GND x 1
- DI x 16, DO x 16, 24 V x 4, GND x 4 bases
- I/O power 24 V, max. 2 A, max. 0.5 A for each channel
- External interface: EMO x 1, ABZ encoder x 1, power x 1
- Control software DobotStudio Pro, CRStudio
- IP class IP20
- Dimensions 162 x 120 x 103 mm
- Work environment;
- Temperature: 0 - 50 °C
- Humidity 25 - 85%, non-condensing
- Noise level 50 dB(A)
- Setup: Desk
- Material: Aluminium alloy, ABS
IP20
- Product type
Robotic arm assembly kit
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3415263 Dobot Magician E6 DT-MG-6R075-02E Robotic arm assembly kit
Description
Innovation drives research
Whether in education or research: The Dobot robot arm Magician E6 was developed to simulate automation scenarios accurately and to gain lasting experience in the field of AI or intelligent manufacturing, for example. Thanks to various interfaces for secondary development and course materials for robotics training, the Dobot robot arm Magician E6 opens up new forms of training.
User-friendly and secure
The Magician E6 has a collision detection, which already responds to slight resistance and ensures safe operation. A LED light ring permanently signals the operating status of the robot arm. Fixed at the slide or laboratory table in no time, the in-built control unit enables the plug-and-play operation thanks to simplified external wiring.
No technical knowledge required
Handling the Dobot Magician E6 robot arm is easy to learn: The company's own trajectory playback technology enables programming without code drag-to-teach and supports graphic programming.
This text is machine translated.
Scope of delivery
- Dobot Magician E6
- Electric suction cup ES01
- E6 flange
- Emergency-Off Buttons
- Ethernet cable
- Power supply unit
- Fixed base
- 2x terminal blocks
- 2x G-type terminals
- 10x M4 x 10 hexagon socket screws
- Inner hexagonal wrenches M4
- Quick start guide
- Safety Instructions
