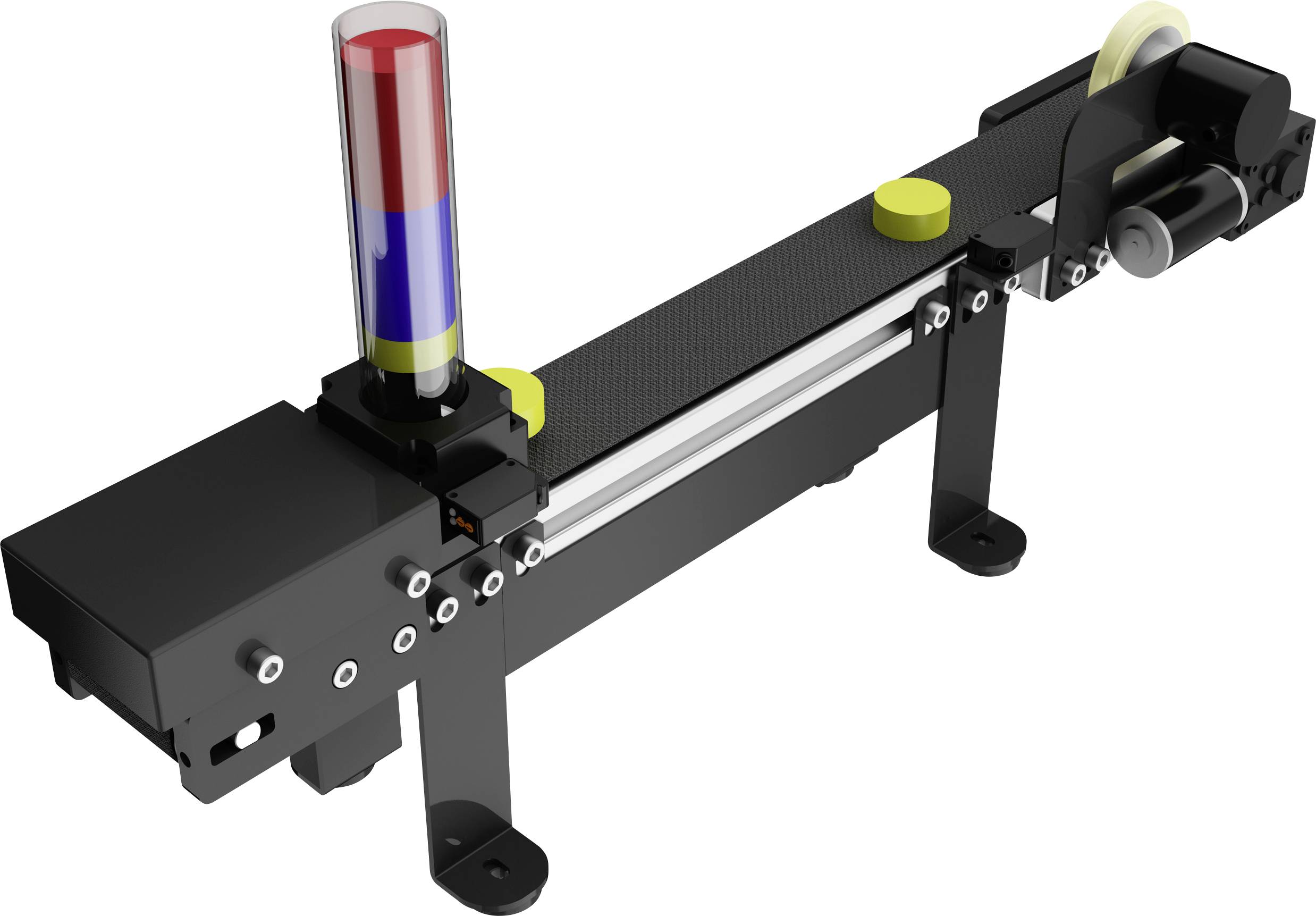

A conveyor system with a cylindrical red and blue light, black belt, and a motor on the right, used for transporting small items.

A conveyor system with a cylindrical red and blue light, black belt, and a motor on the right, used for transporting small items.

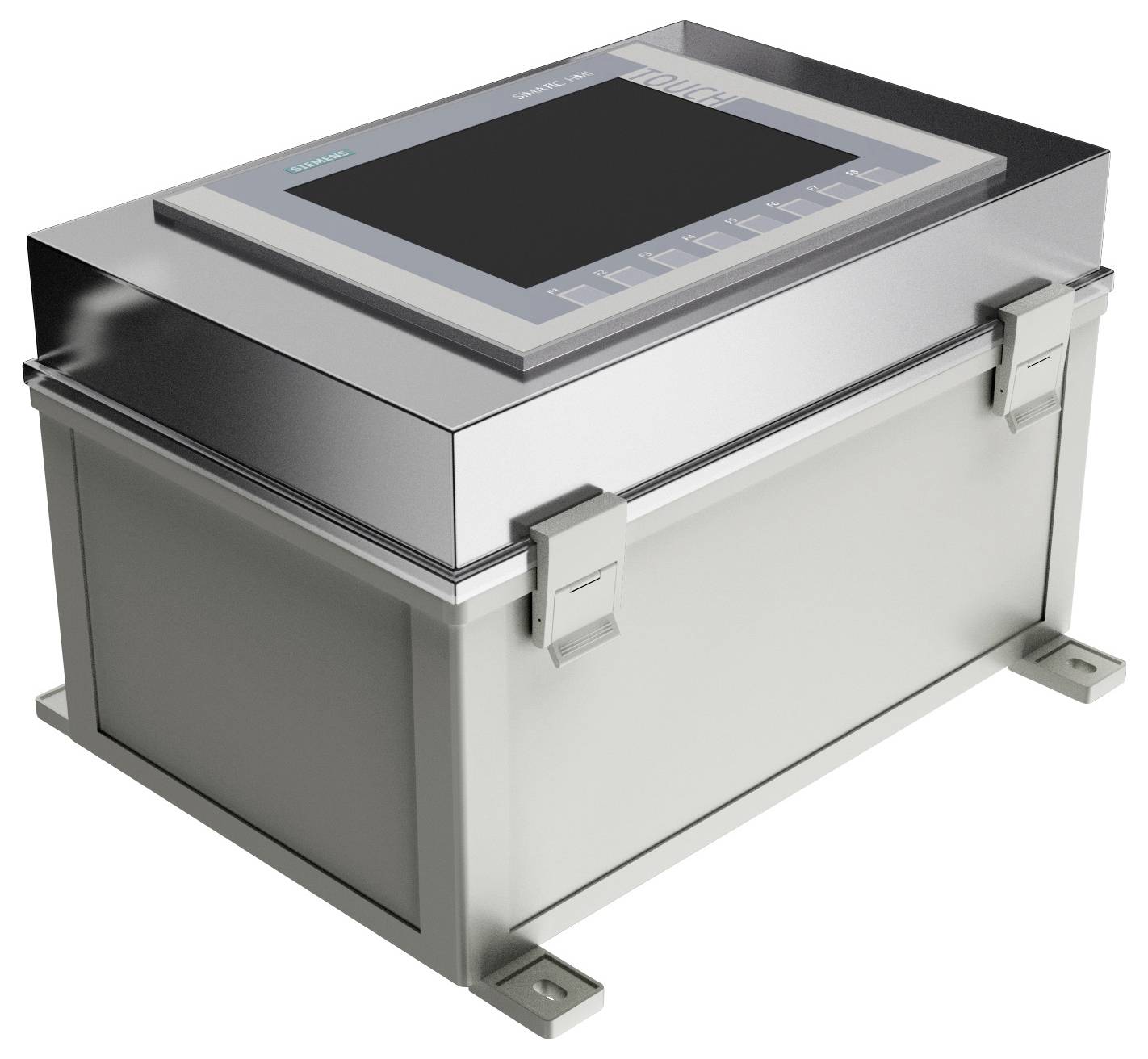

A gray industrial electronic device with a digital display and multiple buttons, used for monitoring or controlling machinery.

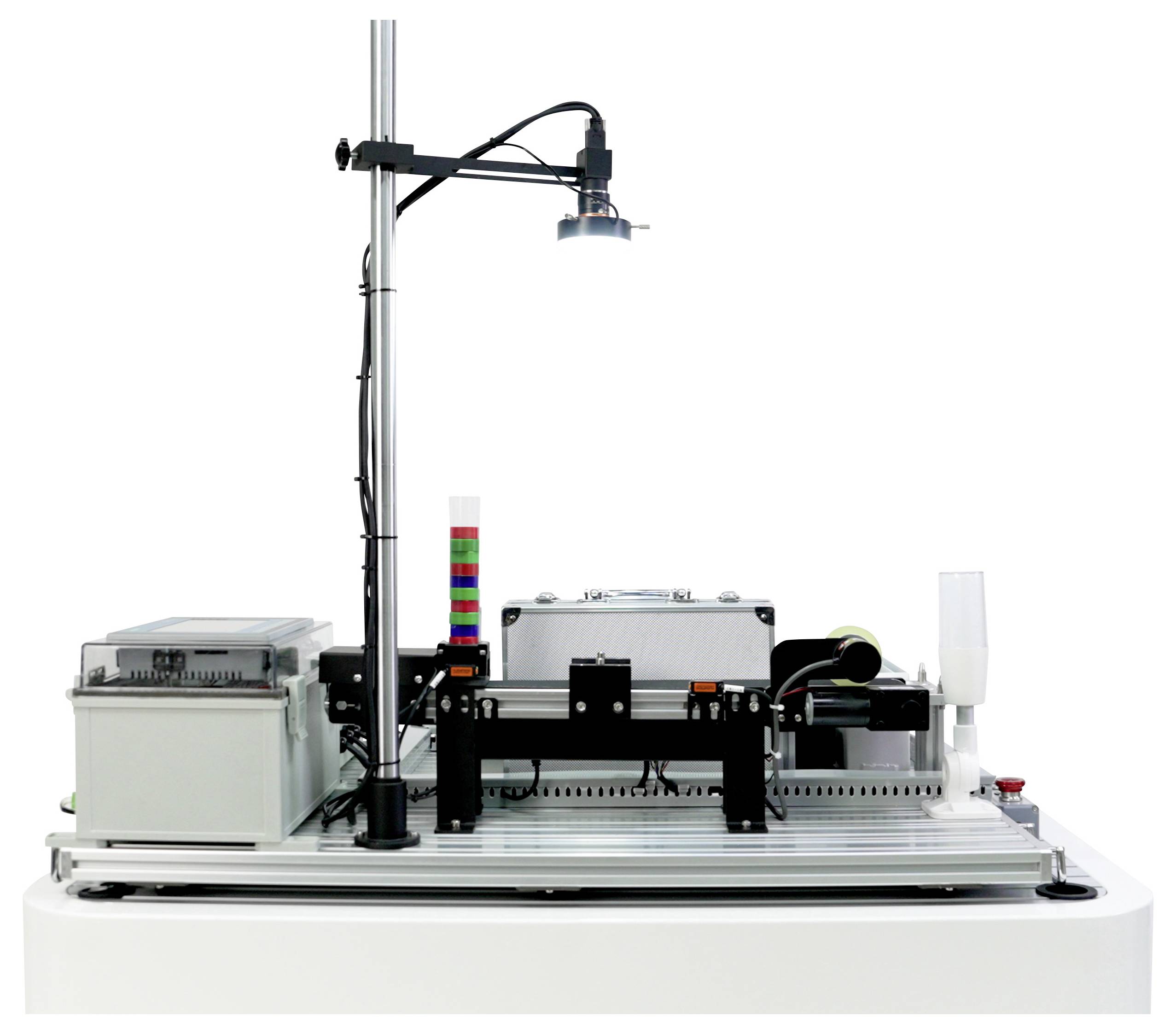

A robotic assembly line machine equipped with electronic components, a light fixture, and a stack of colored signal indicators.

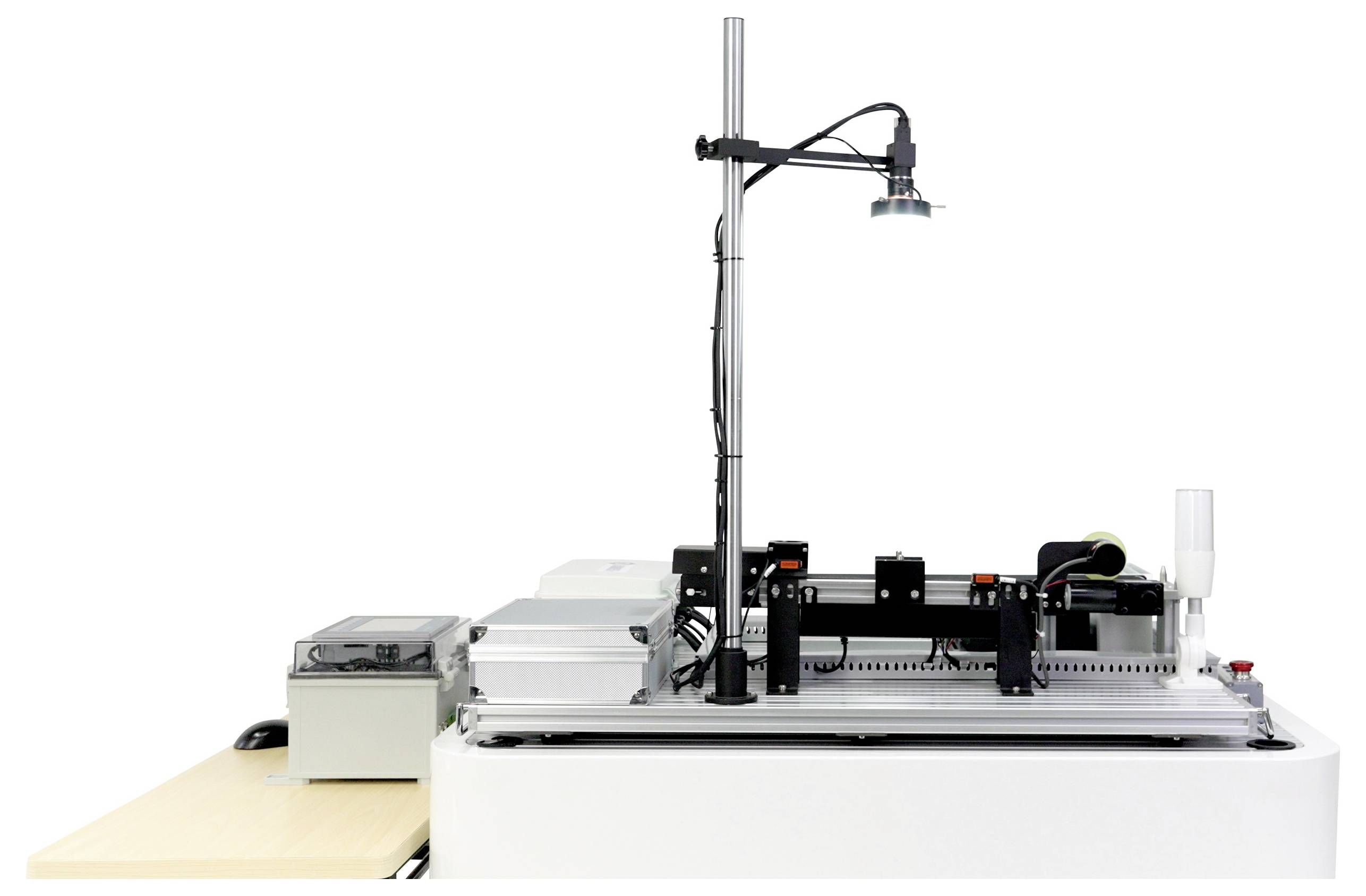

A robotic assembly machine on a table with a camera mounted on an overhead pole, used for automated manufacturing processes.

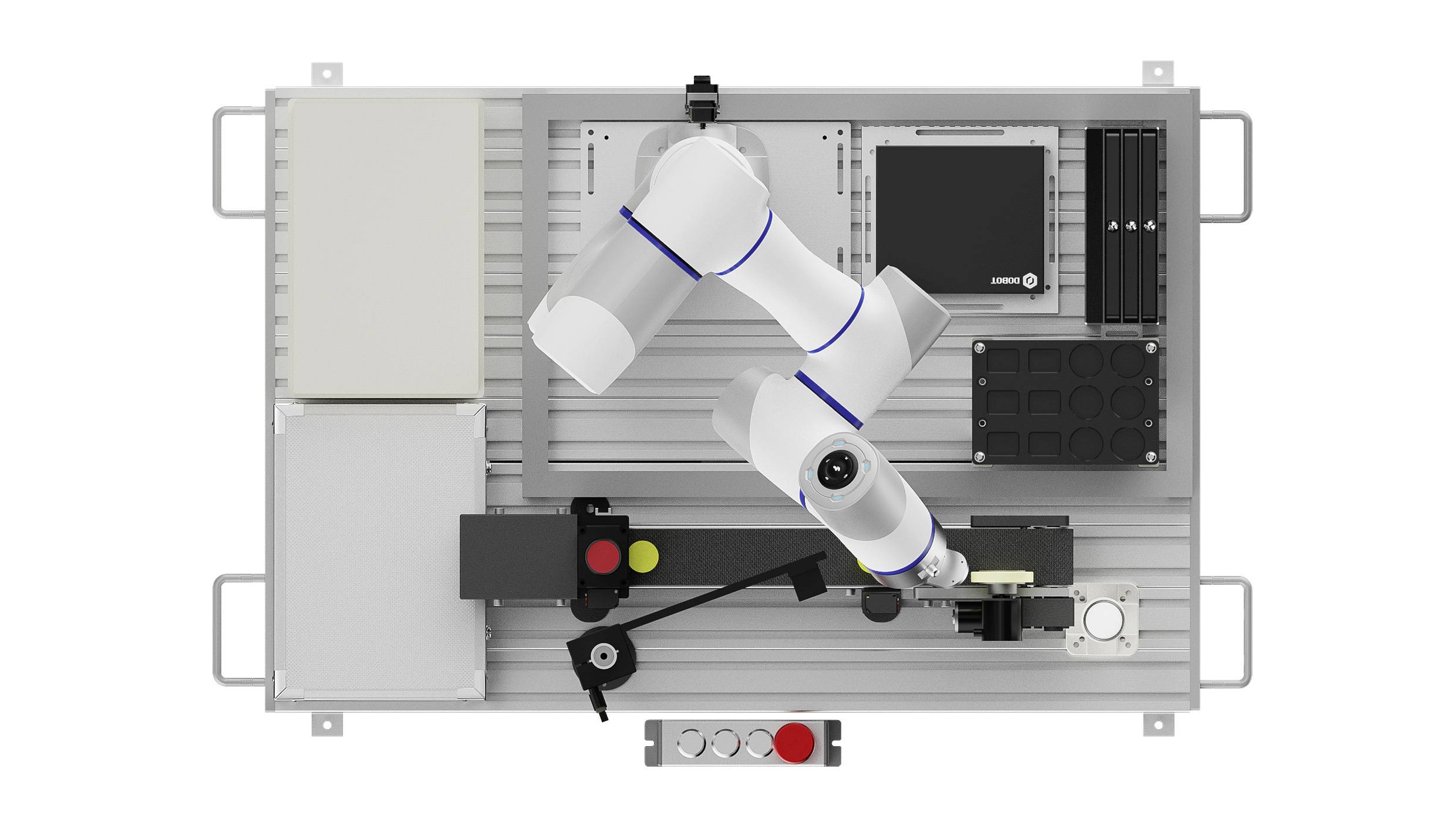

Top view of a robotic arm on a metal platform with control panels and buttons. The arm is positioned centrally, implying motion or task execution.

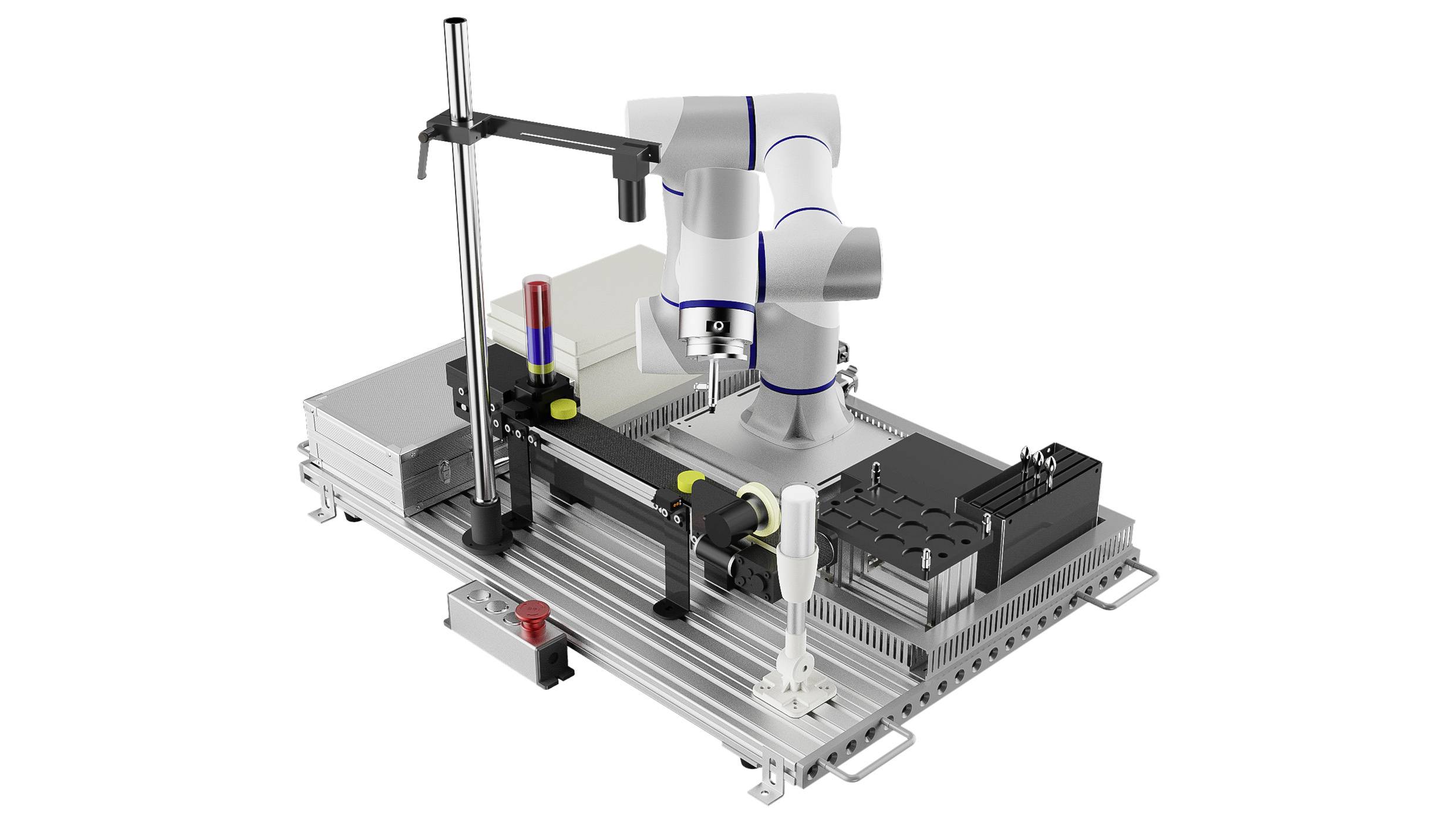

A robotic arm assembly on a metallic base used for industrial automation, featuring a central articulated arm and various attached components.

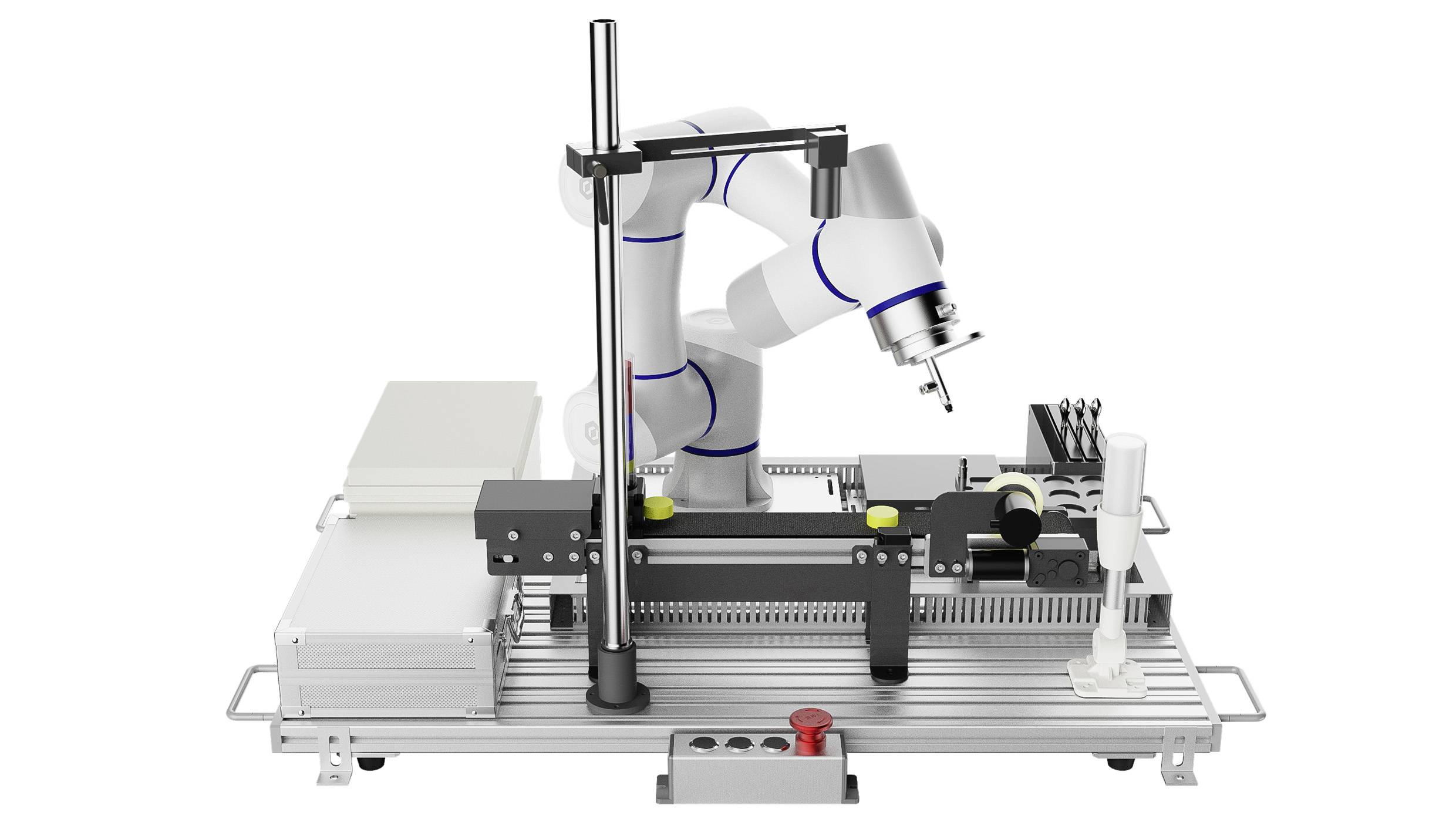

A robotic arm in a lab setting, equipped to perform precise movements, working on a conveyor system with various tools and components.

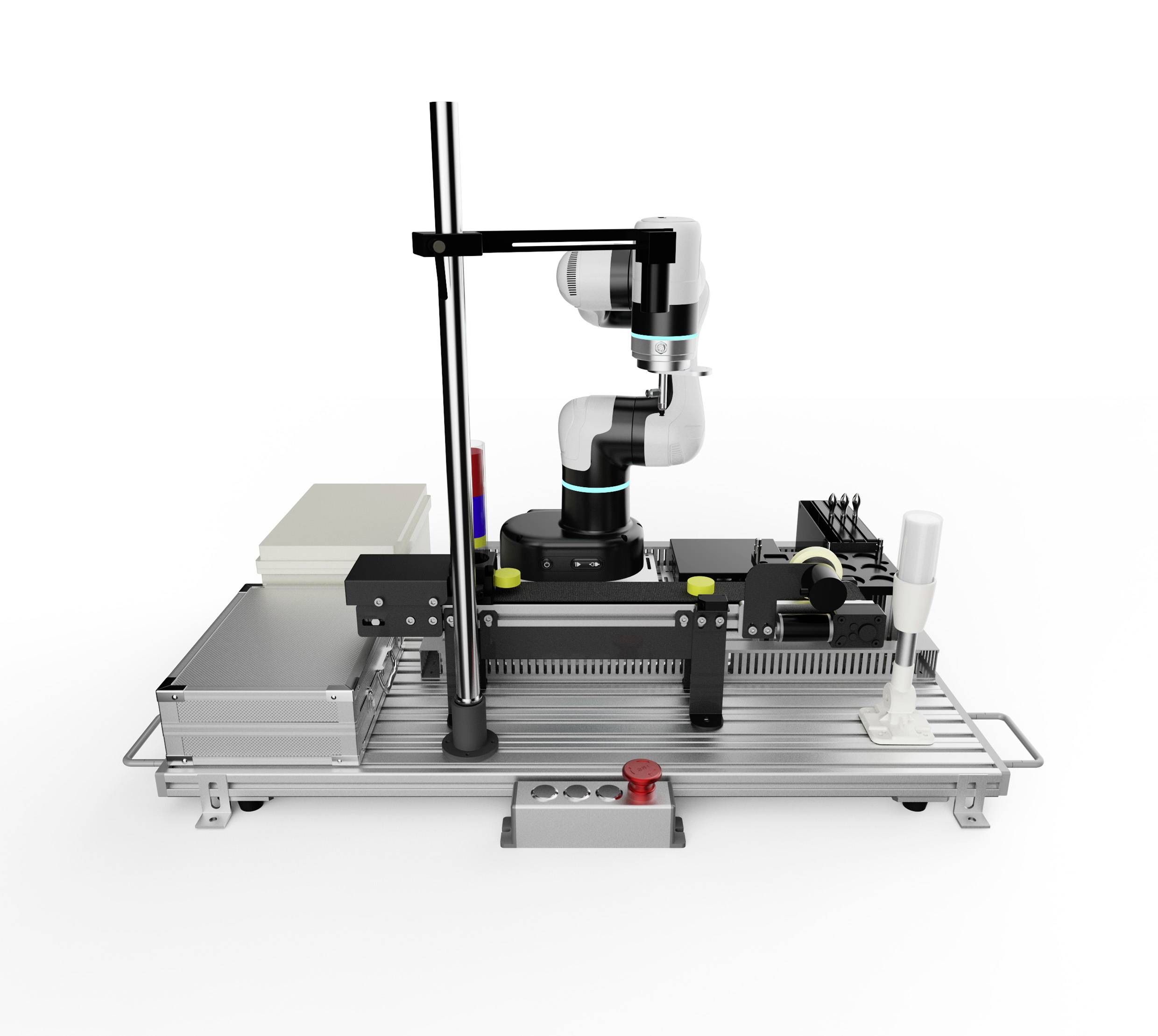

A robotic arm on an assembly line platform is positioned for parts assembly. Multiple components and tools are arranged on the platform.

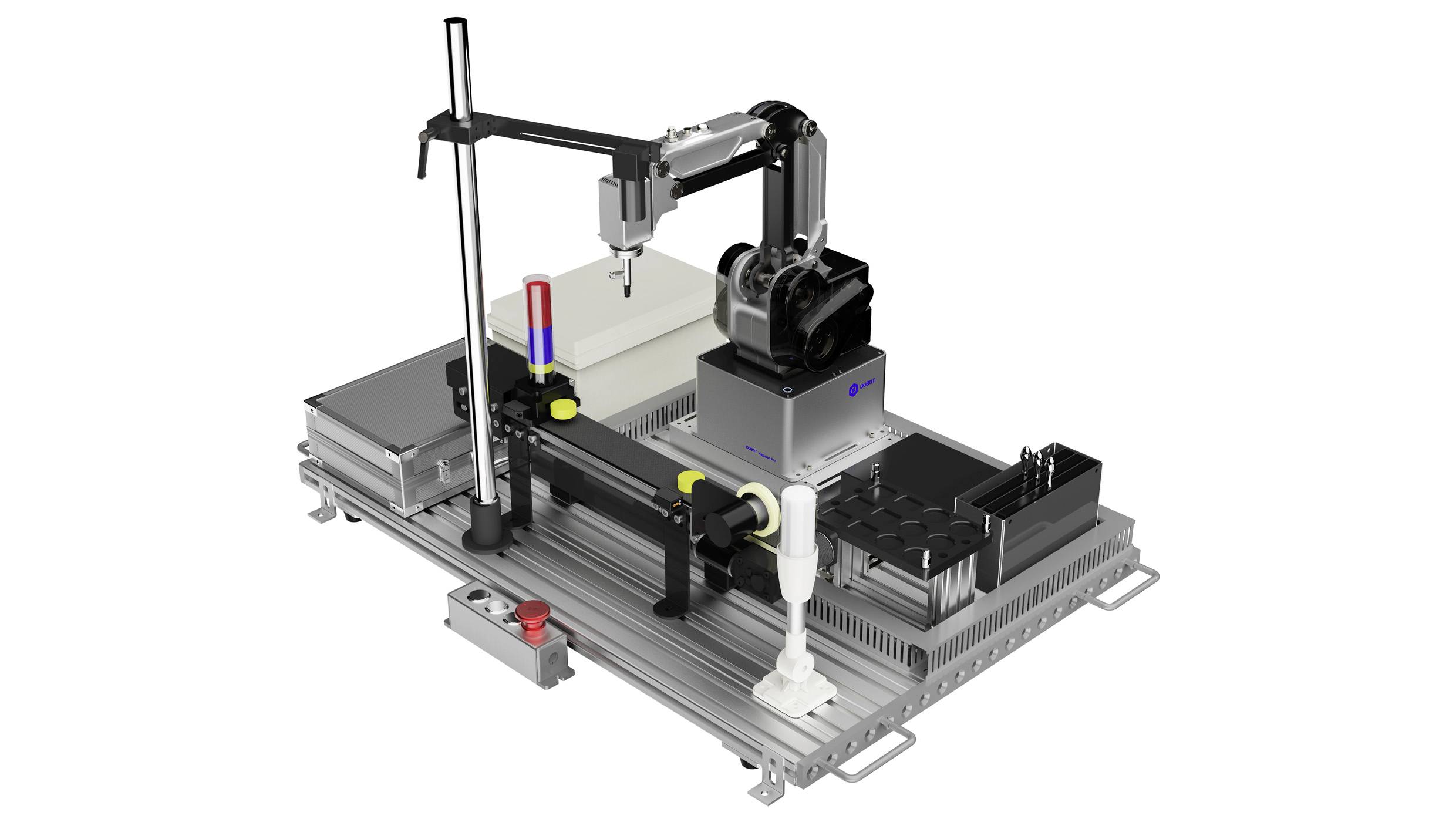

A robotic arm on a platform is assembling parts, surrounded by mechanical components and tools, showcasing industrial automation.

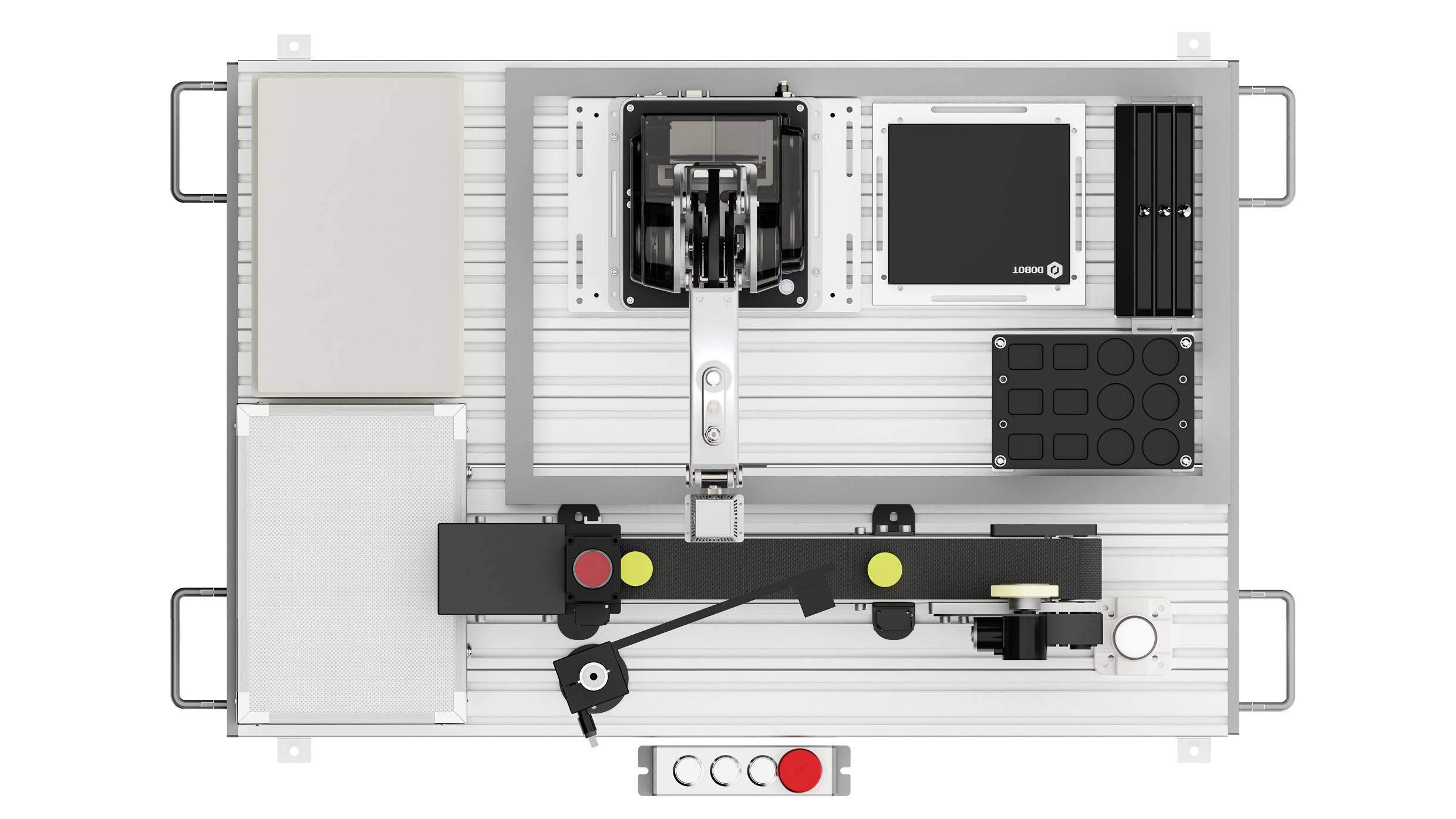

A top-down view of an industrial control panel with buttons and levers, indicating equipment management or monitoring capabilities.

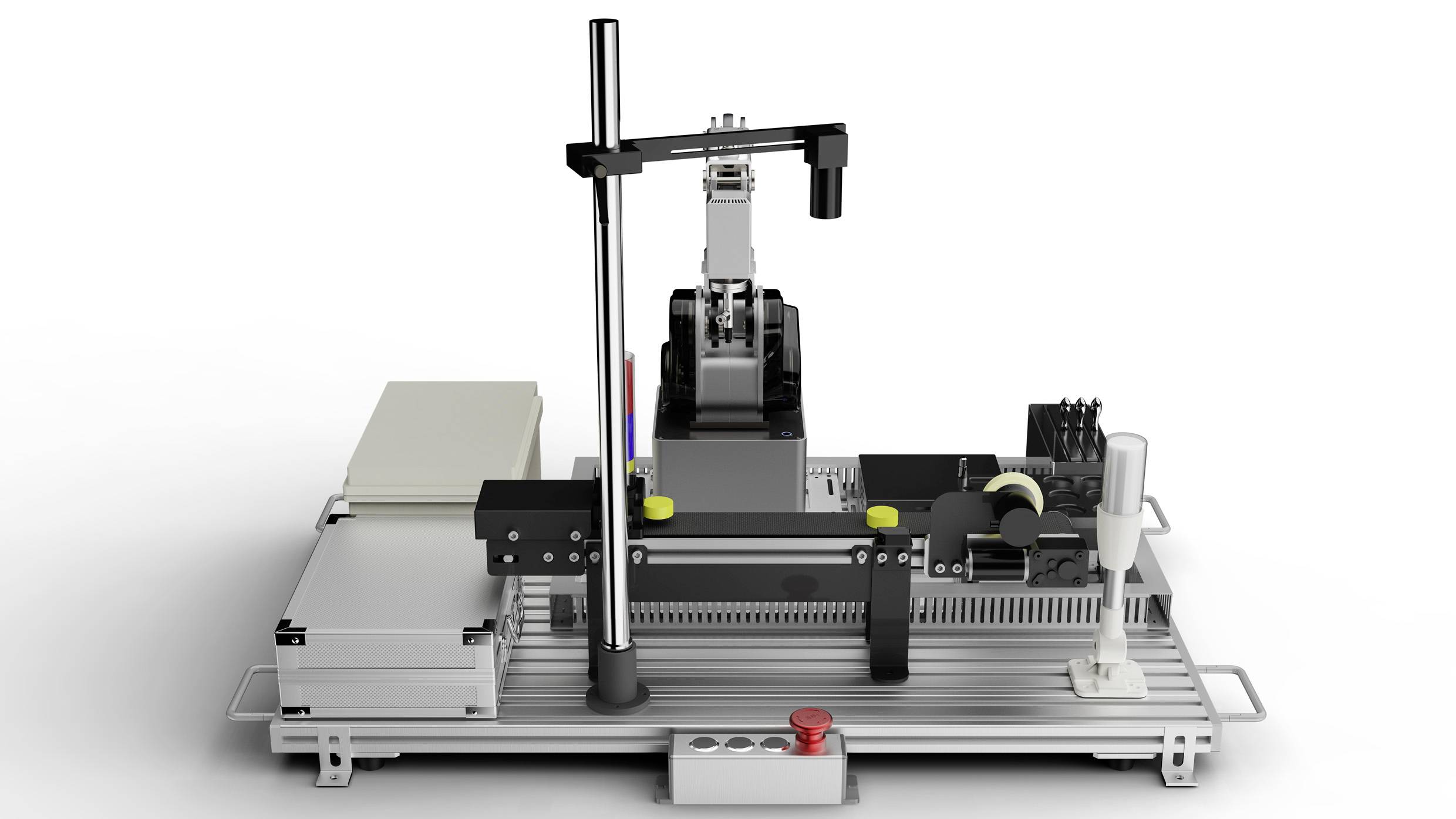

Industrial robot with a robotic arm on a metal platform, equipped with a range of sensors and control systems, used for automation tasks.

1/11

Dobot

Fast track dispatch on Mon, 14 Sep

4 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 8,121.85 / piece)

€ 8,121.85

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Training system for E6, MG400 and CR3 robot arm, with Siemens PLC without Robot arm

Modular design
Multi-Field integration
Intuitive and easy to use
Safe and reliable
Cost-effective

Technical specifications

Voltage: 100 - 240 V AC, 50/60 Hz
Full load current: 5 A (MG400, E6), 10 A (CR3)
Rated short circuit current: 18 A
Total power: Max. 500 W (MG400, E6), 800 W (CR3)
Mini vacuum source;
Rated voltage: 24 V DC
Air pressure range: -70 - 110 kPa
PLC system module;
Weight: 3.5kg
Voltage: 24V DC
Total Power: Max. 75W
Full Load Current: 3A
Size: 335 mm × 270 mm × 235 mm
HMI: Screen Size: 7.0 inches
Resolution: 800 × 480
PLC: CPU: 1212C DC/DC/DC
Working Storage: 75 KB
Loading Storage: 2 MB
High Speed Counter: 4
Integrated I/O: DI × 8, DQ × 6, AI × 2
Extensibility: Signal Board (SB) × 1,
Signal Module (SM) × 2,
Communication Module (CM) × 3

Product type: Expansion module

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 3415264 Dobot Training System with PLC DT-BE-R-15 Expansion module

Description

Training system for E6, MG400 and CR3 robot arm, with Siemens PLC without robot arm.

This text is machine translated.

Scope of delivery
