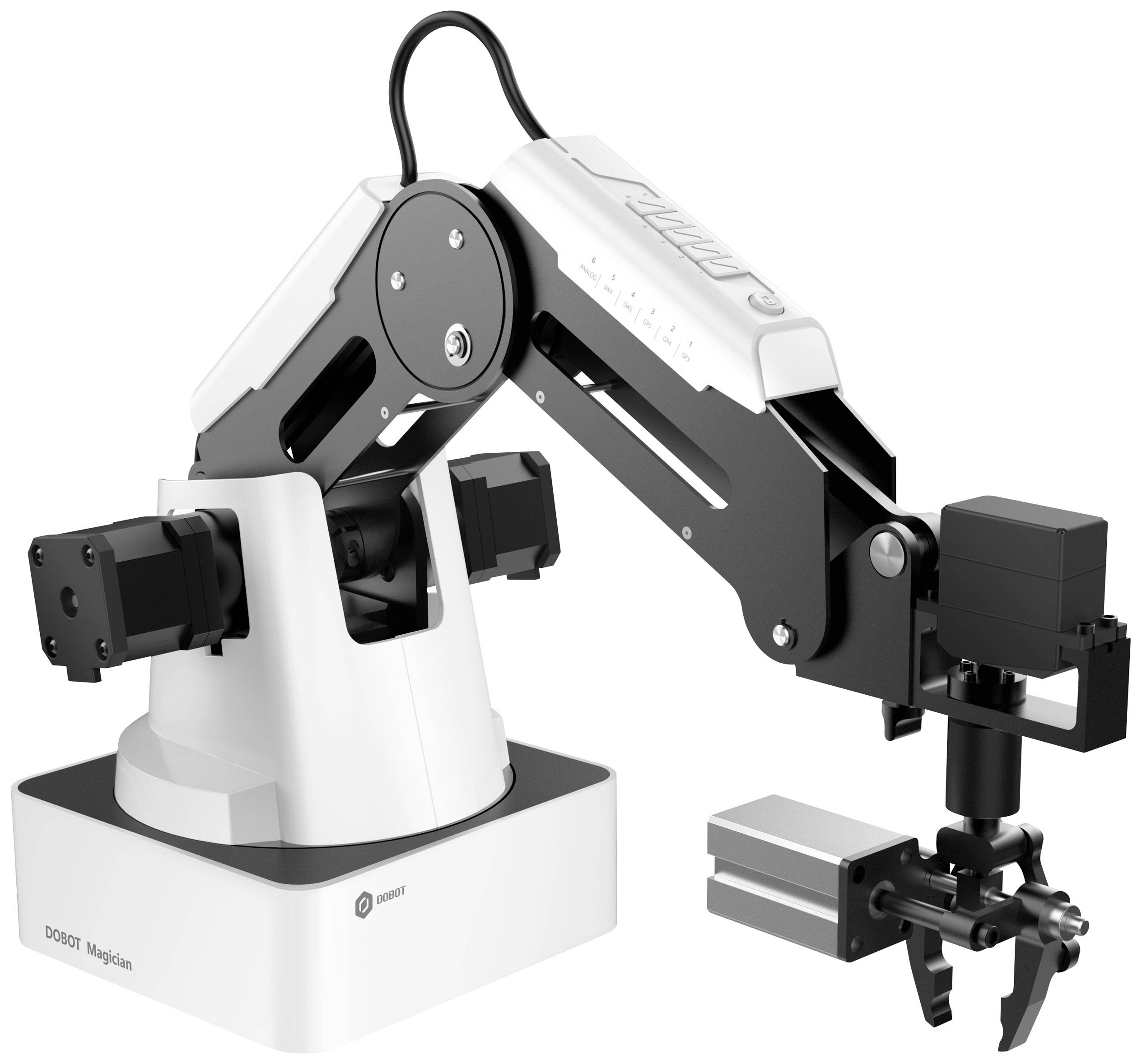

A small, agile industrial robotic arm with a gripper, mounted on a stable base, suitable for precision tasks.

A mechanical robotic arm in white and black, positioned on a square base, demonstrates complex structure and precision.

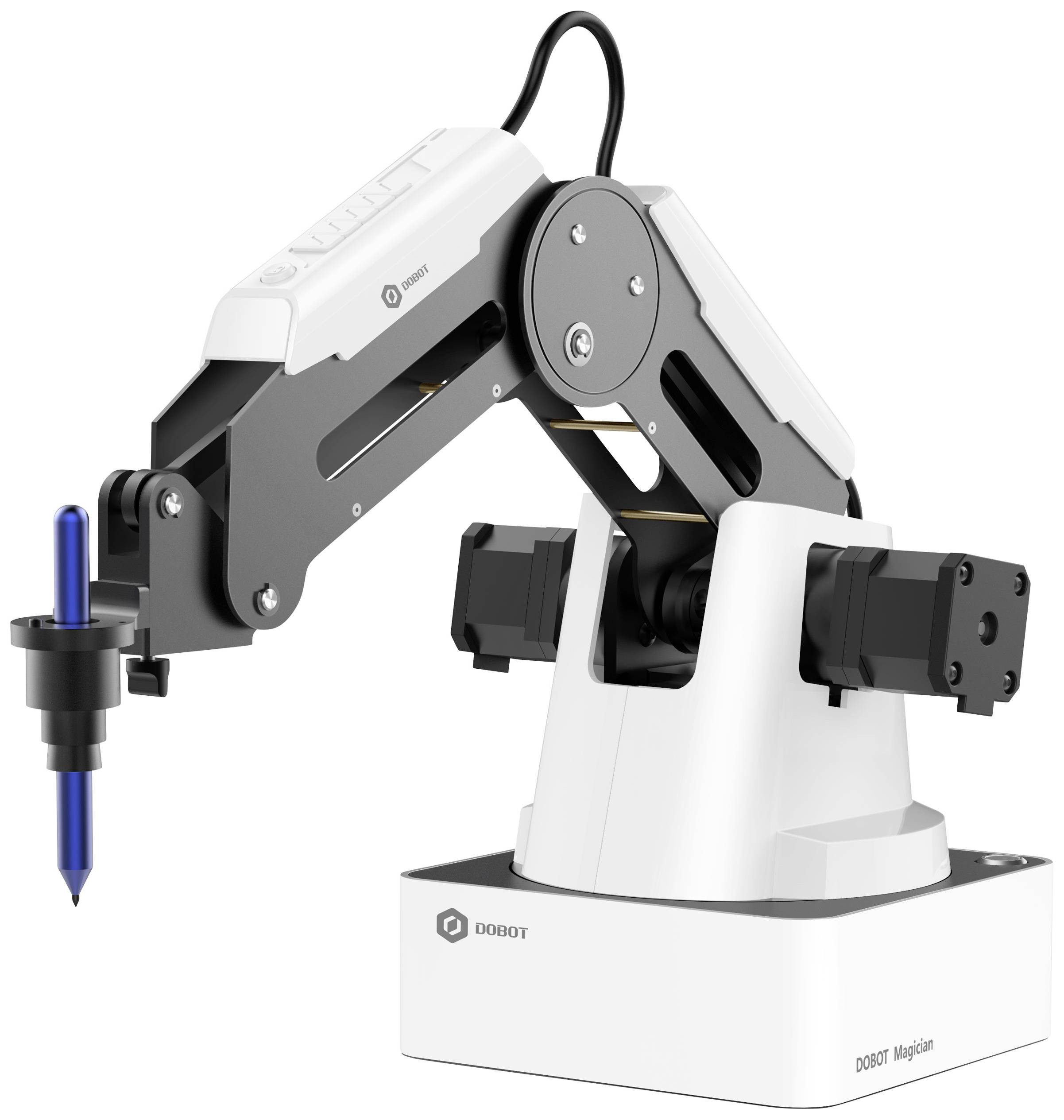

Robotic arm with a tool at its tip, mounted on a white base, suitable for precision work in industrial applications.

Three robotic arms in a row, each equipped with different tools. In the foreground, two additional removable tools are lying down.

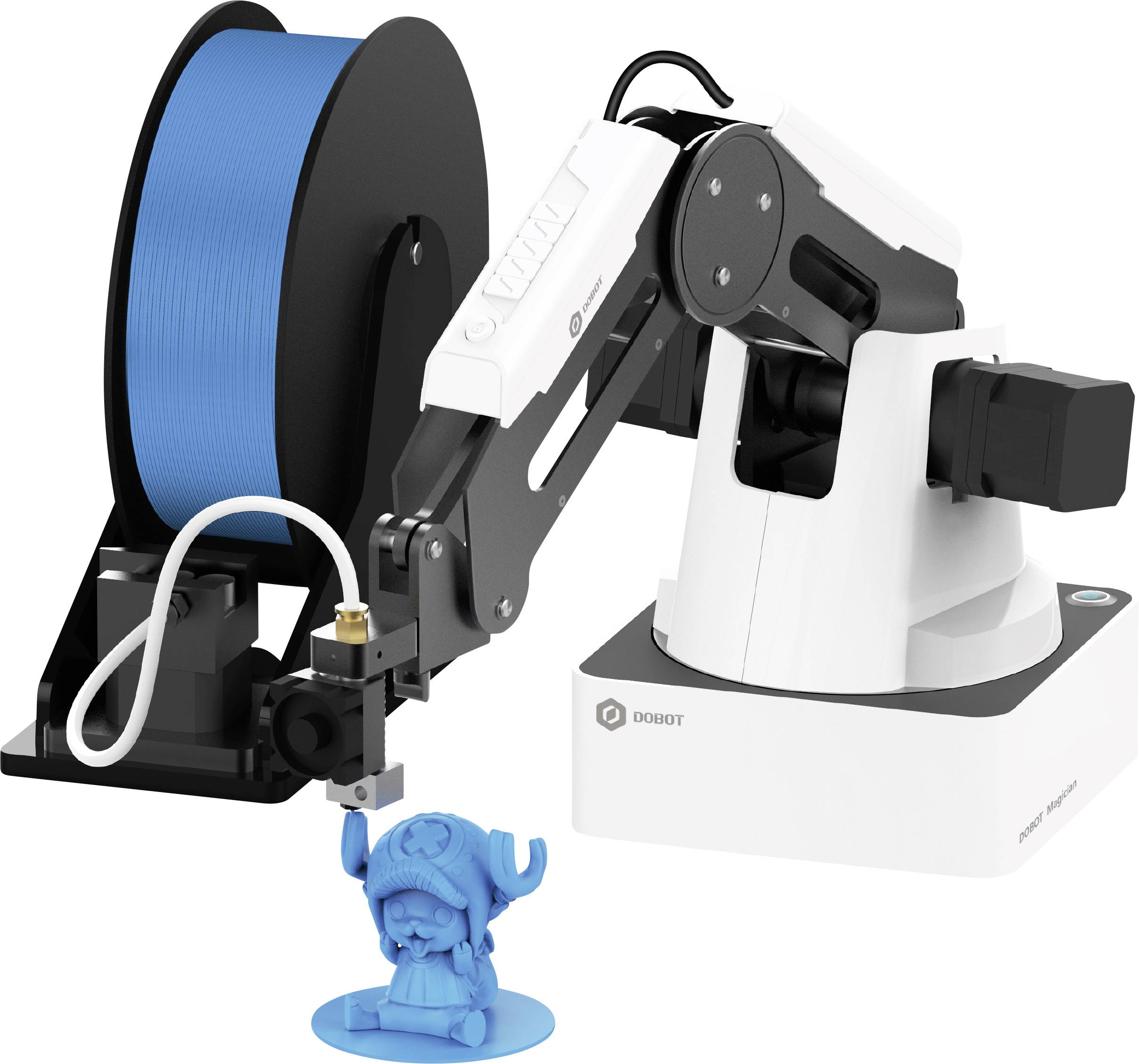

A 3D printer arm is manufacturing a blue plastic figure. To the left, a reel of blue filament is positioned.

A person is programming a small robotic arm using a laptop. The screen displays a graphical programming interface.

A man and a child are sitting side by side. The man appears to be explaining something to the child, who is holding a controller. A robotic arm is visible in the foreground.

A child is using a robotic arm to paint on a tablet. The robotic arm is positioned on a table in front of a beige sofa.

A teacher is helping a group of children working with a small robotic arm. The children are focused and engaged.

1/10

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

32 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,508.40 / piece)

€ 1,508.40

plus VAT.

Report legal concerns

Highlights & Details

Dobot Robot arm Magical Plus

Calligraphy and drawing
Can be operated by a person
High expansion capability with secondary development
Script control
Graphic programming
Secondary development

Technical specifications

Number of axes: 4
Maximum payload: 500g
Maximum range 320 mm
Movement range:
Joint 1: -120°~120°
Joint 2: -5°~90°
Joint 3: -15°~90°
Joint 4: -140°~140°
Repeated positioning accuracy: ±0.2 mm

Width: 334 mm

Length: 421 mm

Weight: 3.4 kg

Height: 352 mm

Packaging type: Box

Version: Assembled

Current consumption: 78 W

Power supply (details): 100-240 V/50 - 60 Hz

Product type: Robotic arm assembly kit

Documents & Downloads

Datasheet

Datasheet 2901458 Dobot Magician Plus DT-MG-4R005-02E+ Robotic arm assembly kit

User & Safety Instructions

User & Safety Instructions 2901458 Dobot Magician Plus DT-MG-4R005-02E+ Robotic arm assembly kit

Description

The Magician is the world's first desktop 4-axis robot. It can perform a variety of tasks such as 3D printing, calligraphy, and drawing. 13 interface connections are available to support secondary development, laboratory projects and robotics curricula.
Studies such as robot systems, the DH Convention, robot movement control and robot programming can be taught to students of different levels. Programming software and hardware accessories can be used to develop a variety of application scenarios.

Can be operated by one person
The Magician is aimed at students and consumers. It is extremely portable and suitable for various automation tasks. Users can interact with the Magician via Quick Access Command Keys or wirelessly with portable computer devices.

Physically teach the robot
The magician is able to drag-to-teach. To program it, it is sufficient to move the robot arm over the desired paths. It's so simple.

High expandability with secondary development
The Magician has 13 interface ports and wireless connectivity for secondary development. For beginners, controller support is available.

This text is machine translated.

Scope of delivery

Magician
Drawing set (pen holder, pen)
Pneumatic kit (pneumatic gripper, suction cup & joint 4, air pump control)
Joystick Control Kit (USB port host, joystick)
Mains adapter
USB cable
User manual.
