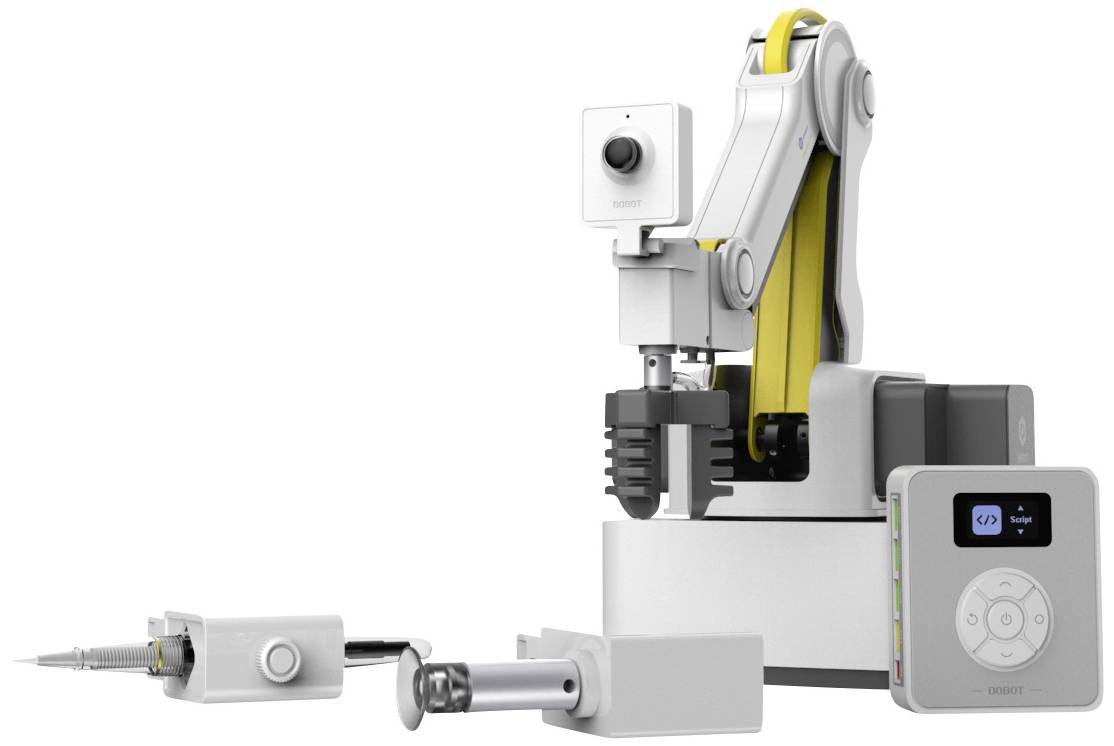

A small industrial robotic arm with gripper, camera, and control unit, suitable for precise assembly or laboratory tasks.

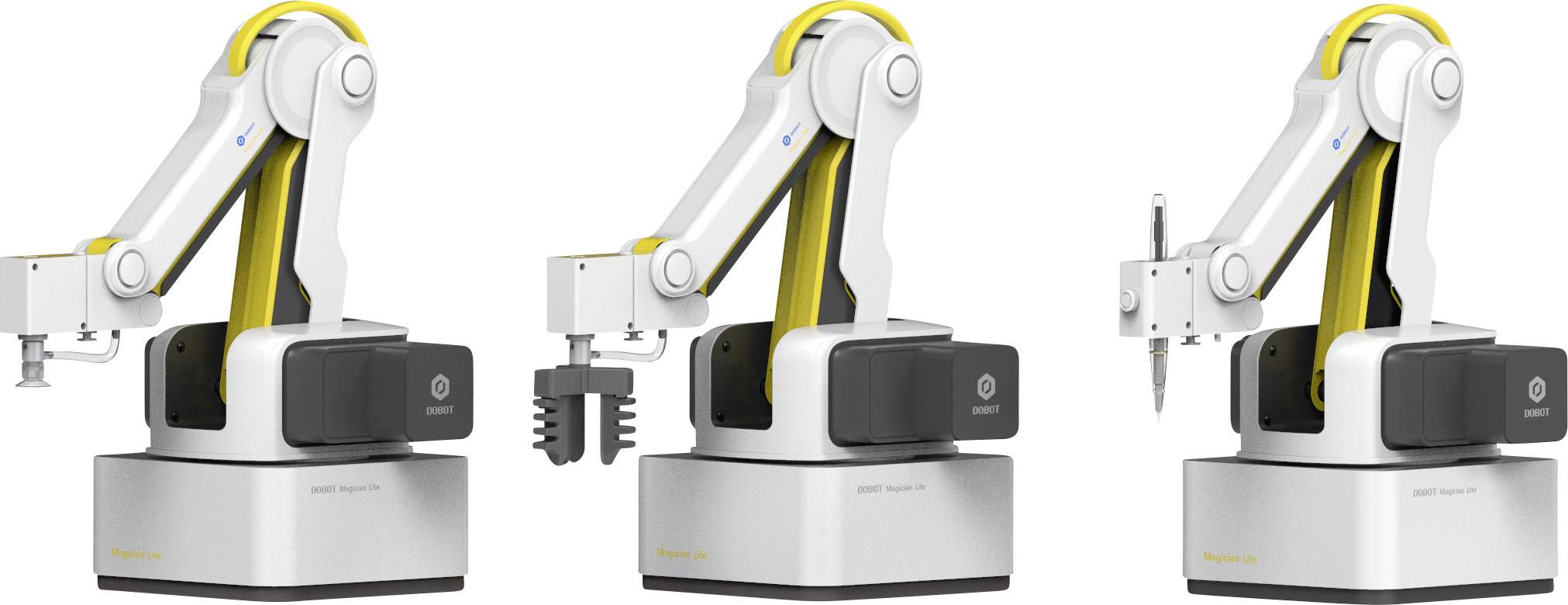

Three robotic arms side by side, each with a different tool: gripper, suction cup, and screwdriver.

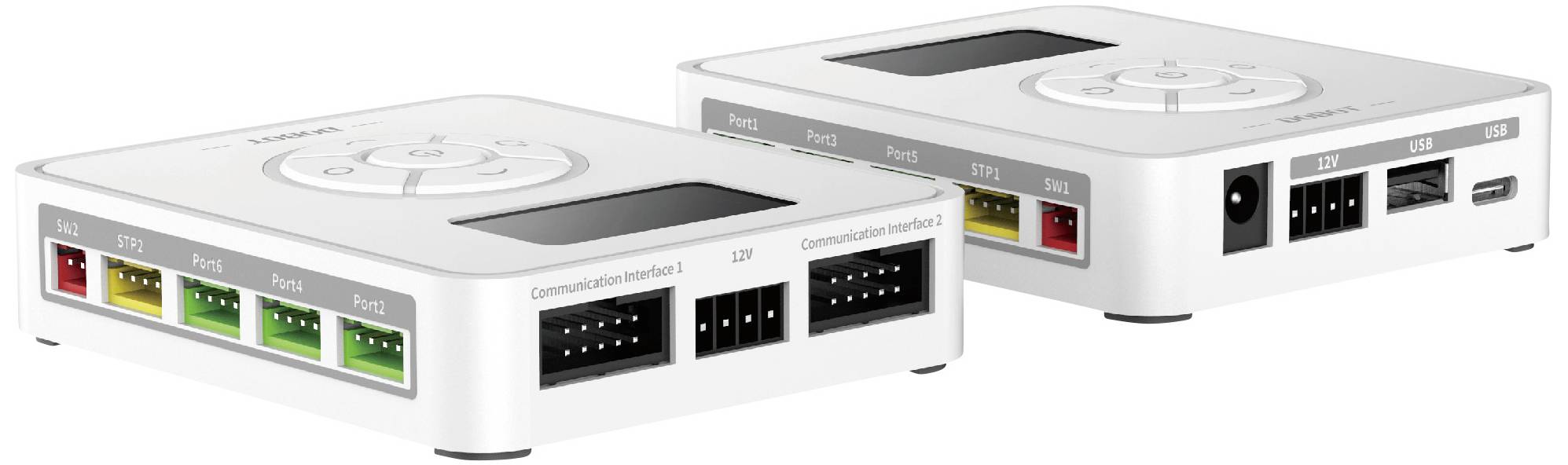

Two white electronic devices with multiple colour-coded ports and buttons on the top surface.

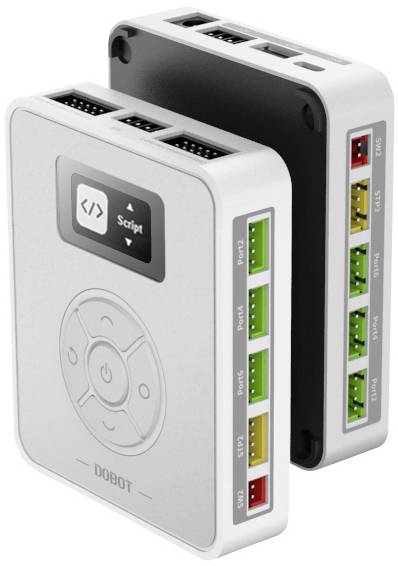

A white electronic device with multiple ports, a screen displaying a 'Script' indicator, and control buttons on the front.

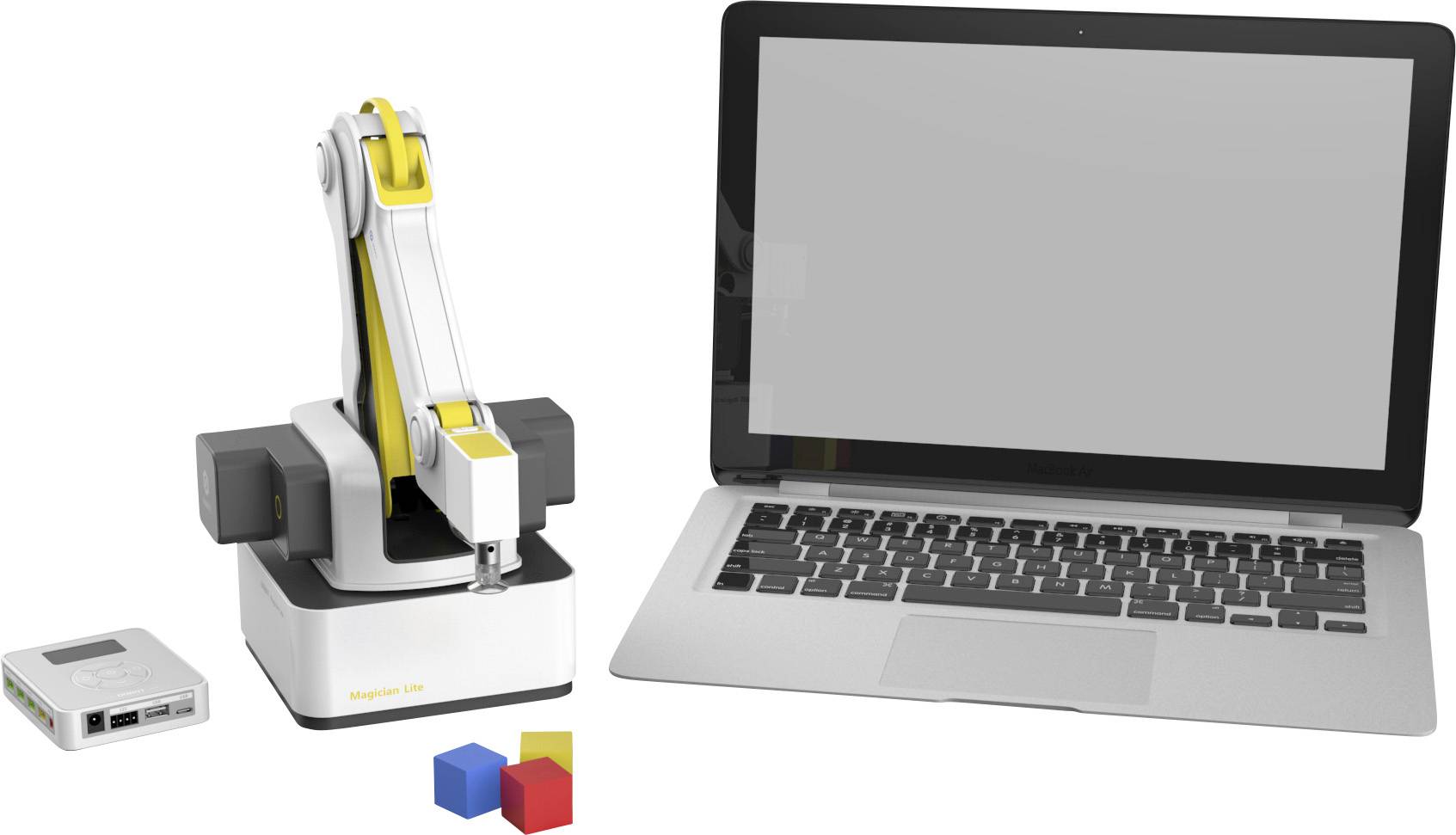

A laptop sits next to a small robotic arm. Beside it are a controller and three colourful cubes. The robotic arm is ready for operation.

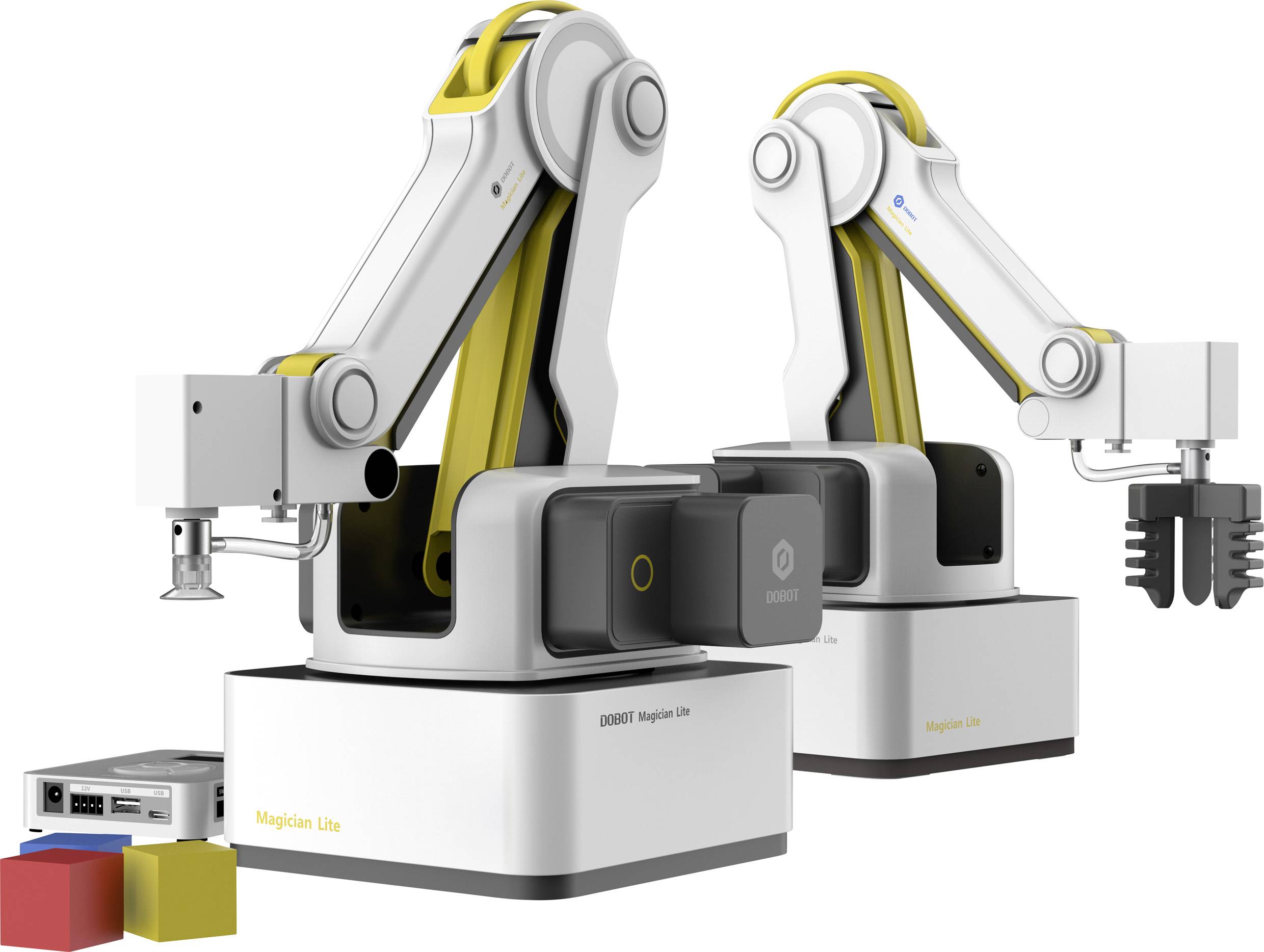

Two mechanical arms of the DOBOT Magician series perform tasks with cubes and grippers. Devices are mounted on white bases.

Children are working together at a table with a laptop and electronic components in a classroom.

1/8

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

40 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 931.93 / piece)

€ 931.93

plus VAT.

Report legal concerns

Highlights & Details

Dobot Robot arm Magical Lite

Calligraphy and drawing
Speech recognition
Graphic programming
Face detection
Offline control

Technical specifications

Number of axes: 4
Maximum payload: 250g
Maximum range 340 mm
Movement range:
Joint 1: -135°~135°
Joint 2: -5°~80°
Joint 3: -10°~85°
Joint 4: -145°~145°
Repeated positioning accuracy: ±0.2 mm

Width: 360 mm

Length: 390 mm

Weight: 2.4 kg

Height: 300 mm

Packaging type: Box

Version: Assembled

Current consumption: 60 W

Power supply (details): 100-240 V/50 - 60 Hz

Product type: Robotic arm assembly kit

Documents & Downloads

Datasheet

Datasheet 2899510 Dobot Magician Lite DT-MGL-4R002-01E Robotic arm assembly kit

User & Safety Instructions

User & Safety Instructions 2899510 Dobot Magician Lite DT-MGL-4R002-01E Robotic arm assembly kit

Description

The Magician Lite is a multi-functional, light, intelligent robot arm that was developed for class use. Students can interact with the Magician Lite via software, hardware, and expansion interfaces to maximize their creative freedom. Through the construction and play process, they can learn how AI and robots work. They will also be introduced into the world of robotics and learn how robots can be used in the real world.

User friendly
The Magician Lite has a repeatability of 0.2 mm, a maximum payload of 0.25 kg and a maximum range of 340 mm and supports a variety of end effectors such as a soft gripper, a suction cup and a pen gripper. Equipped with collision detection, it ensures the safety of young learners and operators.

Very expandable with Magic Box
The Magic Box is an external control unit for the MagicLite, which takes over the programming. It has 12 communication interfaces, supports Bluetooth and is compatible with a range of accessories.

Graphic programming
The DobotLab software platform offers a variety of methods for programming robots. The intuitive graphical user interface enables block programming, in order to activate AI-functions easily on the Magician Lite.

Curriculum for robotics
Full robotics courses are available to students at various levels, which they can learn chapters by chapter. Teach young learners programming and robot skills to help them succeed in the future.

This text is machine translated.

Scope of delivery

Magic Lite
User manual.
