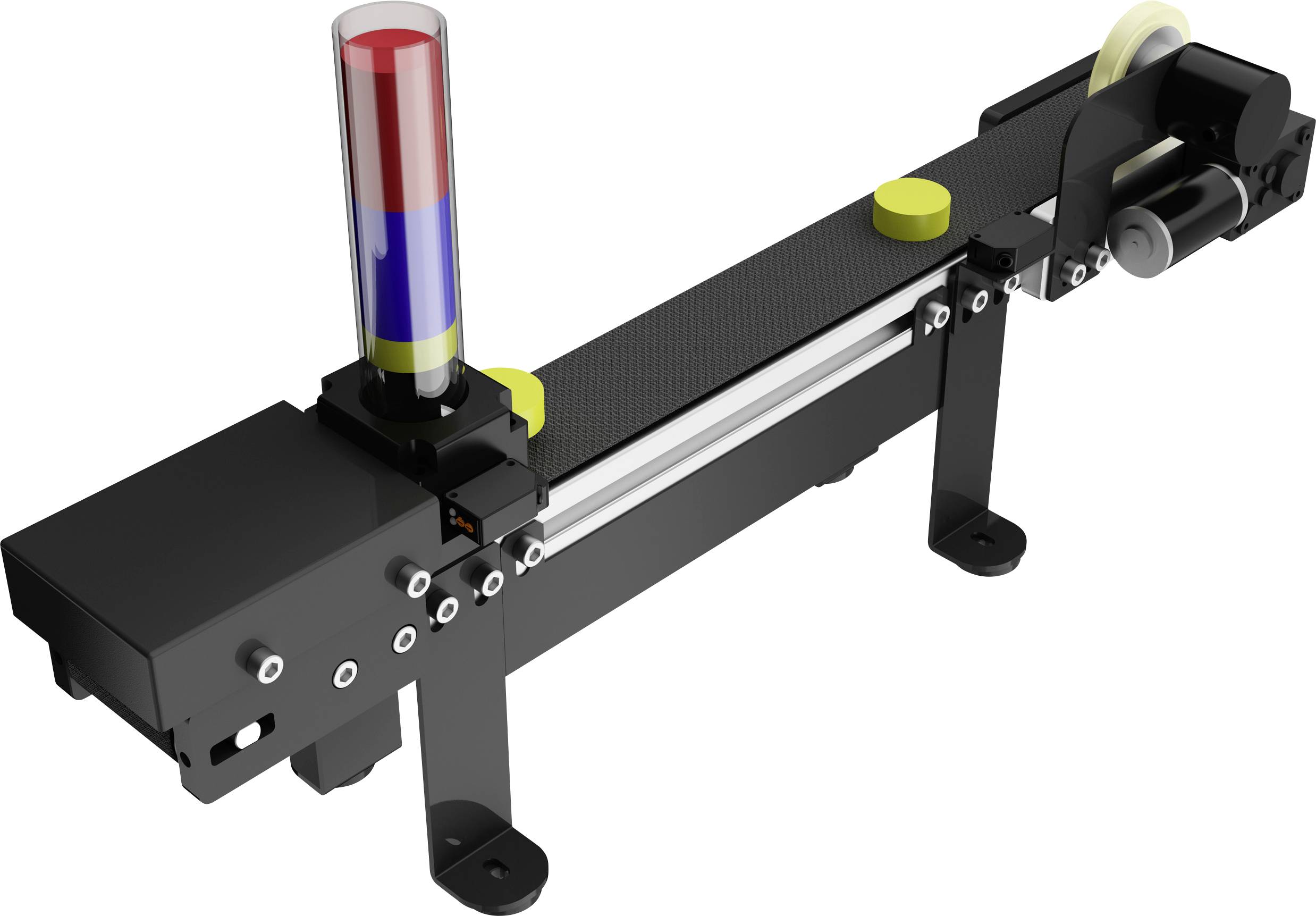

Dobot Conveyor Belt for E6, MG400, CR3 DT-BE-R-16 Expansion module
EAN:
Part number:
Item no:
Number
Total (€ 987.39 / piece)
€ 987.39
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Conveyor belt application for E6, MG400 and CR3 robot arm
- Lightweight and highly integrated
- Different combinations for better simulations
- Compact and multifunctional
Technical specifications
- Dimensions: 583 x 115 x 180 mm
- Voltage: 100 - 240 V AC / 24 V DC
- Weight: 5 Kg
- Total power: Max. 75 W
- Full load current: 3 A
- Payload: 3 Kg
- Effective carrying length: 400 mm
- Rated Speed: 2.25 m/min
- Control mode: I/O control
- Encoder: Incremental encoder,
- Resolution ratio: 1000 P/R, Diameter: Φ40 mm
- Product type
Expansion module
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3415265 Dobot Conveyor Belt for E6, MG400, CR3 DT-BE-R-16 Expansion module
Description
Flowing band application for E6, MG400 and CR3 robot arm
This text is machine translated.
This text is machine translated.
Scope of delivery
- Feeding module
- Conveyor belt
- Encoder
- Power adapter
- Encoder communication cable
- conveyor belt communication cable
- Encoder solderless female head
- 3x Red rectangular workpiece
- 3x Green rectangular workpiece
- 3x Blue rectangular workpiece
- 4x Circular rubber anti-slip mat
- 4x Circular rubber vibration suppression foot pad
- 3x Green circular workpiece
- 3x Blue circular workpiece
- 3x Red circular workpiece
- Loading barrel
- 4x Conveyor belt stand
- 4x M5x20 screws
- 4x M6x15 screws
- 10x M6x10 screws
- 4x M5 hexagon nut
- 14x M6 shrapnel nut (EU30)
