e-ast Inverter CL700-D-24 700 W 24 V DC - 230 V AC, 5 V DC
EAN:
Part number:
Item no:
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Only 3 Piece(s) available
Highlights & Details

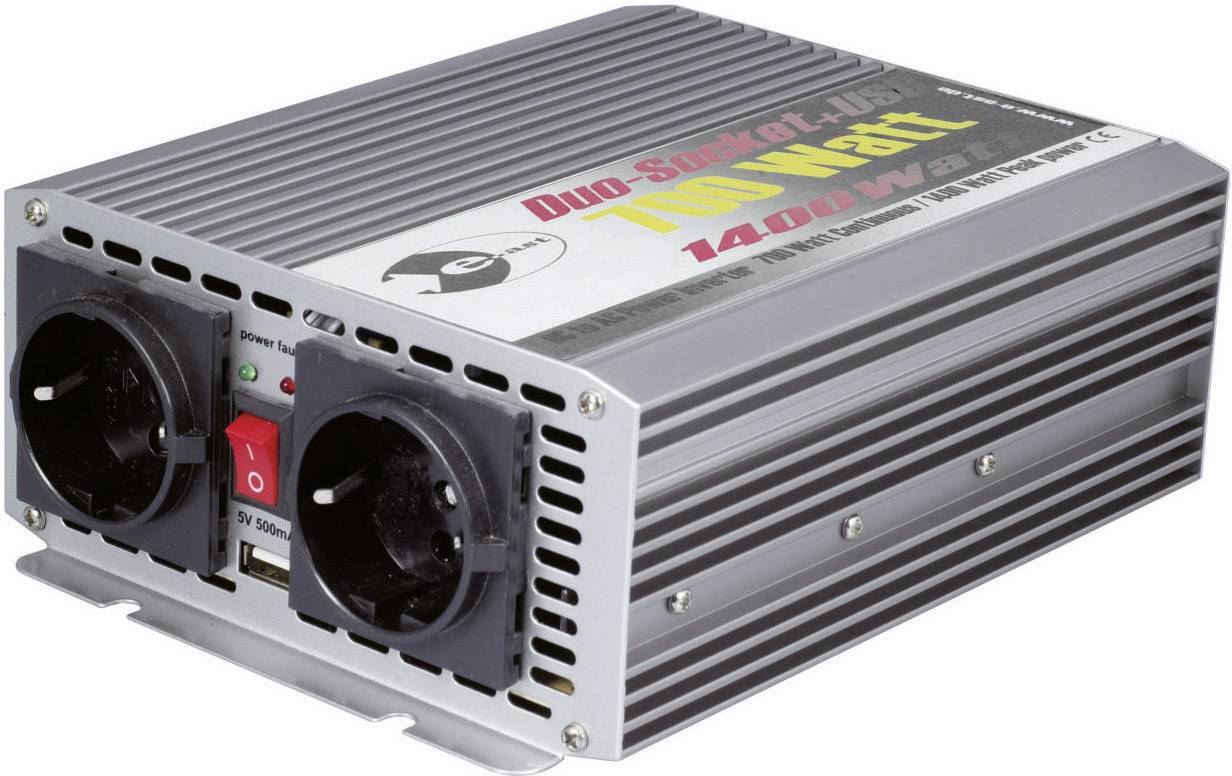

e-ast Inverter CL700-D-24 700 W 24 V DC - 230 V AC, 5 V DC
- Produces near sine wave AC power to run regular mains appliances
- 700W continuous output, 1400W peak output
- Protection against deep discharge, overvoltage, overload, short circuit and overheating
Technical specifications
- Input voltage
24Vdc (22-28V)
- Product type
Inverter
- Signal output type
Modified sine wave
- Output voltage
230 V AC
5 V DC
700 W
- Input voltage
24 V DC
- Inputs
Screw terminals
- Output
PG socket
USB
- Nominal load efficiency
85 %
- Outlets
2
- Output frequency
50 Hz
- Permanent current
34.3 A
- Input current (max.)
37.5 A
- Remote control
No
- Weight
1.81 kg
- Cooling method
Fan
- Width
225 mm
- Height
150 mm
- Length
70 mm
- Peak output power
1400 W
- Standby consumption
0.5 - 0.6 A
- Type
CL700-D-24
- Type
Modified Sine Wave
700 W
- Power consumption
823 W
- Output voltage
230 V AC
- Cooling
Fans
- Output rating
700 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 514917 e-ast Inverter CL700-D-24 700 W 24 V DC - 230 V AC, 5 V DC
Information
Information 514917 e-ast Inverter CL700-D-24 700 W 24 V DC - 230 V AC, 5 V DC
Description
The CL700-D-24 inverter from e-ast's Classic Line series of modified sine wave inverters produces a modified sine wave AC voltage that is suitable for powering regular 230V-240V mains appliances up to 700W from a 24Vdc (22-28V) input, such as a solar battery or a vehicle's cigarette lighter output. Connection cables with cigarette lighter end and alligator clips for batteries are provided with the inverter. The CL700-D-24 can achieve a 1400W peak output for 0.3-0.5 secs.
To avoid damaging batteries through deep discharge, the CL700-D-24 inverter has a protective function that cuts its output when the input voltage drops below its lower voltage range.
To avoid damaging batteries through deep discharge, the CL700-D-24 inverter has a protective function that cuts its output when the input voltage drops below its lower voltage range.
Features
- Red and green status LEDs
- Deep discharge protection
- Overvoltage cutout protection
- Overload and short-circuit protection with automatic restart
- Overheating protection.
Scope of delivery
- Modified sine wave inverter
- Cigarette lighter socket cable
- Alligator clip battery cable
- User manual.
Hints
Please note: This product is supplied as pictured with an EU socket. A free UK adapter is available on request by calling our customer service line quoting your order number on: 0844 826 2928
