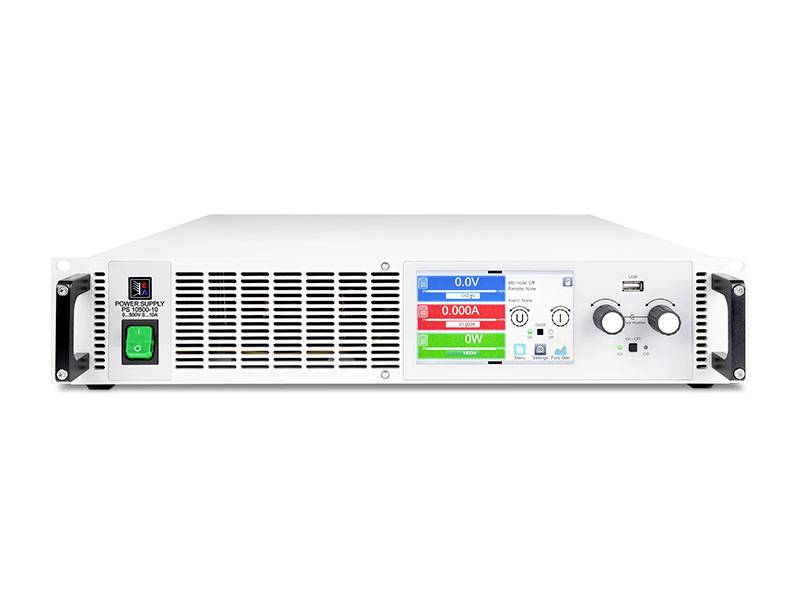

EA Elektro Automatik EA-PS 11500-06 2U Bench PSU (adjustable voltage) 0 - 1500 0 - 6 A 3000 W USB , Ethernet, Analogue,
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 5,726.89 / piece)
€ 5,726.89
plus VAT.
Highlights & Details
Programmable DC power supply 0...1500V 0...6A 3000W
- No. of outputs 1 x
- 0 - 1500 / 0 - 6 A
- 3000 W
- USB , Ethernet, Analogue, USB host
- programmable
Technical specifications
- Safety class 1Protection class: IP20
- Type
EA-PS 11500-06 2U
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
3000 W
- Interfaces
USB
Ethernet
Analogue
USB host
- Features
programmable
Manufacturer's standards (no certificate)
- Weight
12.7 kg
- Output
USB
- Output voltage (max.)
1500 V DC
- Output voltage (min.)
0 V DC
- Max. output current
6 A
- Output current (min.)
0 A
- Max. temperature
+50 °C
- Min. temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 2757355 EA Elektro Automatik EA-PS 11500-06 2U Bench PSU (adjustable voltage) 0 - 1500 0 - 6 A 3000 W USB , Ethernet, Analogue,
User & Safety Instructions
User & Safety Instructions 2757355 EA Elektro Automatik EA-PS 11500-06 2U Bench PSU (adjustable voltage) 0 - 1500 0 - 6 A 3000 W USB , Ethernet, Analogue,
Description
The DC laboratory power supplies of the PS 10000 series from EA Elektro-Automatik convert the energy from the mains with an efficiency of over 96% into a regulated DC voltage. The PS 10000 series includes single-phase and three-phase devices that can operate almost all mains voltages worldwide thanks to their wide input range. The DC-voltages and currents are based on applications, the spectrum ranges from 0 - 60 V to 0 - 2000 V as well as 0 - 6 A to 0 - 1000 A in one device.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Power supply2x plug for remote sensorUSB cable (1.8m)1x Set DC-Terminal cover1x Sense terminal cover1x USB stick with documentation and software1x cable binder for strain relief
