Name: Eaton 100NHG01B NH fuse with blown fuse indicator Fuse size = 1 100 A 500 V 3 pc(s)
Brand: Eaton
SKU: 2622254
Price: 28.99 EUR
Availability: BackOrder

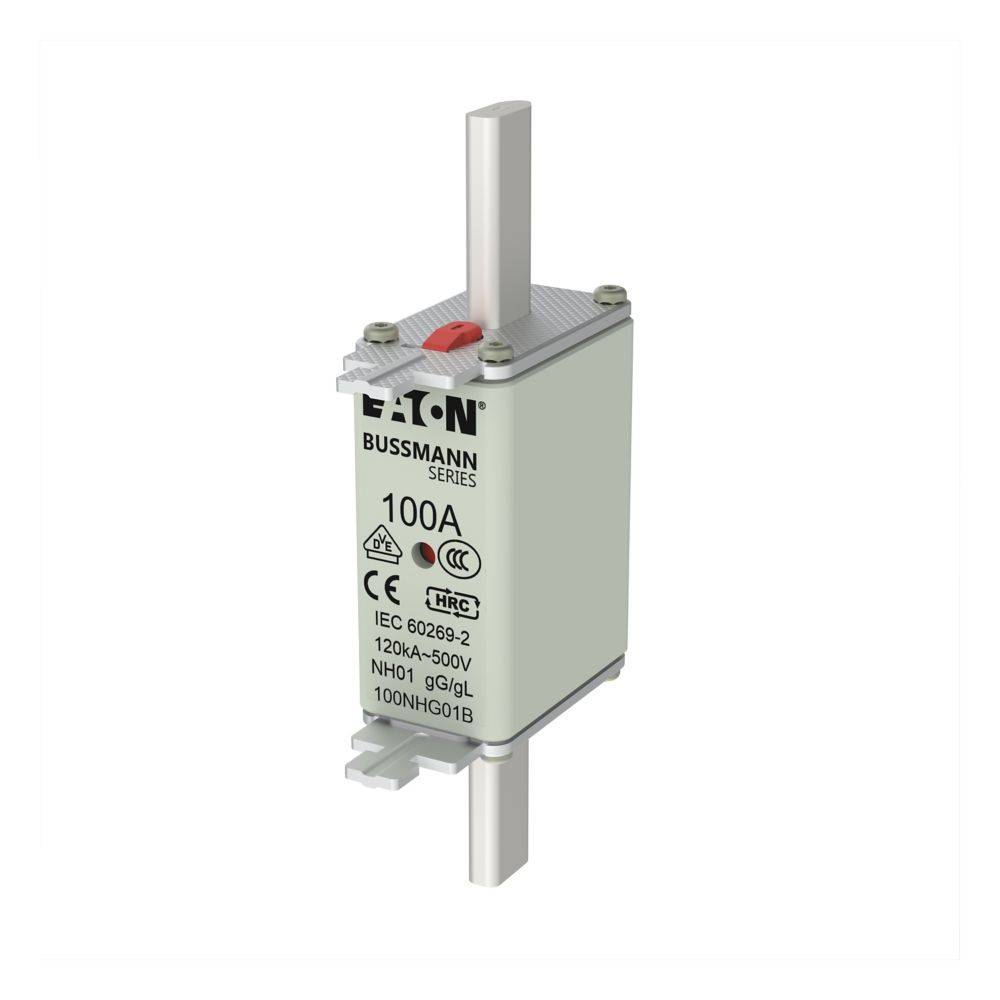

Fuse with the inscription '100A', showing technical specifications and CE marking. Used for electrical protection.

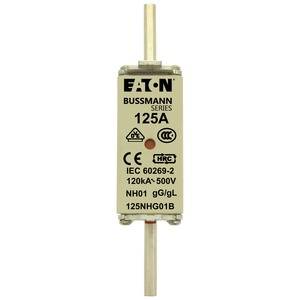

Eaton Bussmann Series 125A fuse. Marking shows 120kA-500V and IEC 60269-2, NH01 gG/gL, Model Number 125NHG01B.

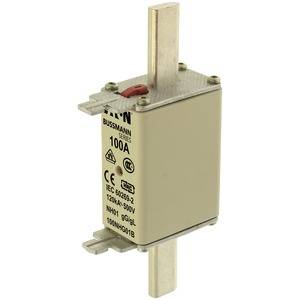

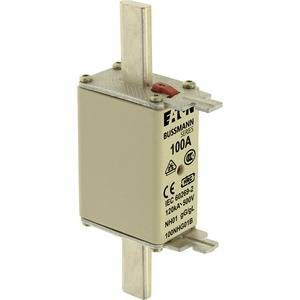

Electrical fuse with 'Bussmann 100A' marking, metal contacts at top and bottom, beige casing. Used for circuit interruption.

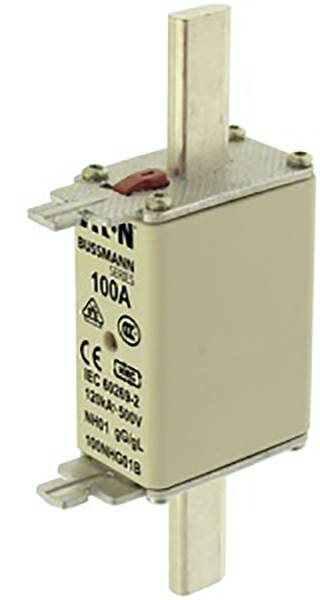

Bussmann fuse deployment with a nominal current rating of 100A, suitable for voltages up to 690V. Includes various certifications.

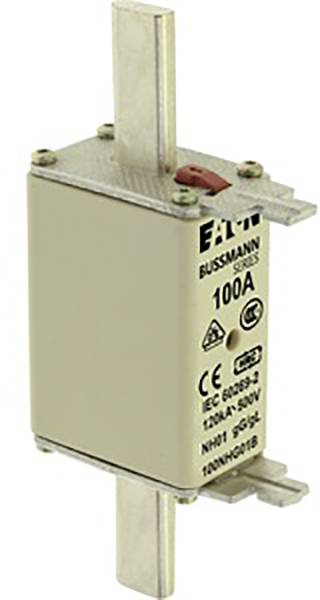

Eaton 100A safety fuse, vertically positioned. Predominantly silver with metallic terminals at the top and bottom.

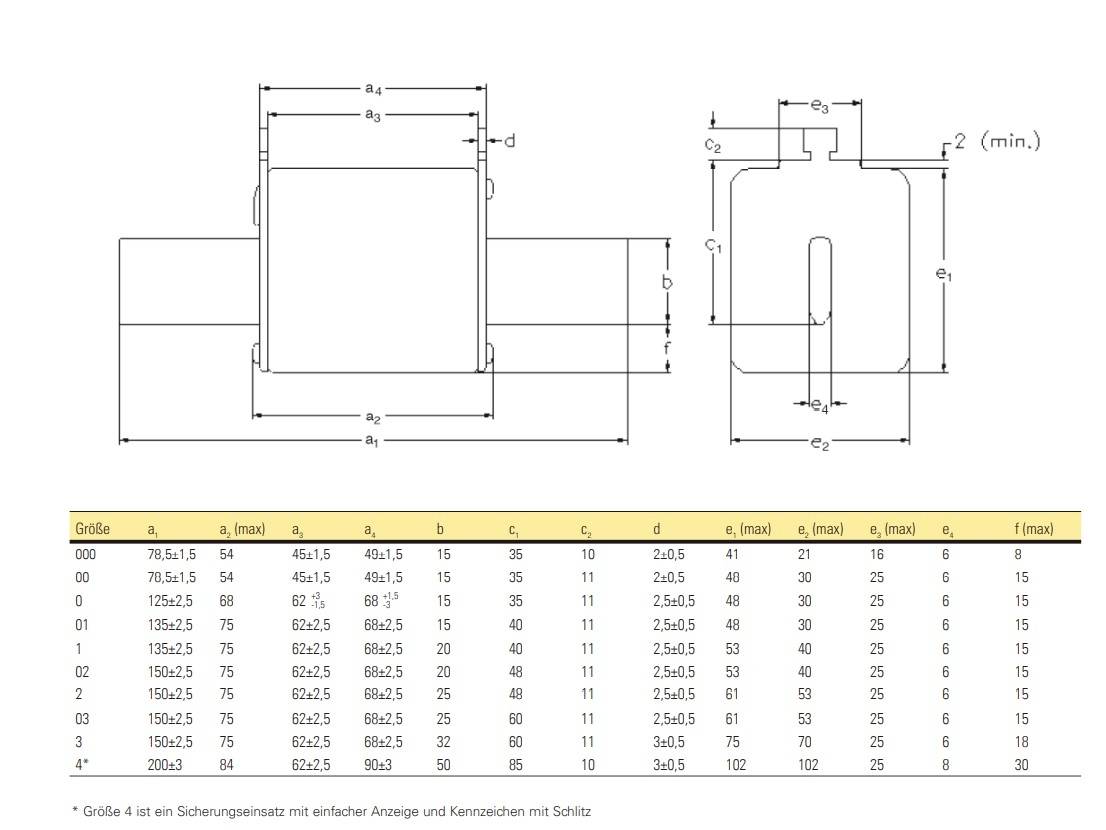

'Technical drawing of a fuse with dimensional table. Dimensions: a, b, c, e, f and g in millimetres. Table shows various sizes.'

1/6

Image similar

Product type

NH fuse

Fuse size

Nominal current - rounded value

100 A

Type

Live grip bottles made of metal

Content

3 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 3 pc(s))

Set(s)

Total (€ 9.66 / piece)

€ 28.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fuse insert 100NHG01B

Dual displayHigh breaking capacityVarious insulated labels availableIEC 60269-1 and 2, DIN 43620, VDE 0636-2, CE-certification

Technical specifications

Type: Live grip bottles made of metal

Product type: NH fuse

Fuse size: 1

Content: 3 pc(s)

Nominal current: 100 A

Nominal current - rounded value: 100 A

Model: with blown fuse indicator

Switch-off capacity: 120 kA

Duty class: gG
gL

Nominal voltage: 500 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2622254 Eaton 100NHG01B NH fuse with blown fuse indicator Fuse size = 1 100 A 500 V 3 pc(s)

User & Safety Instructions

User & Safety Instructions 2622254 Eaton 100NHG01B NH fuse with blown fuse indicator Fuse size = 1 100 A 500 V 3 pc(s)

Information

Information 2622254 Eaton 100NHG01B NH fuse with blown fuse indicator Fuse size = 1 100 A 500 V 3 pc(s)

Description

Dual display systemBussman's patented dual display provides a clear display and provides an extremely reliable local and remote* display. This reduces the time and cost of replacing backup operations.* Using an optional microswitchLow power lossBussmann's "Low Watts Loss" (low loss of current) fuse inserts reduce the general operating costs as well as carbon emissions through lower energy consumption and less heat transfer to the devices.Worldwide legal complianceBussmann NH fuse links have been tested and are compliant with IEC 60269-1 and 2, DIN 43620, VDE, CE, CCC (China), RoHS and can be recycled to guarantee global acceptance.
