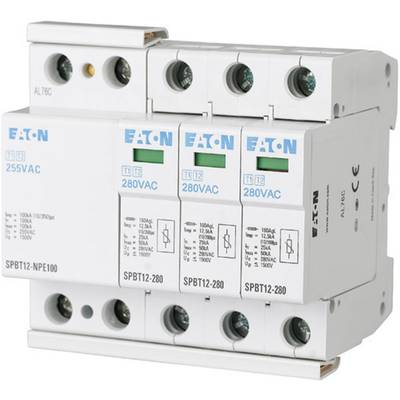

Eaton 158332 SPBT12-280-3+NPE Surge arrester Surge protection for: Switchboards 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 424.37 / piece)
€ 424.37
plus VAT.
Technical specifications
- Size: 5 TE
- Lightning surge current (10/350 µs): 12.5 kA
- energetically coordinated protective effect to the terminal: No
- Maximum continuous voltage AC: 280 V
- Max. Conductor cross-section flexible (fine wire): 35 mm²
- Max. Conductor cross-section rigid (single/multi-wired): 25 mm²
- Mounting type: DIN rail TH35
- Power form DC: No
- Power form IT: Yes
- Power form TN: Yes
- Power form TN-C: No
- Power form TN-C-S: No
- Power form TN-S: Yes
- Power form TT: Yes
- Signaling on device: Optical
- specific energy (W/R): 2500 kJ/Ohm
- Product type
Surge arrester
- Surge protection for
Switchboards
- Nominal voltage
280 V AC
- Type
4-pole
IP20
- Manufacturer part #
158332
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
12.5 kA
4
5 modular spacing
0 kV
FALSE
0 kA
280 V
280 V
0 V
Type 1 + 2
1.5 kV
Optic
0 V
IP20
0 V
100 kV
FALSE
25 mm²
35 mm²
0 kV
0 kV
2500 kJ/Ohm
FALSE
FALSE
TRUE
TRUE
FALSE
TRUE
TRUE
TRUE
FALSE
1.5 kV
0 A
0 A
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1716858 Eaton 158332 SPBT12-280-3+NPE Surge arrester Surge protection for: Switchboards 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1716858 Eaton 158332 SPBT12-280-3+NPE Surge arrester Surge protection for: Switchboards 1 pc(s)
Description
Lightning current surge arrester for protecting consumer systems.
