Name: Eaton 199882 XH-303-70-A10-A00-2B Browser web panel
Brand: Eaton
SKU: 2909371
Availability: SoldOut

Compact black control unit with touchscreen and green connection terminals, suitable for industrial applications.

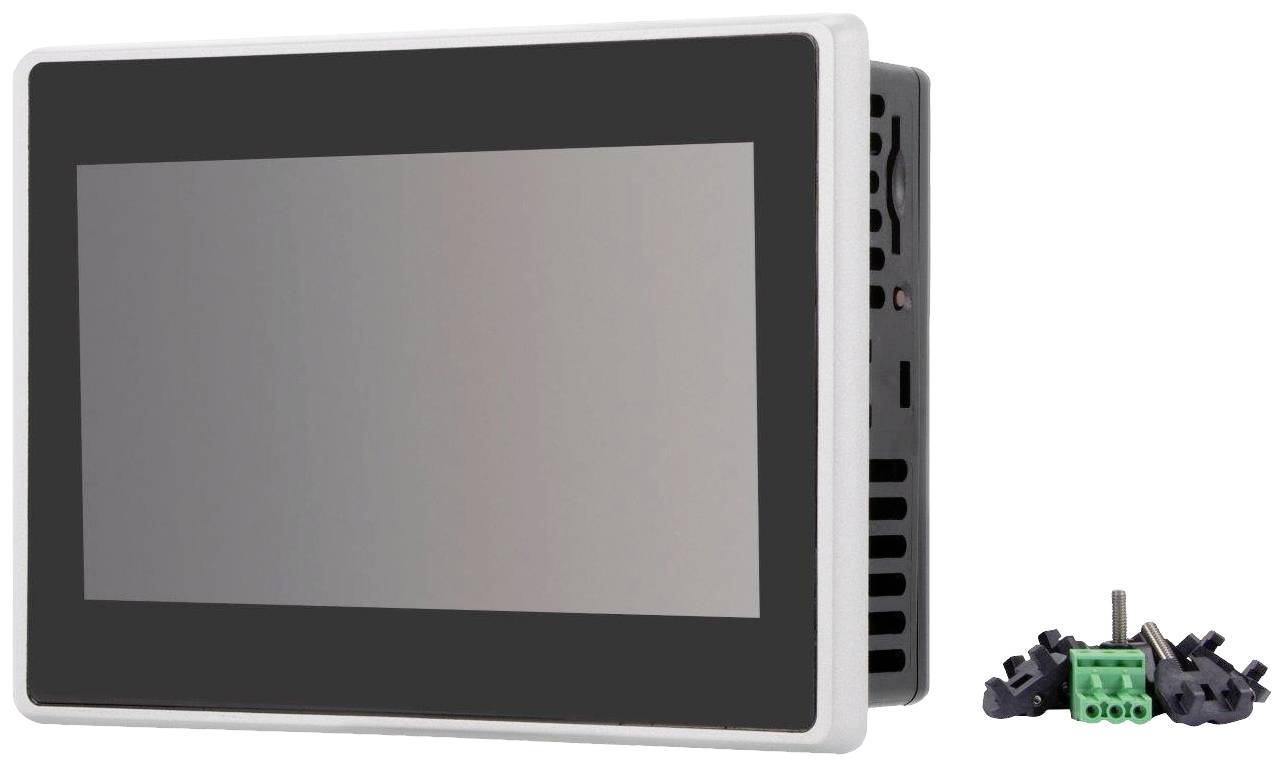

A grey touchscreen panel device beside several small connectors and screws, on a white background.

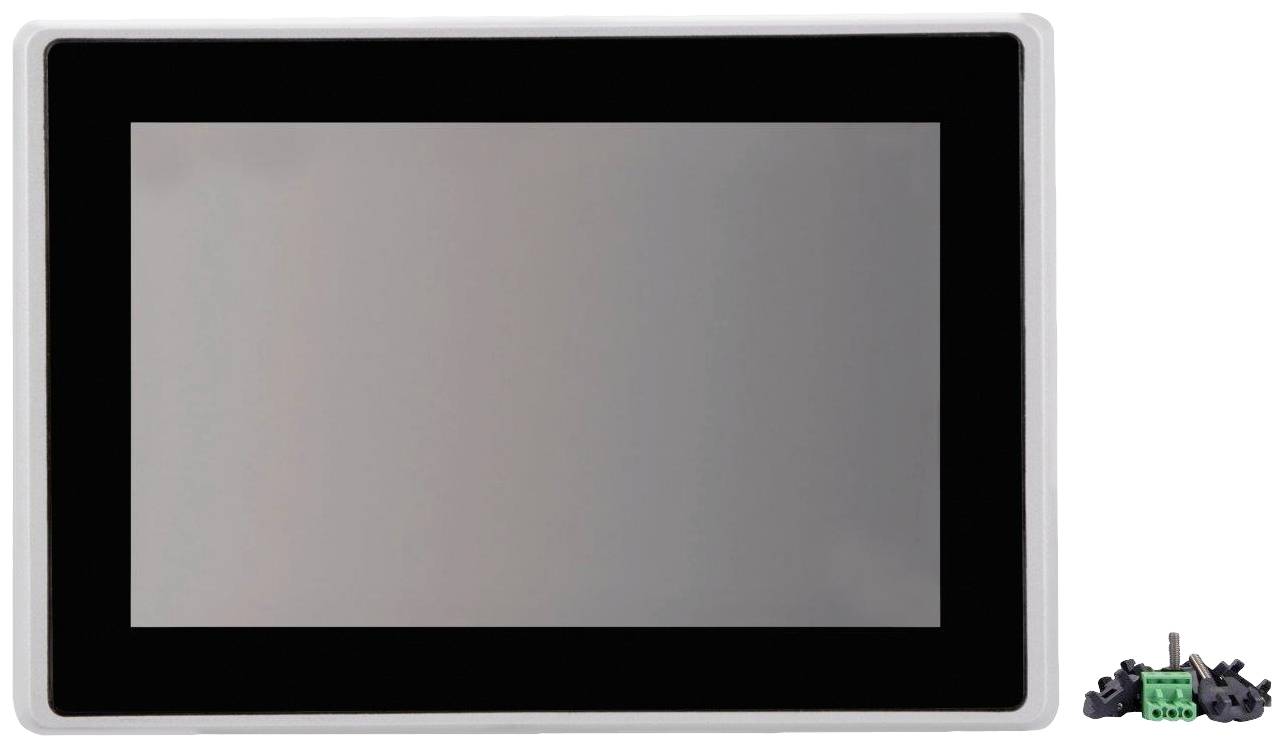

A black screen with a white frame and a small, green electronic component in the bottom right.

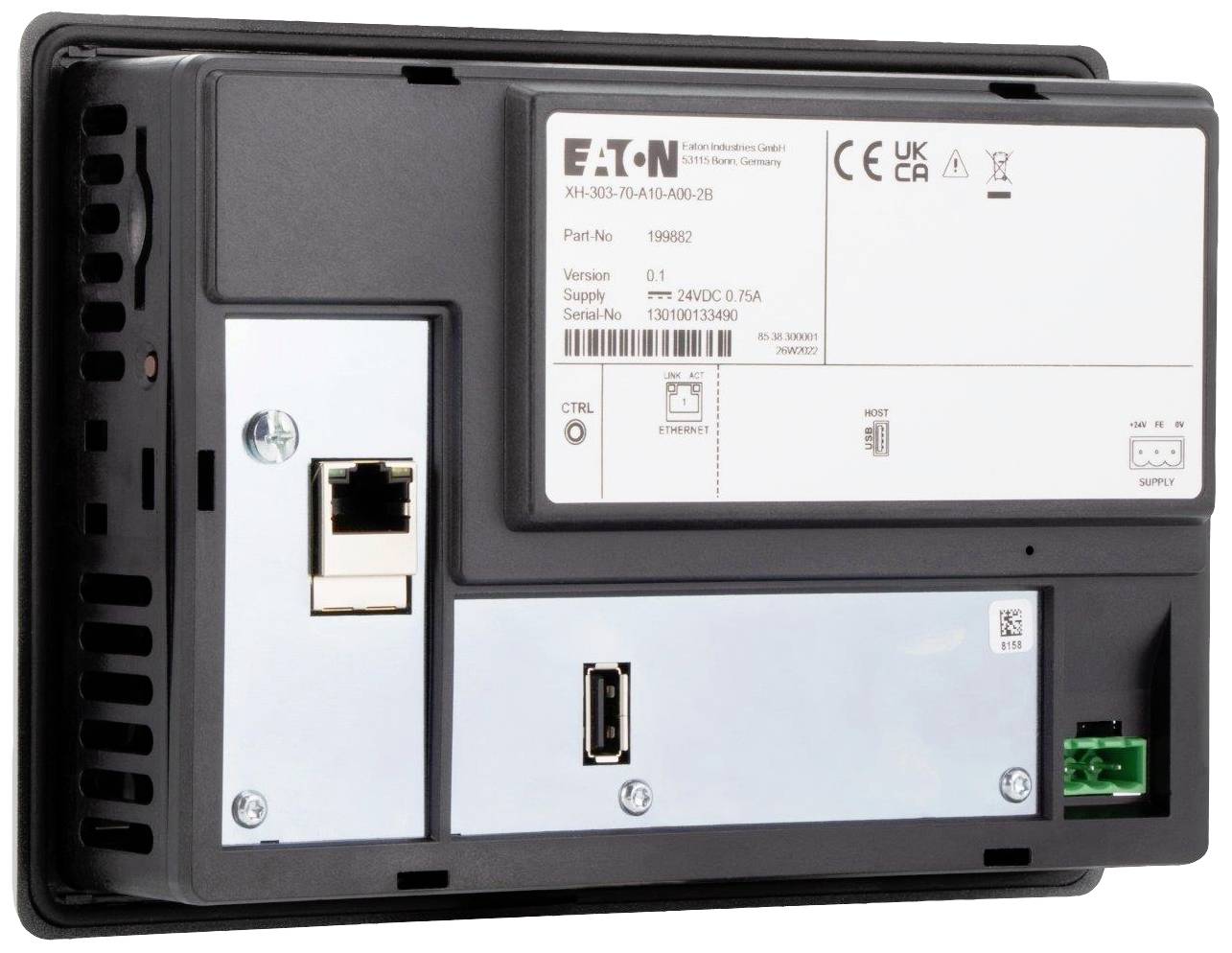

Back of a technical device with various ports, including an Ethernet port and USB, along with labels and serial number.

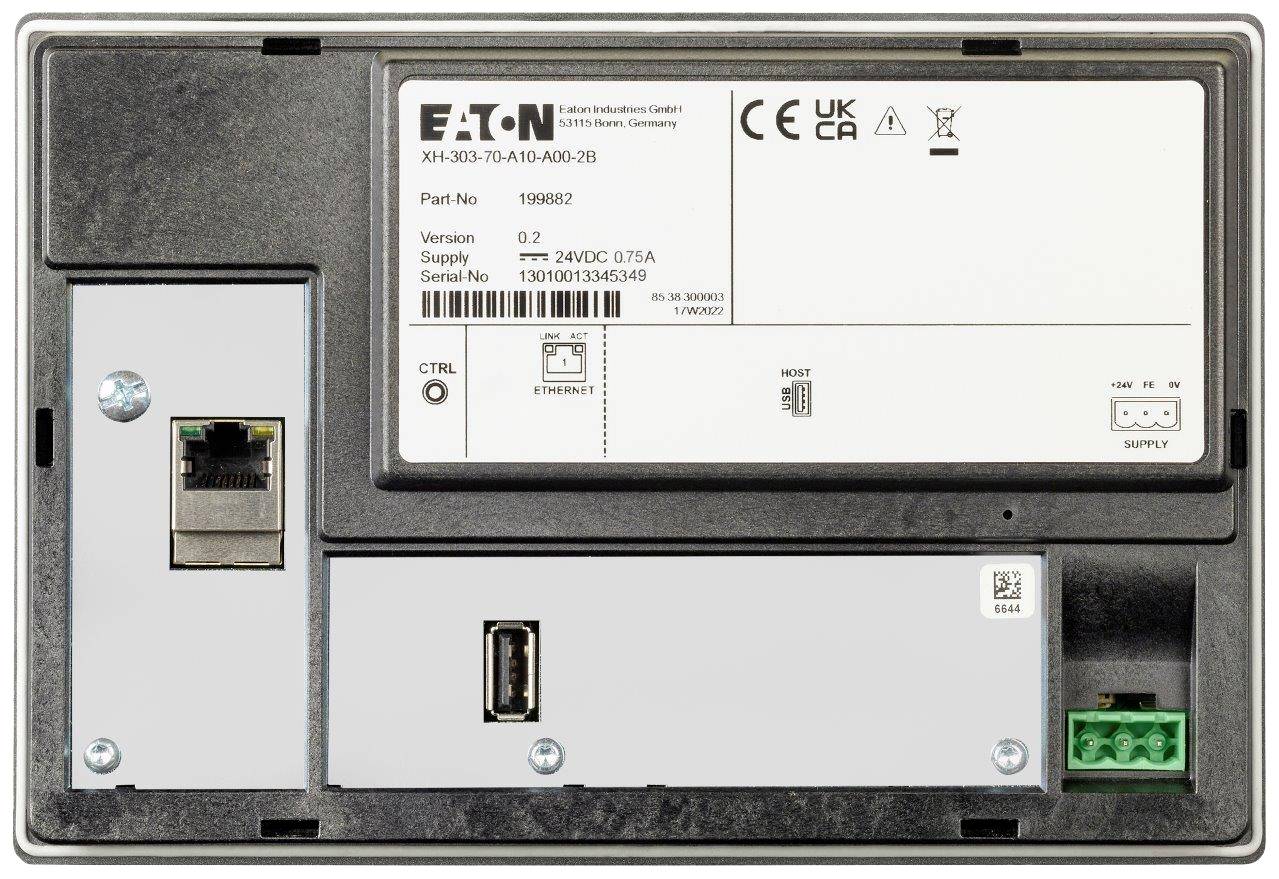

Back of an electronic device with Ethernet and power connections. Shows model and serial number along with manufacturer details.

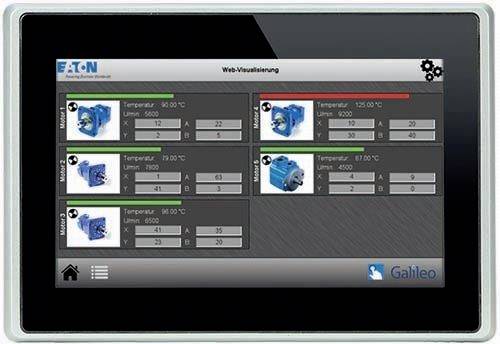

Touchscreen display of a control system, showing four motors with different temperatures and status details. Upper motor above limit.

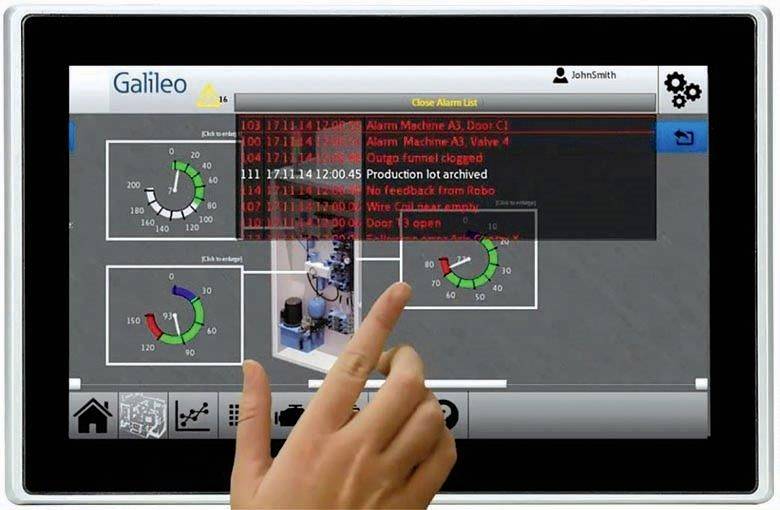

A finger points to a tablet displaying a machine monitoring programme. Diagrams and alerts are shown on the screen.

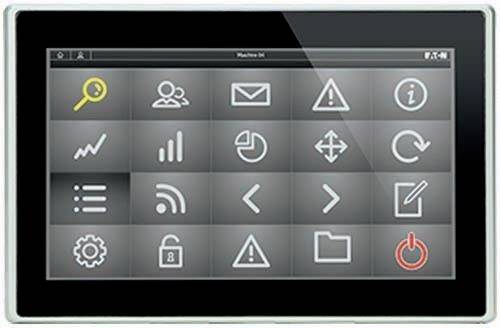

A touchscreen display shows 20 different icons, including a magnifying glass, email, warning sign, and power-off button.

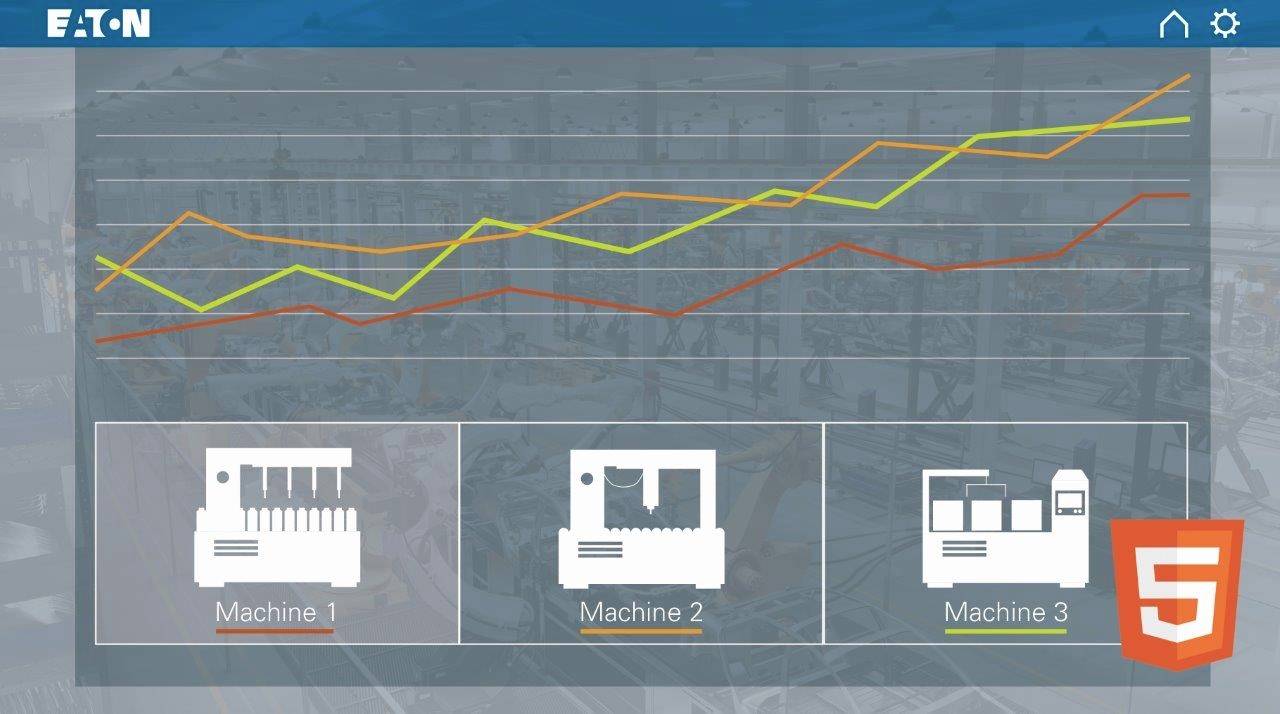

A diagram shows rising lines in various colours. Below are three machines depicted: 'Machine 1', 'Machine 2', 'Machine 3'.

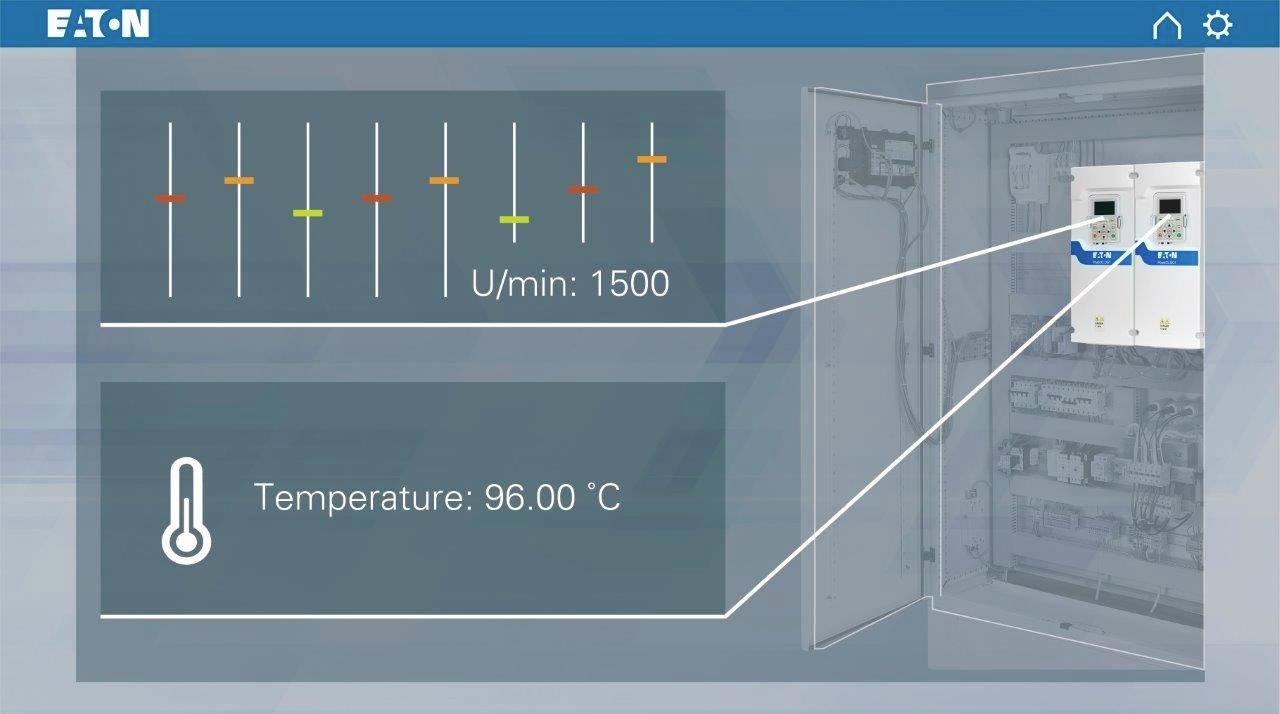

Display with switches for RPM: 1500 and Temperature: 96 °C. Open switch housing with detailed view of fuses.

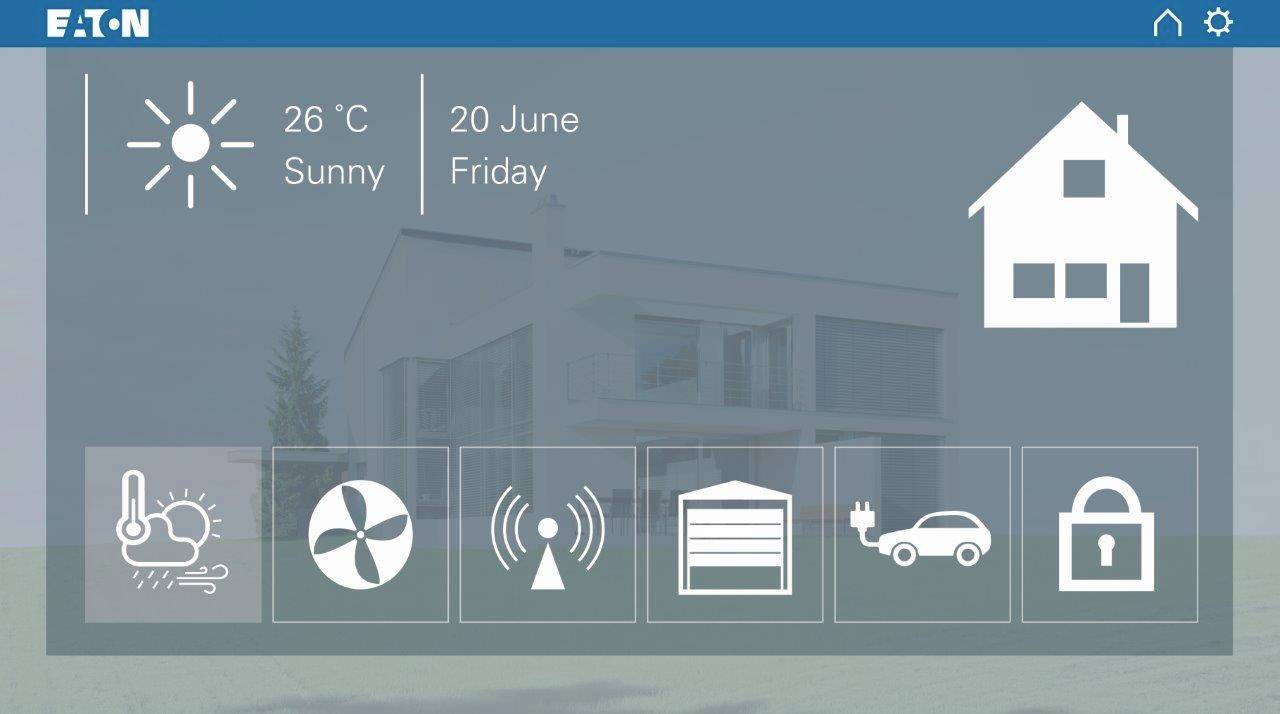

Weather display: '26°C, sunny'. Date: '20th June, Friday'. Smart home control icons: Climate, Ventilation, Wi-Fi, Garage, Car, Security.

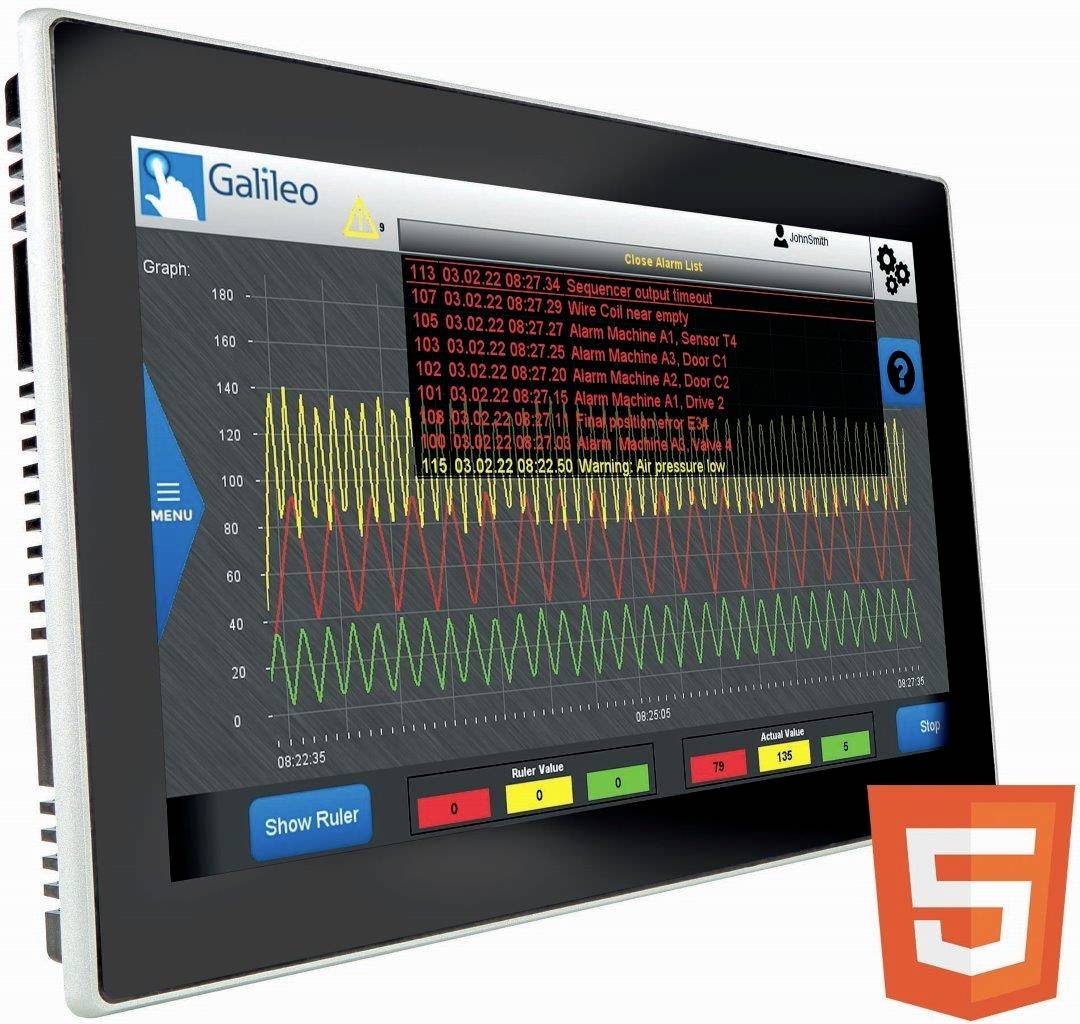

A screen displays a diagram with measurement values and machine warnings. An HTML5 symbol is visible in the bottom right corner.

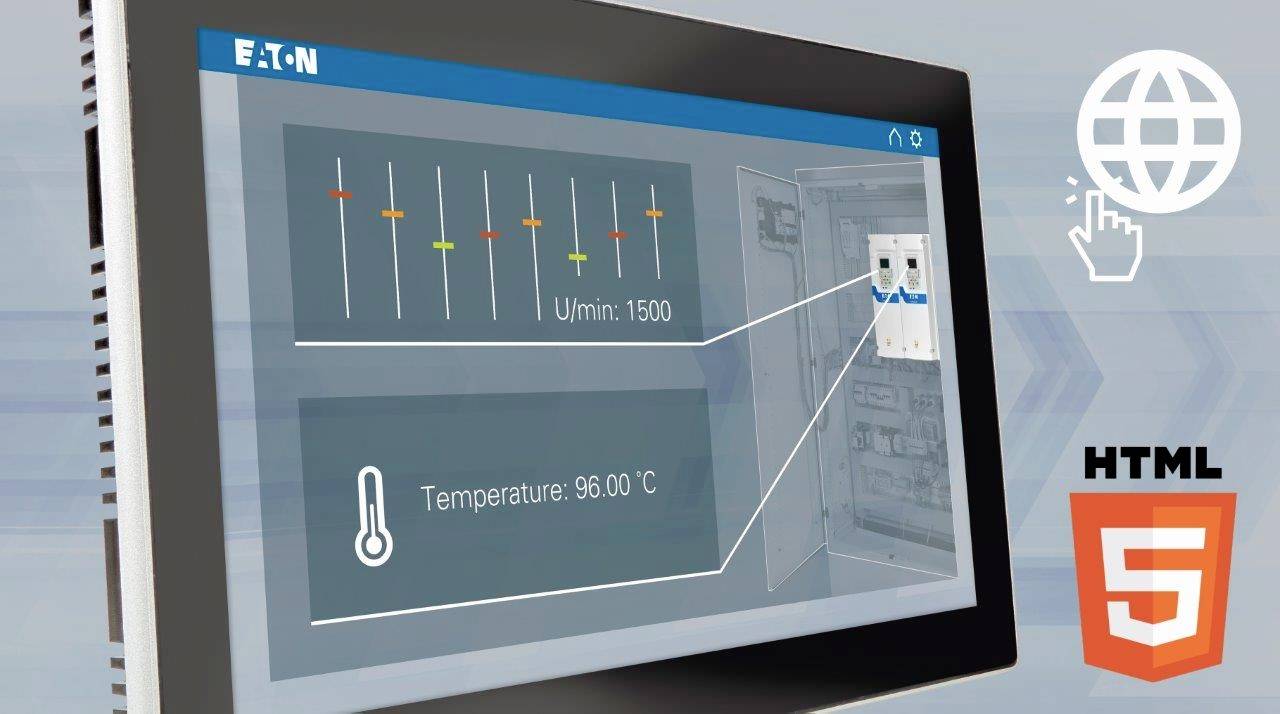

A screen displays a control system with a temperature reading (96°C) and voltage values (RPM: 1500). Symbols for Internet and HTML5 are visible.

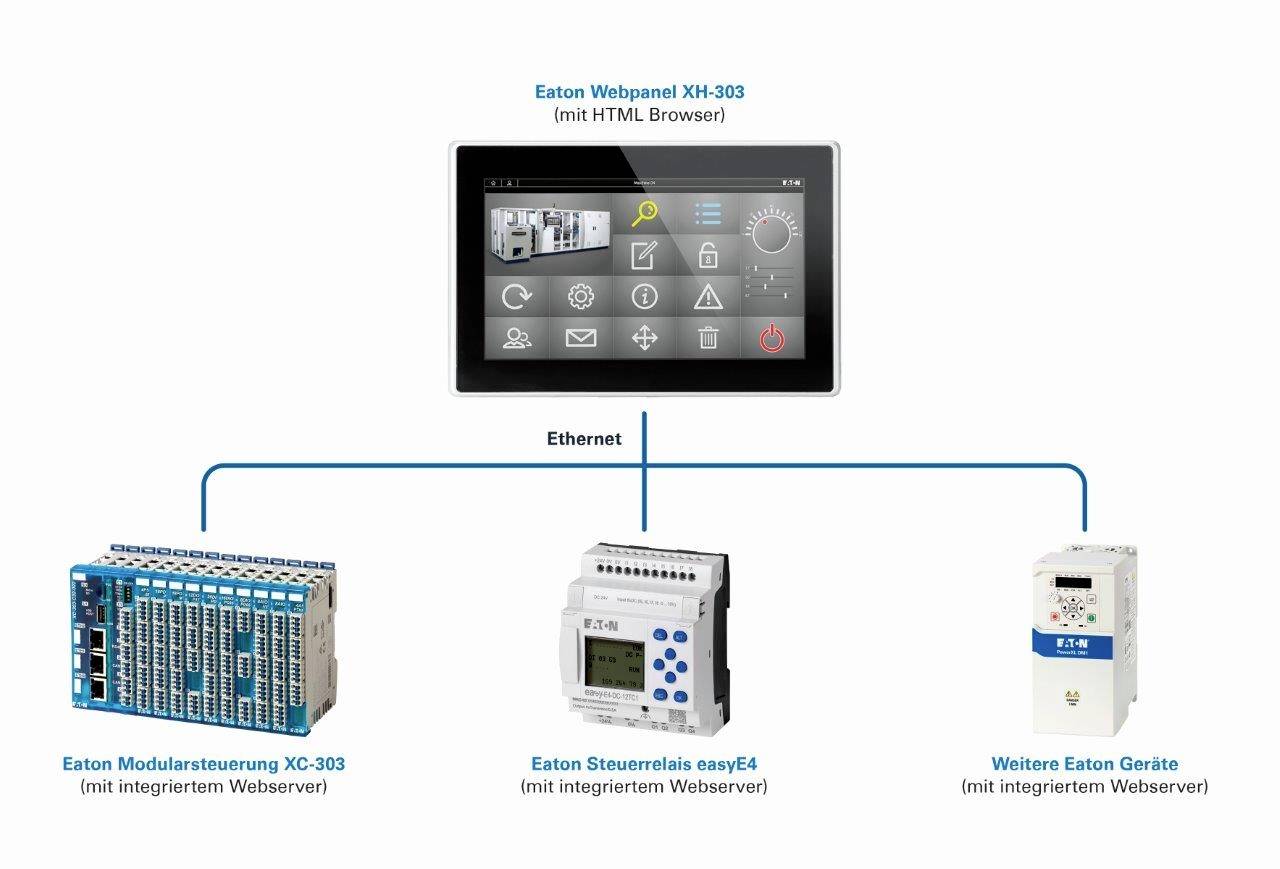

Ethernet network diagram shows the connection of an Eaton Webpanel XH-303 with a modular control system, a control relay and other devices.

1/14

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,075.00 / piece)

€ 1,075.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Display type: Colour display, TFT
Touch technology: Capacitive multi-touch
Resolution 1024 x 600 pixels
Size: 7"
Linux operating system

Product type: Browser web panel

Interfaces: 1x Ethernet 1000 Base-T/100 base-TX/10 base-T
1x USB Host 2.0

Type: XH-303-70-A10-A00-2B

Manufacturer part #: 199882

Operating voltage: 24 V DC

Operating voltage: 24 V / DC

Height: 135 mm

Length: 196 mm

Width: 51 mm

: Front: IP65 / connection: IP20

Current consumption: 0.6 A

Dim: (L x W x H) 196 x 51 x 135 mm

Content: 1 pc(s)

Display: Yes

Max. ambient temperature: 50 °C

Min. ambient temperature: 0 °C

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2909371 Eaton 199882 XH-303-70-A10-A00-2B Browser web panel

User & Safety Instructions

User & Safety Instructions 2909371 Eaton 199882 XH-303-70-A10-A00-2B Browser web panel

Information

Information 2909371 Eaton 199882 XH-303-70-A10-A00-2B Browser web panel

Conformity certificate

Conformity certificate 2909371 Eaton 199882 XH-303-70-A10-A00-2B Browser web panel

Description

Visualizations on the basis of HTML 5, as is already used to in standard market mobile devices such as smartphones or tablets, are also used in the networked automation world. The XH300 web panel supports you in the decentralized visualization of web-based content in a convenient way. Thanks to a high-performance processor and strong RAM even the complex web-contents can be displayed on the devices. The web panel with capacitive multi-touch technology is available in modern design in three different sizes. Whether in machine or plant engineering, building automation, IoT or Smart home applications - the XH300 are suitable for use in a wide range of applications. This also includes harsh industrial environments.

Customisable
The devices can be installed in portrait or landscape format to save space. The device orientation can be freely selected and adapted to your requirements.

Robust
With its modern design and flat and hardened glass front, the XH300 web panels are ideal for industrial use.

Commissioning made easy
An integrated web configuration tool is available for commissioning, which efficiently supports the user with the extensive configuration options. Access can be done either with the local browser or with a browser installed on a connected device.

Interfaces on board
All XH300 versions have an integrated Ethernet interface, which can be used to connect the web panel to other devices from the Eaton portfolio. This allows the visualization of local devices with integrated web server to be displayed correctly. An additional USB connection is available, which can be used for firmware updates of the XH300 devices or for export of log files.

High quality display
The display of the web panel enables a very good readability with its clear, high-contrast display - even in bright ambient light. Regardless of which direction the user thereby looks at the display, thanks to the large viewing angle the display contents shown is always displayed correctly.

Powerful
Thanks to its high system performance with high-performance CPU, the XH300 devices offer all the prerequisites for a modern user interface, fast image change and the integration of multimedia elements such as video, PDF and web content.

This text is machine translated.
